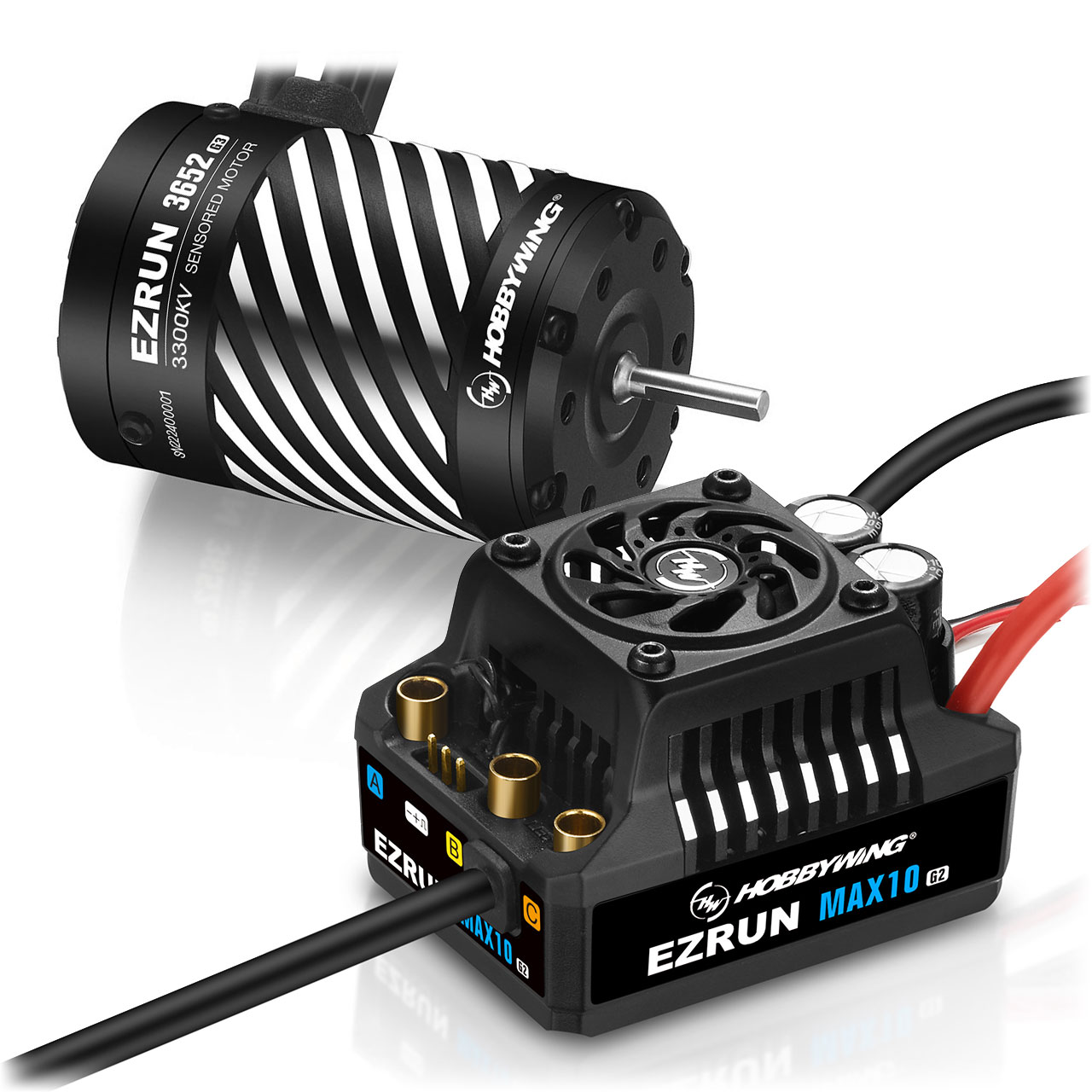

Hobbywing Ezrun MAX10 G2 80A Combo with 3652SD-3300kV 3,175 shaft
- Part No: HW38020346
- Retail: €121.00
- EAN: 6938994407526
- Notice: Waterproof, Brushless, Sensorless,38020346
The Ezrun Max10 G2 Combo with its updated 80A ESC combo is here, including several updates and tweaks that make driving 1/10 short courses and trucks even more enjoyable. The ESC comes with a 3652SD motor with 3300kV.
In a direct comparison to the regular MAX10 combo, it is clear that the sensor mode and the accompanying waterproof cable have been heavily revised and now ensure great throttle response. The fantastic acceleration with stable output power as well as the nice linearity at low speeds are also among the aspects that have been particularly improved. When it comes to heat development, the MAX10 G2 Combo really outperforms other comparable products. This is partly due to the optimizations in the design and of course also due to the larger capacitors.
The perfect introduction to get started right away with a 1/10 car!
Features
- Built-in Super BEC
- Frameless smart fan
- Real-time data & data recording possible
- Includes turbo timing setting
- Improved sensor
- Excellent throttle response
- Even faster with its constant output power
- 4-pole rotor for high torque
- Easily dismantled motor for maintenance work
Technical Specifications
| ESC (80A) | |
| Type: | Brushless Sensored |
| Current (cont./peak): | 80A/520A |
| No. of Cells: | 2-3S LiPo |
| Motor Limit: | 2S LiPo: <= 6000kV 3S LiPo: <= 4200kV (3652 Motor) |
| BEC: | 6V/7.4V, 5A |
| Plug: | XT60 |
| Programming: | LED Program Box LCD Program Box (G2) OTA Program Module Seperate Programming Port |
| Dimensions: | 53x39.5x37.2mm |
| Weight: | 120g |
| Waterproof: | Yes, IP67 |
| Application: | 1/10 On-Road/Off-Road Short Course Truck (light duty) |
| Motor | |
| Type: | Brushless, Sensored |
| kV Rating: | 3300kV |
| No-Load Current: | <=3.9A |
| No. of Cells: | 2-3S LiPo |
| Poles: | 4 |
| Length: | 53mm |
| Diameter: | 37mm |
| Shaft Diameter: | 3.175mm |
| Weight: | 228g |
| Application: | 1/10 On-Road/Off-Road Short Course Truck (light duty) |
Delivery
1x Ezrun MAX10 G2 ESC with 80A

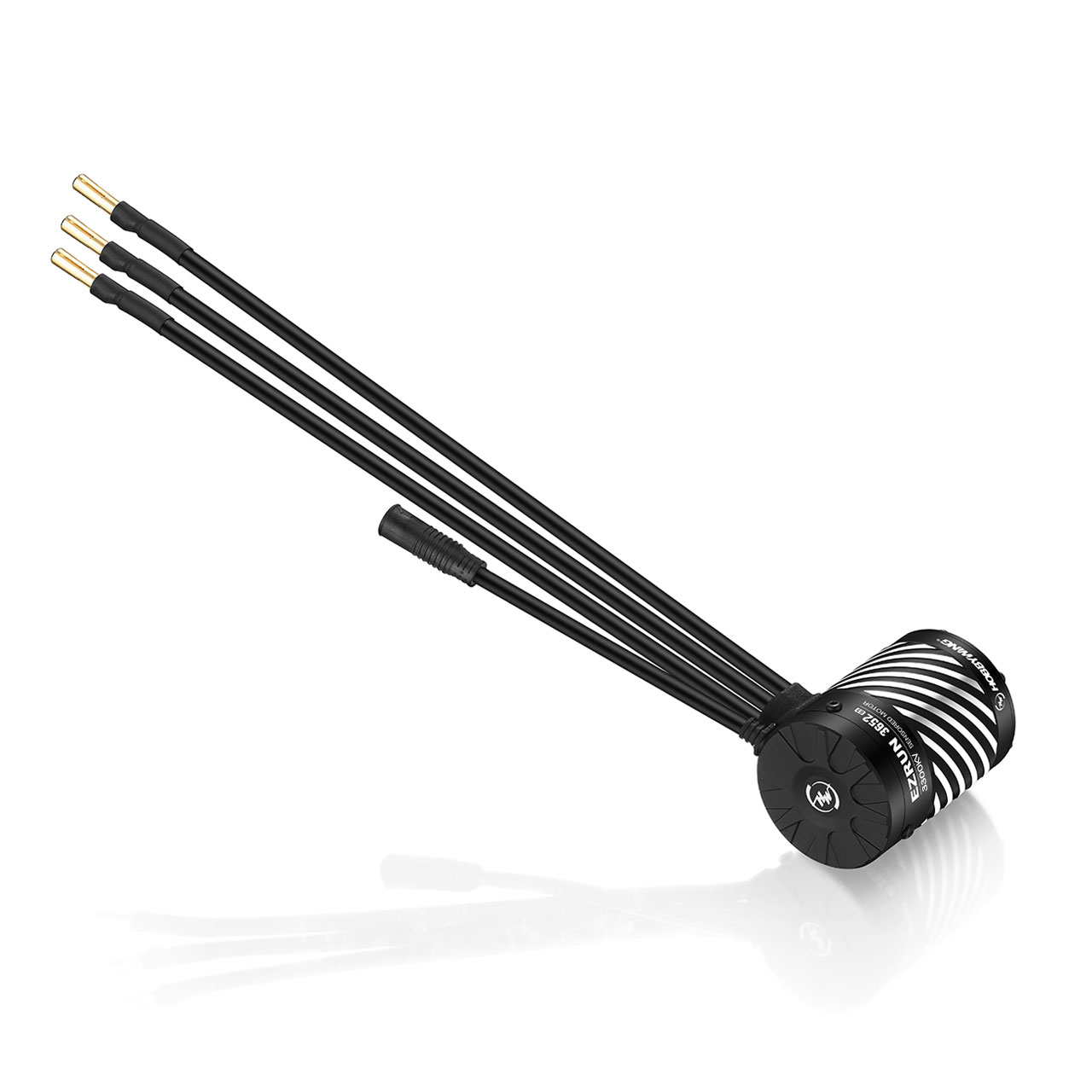

1x 3652SD Motor G3 with 3300kV
1x Manual
