Xerun XR10 Justock G3S Brushless ESC 60A, 2s LiPo, BEC 4A
Sensored Brushless ESC with 60 A continuous current and adjustable RPM limit
- Item number
- HW30112005
- EAN
- 6938994408677
RRP €56.90
Description

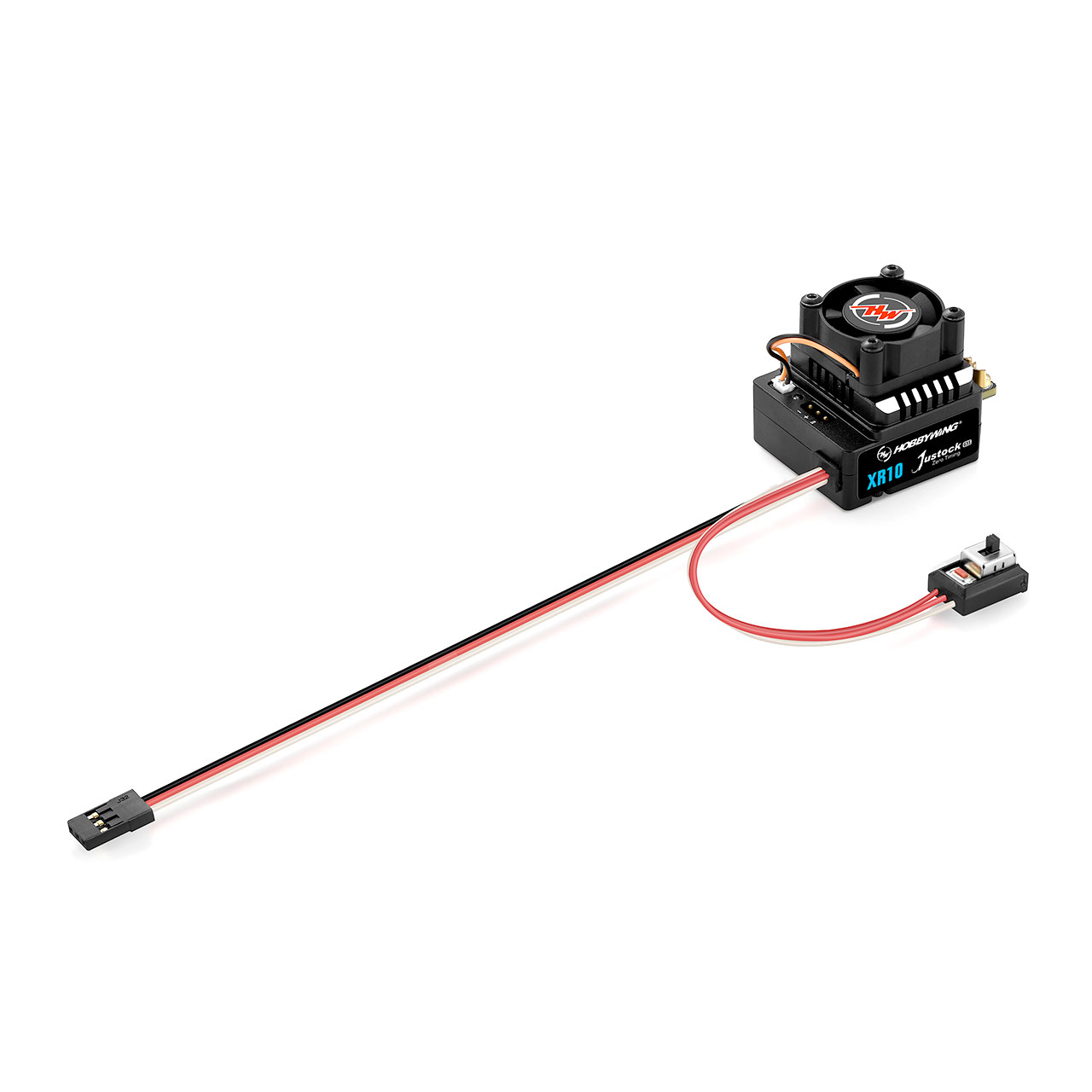

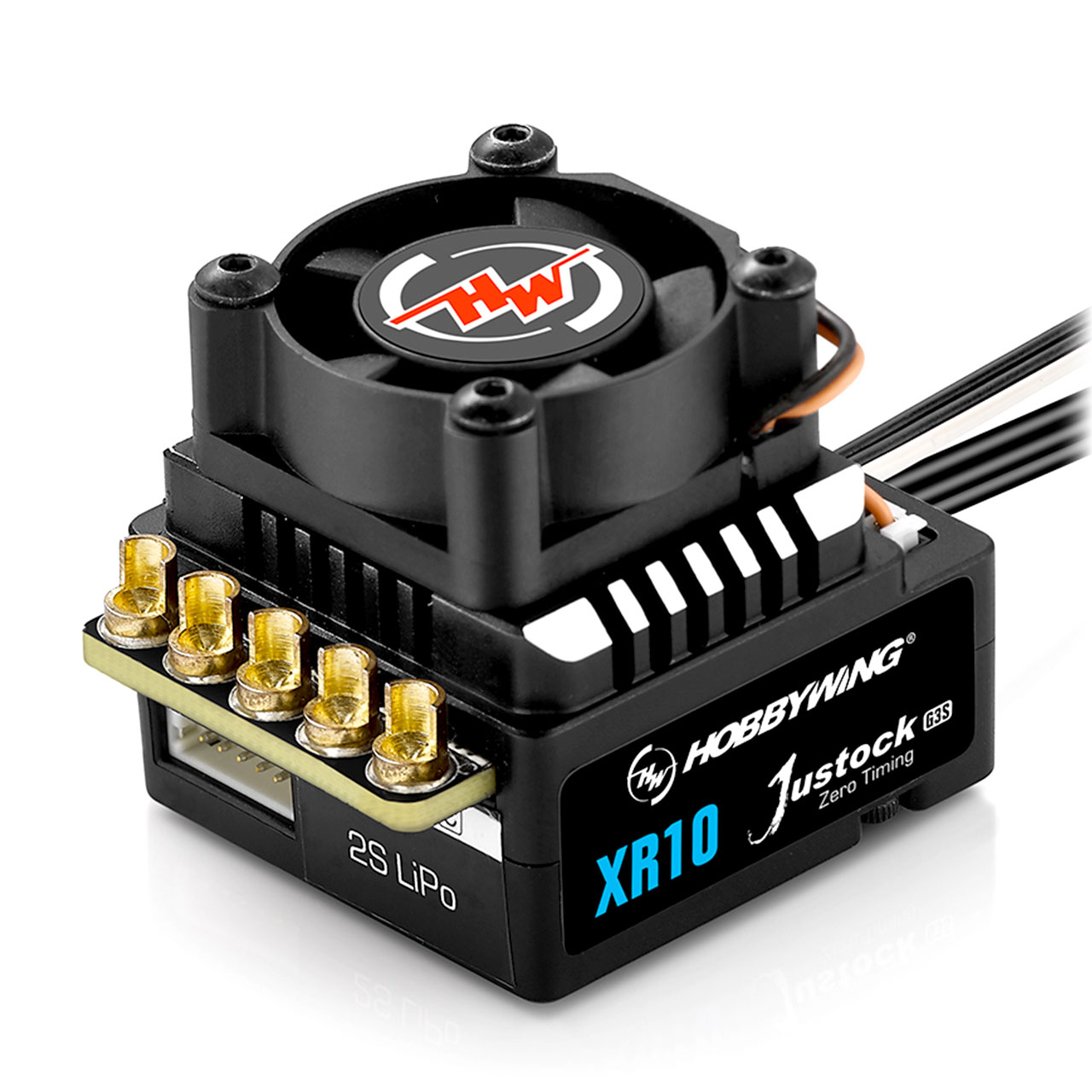

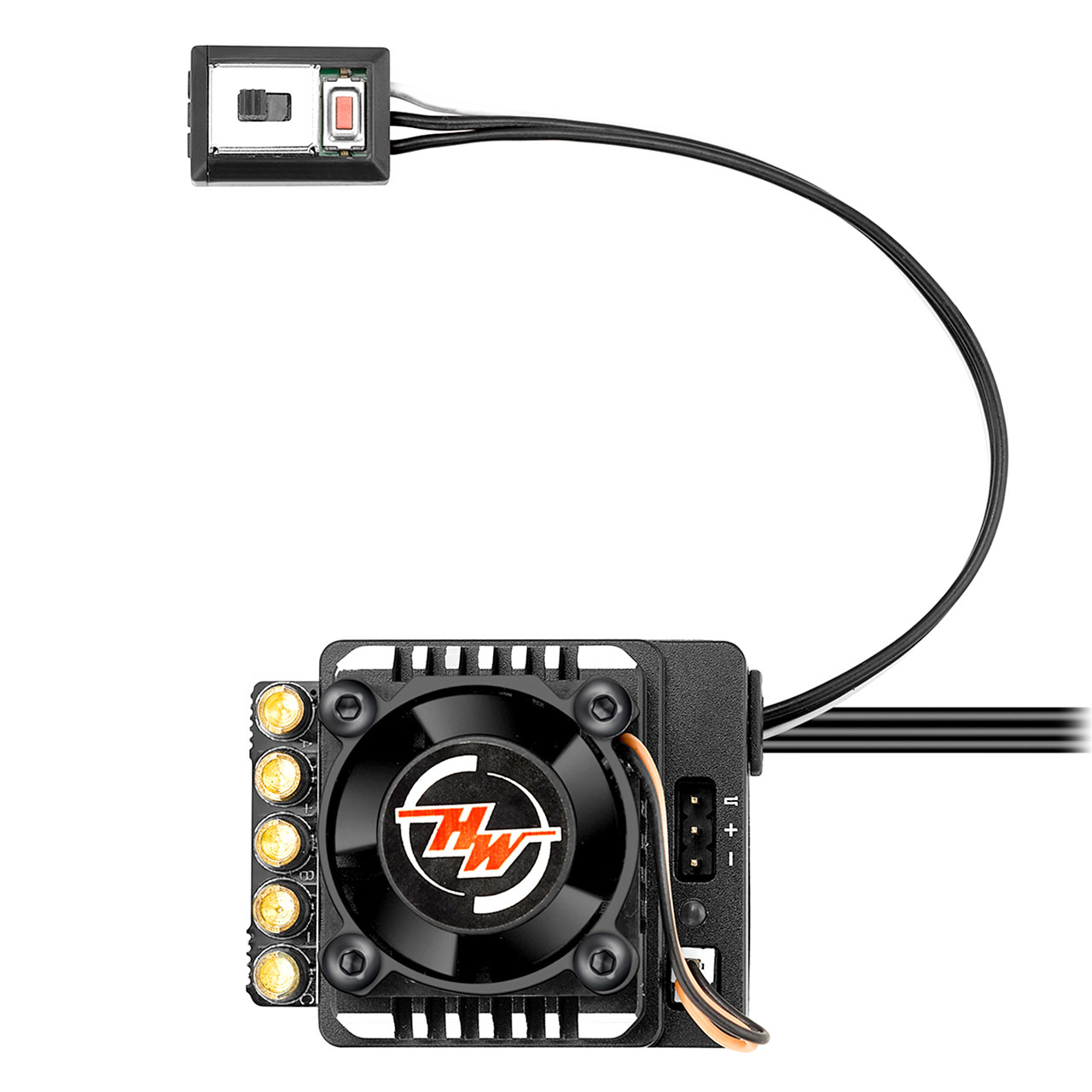

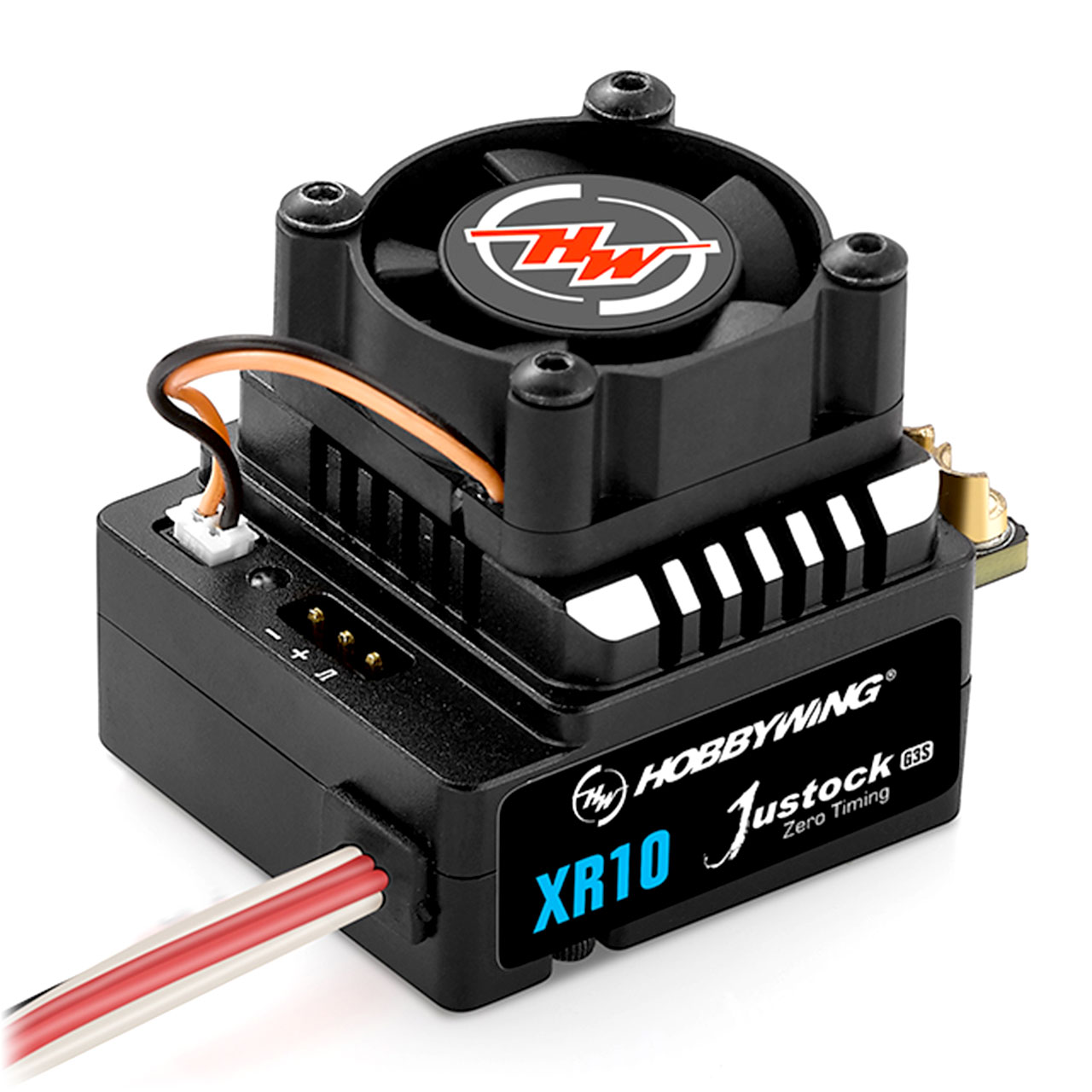

The XR10 JUSTOCK G3S is a Brushless ESC for racing and training. Compared with the Justock G3, it offers additional settings for the smart fan, freewheeling and initial throttle force, as well as finer parameter adjustment. It supports 0 timing and an adjustable RPM limit. Motor rotation can be set to clockwise or counterclockwise, and the BEC voltage is adjustable.
The ESC has reverse polarity protection to help prevent damage if the battery is connected incorrectly.
Notes
- Optional accessories: LCD Programming Box G2 (HW30502001), LCD Programming Box Pro (HW30502002), OTA Programmer (HW30850400).
Highlights
- RPM limit adjustable from 10000 RPM to 88000 RPM in 1000 steps, rather than only 25000 or 33500 RPM; 0-timing option
- Selectable motor rotation direction (CW or CCW)
- Adjustable BEC voltage: 6 V or 7.4 V
- Aluminium housing for heat dissipation and built-in capacitors
- Firmware upgrades available
- Protection against reverse polarity, overheating, undervoltage and motor lock-up; fail-safe function
Specifications
| Type | Brushless, Sensored |
|---|---|
| Power Cont./Peak | 60 A / 380 A |
| Input Voltage | 2S LiPo |
| BEC | 6 V / 7.4 V @ 4 A |
| Motor Types | Brushless Motors (sensored / sensorless) |
| Motor Limit | ≥10.5T 3650 Motor |
| Fan | Yes, Input via BEC |
|---|---|
| Programming | LCD Programming Box G2, LCD Programming Box Pro, / OTA Module, separate Programming Port |
| Dimensions | 40.9 × 33.9 × 32.1 mm |
| Weight | 75.4 g |
| Application | 1/10, 1/12 On-Road and Off-Road Competition and Training (e.g. Touringcar, Buggy) |
Documents
Safety & manufacturer
Manufacturer
Hobbywing
Item number: HW30112005
EAN: 6938994408677
Responsible person in the EU
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
