Product information "Hobbywing QuicRun 1060 Brushed ESC Tamiya Plug 60A for 1:10"
The QuicRun series of products include brushed power systems, sensored brushless power systems and sensorless brushless power systems. They are very cost-effective, and specially for beginners and intermediate-level drivers. This series not only continue the outstanding quality of HOBBYWING products, but also simplify the operation. Users can directly use them without any complicated adjustments.
Features

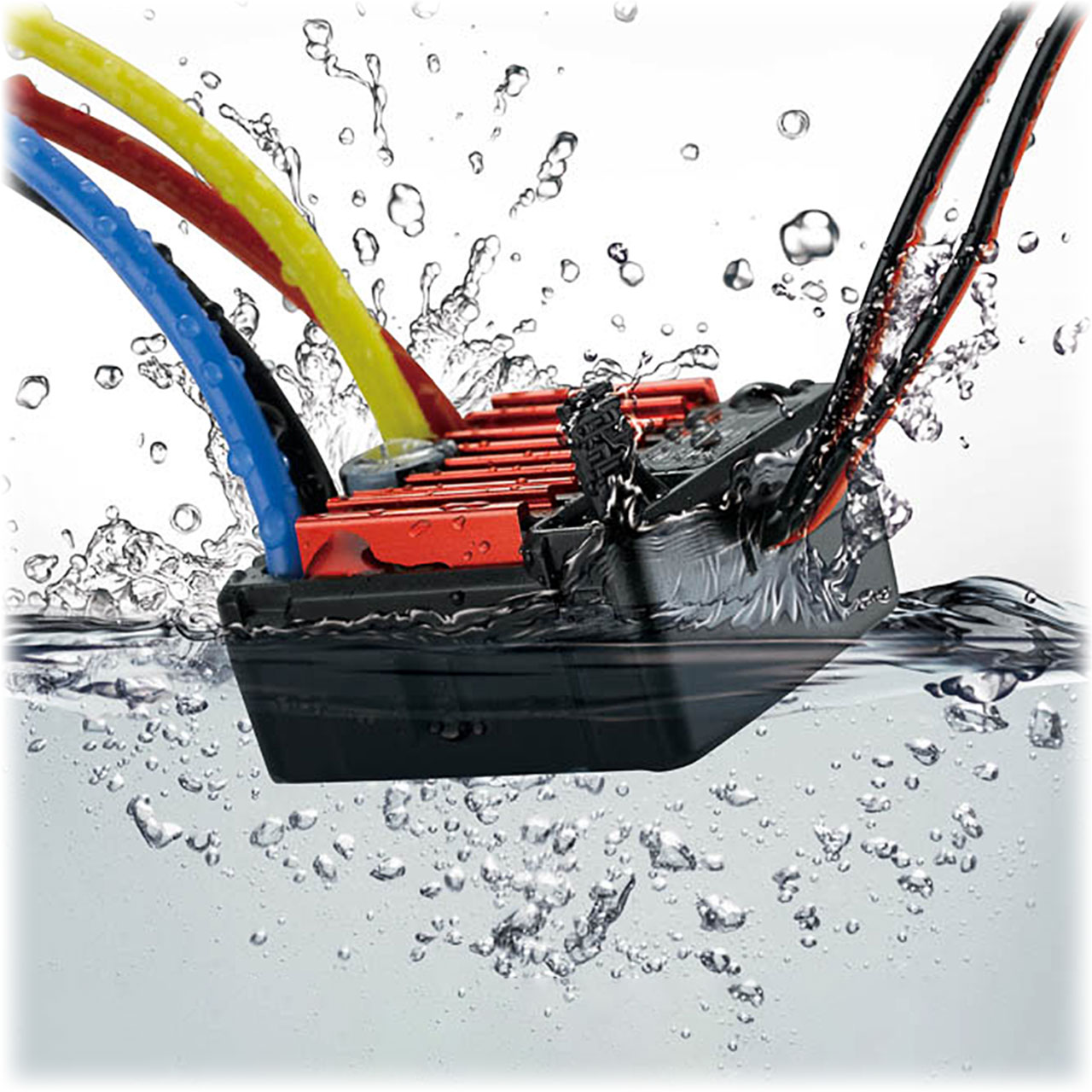

Water-proof and dust-proof, suitable for all-weather condition races.
Small size with built-in capacitor module.
Four running modes to fit various vehicles
Fwd/Br/Rev
Fwd/Br
Fwd/Rev (also called "Crawler Mode")
(Note: Fwd =Forward, Br=Brake, Rev=Reverse)
Great current endurance capability.
Switch mode built-in BEC has powerful output.
Automatic throttle range calibration, easy to use.
Easy to set the ESC parameters with jumpers.
Multiple protections: Low voltage cut-off protection for battery / Thermal (Over-heat) protection / Throttle signal loss protection.
Technical Specifications
Fwd. Cont. / Peak Current:
60A / 360A
Rev. Cont. / Peak Current:
30A / 180A
Voltage Range:
2-3S Lipo or 5-9 NiMH
Scale:
1/10
Application:
Touring Car, Buggy, Short Course Truck Monster, Truggy, Rock Crawler, Tank
Motor Limit:
2S Lipo or 6 cells NiMH: 540, 550 Size Motor: >=12T or RPM<30000 @7.2V 3S Lipo or 9 cells NiMH: 540, 550 Size Motor: >=18T or RPM<20000 @7.2V
BEC Output:
3A / 6V
Plugs:
XT60
Dimensions:
36.5 x 32 x 18mm
Weight:
39g
The ESC can be programmed by jumpers.
Running Mode:
Fwd/Br/Rev
Fwd/Br
Fwd/Rev (Crawler)
Battery Type: Lipo / NiMH
