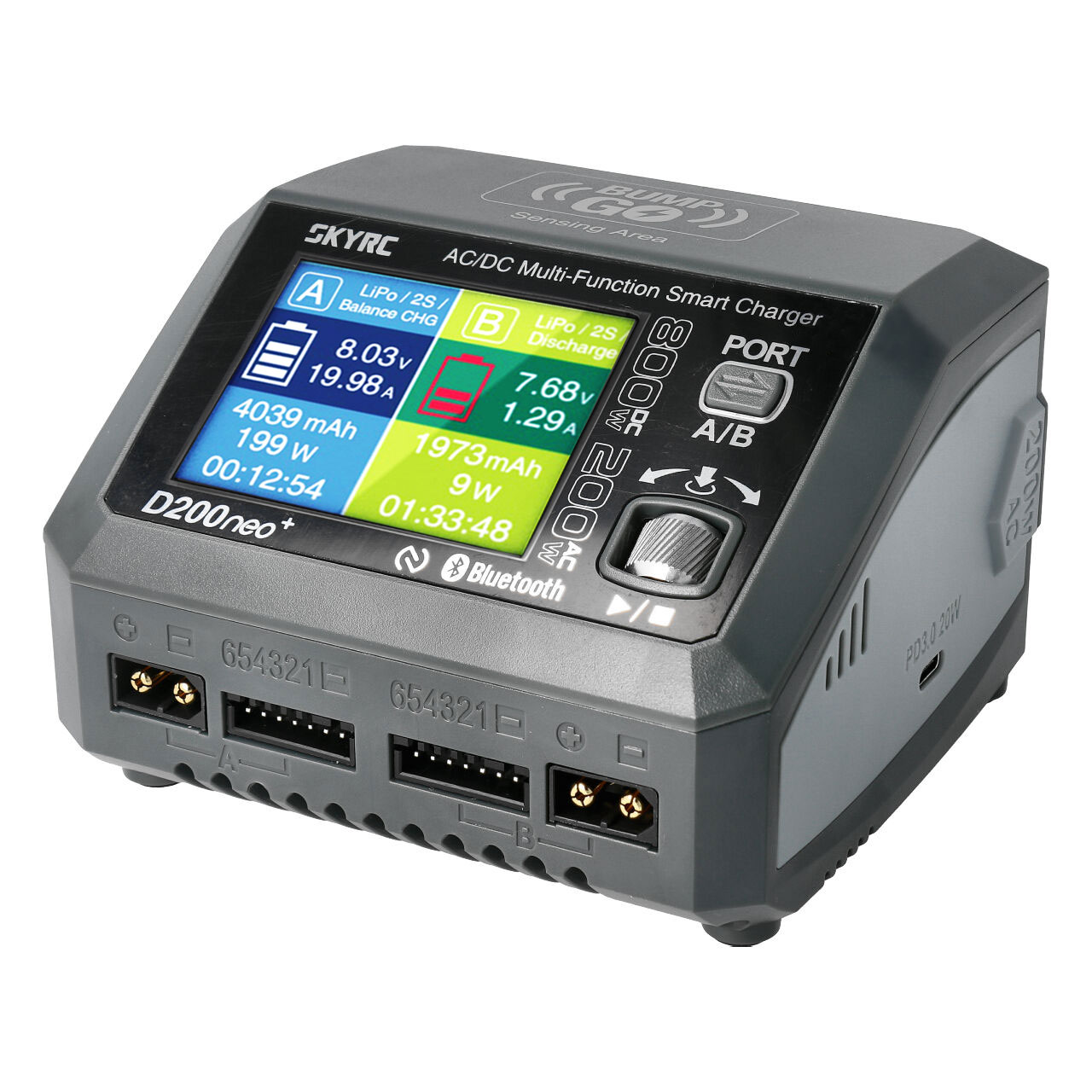

SkyRC D200 Neo+ LiPo 1-6s 20A 200W AC Charger
- Part No: SK100196-06
- Retail: €139.90
- EAN: 6930460008282
- Notice: SK-100196-06
AC/DC charger with two charging channels, BumpGO NFC and up to 800 W DC power
The D200 neo+ AC/DC multifunction charger is an updated version of the D200, designed for model aircraft. It has two separate charging interfaces, NFC technology and support for most battery types used in the RC industry.
BumpGO NFC stores charging presets on an NFC tag sticker attached to the battery. Scanning the tag at the top of the charger retrieves the settings for the next charge.

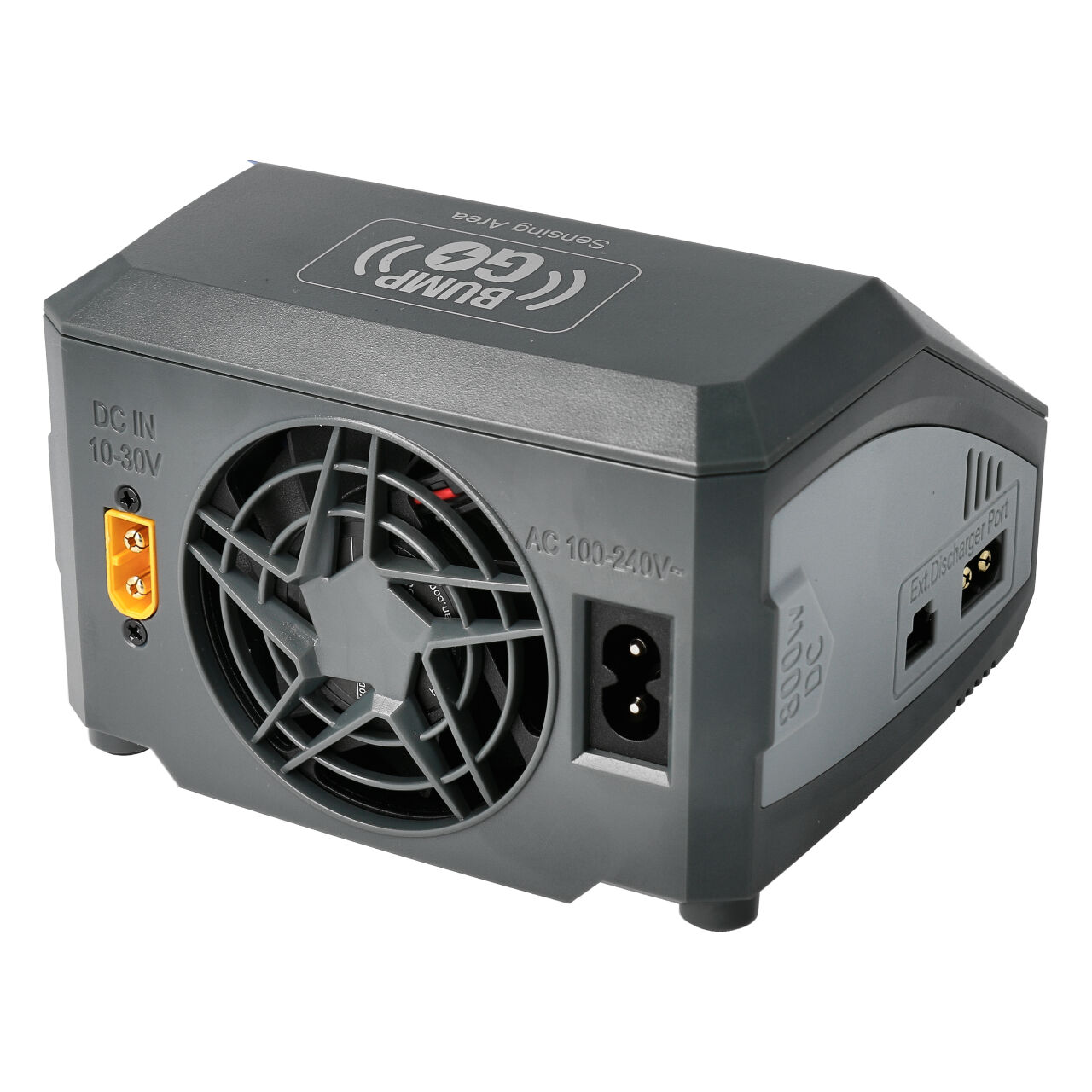

The charger has two independent inputs, features adopted from the T1000 and a scroll wheel button. A BD350 discharge unit can be connected to increase discharge performance. The SkyCharger app and Charger Master software for Windows/Mac OS provide programming controls and charging or discharging information.
Highlights
- BumpGO NFC charging presets
- 200 W AC charging power; 800 W DC charging power
- Scroll wheel button control
- Lightweight and compact
- PD/QC3.0 fast charging
- Compatible with SkyCharger app and Charger Master
Specifications
| Input Voltage AC | 100–240 V |
| Input Voltage DC | 10–30 V |
| Charge Power | AC max. 200 W × 2 / DC max. 400 W × 2 |
| Discharge Power | 2 × 10 W |
| External Discharge Power | max. 350 W |
| Charge Current | 0.1–20.0 A / 20.0–35.0 A (Parallel) |
| Discharge Current | 0.1–2.0 A |
| Balance Charge Current | max. 1.5 A |
| Battery Types | LiXX: 1–6S / NiXX: 4–15S / Pb: 3S / 6S / 12S |
| Weight | 602 g |
| Dimensions | 116 × 110 × 79 mm |

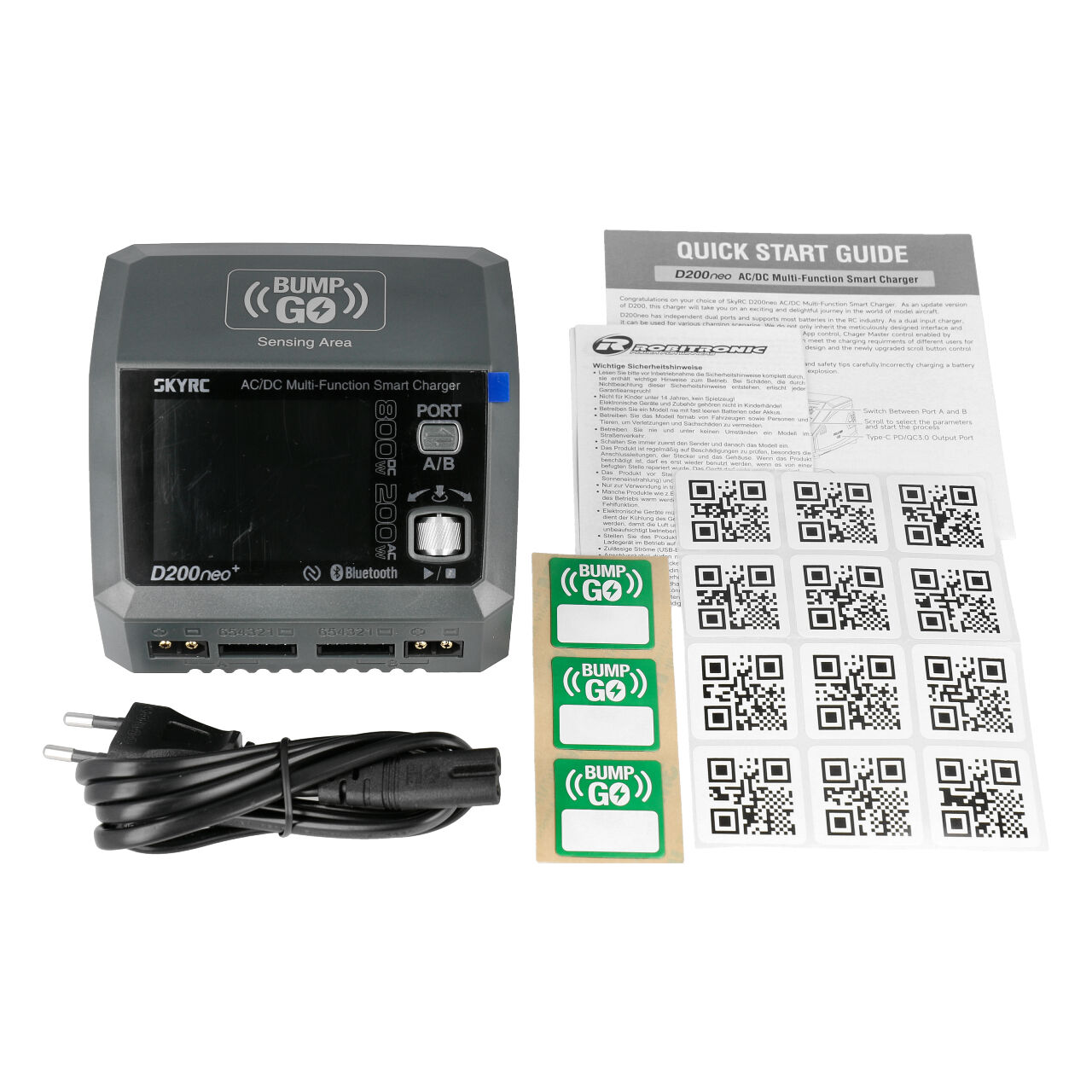

In the box
- 1× D200 NEO+ Charger
- 3× NFC-Tags
- 12× QR-Codes
- 1× Manual
- 1× AC power cord
