Product information "Hobbywing Combo WP10BL120G2 3652SL-3250KV-G2"

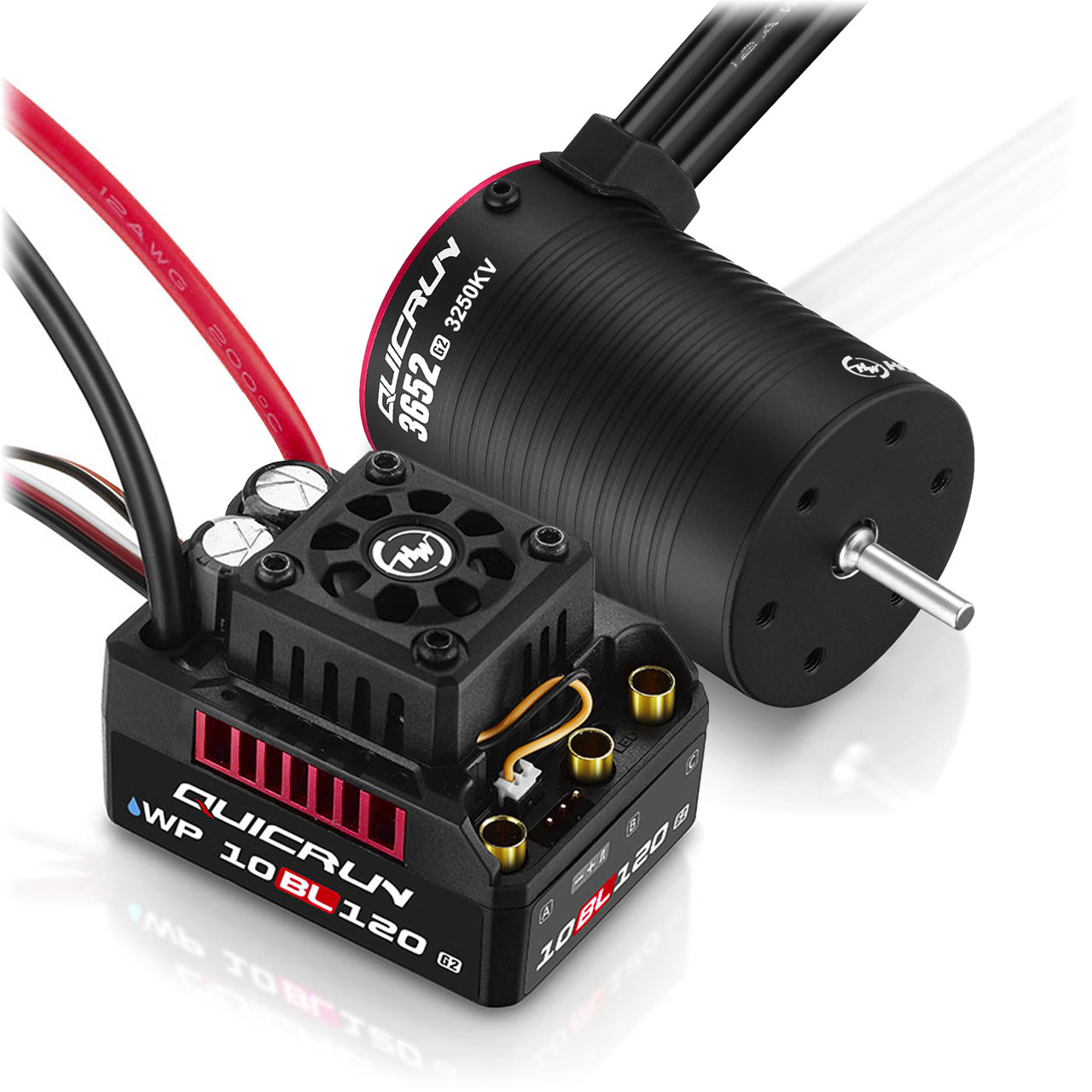

Dive into a pinnacle of performance and reliability with the combo of the QuicRun WP 10BL120 G2 ESC and the Quicrun 3652SL G2 motor. This dynamic duo offers unparalleled performance for demanding RC vehicles, ensuring you get the most out of your model in any situation.
The QuicRun WP 10BL120 G2 ESC sets new standards with its intelligent freewheeling technology, providing improved performance and higher driving efficiency. With a powerful integrated BEC, switchable output voltages, and a robust cooling system, this ESC is ideal for all RC models requiring reliable power. Additionally, its waterproof and dustproof properties allow it to withstand all weather conditions, delivering consistent and powerful performance on mud, sand, ice, snow, or water. On the other hand, the Quicrun 3652SL G2 motor takes this performance to a new level with over 10% additional power compared to its predecessor, while generating less heat. High-quality components such as the hardened aluminum cover and internal wires capable of withstanding temperatures of up to 200°C support the strengths of this motor series. Easy to maintain and equipped with explosive power, this motor is the perfect complement to the QuicRun WP 10BL120 G2 ESC, offering unmatched performance in any terrain and under any conditions.
Whether you're seeking speed, power, or reliability, the combination of the QuicRun WP 10BL120 G2 ESC and the Quicrun 3652SL G2 motor is the choice for RC enthusiasts who want to get the most out of their model cost-effectively.
Features
Experience even more tuning options than its predecessor, including Turbo Timing among others.
Improved switchable BEC output.
Motor rotation direction freely selectable (CW or CCW).
Various protection features in the ESC.
Top performance at an affordable price.
Compact design, suitable for a variety of chassis.
Ideal for many applications and competitions.
Enhanced acceleration and explosive power delivery.
CNC-machined aluminum motor housing.
Utilization of high-quality motor components for durability and smooth operation.
Easily disassembled for maintenance.
Technical Specifications

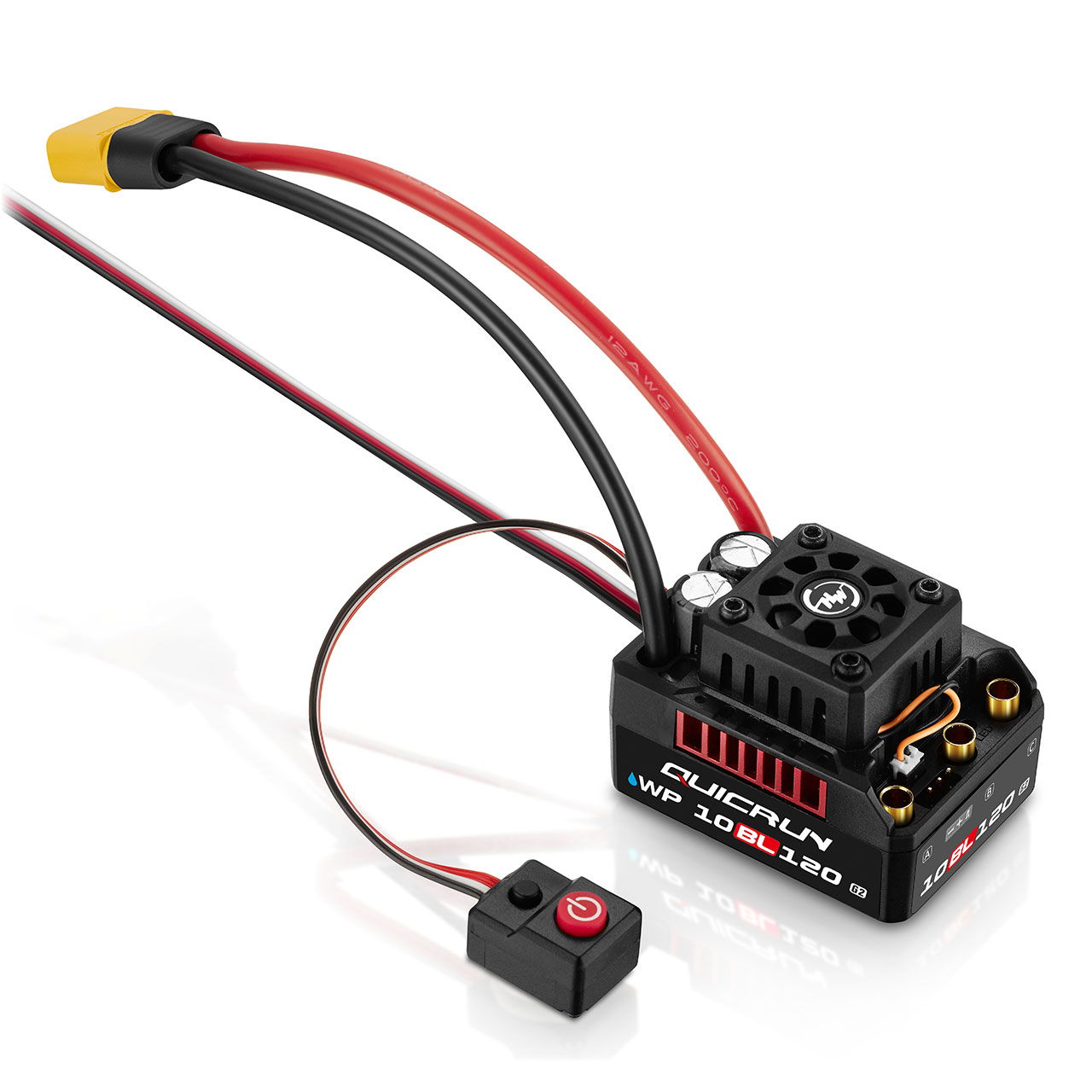

ESC
Type:
Brushless, Sensored
Current (cont./peak):
120A / 760A
Input Voltage:
2-4S LiPo
BEC:
6V / 7.4V @ 5A (switch mode)
Motor Types:
Brushless motors (with/without sensor)
Motor Limit:
3S LiPo: kV <= 4000 3660 motor 4S LiPo: kV <= 2600 4268 motor
Fan:
Yes, powered by BEC
Programming:
LED Program Box LCD Program Box (G2) Separate Programming Port
Waterproof:
Yes (IP67)
Dimensions:
52.8 x 39.8 x 38.2mm
Weight:
119g
Application:
1/10 Short Course, Monster Truck

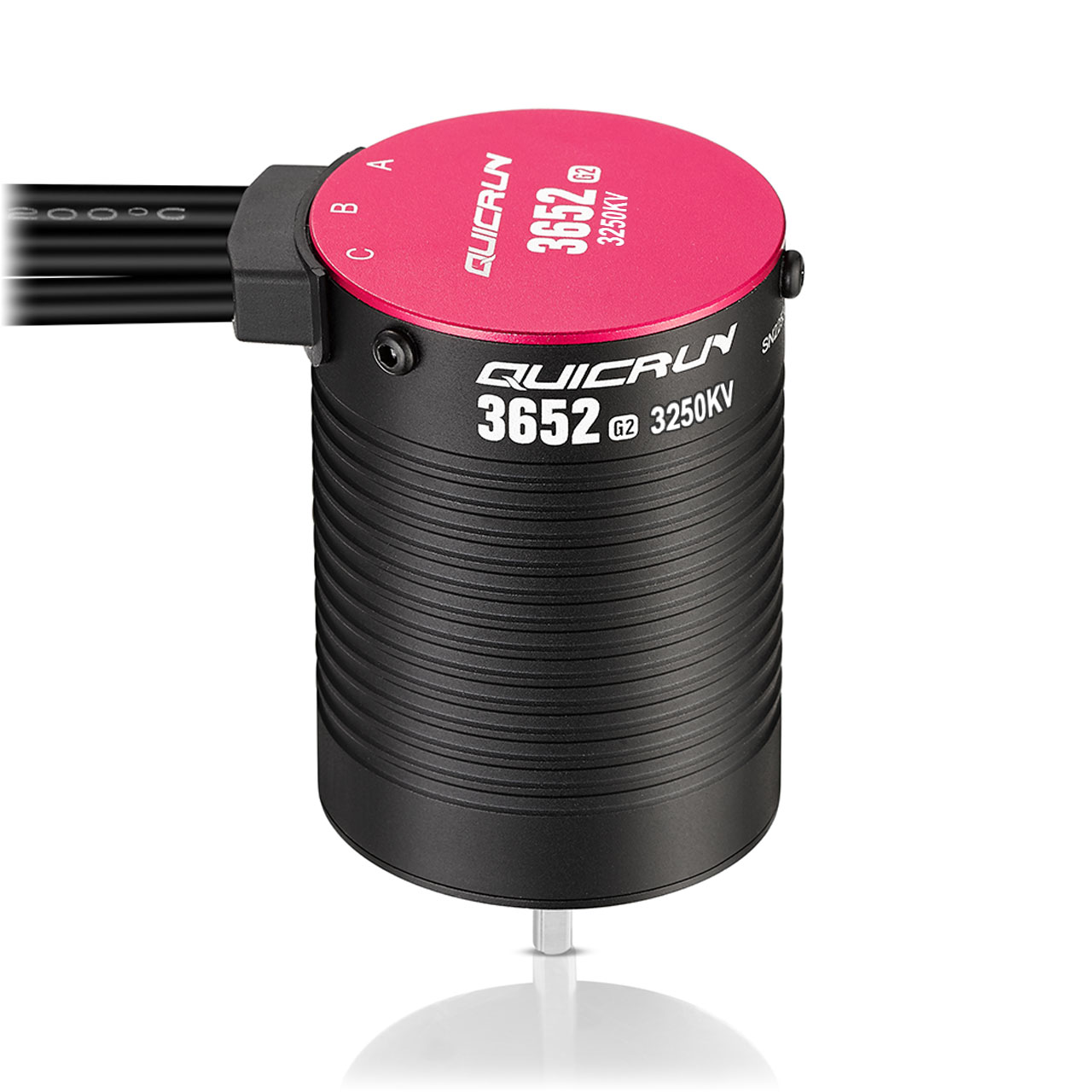

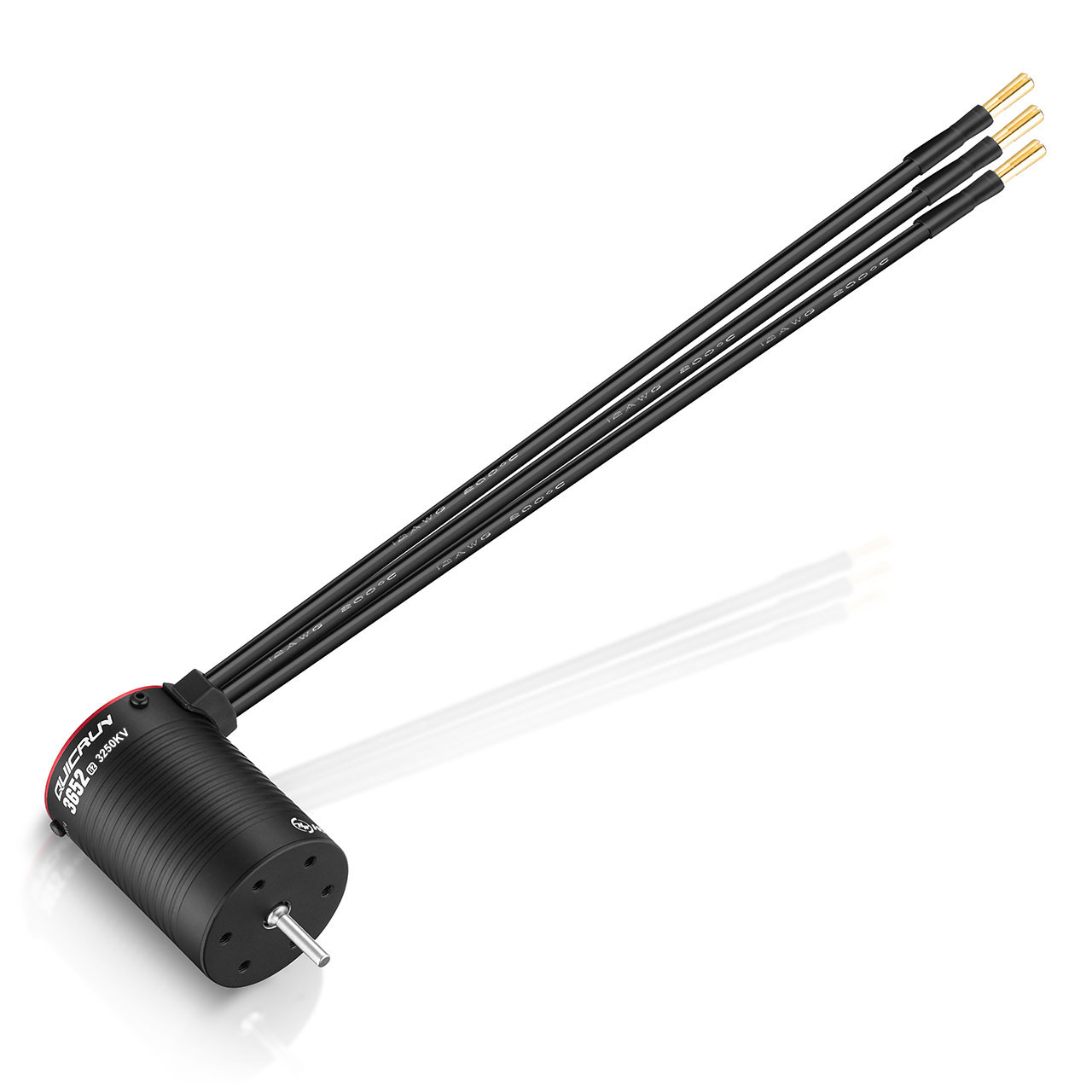

Motor
Type:
Brushless / Sensorless
Poles:
4
kV Rating:
3250kV
LiPo Cells:
2-3S
No-Load Current:
4.0A
Outer Diameter:
36mm
Length:
52mm
Shaft Diameter:
3.175mm
Shaft Length:
15mm
Weight:
224g
Application:
On-Road, Buggy, Truck (light load)
Optional Accessory
HW30502001 LCD Program Box G2
HW30501003 LED Program Box
Delivery
Quicrun WP10BL120 G2 ESC
Quicrun 3652SL Motor with 3250kV
Manual
Sticker & Accessories
