Hobbywing Ezrun MAX10 G2 80A Combo with 3652SD-5400kV 3,175 shaft
- Part No: HW38020348
- Retail: €111.90
- EAN: 6938994407540
- Notice: Waterproof, Brushless, Sensorless,38020348
1/10 combo with MAX10 G2 80 A ESC and 3652SD G3 5400kV motor The Ezrun MAX10 G2 Combo pairs... more
Product information "Hobbywing Ezrun MAX10 G2 80A Combo with 3652SD-5400kV 3,175 shaft"

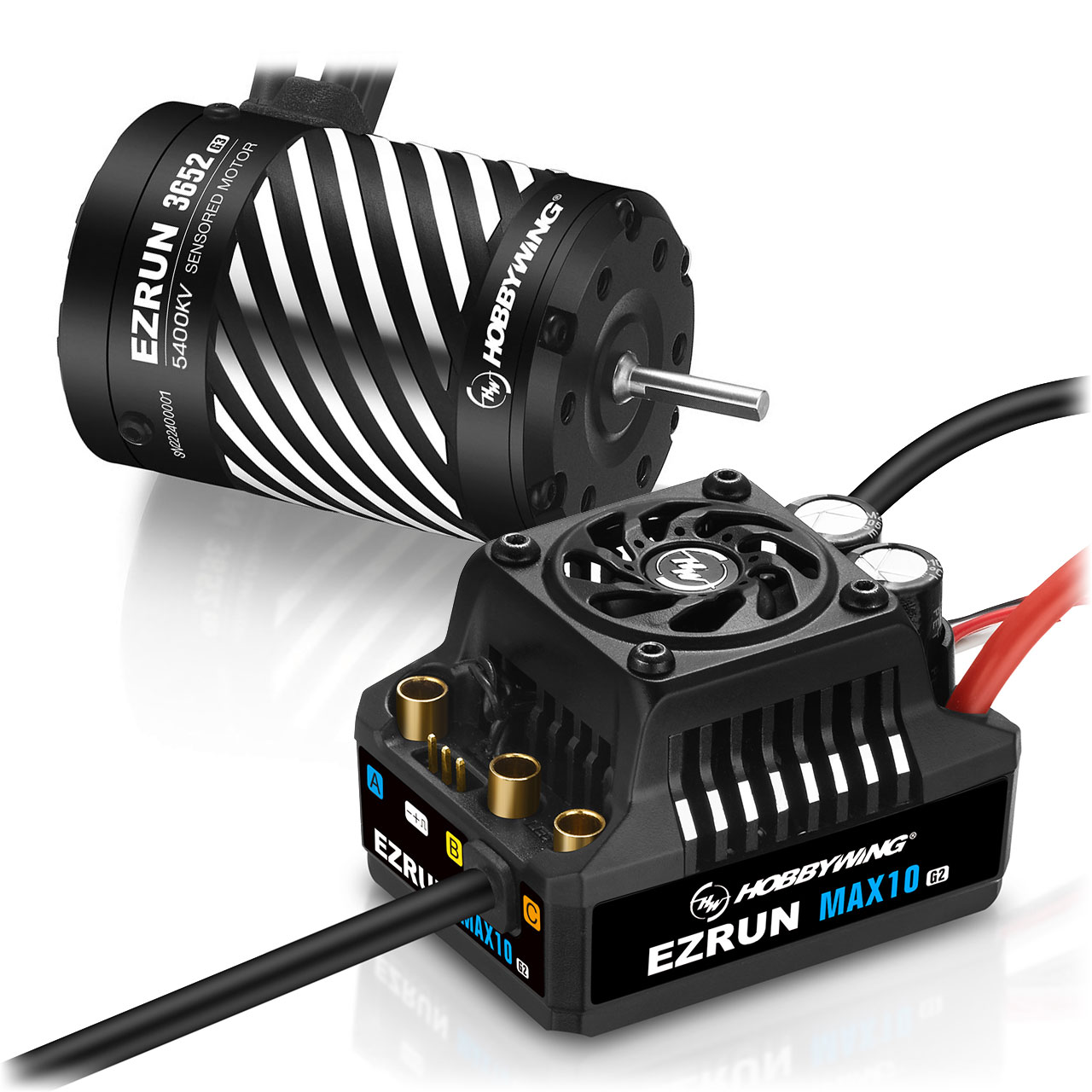

1/10 combo with MAX10 G2 80 A ESC and 3652SD G3 5400kV motor
The Ezrun MAX10 G2 Combo pairs an 80 A ESC with a 3652SD motor rated 5400kV for 1/10 short course trucks. Compared with the regular MAX10 combo, its sensor mode and waterproof cable have been revised for improved throttle response, acceleration with stable output power and linearity at low speeds.
The design optimisations and larger capacitors partly account for the MAX10 G2 Combo's better heat performance compared with other comparable products.
Highlights
- Built-in Super BEC and frameless smart fan
- Real-time data and data recording
- Turbo timing setting and improved sensor
- Improved throttle response and acceleration with constant output power
- 4-pole rotor for high torque; motor can be dismantled for maintenance
Specifications
| ESC (80 A) | |
|---|---|
| Type | Brushless Sensored |
| Current (Cont./Peak) | 80 A/520 A |
| Cells | 2–3S LiPo |
| Motor Limit | 2S LiPo: ≤ 6000kV / 3S LiPo: ≤ 4200kV (3652 Motor) |
| BEC | 6 V/7.4 V, 5 A |
| Connector | XT60 |
| Programming | LED Program Box / LCD Program Box (G2) / OTA Program Module / Separate Programming Port |
| Dimensions | 53 × 39.5 × 37.2 mm |
| Weight | 120 g |
| Waterproof | Yes, IP67 |
| Application | 1/10 On-Road/Off-Road Short Course Truck (light duty) |
| Motor | |
| Type | Brushless, Sensored |
| kV Rating | 5400kV |
| No-Load Current | ≤ 6.8 A |
| Cells | 2S LiPo |
| Poles | 4 |
| Length | 53 mm |
| Diameter | 37 mm |
| Shaft Diameter | 3.175 mm |
| Weight | 227 g |
| Application | 1/10 On-Road/Off-Road Short Course Truck (light duty) |
In the box
- 1× Ezrun MAX10 G2 ESC with 80 A
- 1× 3652SD Motor G3 with 5400kV
- 1× Manual
