SRT Coreless HV High torque Waterproof 30.0kg/0.11sec @7.4V
- Part No: CL6030
- Retail: €43.90
- EAN: 6969006030609
- Notice: CL6030
Coreless HV servo with 30.0 kgcm torque at 7.4 V The SRT CL6030 is an HV servo for RC cars.... more
Product information "SRT Coreless HV High torque Waterproof 30.0kg/0.11sec @7.4V"

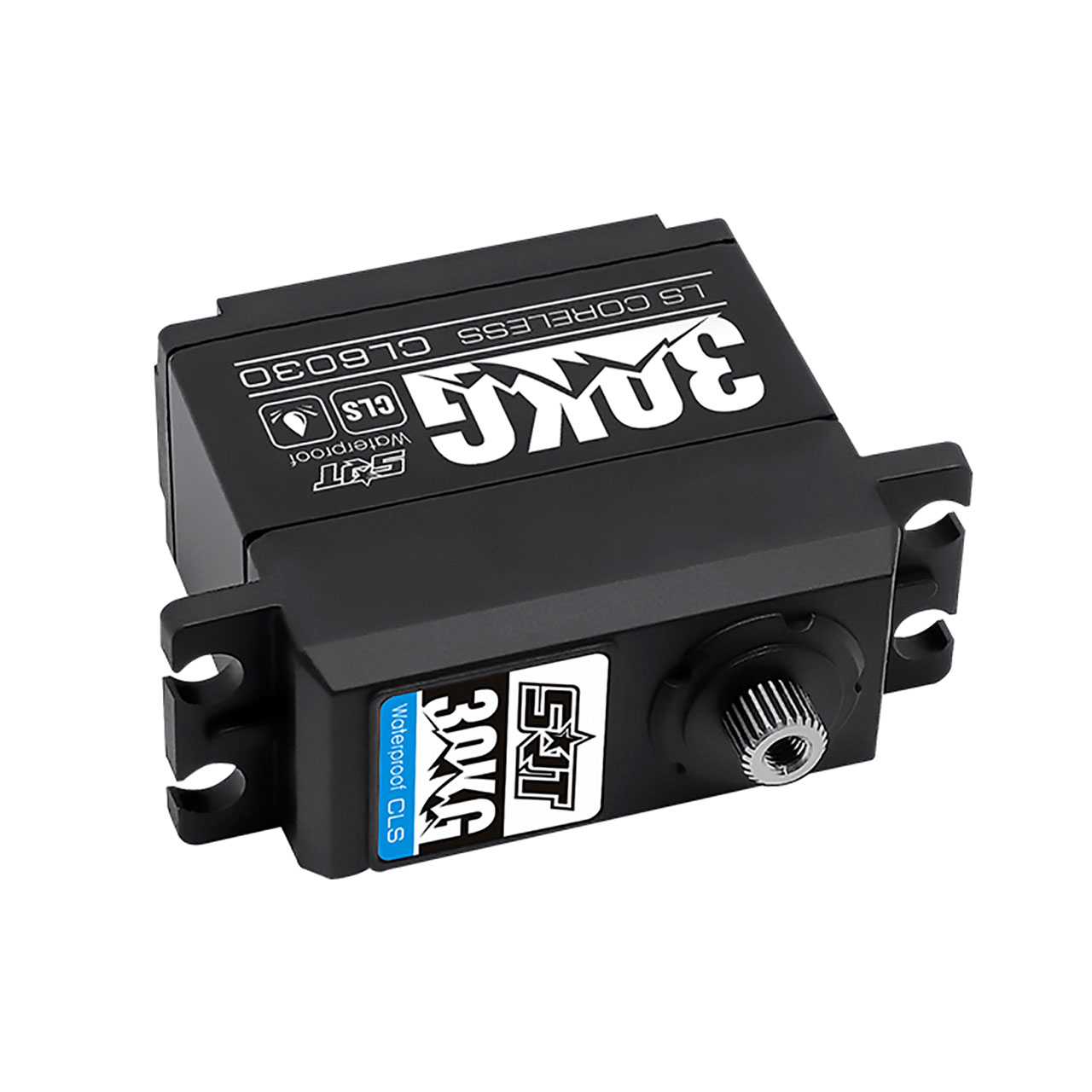

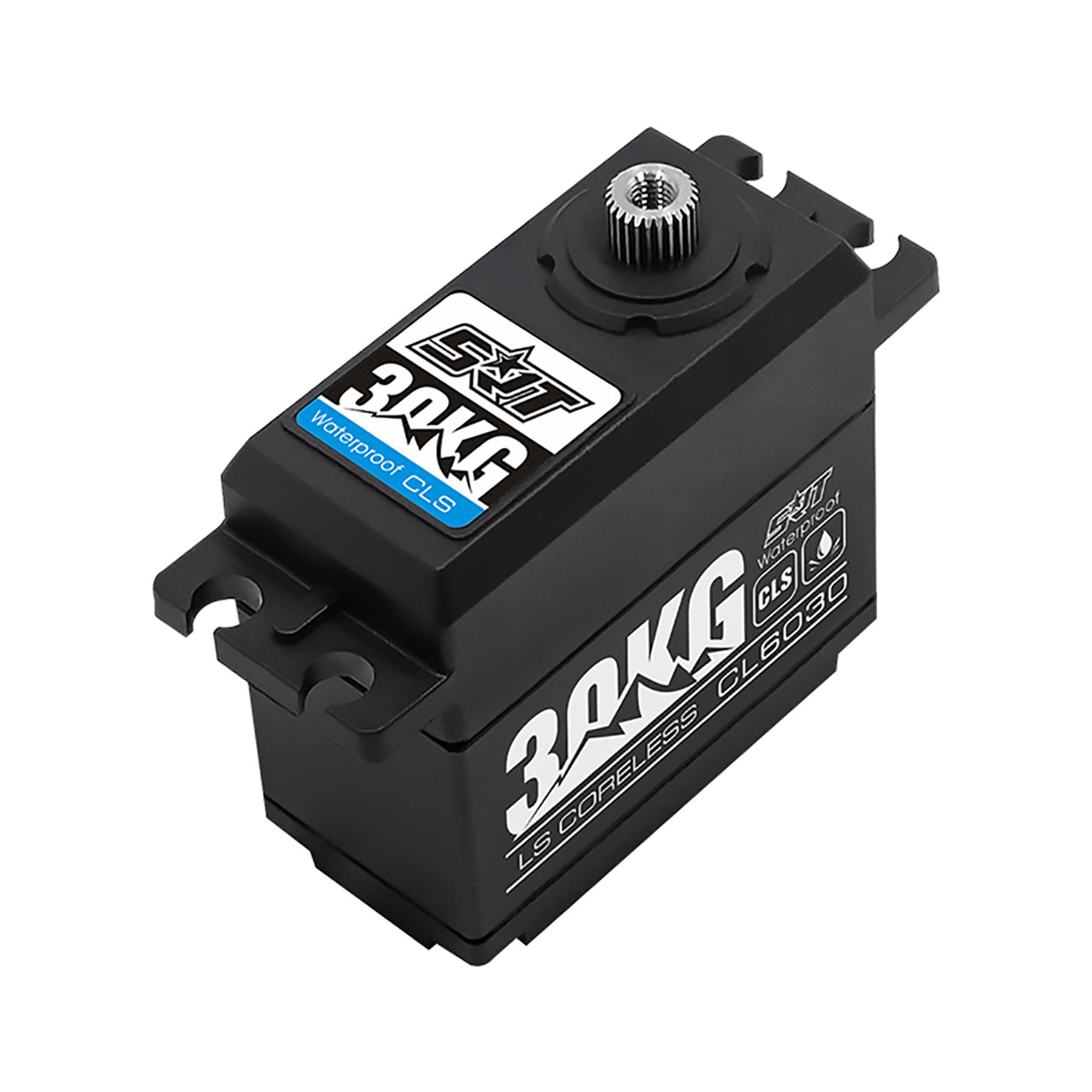

Coreless HV servo with 30.0 kgcm torque at 7.4 V
The SRT CL6030 is an HV servo for RC cars.
Highlights
- For 1/10 on-road and 1/8 off-road cars
- Waterproof
- Intermediate housing made of aluminium
- High-torque coreless servo
- Efficient operation with low power consumption

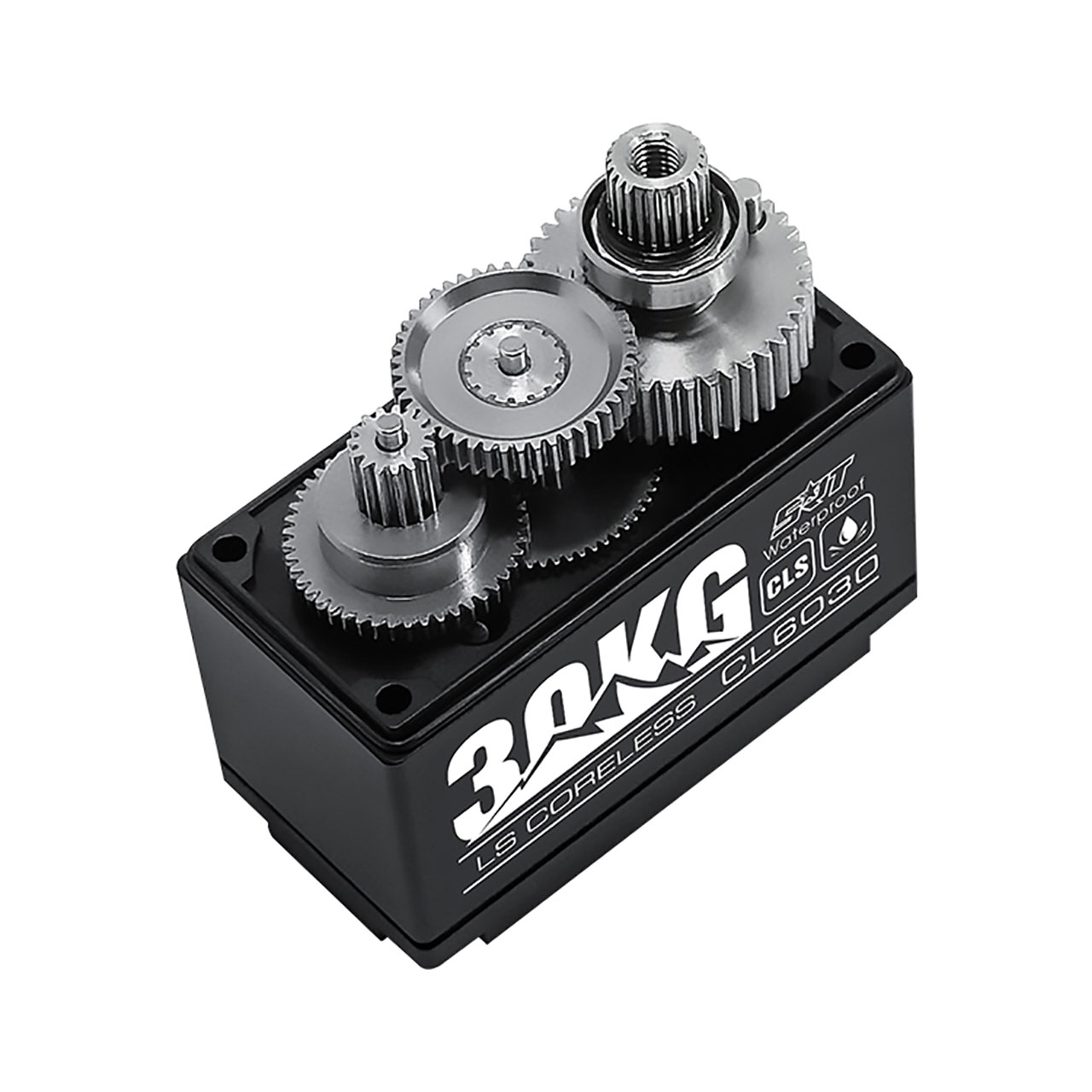

- Gearbox machined from titanium and steel for precision and durability
Specifications
| Voltage | 4.8 V · 6.0 V · 7.4 V |
| Speed | 0.13 s/60° (4.8 V) · 0.12 s/60° (6.0 V) · 0.11 s/60° (7.4 V) |
| Torque | 19.0 kgcm (4.8 V) · 25.0 kgcm (6.0 V) · 30.0 kgcm (7.4 V) |
| Motor | Coreless |
| Gears | Titanium, Steel |
| Type | Digital |
| Frequency | 330 Hz |
| Bearings | yes, dual |
| Dimensions | 41.3 × 20.5 × 38.3 mm |
| Weight | 69.0 g |
| Spline | 25T |
| Application | 1/10 and 1/8 On-Road and Off-Road |

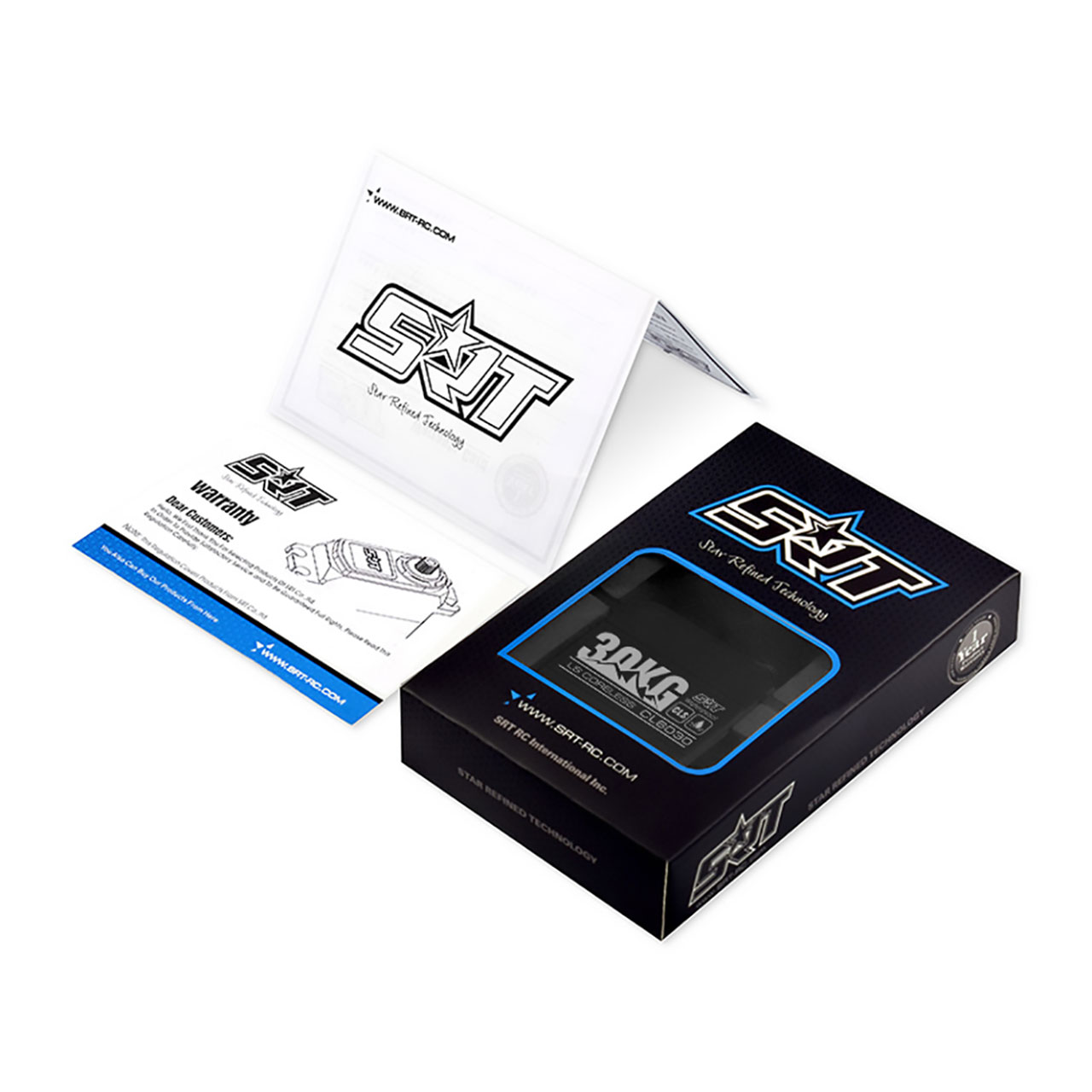

In the box
- 1× CL6030 Servo
