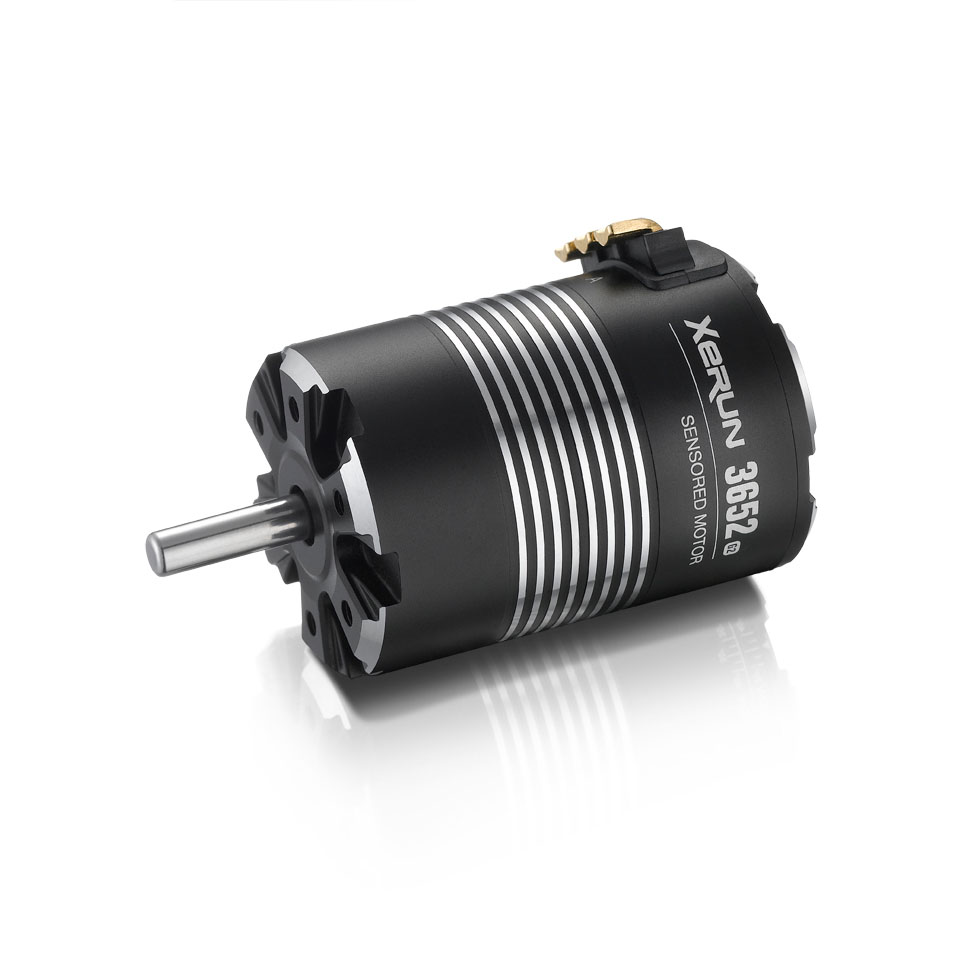

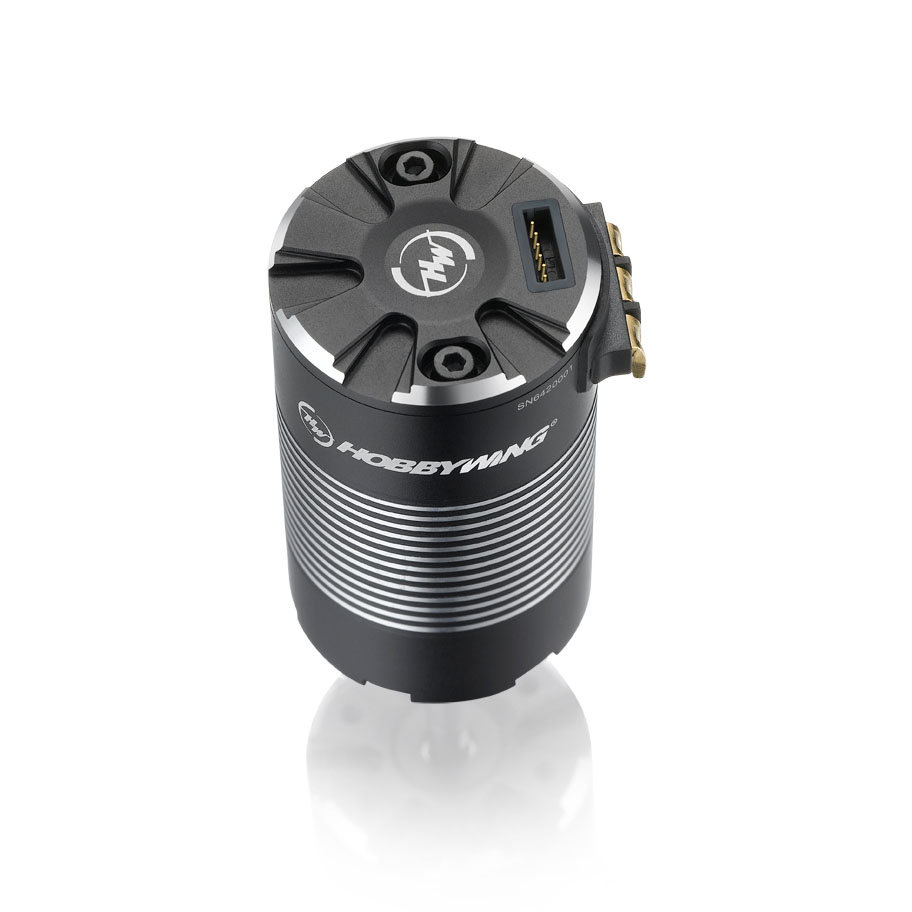

Hobbywing Xerun 3652SD Brushless Motor 3100kV Sensored 5mm Shaft

Sensored 1/10 Brushless motor with 3100kV rating and 5 mm shaft

The Xerun 3652SD is a sensored Brushless motor with a built-in chip that lets a XERUN XR8 ESC recognise it as a Hobbywing motor. Together they form a fully sensor-controlled drive system that offers more power and can be controlled even more sensitively. The motor also works with other ESCs, but not always in sensor mode.

Turbo Timing can be activated when the motor is used with a XERUN XR8 series ESC. This function is also used in 1/10 scale on-road applications. The motor's mechanical timing is adjustable clockwise or counterclockwise.

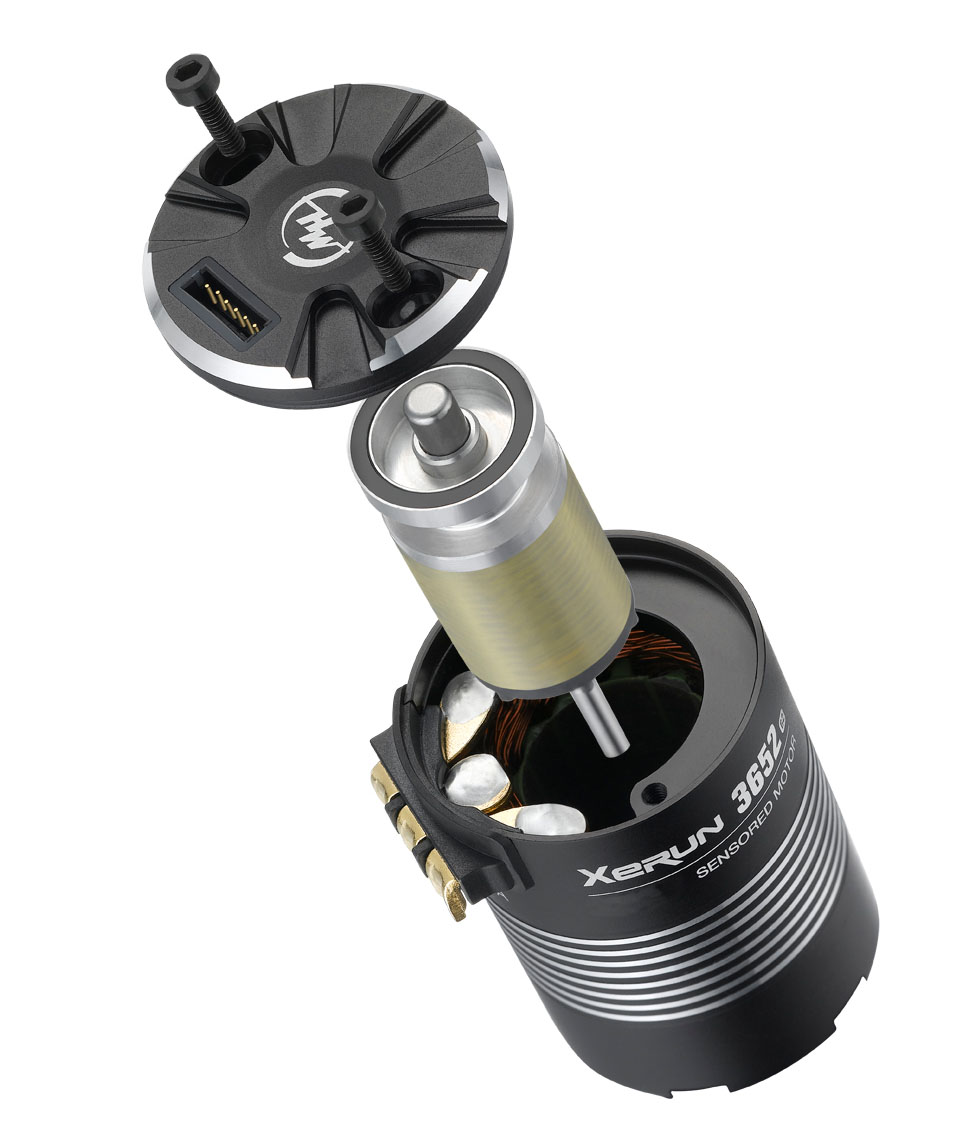

The extended Hall sensor system uses a separate high-performance, super-fast encoder that gives a clear signal all the time and is not disturbed by other signals. The 4-pole, 8-magnet staggered-pole rotor reduces cogging torque and torque pulse by up to 85% compared with standard 1/10 motors.

The motor has double-insulated windings, Japanese NMB bearings, super thin silicon steel sheets and a high-intensity adhesive that guarantee excellent performance and great durability. Its wheel hub construction and front and rear bells reduce weight.

Specifications
