Hobbywing Ezrun MAX10 G2 80A Combo with 3652SD-4100kV 3,175 shaft
Please inform me as soon as the product is available again.
- Part No: HW38020347
- Retail: €111.90
- EAN: 6938994407533
- Notice: Waterproof, Brushless, Sensorless,38020347
1/10 combo with 80 A MAX10 G2 ESC and 3652SD 4100kV motor The Ezrun MAX10 G2 combo pairs an... more
Product information "Hobbywing Ezrun MAX10 G2 80A Combo with 3652SD-4100kV 3,175 shaft"

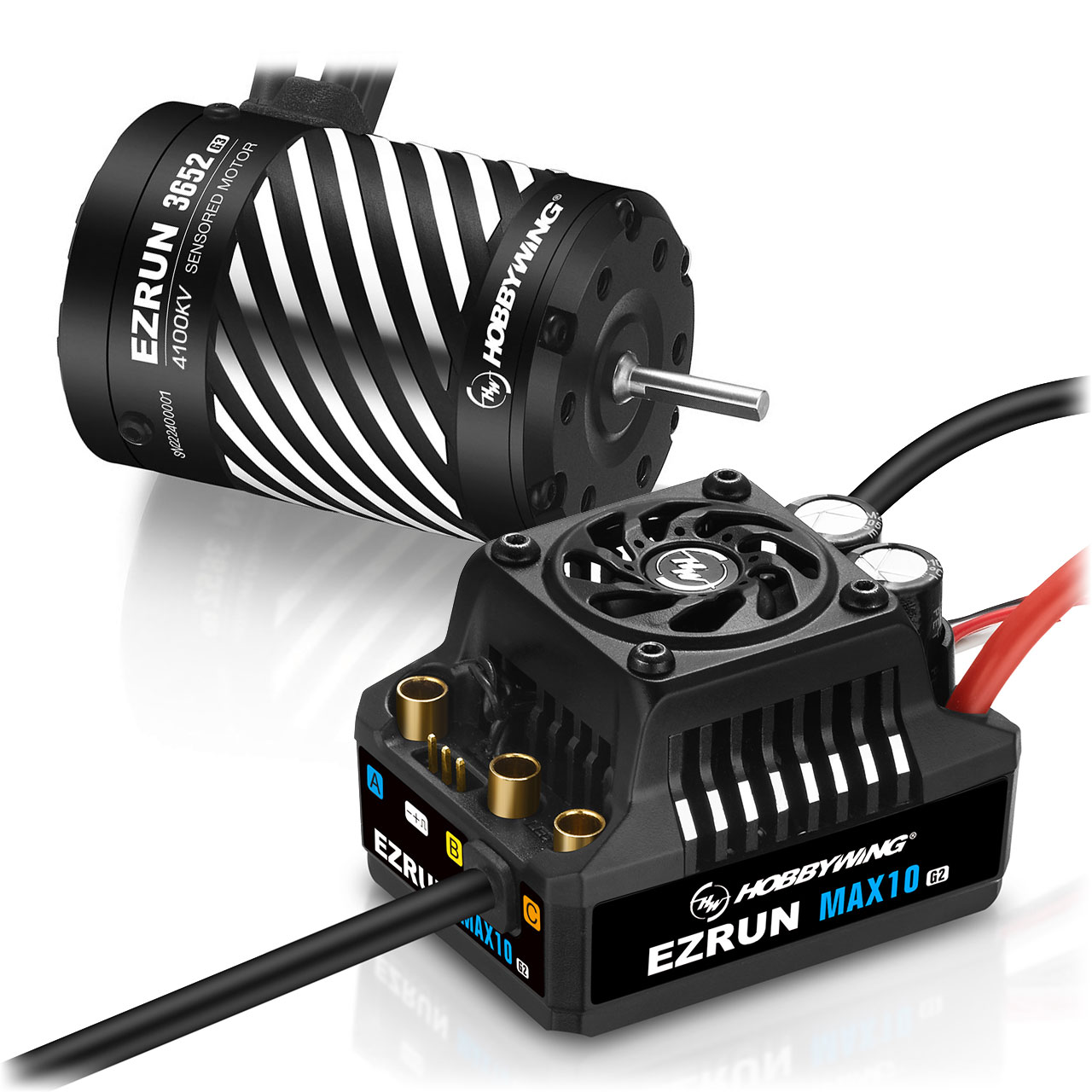

1/10 combo with 80 A MAX10 G2 ESC and 3652SD 4100kV motor
The Ezrun MAX10 G2 combo pairs an 80 A ESC with a 3652SD motor rated 4100kV for 1/10 short course vehicles and trucks.
Compared with the regular MAX10 combo, the sensor mode and waterproof cable have been revised for improved throttle response and more linear control at low speeds. Design changes and larger capacitors reduce heat development.
Highlights
- Built-in Super BEC
- Frameless smart fan
- Real-time data and data recording
- Turbo timing setting
- Improved sensor and throttle response
- Constant output power
- 4-pole rotor for high torque
- Motor can be dismantled for maintenance
Specifications

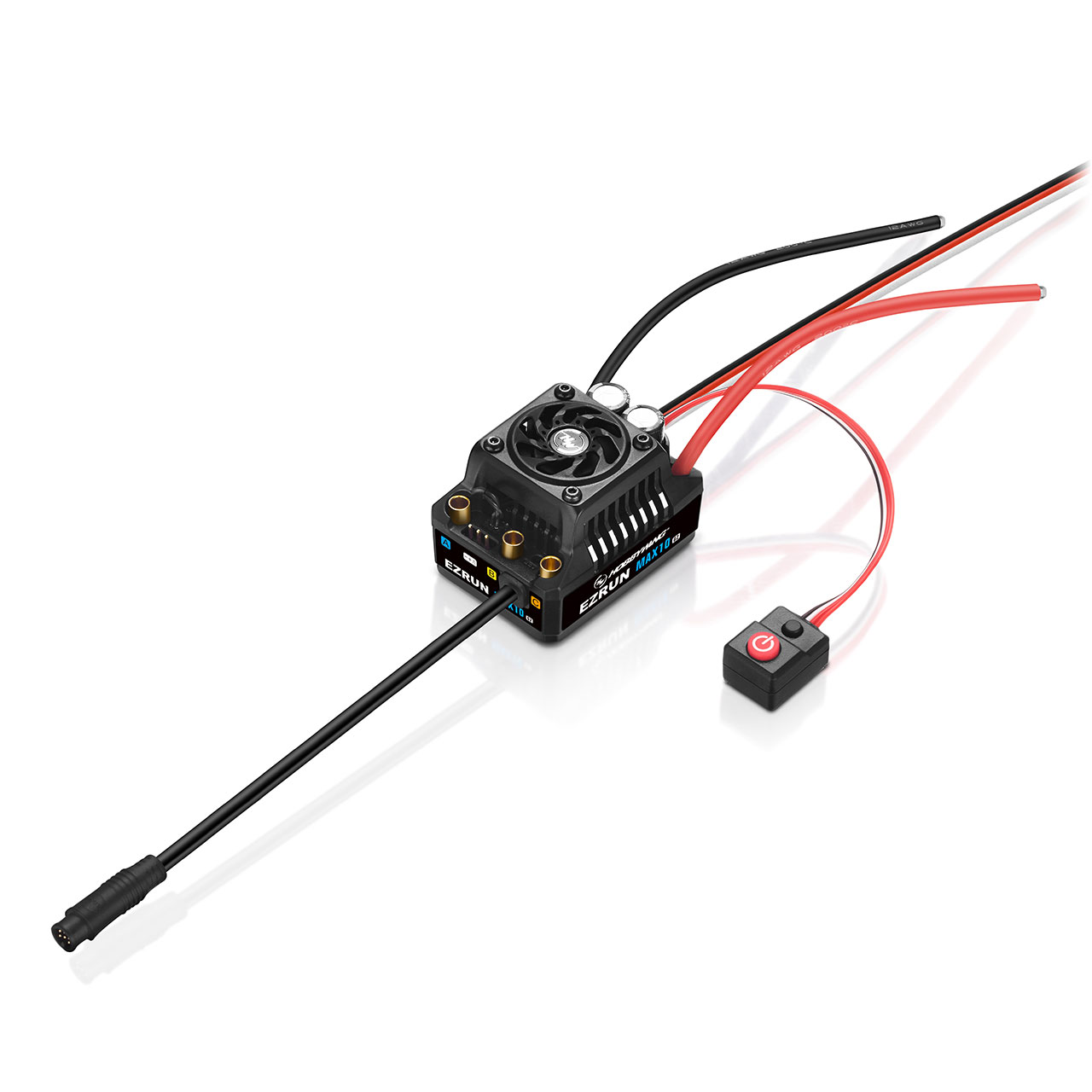

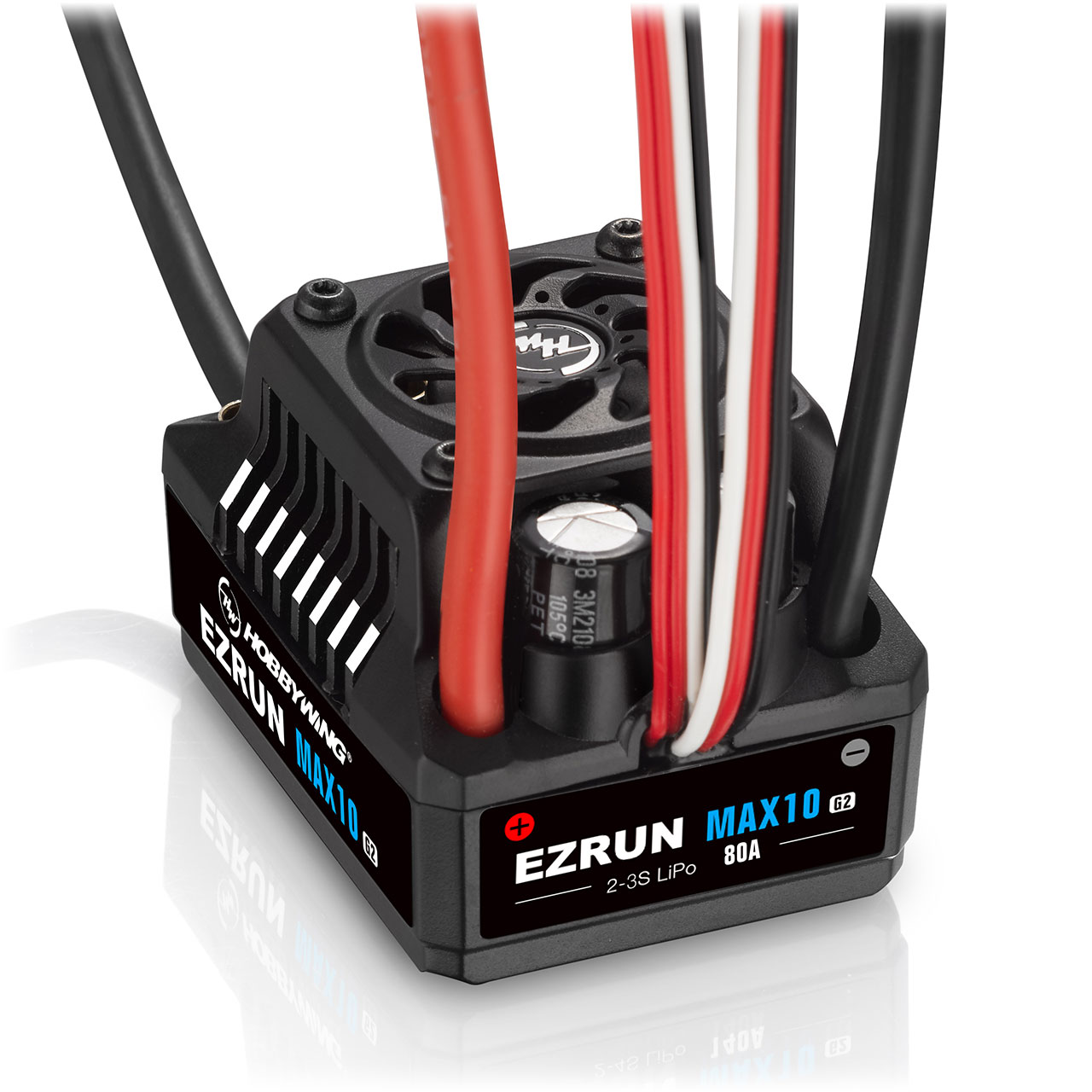

| ESC (80A) | |
|---|---|
| Type | Brushless Sensored |
| Current (Cont./Peak) | 80 A/520 A |
| Cells | 2–3S LiPo |
| Motor Limit | 2S LiPo: ≤ 6000kV / 3S LiPo: ≤ 4200kV (3652 Motor) |
| BEC | 6 V/7.4 V, 5 A |
| Connector | XT60 |
| Programming | LED Program Box / LCD Program Box (G2) / OTA Program Module / Separate Programming Port |
| Dimensions | 53 × 39.5 × 37.2 mm |
| Weight | 120 g |
| Waterproof | Yes, IP67 |
| Application | 1/10 On-Road/Off-Road Short Course Truck (light duty) |

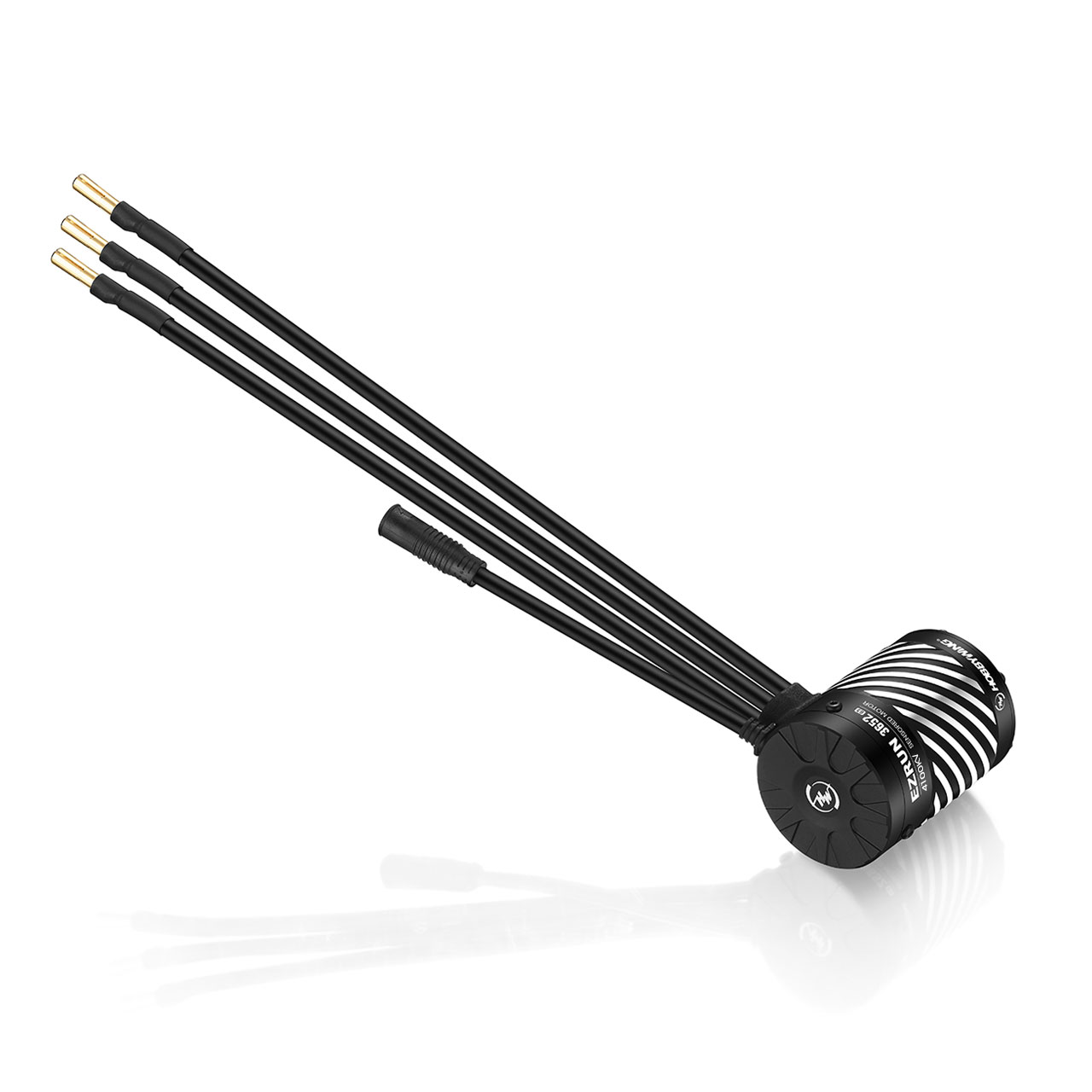

| Motor | |
| Type | Brushless, Sensored |
| kV Rating | 4100kV |
| No-Load Current | ≤ 5.0 A |
| Cells | 2–3S LiPo |
| Poles | 4 |
| Length | 53 mm |
| Diameter | 37 mm |
| Shaft Diameter | 3.175 mm |
| Weight | 228 g |
| Application | 1/10 On-Road/Off-Road Short Course Truck (light duty) |
In the box
- 1× Ezrun MAX10 G2 ESC with 80 A
- 1× 3652SD Motor G3 with 4100kV
- 1× Manual
