Brand:
Razer ten G2 Brushless Combo 60A 3652 3250kV
1/10 sensorless combo with 60 A ESC and 3250kV motor
- Item number
- R01255
- EAN
- 4046032100390
€81.90incl. VAT, plus shipping
RRP €81.90
Description

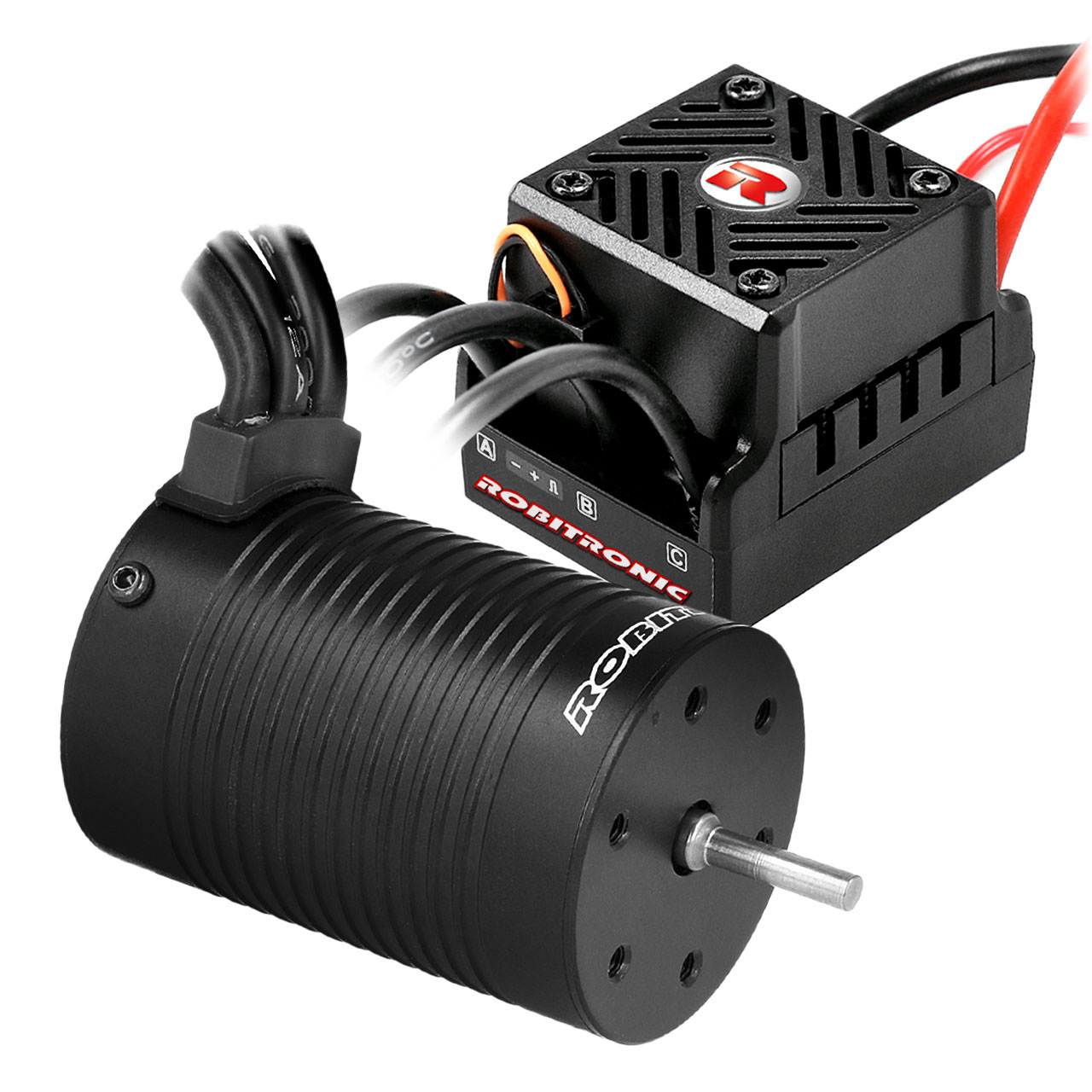

The Razer ten G2 Combo pairs a 60 A sensorless ESC with a 3250kV motor for 1/10 On-Road and Off-Road use. The cables are pre-wired, so no soldering is required. The motor has a disassemblable CNC-machined aluminium housing, a precision-balanced rotor and ball bearings.
Notes
- Optional accessory: R01269 Razer LED Program Box.
Highlights

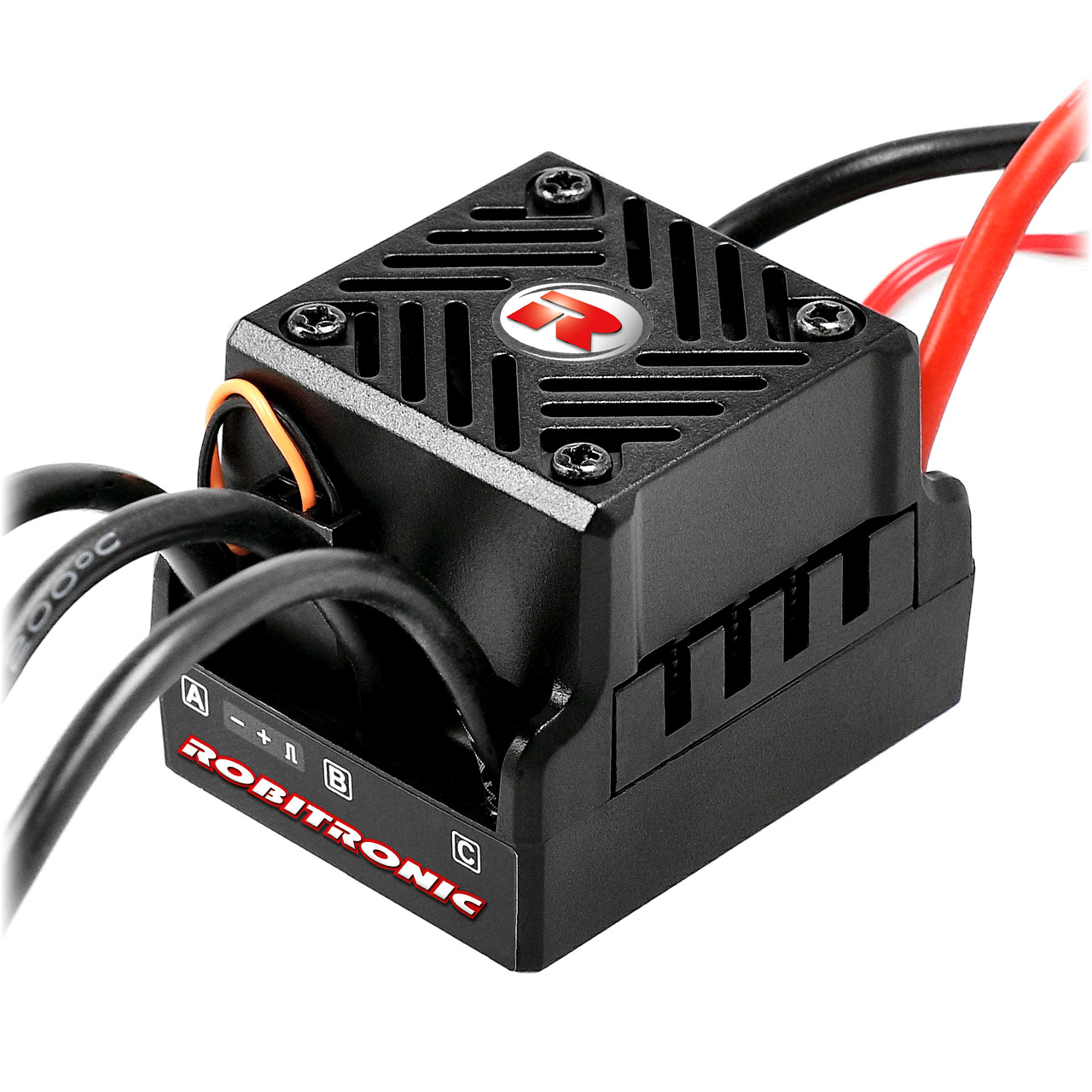

- ESC more compact than its predecessor
- ESC fully water- and dustproof; this does not apply to the motor
- ON/OFF switch with setup button for programming
- S-BEC with 6 V and 3 A peak current
- Battery and motor connectors pre-soldered
- Low-voltage cutoff, thermal protection and signal-loss protection
- Separate programming port for an optional LED programming card

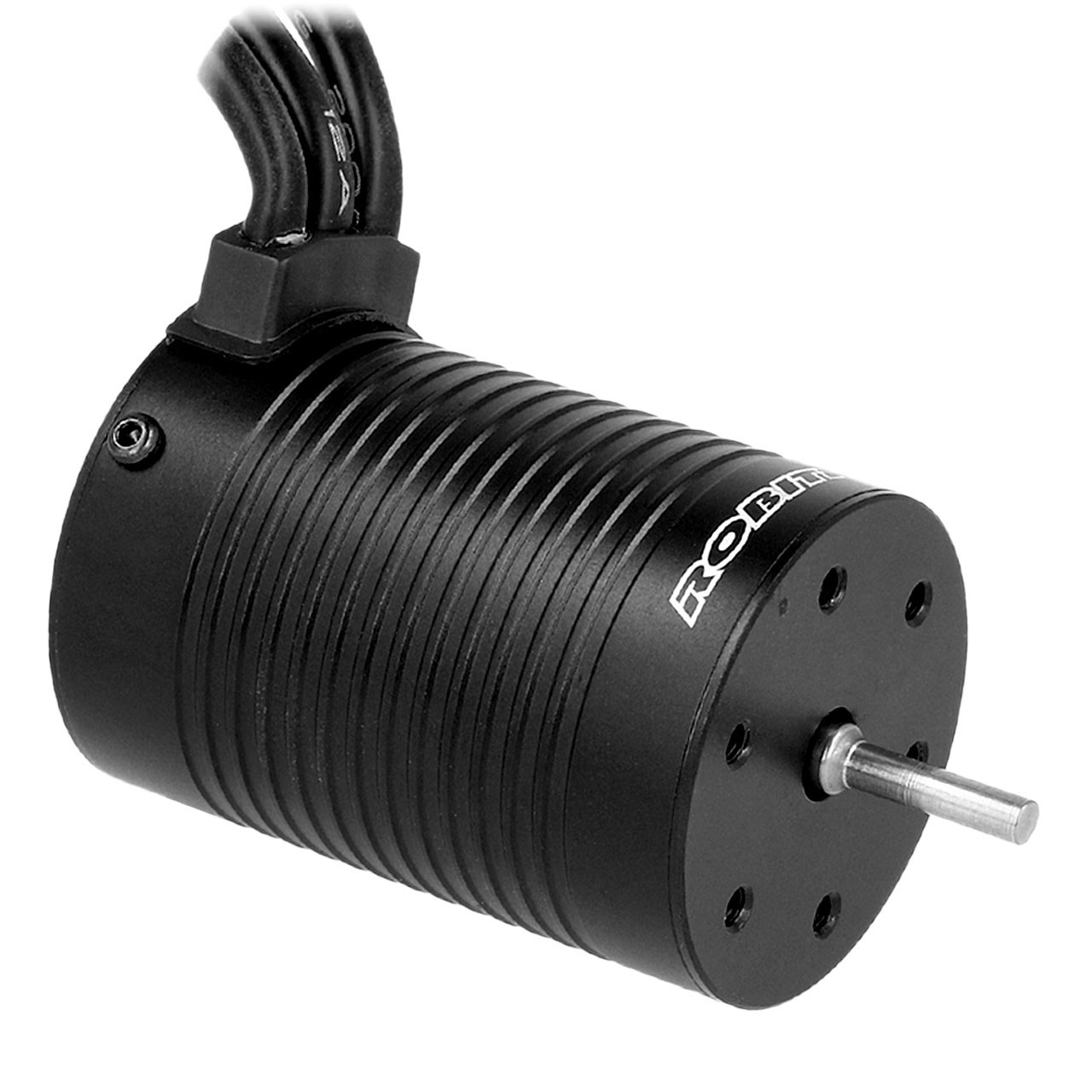

- 4-pole rotor; CNC-machined aluminium housing for heat dissipation; double-insulated copper winding
- Precision ball bearings; flexible silicone cables with pre-soldered 4 mm connectors; polished 3.17 mm steel rotor shaft
Specifications
| Item No. | R01225 |
|---|
| Current | 60 A |
|---|---|
| Type | Sensorless |
| Cells | 2–3S LiPo / 6–9 cells NiMH |
| Motor Limit | 2S: 3652/3660 motor, kV = 6000 / 3S: 3652/3660 motor, kV = 3500 |
| BEC | 6 V @ 3 A |
| Fan | Yes, powered by BEC |
| Programming Port | Yes |
| Battery Connector | T-Plug |
| Motor Connection | 4 mm |
| Dimensions | 46 × 36.5 × 35.5 mm |
| Weight (incl. Cables) | 98.2 g |
| Application | 1/10 On-Road, Buggy, Short Course Truck (2WD) |
| kV Rating | 3250kV |
| Cells | 2–3S |
| Poles | 4 |
| Outer Diameter | 35 mm |
| Length | 52 mm |
| Shaft Diameter | 3.17 mm |
| Shaft Length | 15 mm |
| Weight (incl. Cables) | 204 g |
| Application | 1/10 Onroad, Buggy, light SCT/Truck/MT |
| Item No. | R01230 |
|---|
In the box
- 1 × Razer ten G2 ESC with 60 A, pre-wired with battery connector and motor connection
- 1 × Razer ten Motor with 3250kV, pre-wired with 4 mm connectors
- 1 × Manual
