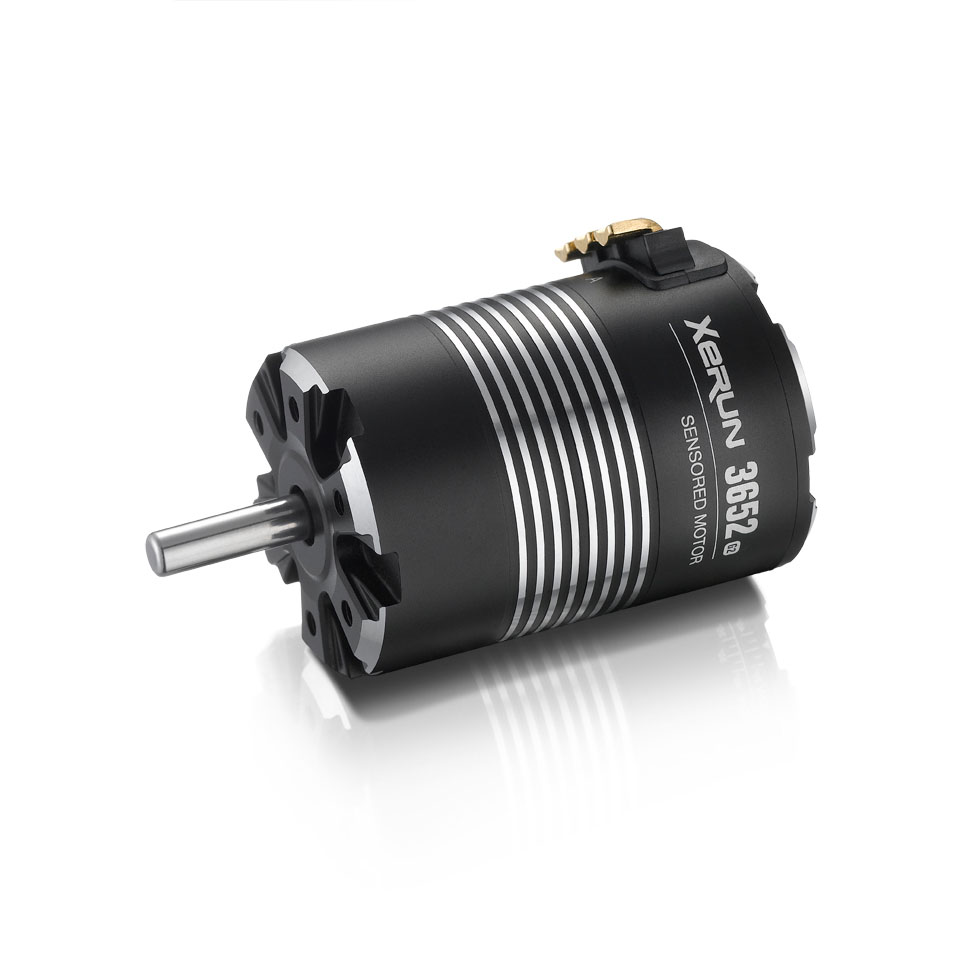

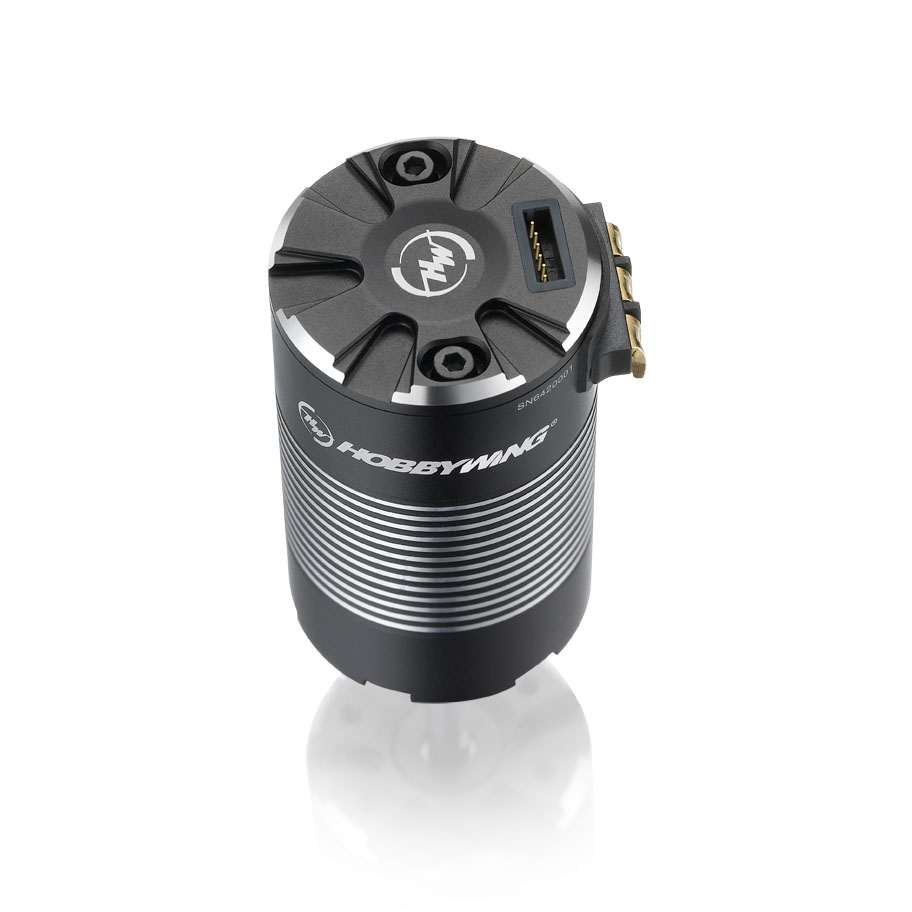

Hobbywing Xerun 3652SD Brushless Motor 5100kV Sensored 5mm Shaft
- Part No: HW30401060
- Retail: €81.90
- EAN: 6938994419031
- Notice: 30401060
Sensored 1/10 Brushless motor with 5100kV rating and 5 mm shaft
The Xerun 3652SD is a sensored Brushless motor with a built-in chip that lets a XERUN XR8 ESC recognise it as a Hobbywing motor. Together they form a fully sensor-controlled drive system that offers more power and can be controlled more sensitively. The motor also works with other ESCs, but not always in sensor mode.
Turbo Timing can be activated when the motor is used with a XERUN XR8 series ESC. This function is also used in 1/10 scale on-road applications. The motor's mechanical timing is adjustable clockwise or counterclockwise.

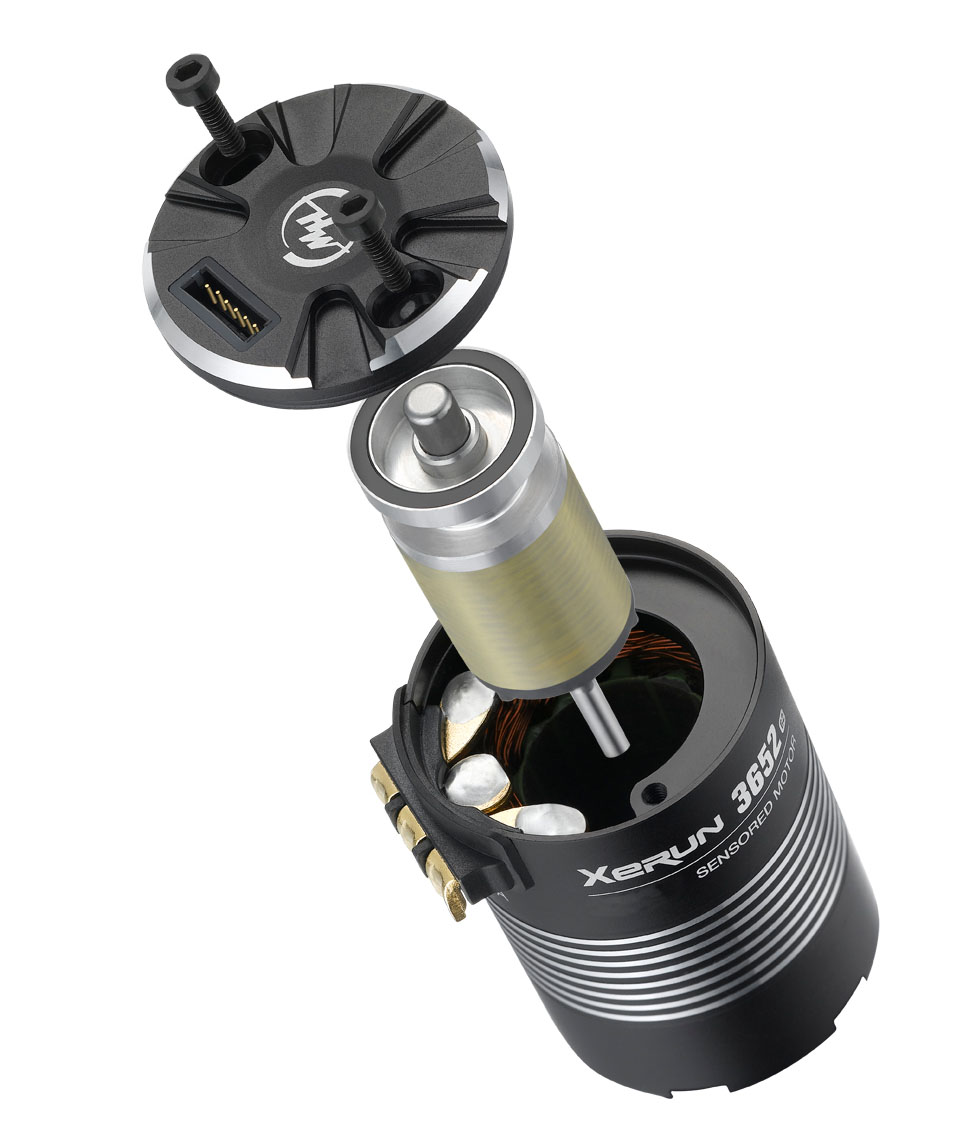

The extended Hall sensor system guarantees continuous operation in full sensor mode; a separate high-performance, fast encoder gives a clear signal without interference from other signals. The 4-pole, 8-magnet staggered-pole rotor reduces cogging torque and torque pulse by up to 85% compared with standard 1/10 motors.
The motor has double-insulated windings, Japanese NMB bearings, thin silicon steel sheets and a high-intensity adhesive, which guarantee performance and durability. Its wheel hub construction and front and rear bells reduce weight.
Specifications
| Scale | 1/10 |
| Type | Brushless sensored |
| Poles | 4 |
| kV Rating | 5100kV |
| LiPo | 2S |
| No-Load Current | 4.7 A |
| Internal Resistance | 3.5 Ohm |
| Timing | 20–40 Degree (adjustable) |
| Outer Diameter | 36 mm |
| Length | 52.5 mm |
| Shaft Diameter | 5 mm |
| Weight | 192 g |
