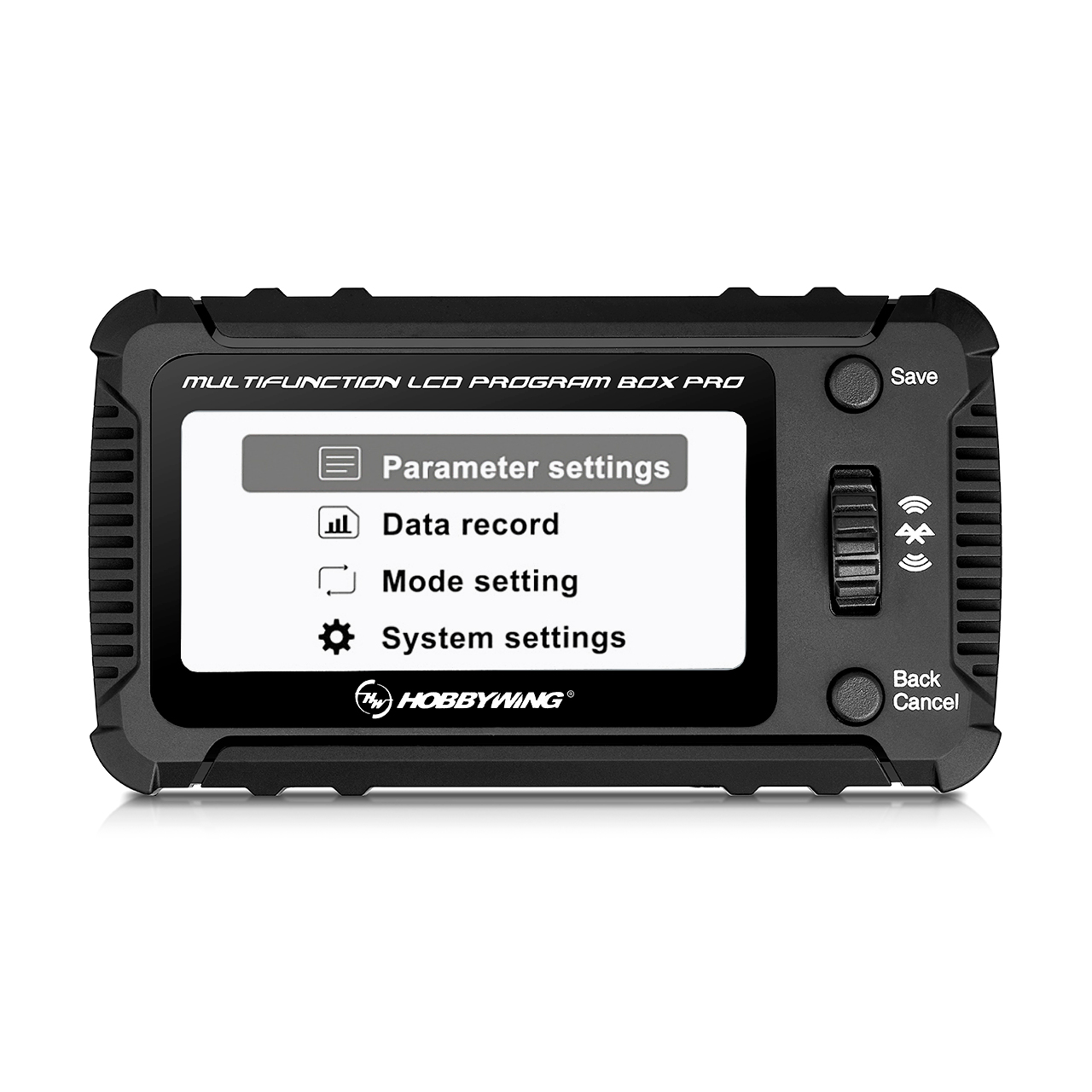

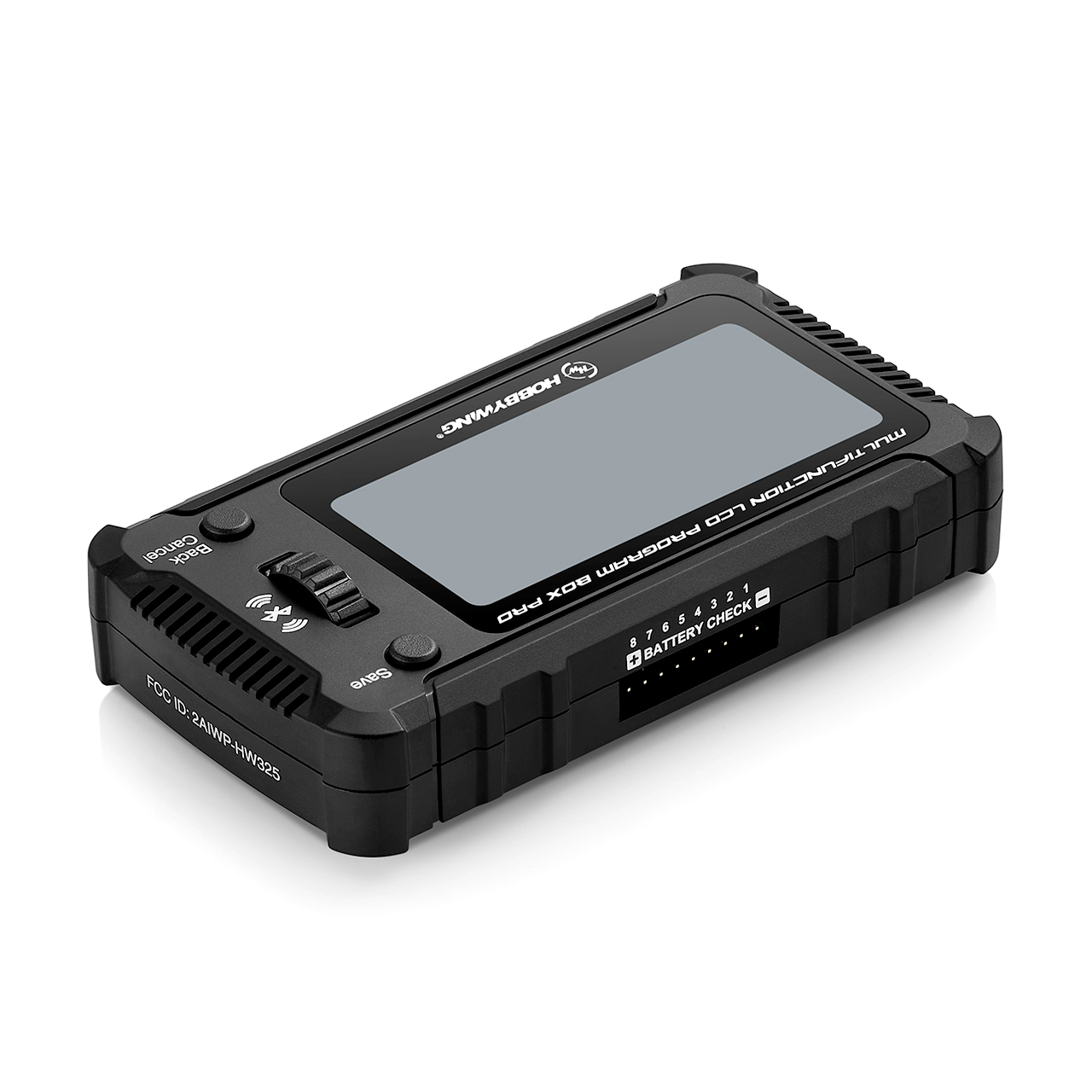

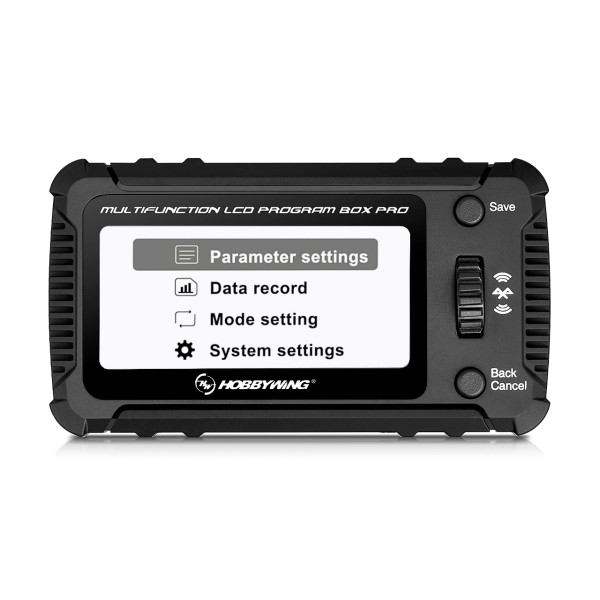

LCD Programm Box Pro for Xerun, Ezrun and Platinum, image 1

Brand: Hobbywing

LCD Programm Box Pro for Xerun, Ezrun and Platinum

LCD programming box for brushless ESCs with Bluetooth and a 2.8'' display

Item number
HW30502002
EAN
6938994400459
€38.90incl. VAT, plus shipping

RRP €38.90

In stock

Description

The LCD Programming Box Pro programs brushless ESCs via its 2.8'' LCD and control wheel. It can connect to a computer via USB-C for firmware updates and measure the voltage of individual lithium cells or battery packs.

Notes

  • Refer to the controller's programming settings to determine which values can be set.
  • Do not power the programming box unless the controller instructions require an external power supply.
  • If the ESC does not have an integrated/external BEC, a separate battery is required to power the programming box.
  • Also supported: PLATINUM air-ESCs, Seaking Pro boat-ESCs and selected QUICRUN car-ESCs.

Highlights

  1. Backlight adjustable across 20 levels
  2. Controller settings can be saved and exported
  3. Integrated Bluetooth signal
  4. Compatible with the HW Link V2 app (iOS and Android)

Specifications

General
Input Voltage DC5–12.6 V*

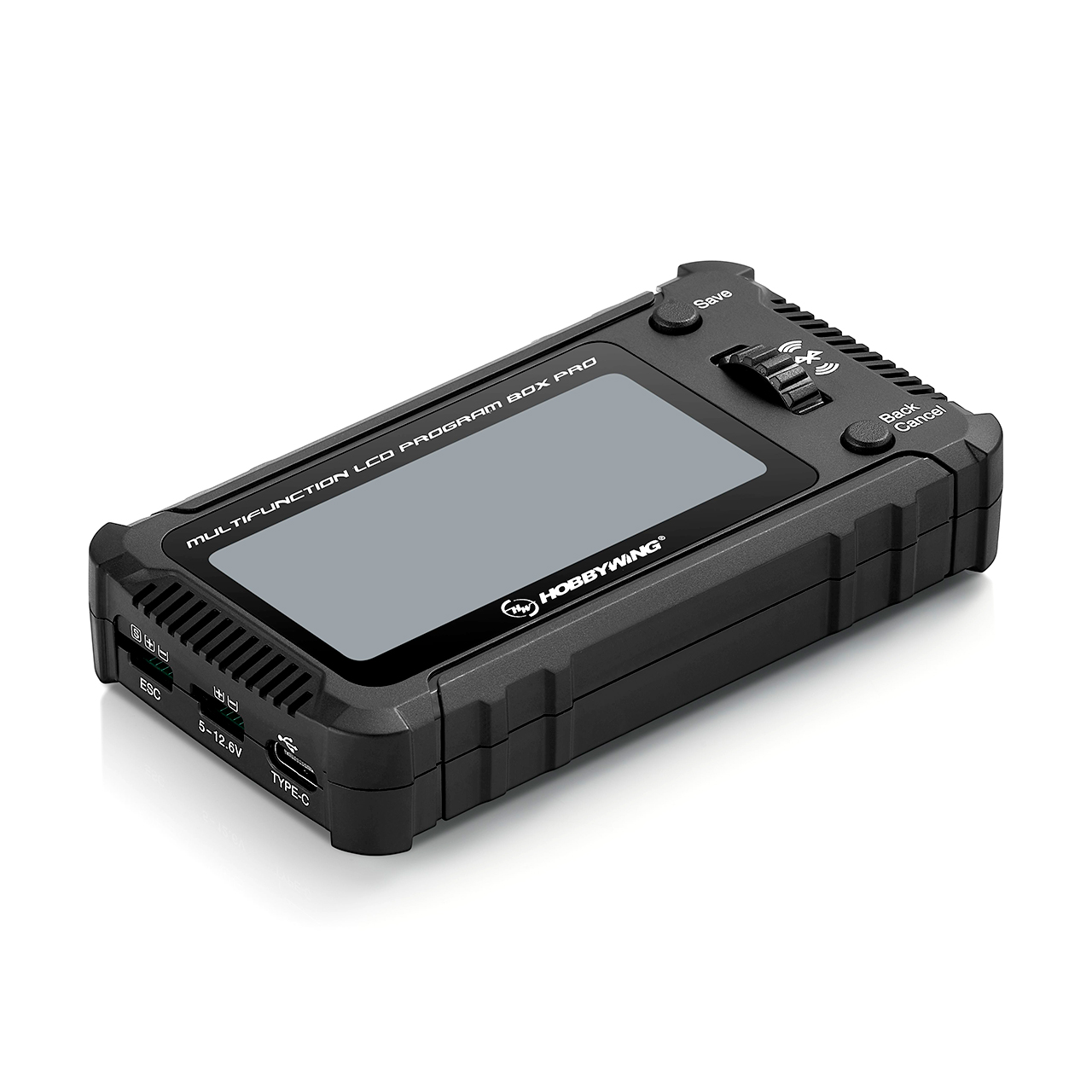

PortsUSB Type-C / ESC / power supply
Display2.8'' LCD
LiPo Measurement2–8S LiPo / LiIon / LiFe
Measuring Accuracy± 0.1 V
Dimensions105.6x59.24.4 mm
Weight85 g
Supported ESCs
XERUN car-ESCsVersion 2.0 and newer
EZRUN car-ESCsVersion 2.0 and newer

Documents

Safety & manufacturer

Manufacturer

Hobbywing

Item number: HW30502002

EAN: 6938994400459

Responsible person in the EU

Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)

Safety information

  • Contains small parts.
  • Keep away from children.
  • Not suitable for children under 14 years of age.
