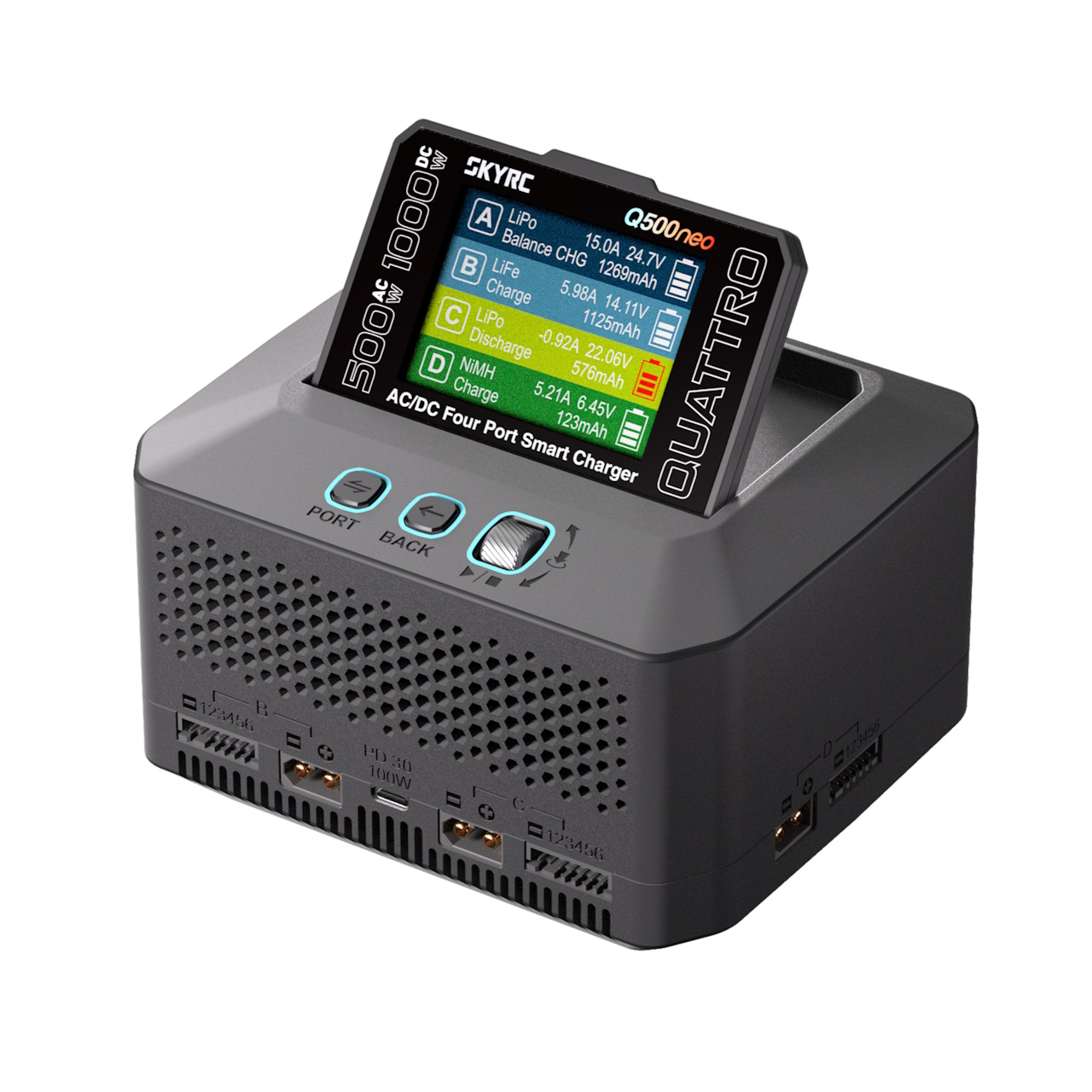

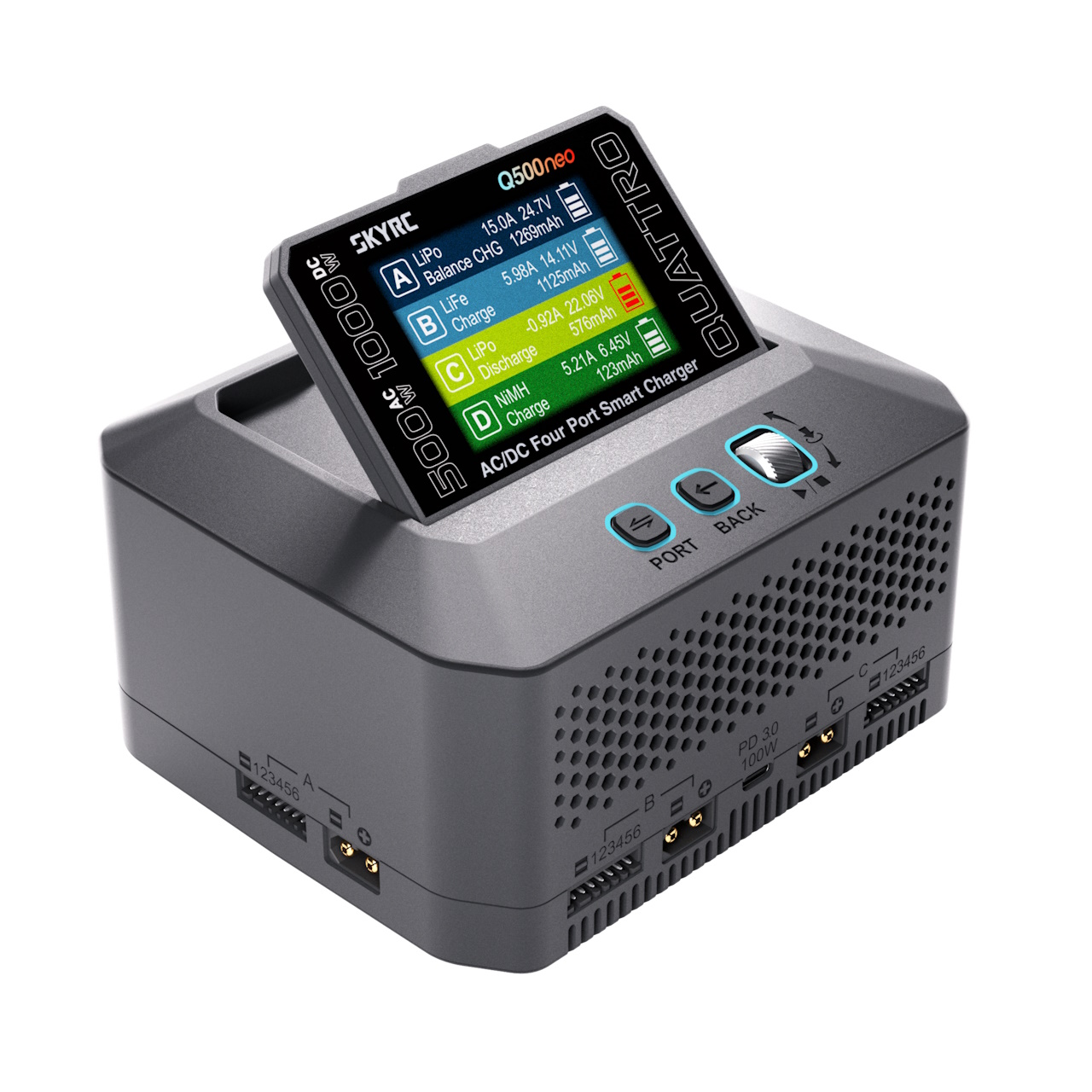

SkyRC Q500 Neo LiPo 15A 500W
- Part No: SK100232-01
- Retail: €239.90
- EAN: 6930460009524
The SkyRC Q500neo is a state-of-the-art and extremely powerful 4-channel smart charger designed specifically for demanding RC modellers. With four fully independent charging outputs, flexible AC/DC input options, and cutting-edge microcontroller technology, this charger offers maximum flexibility, efficiency, and precision when charging and maintaining various battery types.
Whether in the home workshop or directly at the racetrack – the Q500neo impresses with intelligent power distribution and smart additional functions that go far beyond conventional charging.
Maximum performance and flexible inputs

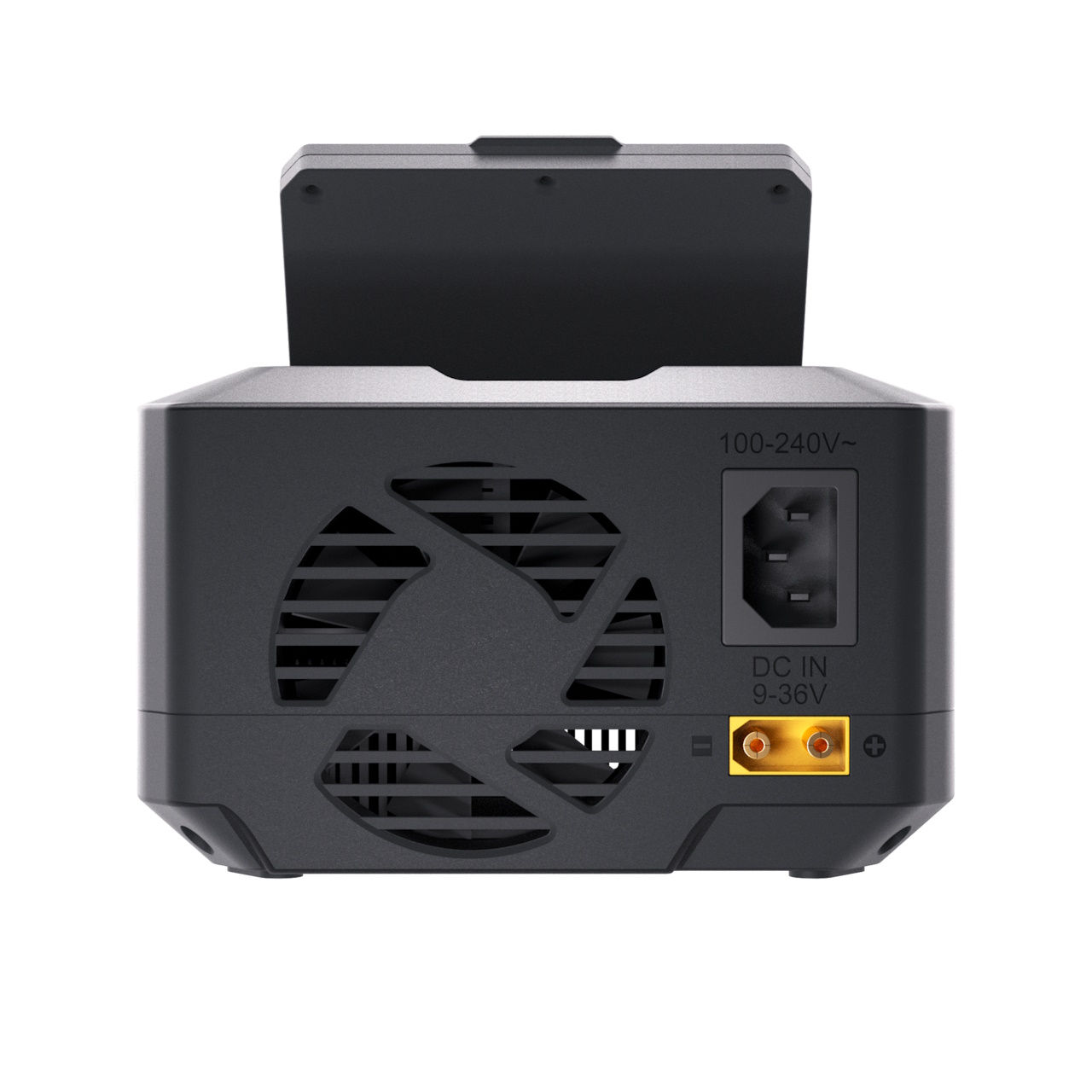

The Q500neo supports both conventional AC operation (100–240 V, up to 500 W charging power) and flexible DC operation (9–36 V, up to 1000 W charging power). Thanks to intelligent power distribution, the four charging channels work together optimally: Channels A and D deliver up to 15 A (max. 250 W) each, while Channels B and C provide a powerful 25 A (max. 500 W) per port. This allows even large-format batteries or multiple packs to be charged simultaneously at maximum speed.
Intuitive operation and tiltable ColorX display

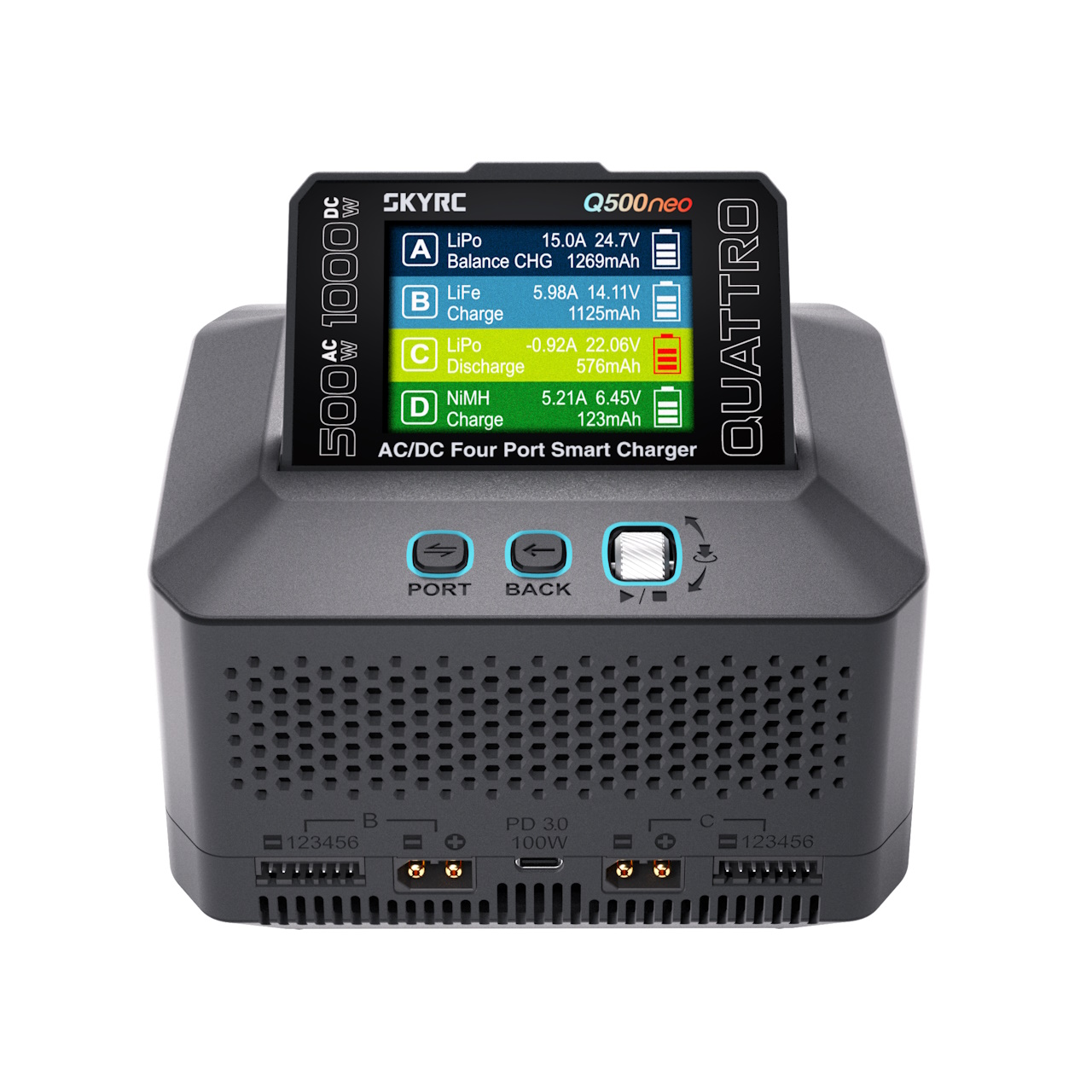

Equipped with a 2.8-inch TN colour display in a clear ColorX design, the charger offers a modern and user-friendly user interface. The display can be flexibly tilted by up to 90°, ensuring you have a perfect view of all charging and status parameters from any angle – eliminating the need to bend over or adjust the device. The system is operated intuitively and precisely via a high-quality metal scroll wheel button.
Technical Data
| Feature | Value |
|---|---|
| Input voltage (AC) | 100V – 240V (50/60 Hz) |
| Input voltage (DC) | 9V – 36V |
| Charging power (AC) | Max. 500W (split across 4 channels) |
| Charging power (DC) | Max. 1000W (split across 4 channels) |
| Discharge power (main port) | Max. 10W |
| Discharge power (balance port) | Max. 24W |
| Charge current (LiPo/LiFe/LiIon/LiHV) | Channels A/D: 0.1–15A / Channels B/C: 0.1–25A |
| Charge current (NiMH/NiCd) | 0.1–10A |
| Charge current (Pb) | 0.1–15A |
| Discharge current (all types) | 0.1–2.0A |
| Cell count (LiPo/LiFe/LiIon/LiHV) | 1S – 6S |
| Cell count (NiMH/NiCd) | 1S – 15S |
| Cell count (Pb) | 3S, 6S, 12S |
| USB-C output (PD 3.0) | Max. 100W (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A) |
| Display type | 2.8" TN colour display (240 x 320 pixels) |
| Dimensions | 146 x 123 x 88 mm |
| Weight | approx. 1206 g |
Scope of Delivery
- 1x SkyRC Q500neo Charger
- 1x AC Power Cable
- 1x Instruction Manual
- 12x QR Code Stickers
