SkyRC Q200 Neo LiPo 1-6s 10A 200W AC Charger
- Part No: SK100197-01
- Retail: €154.90
- EAN: 6930460008039
- Notice: SK-100197-01
Four-channel charger with up to 400 W DC and 200 W AC charging power

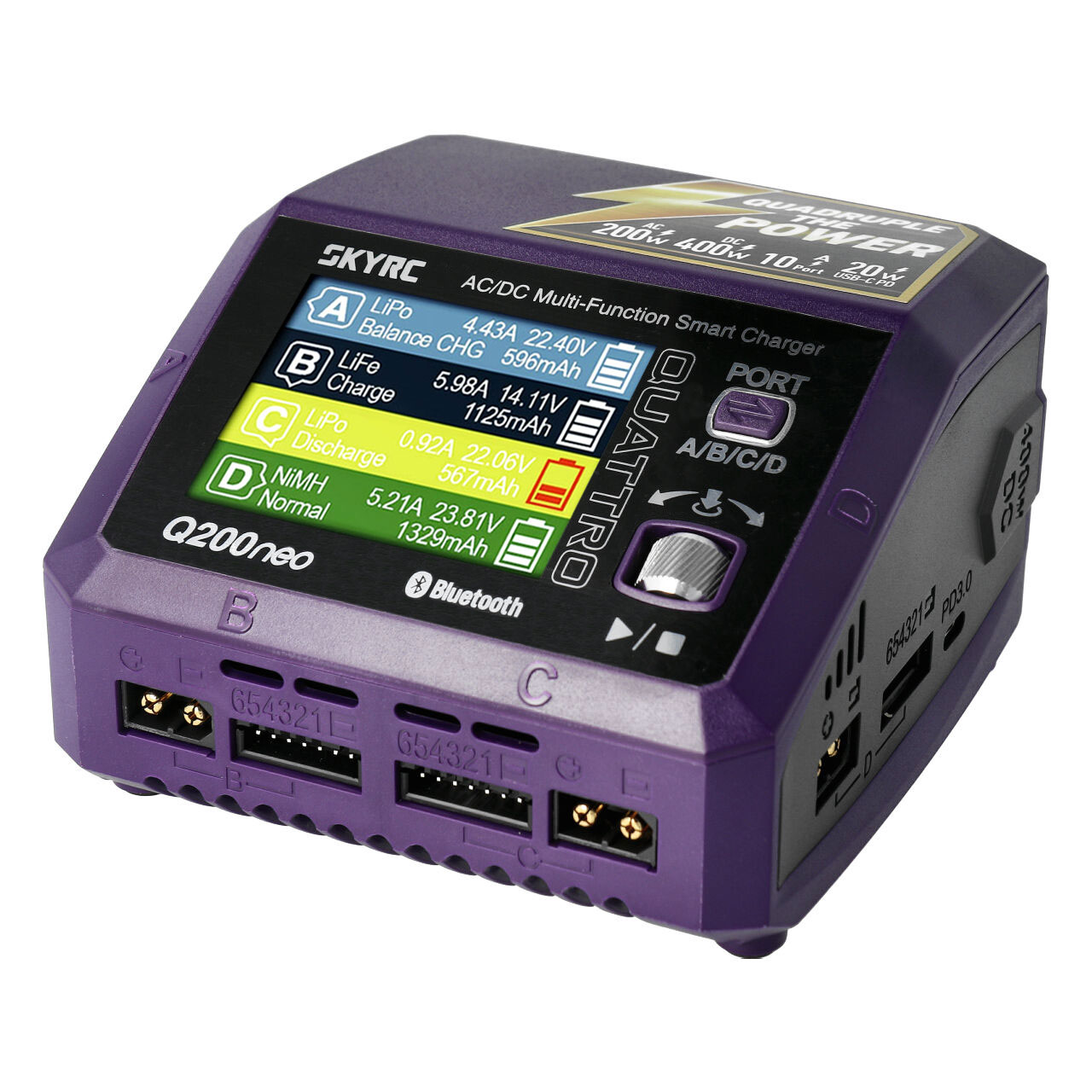

The SkyRC Q200neo is a four-channel charger for independently charging lithium, nickel and lead-acid batteries. Its indigo-coloured housing contains components that provide up to 400 W DC charging power, divided into 100 W per channel. In AC mode, total charging power is 200 W.
The charger also discharges batteries. Its 25 W discharge power reduces the stated discharge time from around 6.5 hours to an average of 1.5 hours; the discharge power is more than twice that of the Q200.
The Q200neo uses the same operating system as other current SkyRC chargers, with large icons, different colours and clear text. It can also be controlled from a computer using the free Charger Master software or from a smartphone via built-in Bluetooth and an app.
Highlights
- More powerful than the Q200
- Large LCD colour display
- Re-peak mode for NiMH/NiCd batteries
- Battery monitoring and measurement
- USB connection for PC operation and firmware upgrades
- Smartphone operation and display via built-in Bluetooth module; additional smartphones with the optionally available PD3.0
- Charge Master software (PC)
Specifications
| Input Voltage | AC: 100–240 V / DC: 10–30 V |
| Charge Power DC | max. 400 W (4 × 100 W) |
| Charge Power AC | max. 200 W (dynamically distributed) |
| Discharge Power | 5 W (main port) / max. 25 W (balance port, LiPo/6S) |
| Charge Current | 0.1–10 A (4 ×) |
| Discharge Current | 0.1–2.0 A (4 ×) |
| Balancing Current | max. 800 mA / cell |
| Display | 2.8'' TN display, 240 × 320 px, 262k colours |
| Case | PC-ABS V0 |
| Battery Types | LiXX: 1–6S / NiXX: 2–15S / Pb: 2–20 V |
| Weight | 680 g |
| Dimensions | 123 × 119 × 78 mm |
