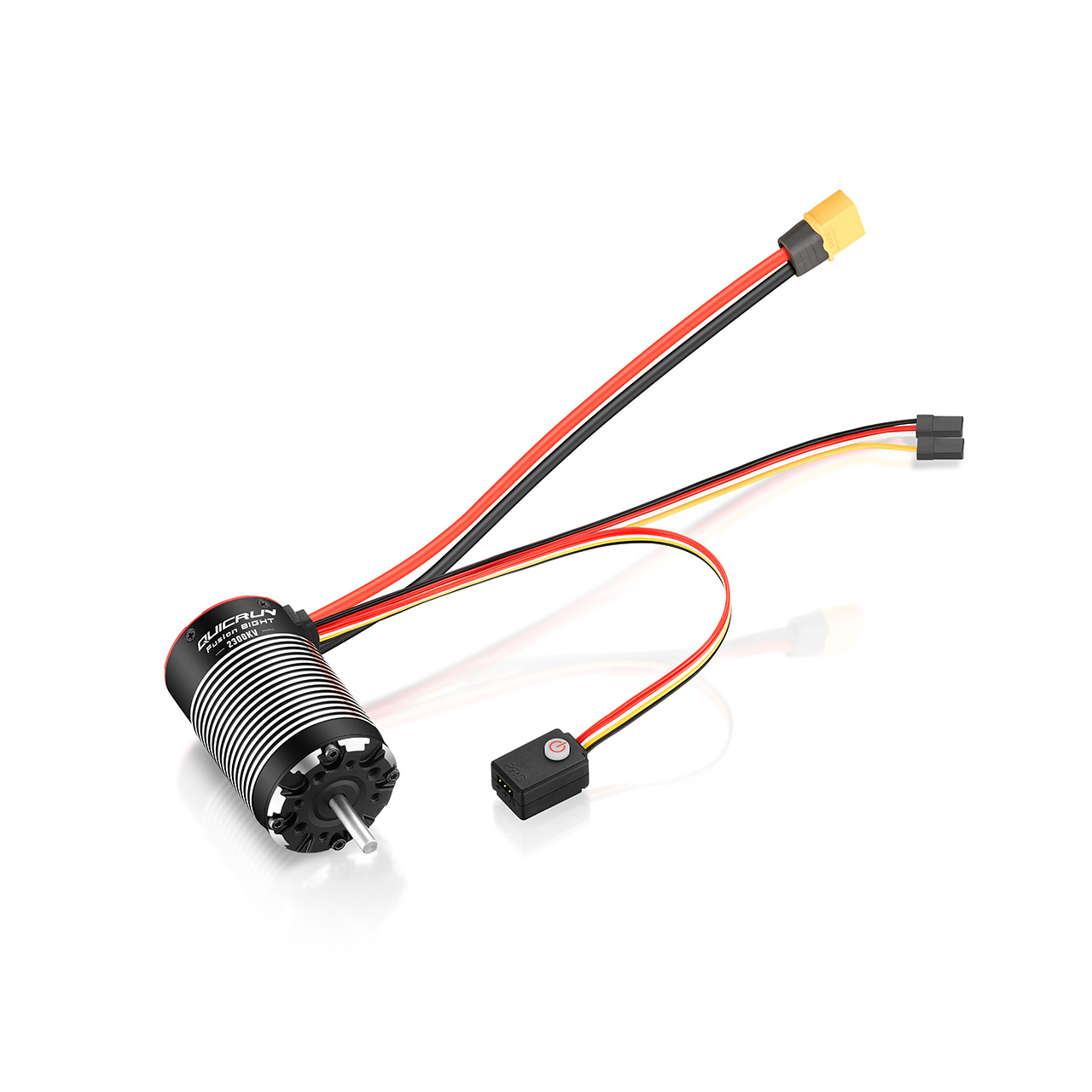

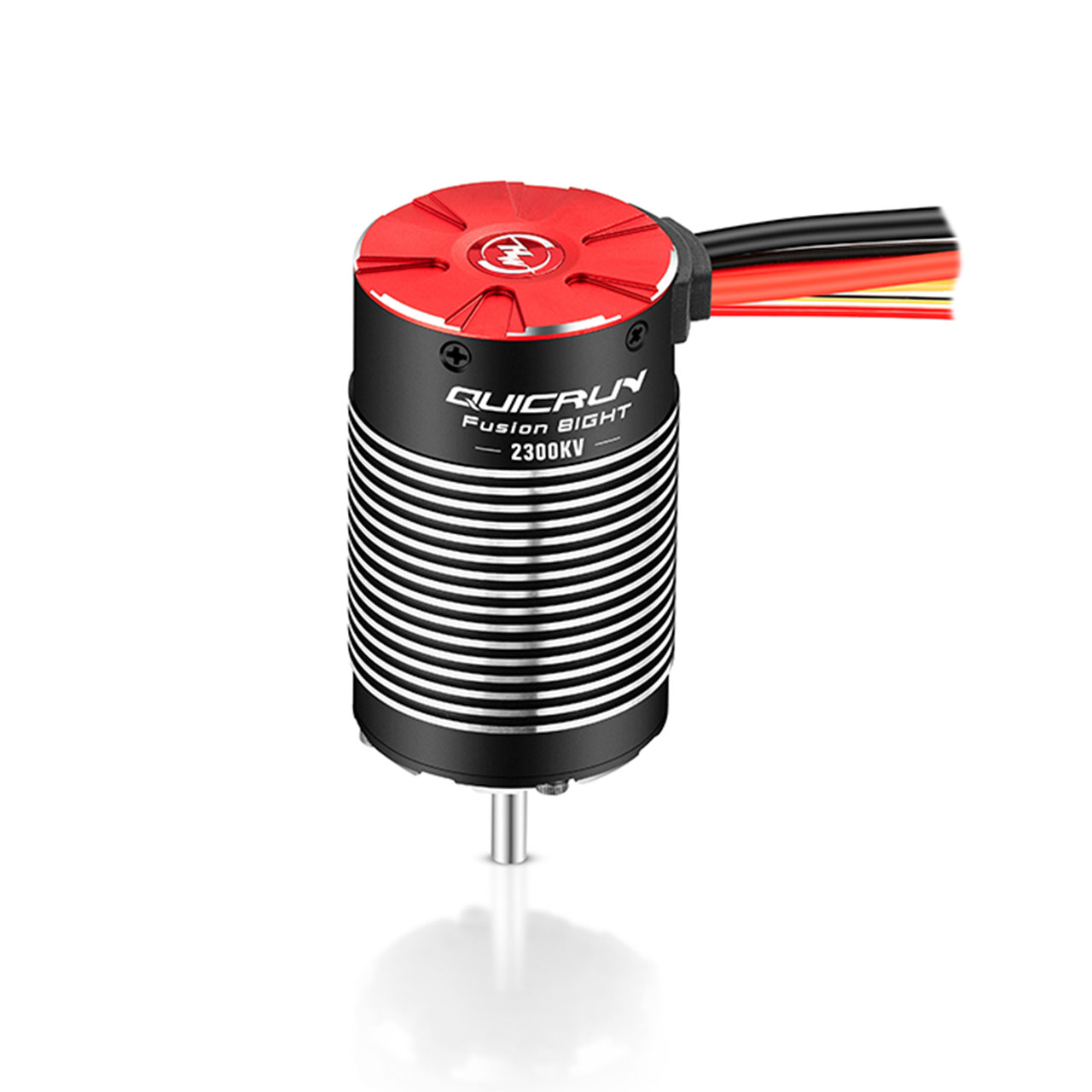

Hobbywing Quicrun Fusion 8IGHT for Rock Crawler 2300kV
- Part No: HW30120404
- Retail: €153.90
- EAN: 6938994413251
- Notice: 30120404
The popular Hobbywing QuicRun Fusion series stands for optimal design, efficiency, and quality. The QuicRun Fusion 8IGHT is the first 2-in-1 combo specifically developed for 1/8 rock crawlers and is equipped with Hobbywing's FOC. This allows for an incredibly smooth and consistent driving experience despite high performance.
Thanks to the compact 2-in-1 Fusion design, dealing with various cables and space issues is finally over. With a total weight of 338g, you hardly notice that the motor and ESC are combined. The combo not only impresses with its efficient integrated design but also with many innovative features. For example, the "Drag Brake" force can be adjusted in real-time using the yellow signal cable. Additionally, the ESC has three operating modes, including intelligent torque delivery that adapts smartly to the driving style.
Features
- 2-in-1: Motor and ESC combined
- Adjustable "Drag Brake" force in real-time
- Three operating modes and numerous adjustable parameters
- Water and dustproof
- Powerful built-in BEC with maximum output current of 13A
- Field-Oriented Control (FOC)
Technical Specifications:
| Type: | Brushless FOC Sensored |
| Current continuous/peak: | 80A/240A |
| Cell count: | 2-4S LiPo, 6-12S NiMH |
| BEC: | 6V/7.4V/8.4V |
| Poles: | 4 |
| RPM: | 2300kV |
| Outer diameter: | 42mm |
| Length: | 69mm |
| Shaft diameter: | 5mm |
| Shaft length: | 18.5mm |
| Waterproof: | Yes |
| Programming: | LCD G2/Pro |
| Weight: | 338g |
| Application: | 1/8 Rock Crawler |
Scope of Delivery:
- 1x QuicRun Fusion 8IGHT
- 1x User Manual
