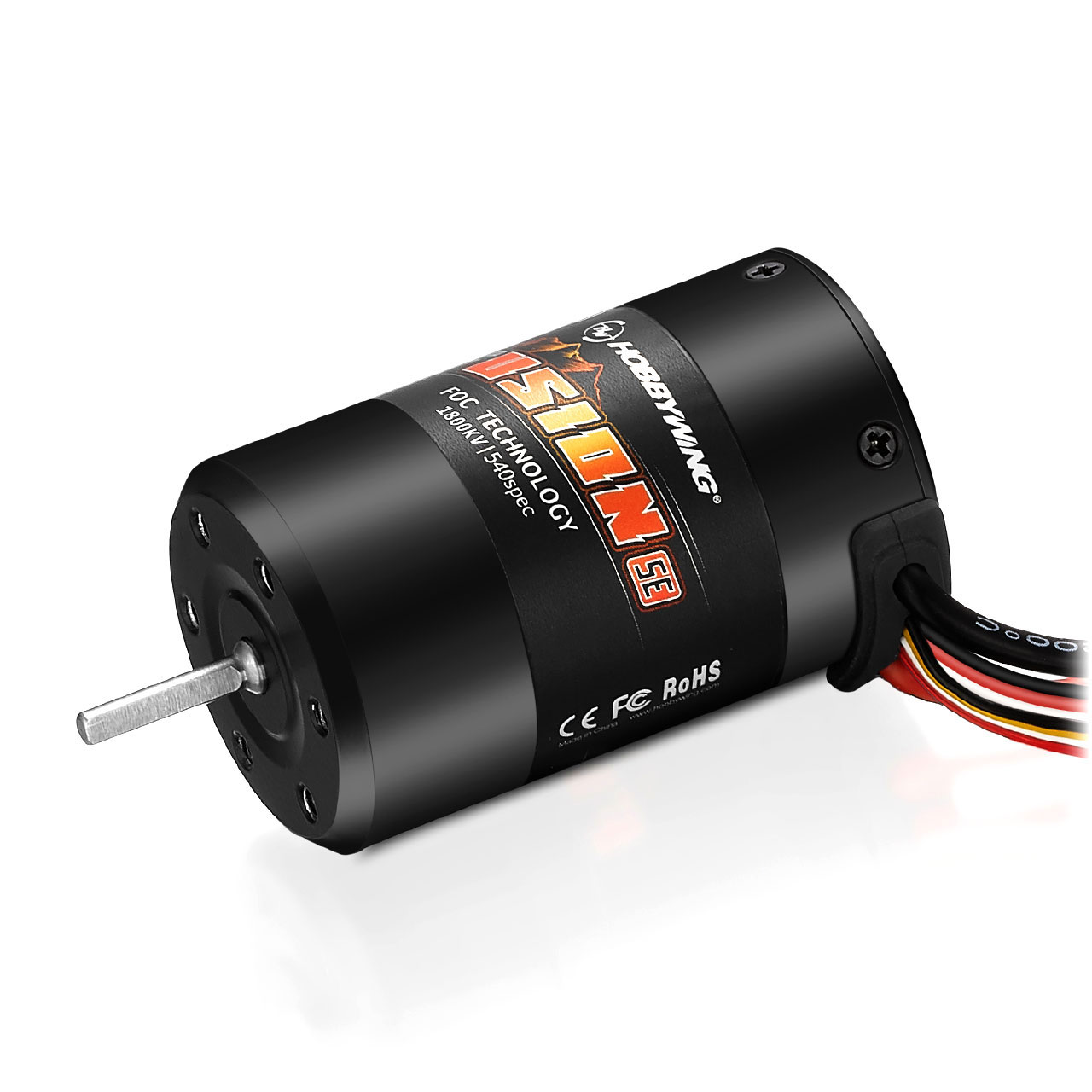

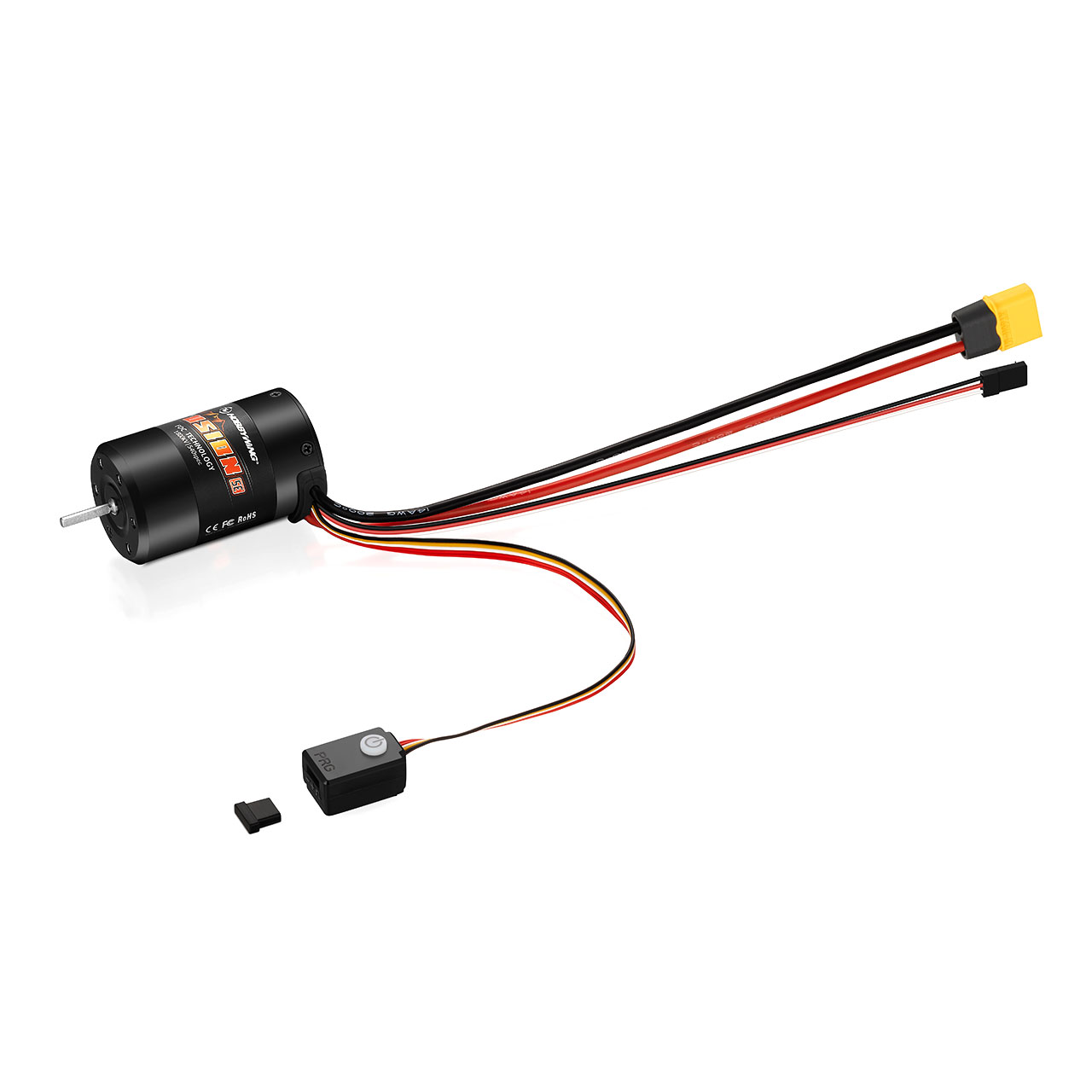

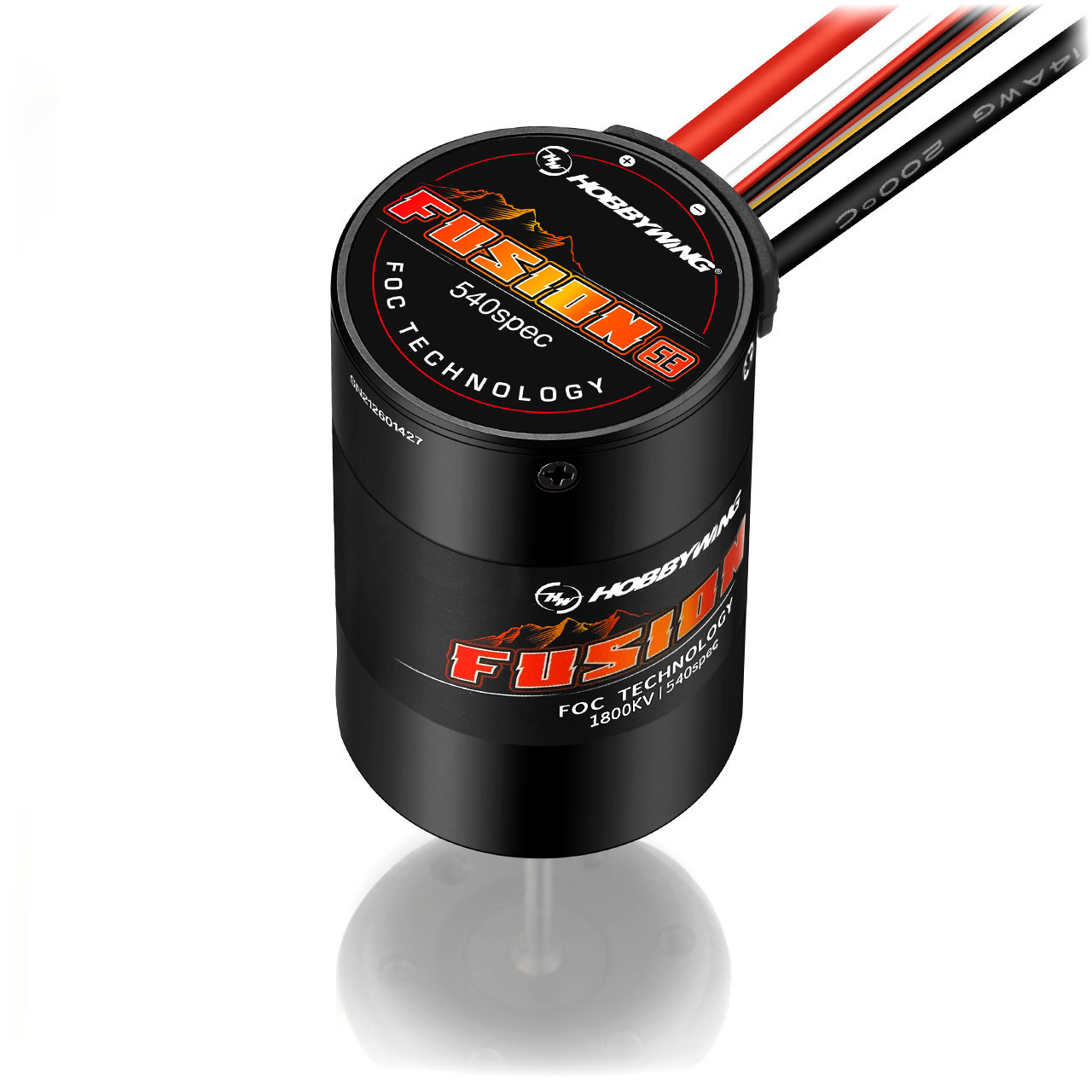

Quicrun Fusion SE for Rock Crawler 1800kV
Motor and ESC combo for 1/10 Rock Crawlers with FOC control and 1800kV
- Item number
- HW30404317
- EAN
- 6938994412216
RRP €86.90
Description
The Quicrun Fusion SE combines a motor and ESC in a housing the size of a typical 550 motor. Its FOC (Field-Oriented-Control) technology controls torque and speed, while sinusoidal motor control supports smooth, quiet running and keeps the ESC and motor cooler. The electronic switch is also protected against water and dust.
Highlights
- Motor and ESC combined in one unit
- Compact design, smaller and lighter than the previous version
- Strong torque even at slow speed
- Waterproof and dustproof
- Built-in switch-mode BEC
- Protection against undervoltage, overheating and loss of throttle signal
- Programmable with the LED Program Box
Specifications
| Type | Brushless FOC / Sensored |
|---|---|
| Current (continuous) | 40 A |
| Cells | 2S–3S LiPo, 6S–9S NiMH |
| BEC | 6 V/7.4 V @ 4 A (Switch-Mode) |
| Poles | 4 |
| kV Rating | 1800kV |
| Outer Diameter | 36 mm |
| Length | 58.1 mm |
|---|---|
| Shaft Diameter | 3.175 mm |
| Shaft Length | 16.5 mm |
| Waterproof | Yes, according to IP-67 Standard |
| Programming | Compatible with the LED Program Box / independent programming interface (switch position) |
| Weight | 201 g |
| Application | 1/10 Rock Crawler |
In the box
- 1 × Quicrun Fusion SE 1800kV
