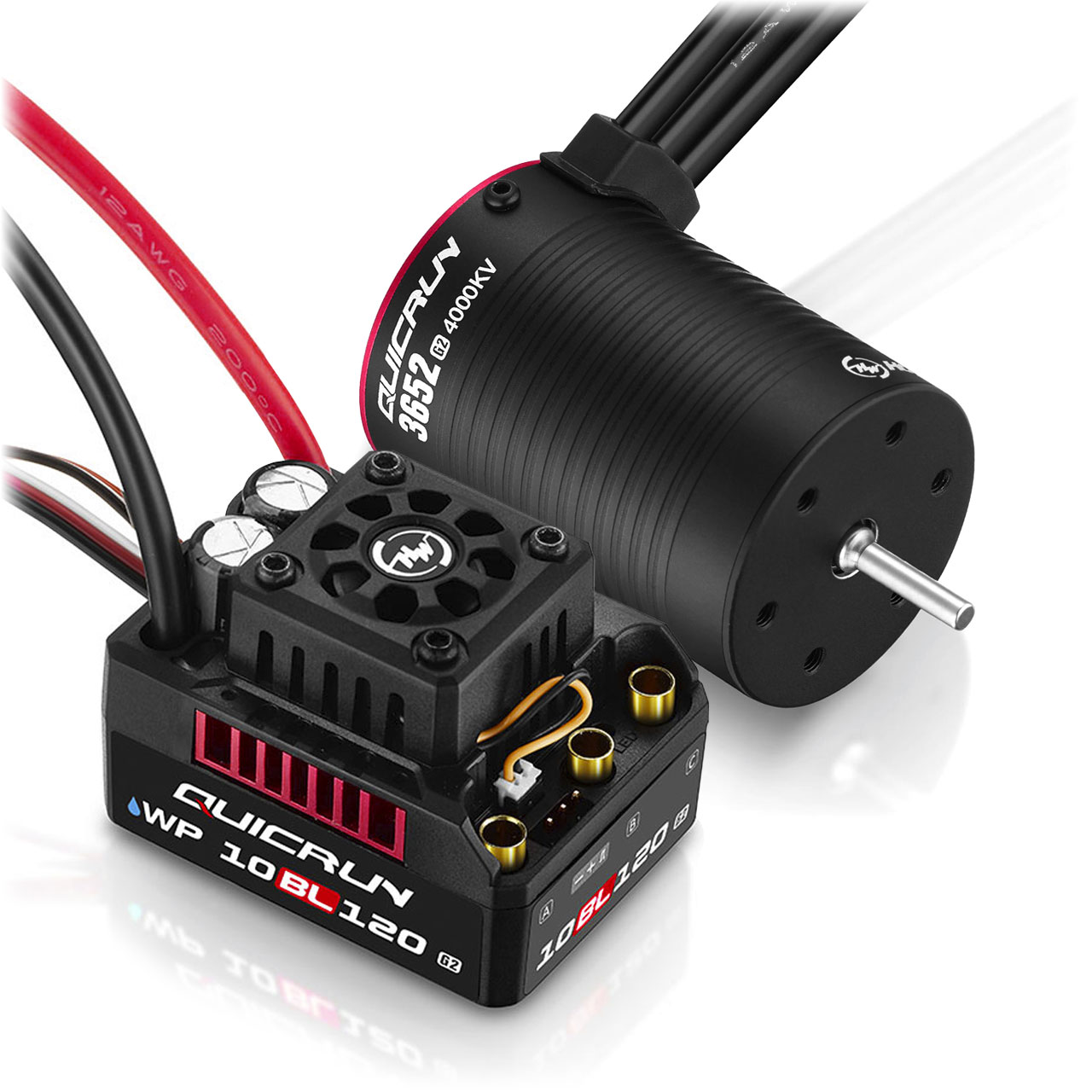

Combo WP10BL120G2 3652SL-4000kV-G2 Sensorless, image 1

Brand: Hobbywing

Combo WP10BL120G2 3652SL-4000kV-G2 Sensorless

Brushless combo with WP 10BL120 G2 ESC and 3652SL G2 4000kV motor

Item number
HW38030208
EAN
6938994420167
€86.90incl. VAT, plus shipping

RRP €86.90

In stock

Description

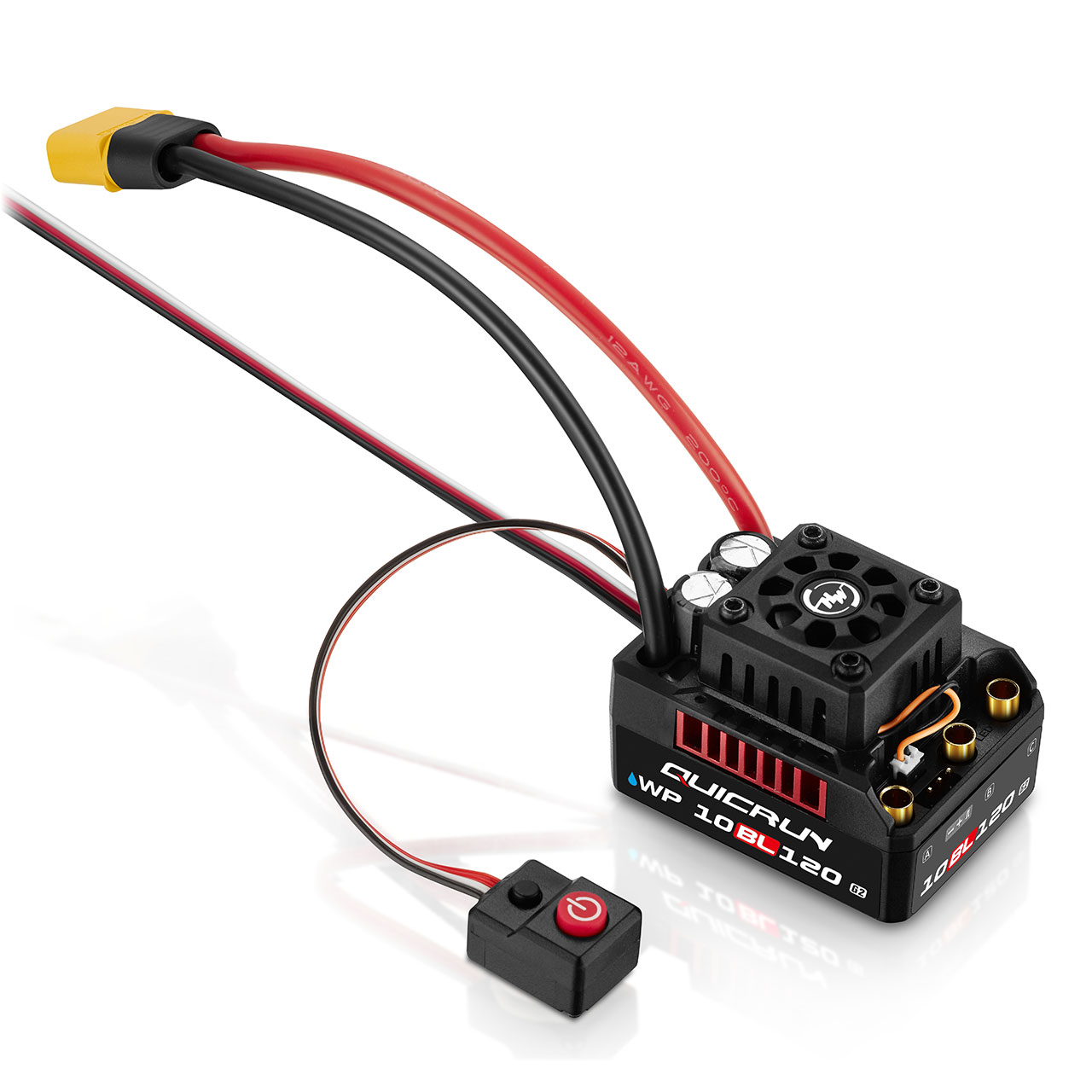

The combo pairs the QuicRun WP 10BL120 G2 ESC with the Quicrun 3652SL G2 motor. The ESC uses intelligent freewheeling technology for improved driving efficiency. It has an integrated BEC with switchable output voltage, a cooling system and IP67 protection against water and dust. It can be used in mud, sand, ice, snow and water.

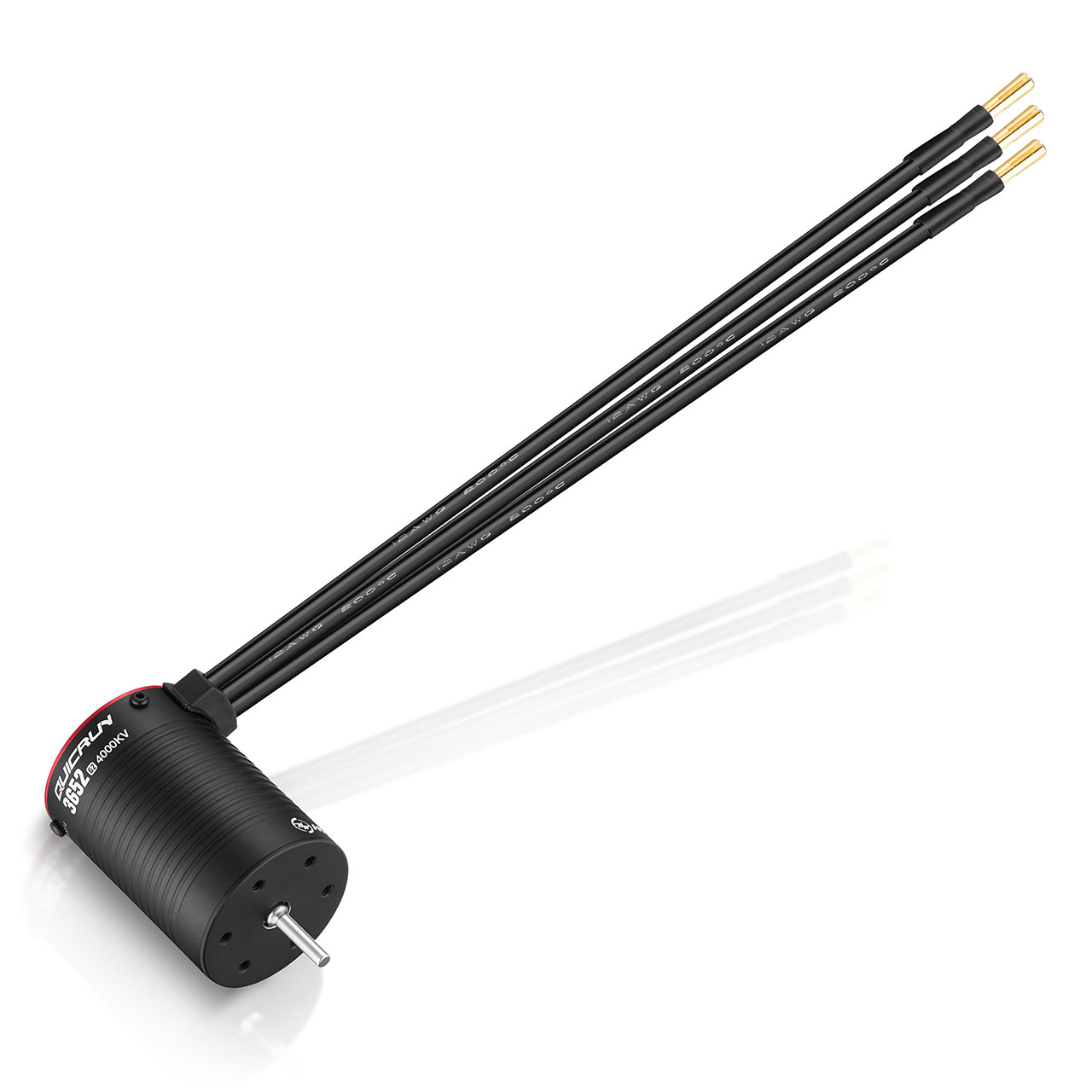

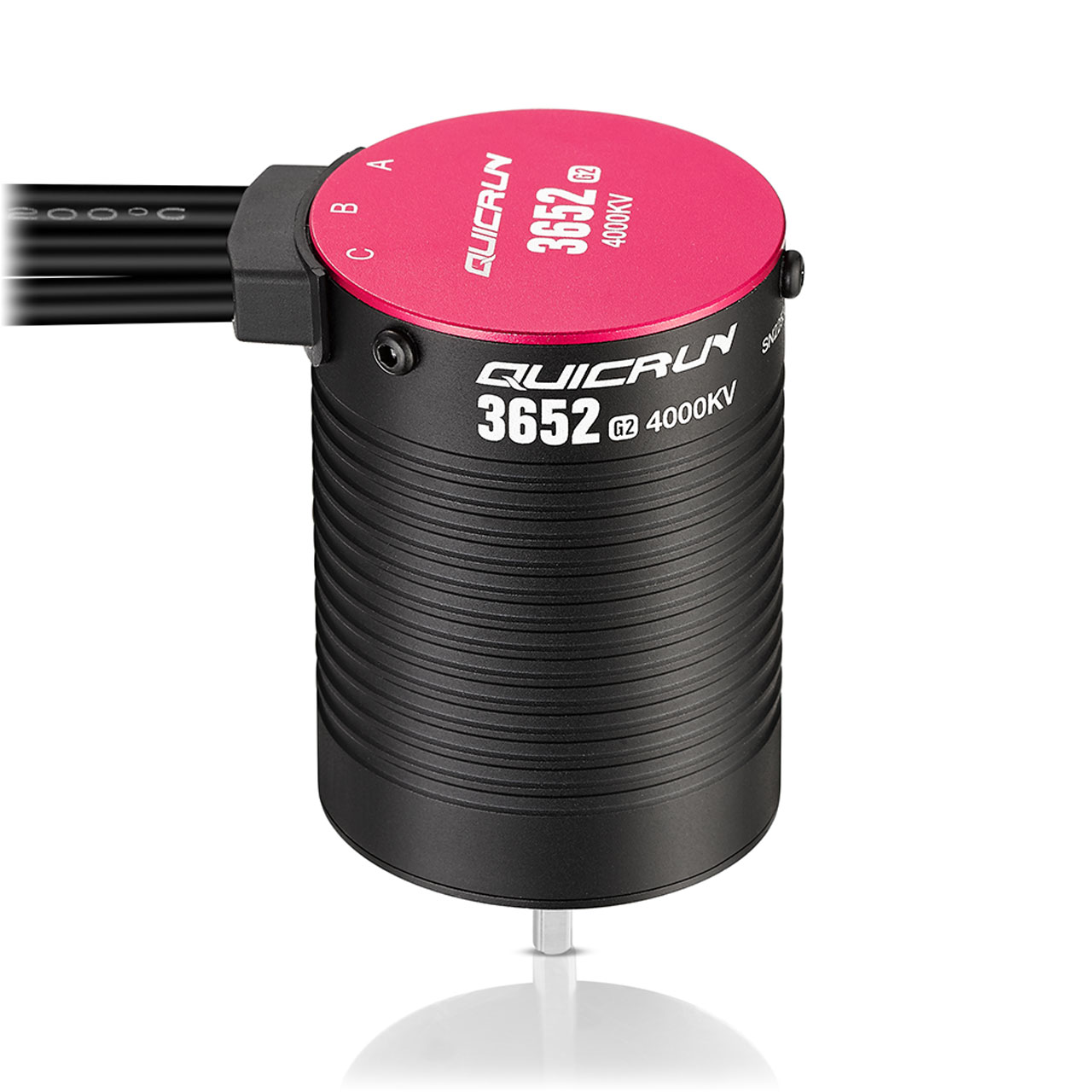

The Quicrun 3652SL G2 motor delivers over 10% more power than its predecessor while generating less heat. It has a hardened aluminium cover and internal wires that withstand temperatures of up to 200 °C.

Notes

  • Optional accessories: LCD Program Box G2 (HW30502001), LED Program Box (HW30501003).

Highlights

  1. Tuning options include Turbo Timing; improved switchable BEC output
  2. Selectable motor rotation direction (CW or CCW); ESC protection features
  3. Compact design suitable for a variety of chassis
  4. Suitable for many applications and competitions
  5. Enhanced acceleration
  6. CNC-machined aluminium motor housing; motor components designed for durability and smooth operation
  7. Motor can be disassembled for maintenance

Specifications

ESC
TypeBrushless, Sensored
Current (Cont./Peak)120 A / 760 A
Input Voltage2–4S LiPo
BEC6 V / 7.4 V @ 5 A (switch mode)
Motor TypesBrushless motors (with/without sensor)
Motor Limit3S LiPo: kV ≤ 4000 3660 motor / 4S LiPo: kV ≤ 2600 4268 motor
FanYes, powered by BEC
ProgrammingLED Program Box / LCD Program Box (G2) / Separate Programming Port
WaterproofYes (IP67)
Dimensions52.8 × 39.8 × 38.2 mm
Weight119 g
Application1/10 Short Course, Monster Truck
Motor
TypeBrushless / Sensorless
Poles4
kV Rating4000kV
LiPo Cells2–3S
No-Load Current5.3 A
Outer Diameter36 mm
Length52 mm
Shaft Diameter3.175 mm
Shaft Length15 mm
Weight224 g
ApplicationOn-Road, Buggy, Truck (light load)

In the box

  • 1 × Quicrun WP10BL120 G2 ESC
  • 1 × Quicrun 3652SL Motor with 4000kV
  • 1 × Manual
  • 1 × Sticker & Accessories

Safety & manufacturer

Manufacturer

Hobbywing

Item number: HW38030208

EAN: 6938994420167

Responsible person in the EU

Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)

Safety information

  • Contains small parts.
  • Keep away from children.
  • Not suitable for children under 14 years of age.
