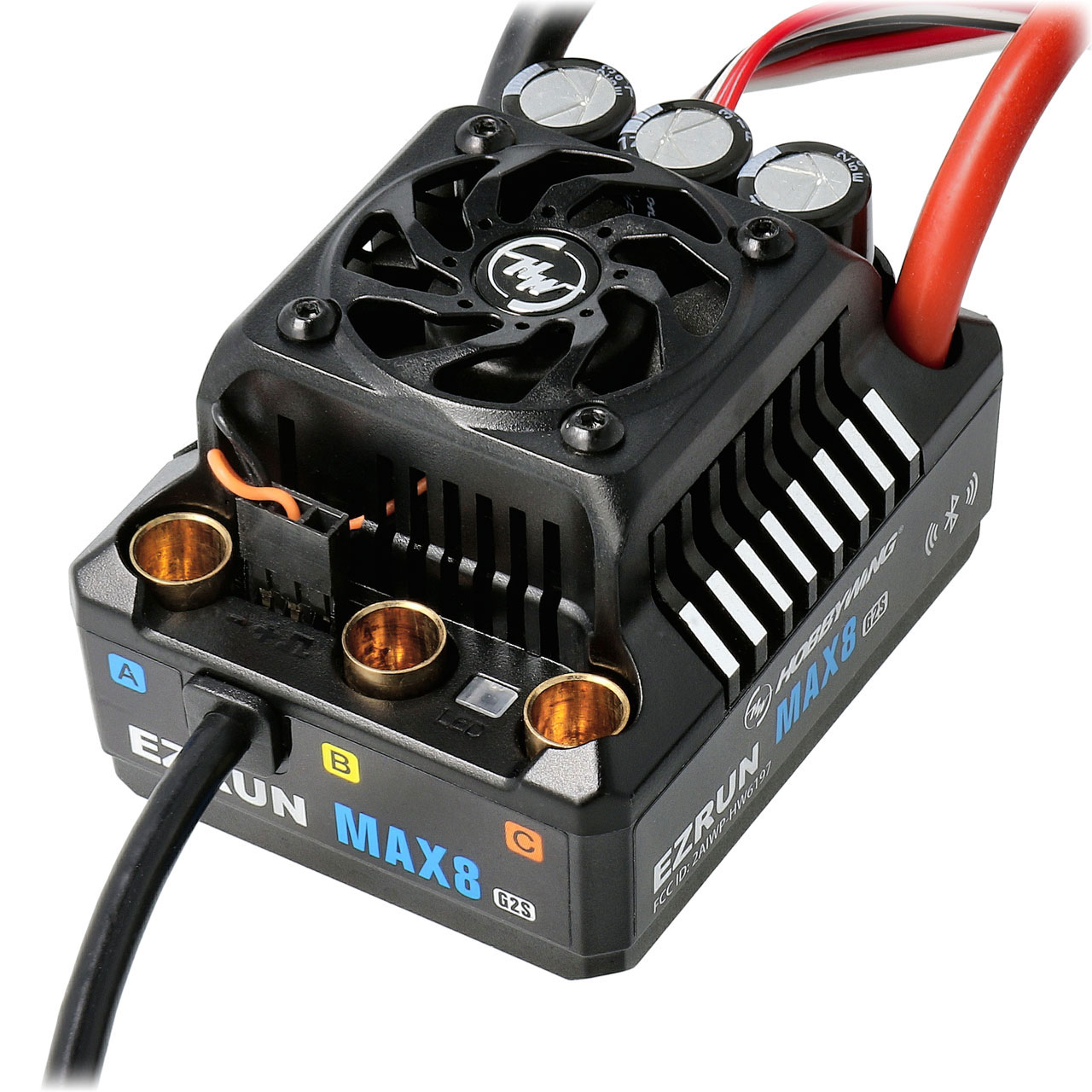

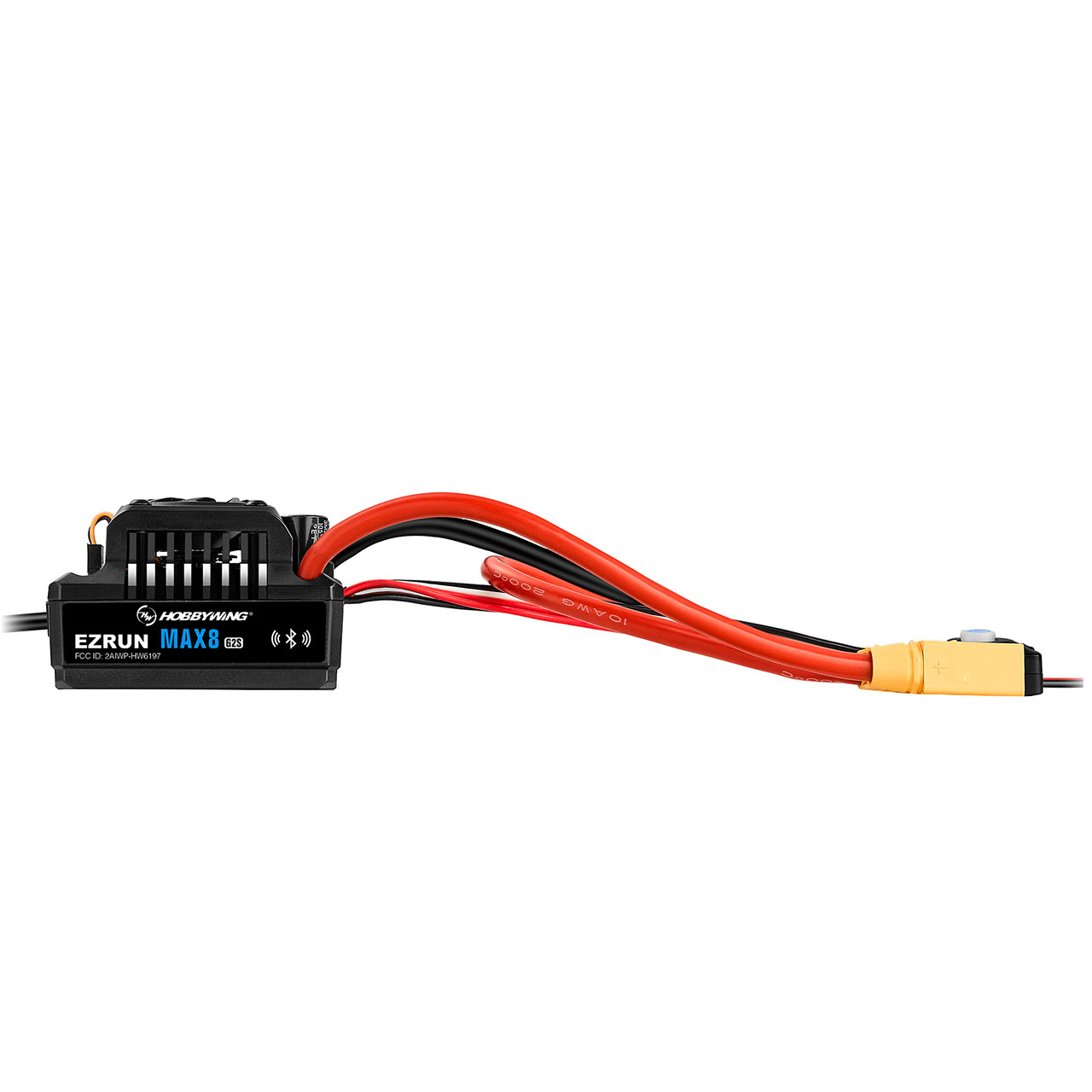

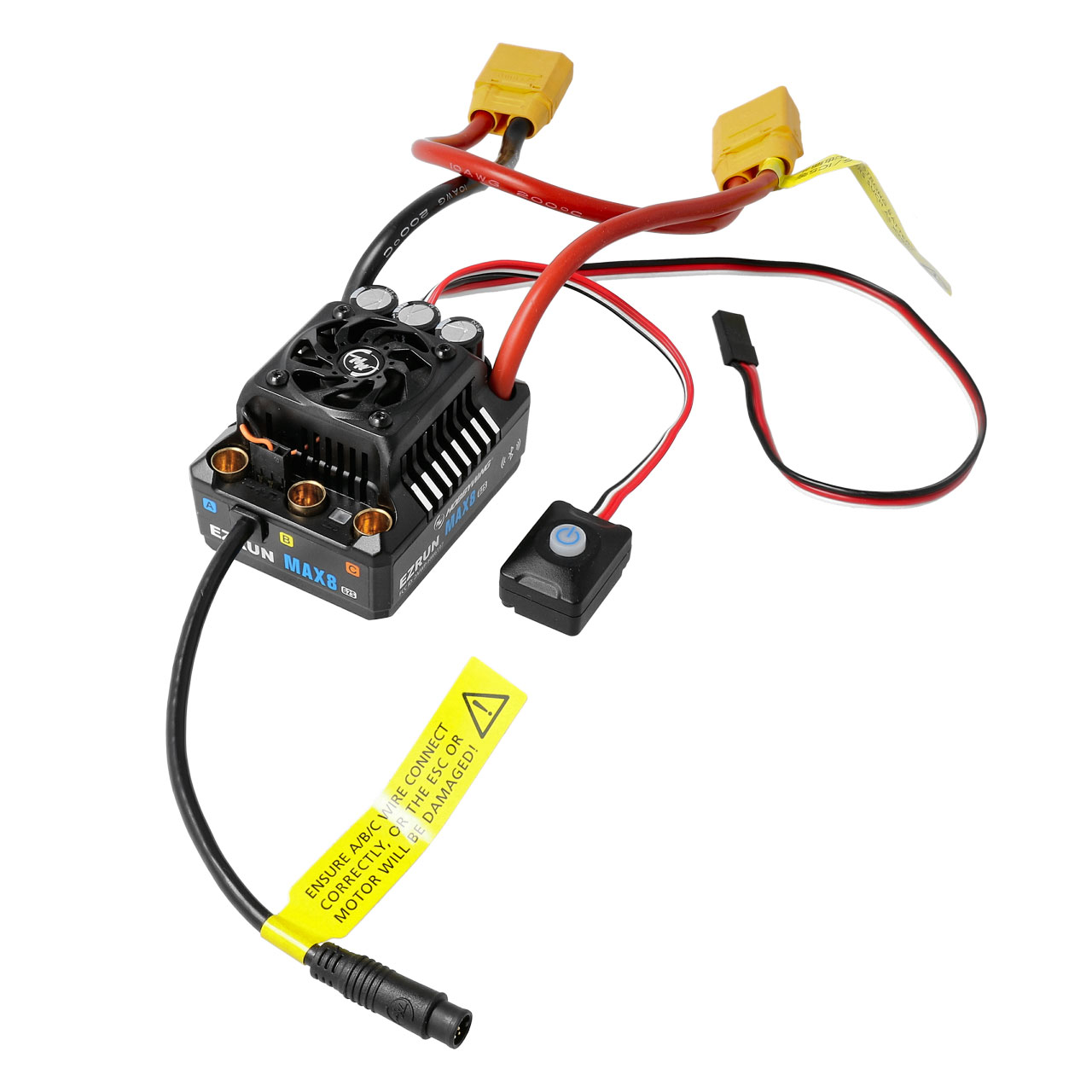

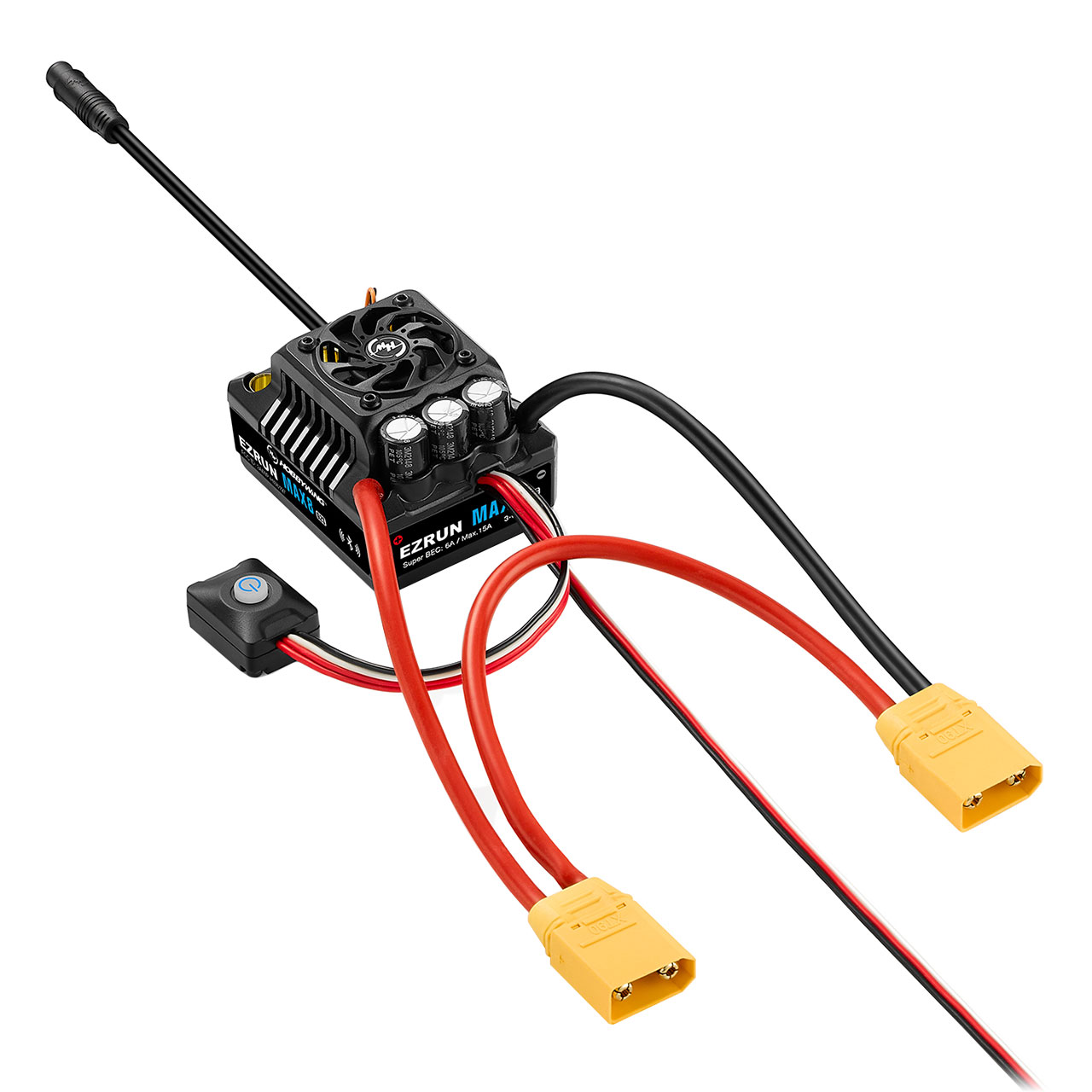

Hobbywing Ezrun MAX8 G2S ESC 160 Amp, 3-6s LiPo, BEC 6A
- Part No: HW30103205
- Retail: €115.90
- EAN: 6938994406338
- Notice: Brushless, Waterproof,30103205
The Ezrun MAX8 G2S ESC is as powerful as the MAX8 G2. Suitable for all 1:8 On-Roaders and Trucks, it offers versatile programming options. The only difference lies in the programming itself, as the G2S features integrated Bluetooth, rendering any additional accessories unnecessary for programming. All that's required now is a smartphone with the Hobbywing app "HWLink2".
The dynamic specifications of the ESC perfectly meet the needs of modern, power-hungry drivers. Its strong output power combined with excellent linearity at low speeds in Full-Sensored mode are the top arguments in favor of the Ezrun MAX8 G2S. With the built-in 32° Turbo Timings, You can even increase the maximum RPM by 25% when using a suitable motor such as the Ezrun 4278SD. Enjoy Your ride regardless of weather conditions, as the implementation of the IP-67 standard in its construction makes the ESC exceptionally dust- and waterproof. However, full safety is only guaranteed when using a motor that can be connected via the newly developed sensor cable. Equipped with smart technology developed by Hobbywing, the MAX8 G2 can effectively increase performance at a lower temperature. Achieving a whole 25°C less compared to the regular MAX8 ESC is possible, reducing the likelihood of failures.
Features- Programmable directly with the smartphone thanks to integrated Bluetooth signal
- New sensor cable design for protection against water and dust
- Built-in Super-BEC
- Includes "Turbo Timing" function
- Real-time data recording to capture max. ESC and motor temperature, motor RPM, and other values
- Various protection features:
- Overheat protection
- Low voltage cutoff
- Fail-Safe
- Current protection
Technical Specifications
| Type: | Brushless, Sensored |
| Current (cont./peak): | 160A / 1050A |
| Input Voltage: | 3-6S LiPo |
| BEC: | 6V / 7.4V / 8.4V @ 6A (Switch Mode) |
| Motor Types: | Brushless Motors (with/without sensor) |
| Motor Limit: | 4S: <=3000kV 6S: <=2400kV, 4278 motor |
| Fan: | Yes, powered by BEC |
| Connectors: | XT90 (input) 6.0mm bullet connector (output) |
| Programming: | iOS / Android smartphone |
| Dimensions: | 60 x 48 x 40.5mm |
| Weight: | 192g |
| Application: | 1/8 On-Road, Short Course Truck, Monster Truck |
Delivery
- Ezrun MAX8 G2S ESC
- Manual
- Sticker & assembly accessories
