BEC 25A UBEC ESC for 3-18s
UBEC for 3–18S LiPo with 25 A continuous output and backup battery input
- Item number
- HW30606000
- EAN
- 6938994400312
RRP €68.90
Description

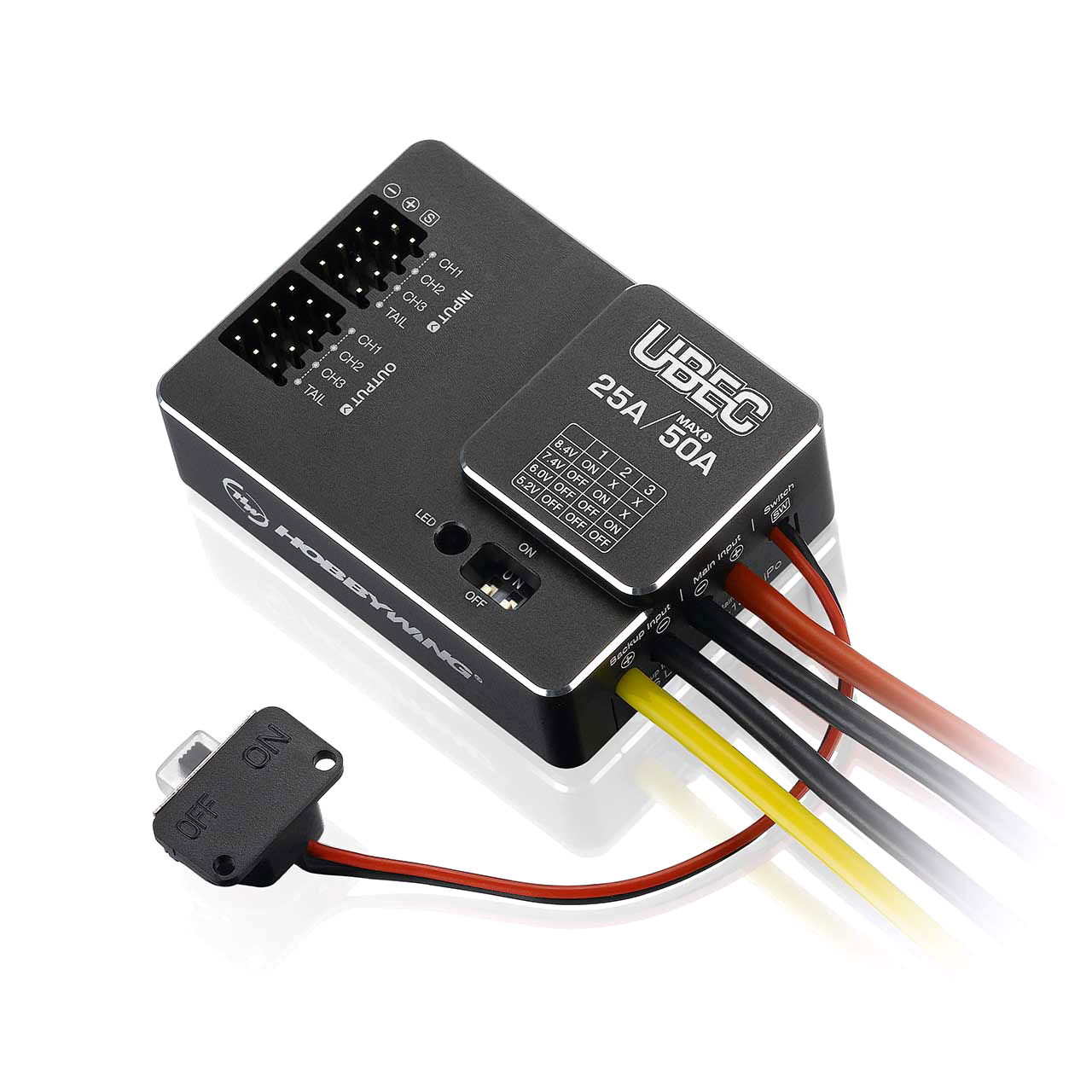

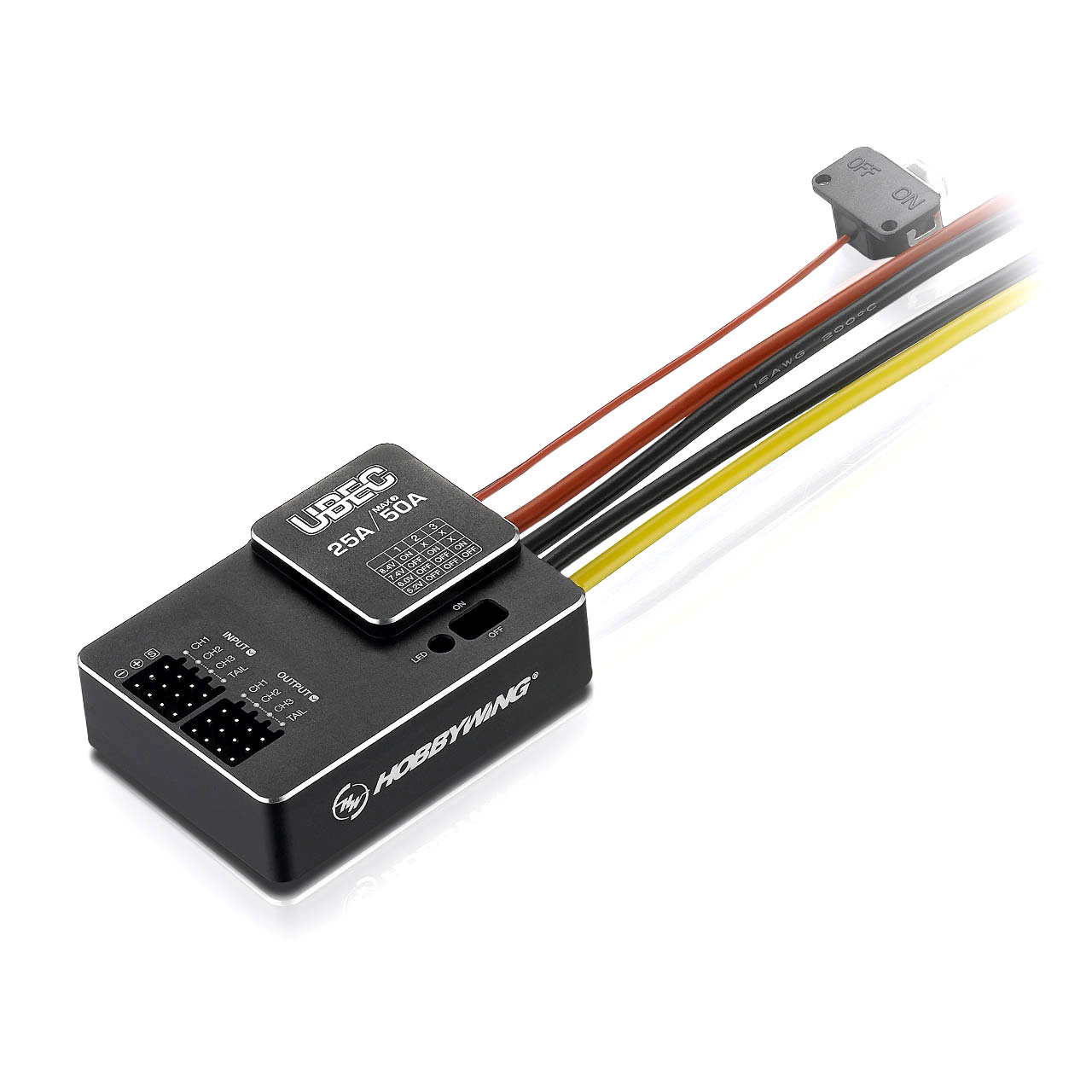

The Hobbywing UBEC 25A HV supplies a receiving system from a connected 3–18S LiPo battery. Its output voltage can be set for the servos in four steps from 5.2 V to 8.4 V.
An external backup battery can be connected to take over the power supply automatically if the main battery is empty or defective. The UBEC is used in large helicopters and fixed-wing aircraft with multiple high-power servos.
Highlights
- Switching BEC with an efficiency of over 90%
- Protection against overcurrent, short circuit, overheating, overvoltage and undervoltage
- External on/off switch
- Metal case
- LED status display
Specifications
| Input Voltage | 3–18S LiPo |
|---|---|
| Input Voltage Backup | 1–2S LiPo |
| Output Voltage | 5.2 V / 6.0 V / 7.4 V / 8.4 V |
| Current (Cont./Peak) | 25 A / 50 A |
| Dimensions | 55 × 40.2 × 17.6 mm |
| Weight | 74 g |
