Hobbywing Ezrun MAX10 G2 ESC 140 Amp, 2-4s LiPo, BEC 5A
Sold out
Please inform me as soon as the product is available again.
- Part No: HW30102603
- Retail: €82.90
- EAN: 6938994405546
- Notice: 30102603
1/10 Brushless Sensored ESC with 140 A continuous current and 2–4S LiPo input The... more
Product information "Hobbywing Ezrun MAX10 G2 ESC 140 Amp, 2-4s LiPo, BEC 5A"

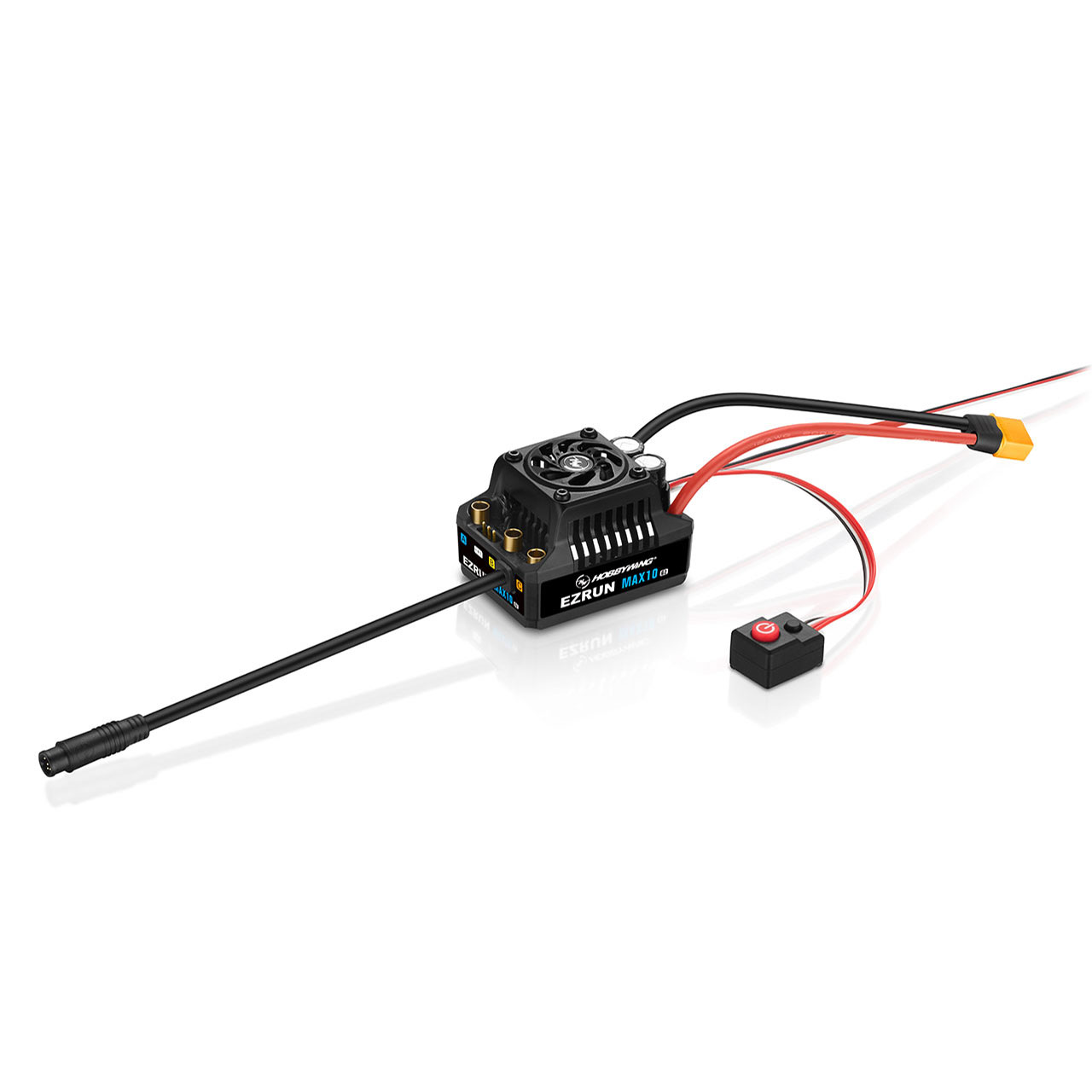

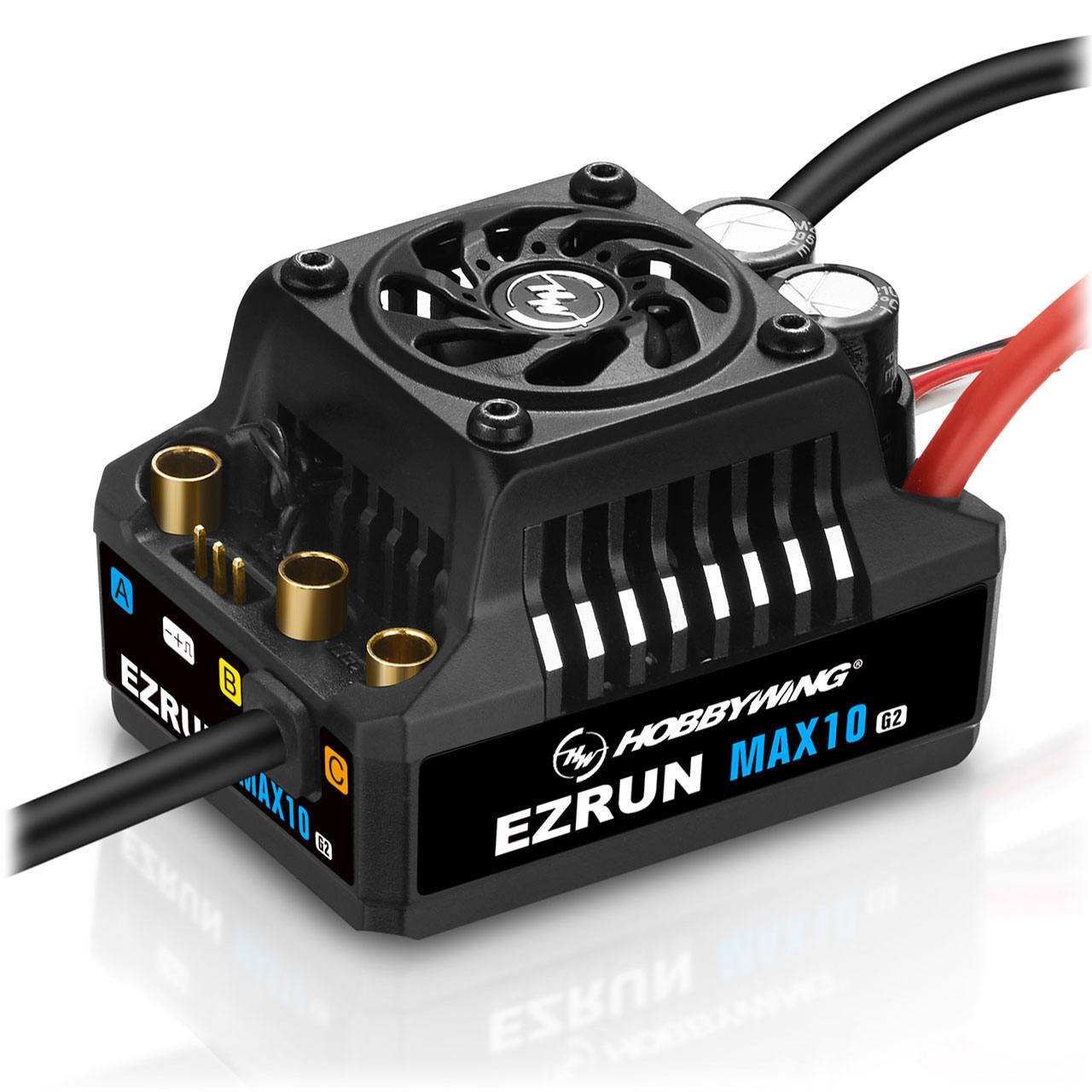

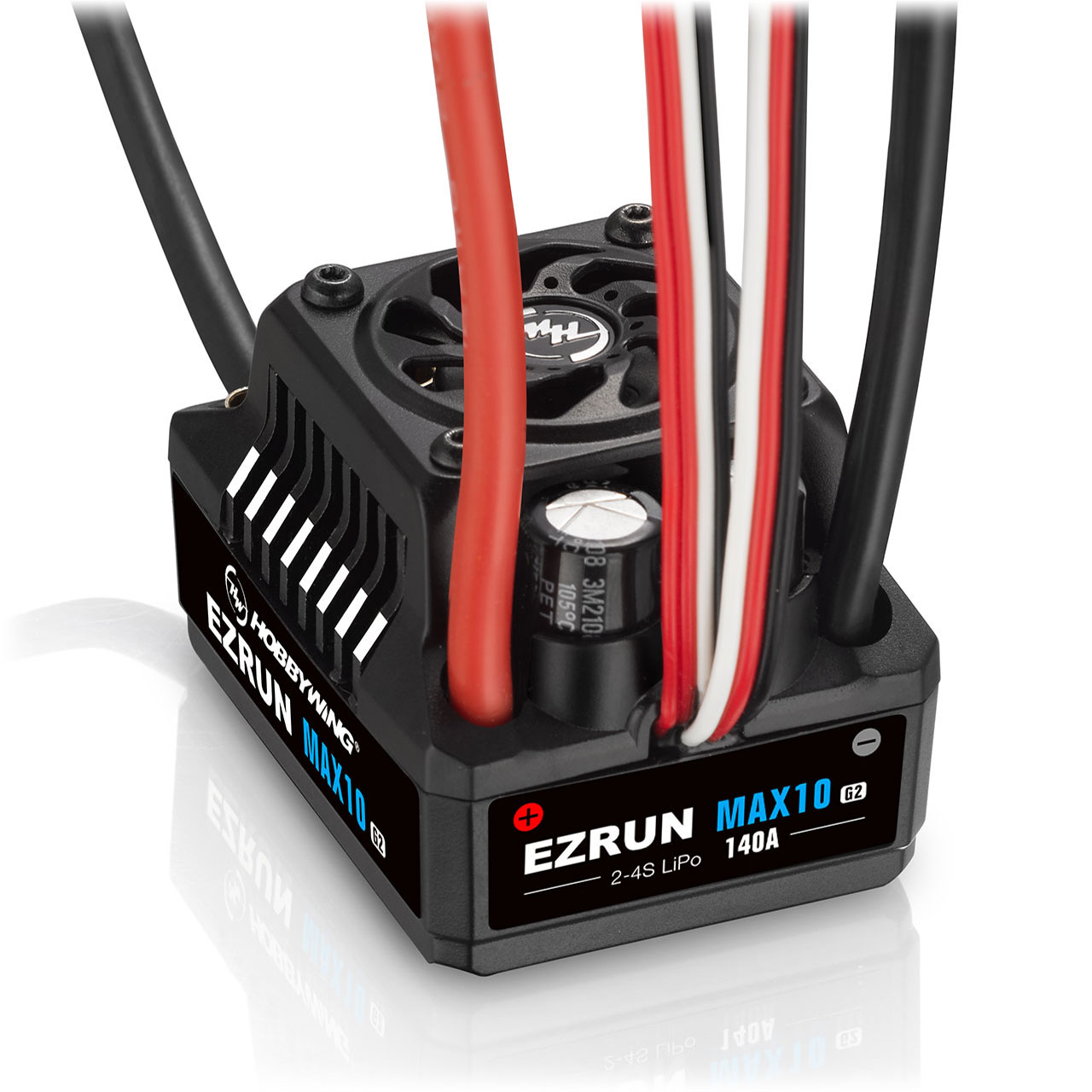

1/10 Brushless Sensored ESC with 140 A continuous current and 2–4S LiPo input
The second-generation Ezrun MAX10 G2 140 A ESC is designed for 1/10 Short Course Trucks, Trucks and Monster Trucks. Its sensor mode uses a waterproof sensor cable and provides improved throttle response, especially with an Ezrun 3652/3665 G3 motor. Compared with the previous generation, it delivers greater power, more stable output and improved linearity at low speeds.
The capacitor capacity has increased by 74% compared with the previous generation, and the capacitors are protected against overheating. This improves power transfer from the battery to the ESC and reduces the likelihood of overcharging.
Highlights
- New sensor cable design protects against water and dust
- Suitable for all weather conditions

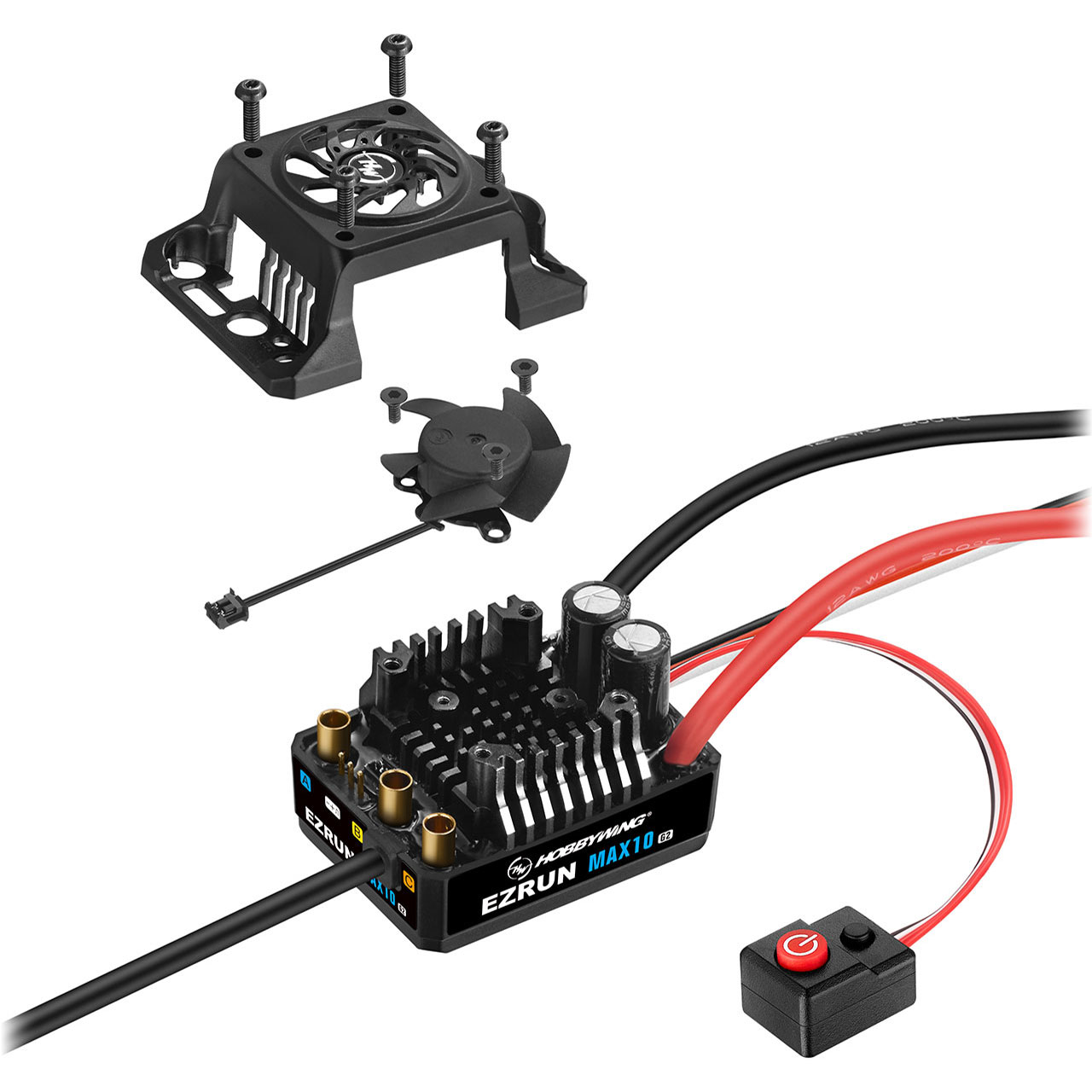

- Built-in Super BEC and frameless smart fan
- Real-time data and data recording
- Turbo timing setting
- Protection against low voltage, overheating and loss of signal
Specifications
| Type | 1/10 Brushless Sensored |
| Current (Cont./Peak) | 140 A / 880 A |
| Input Voltage | 2–4S LiPo |
| BEC | 6 V/7.4 V, 5 A |
| Motor Types | Brushless Motors (with/without sensor) |
| Motor Limit | 3S LiPo: KV ≤ 4000 – 3665er Motor / 4S LiPo: KV ≤ 2600 – 4268er Motor |
| Fan | Yes, powered by BEC |
| Fan Size | 30 × 30 × 10 mm |
| Programming | LED Program Box / LCD Program Box (G2) / OTA Program Module / Separate Programming Port |
| Waterproof | Yes |
| Input | XT60 |
| Output | 4.00 mm Gold (female) |
| Dimensions | 53 × 39.5 × 37.2 mm |
| Weight | 120 g |
| Application | 1/10 Short Course Truck, Truck and Monster Truck |
In the box
- 1× MAX10 G2 140 A ESC
Notes
- Optional accessories: LED Program Card (HW30501003), LCD G2 Program Box (HW30502001), OTA Program Module (HW30850400).
