Brand:
Quicrun WP-Mini24 Brushless Regler 25A 2-3s for 1:24
ESC for 1/16, 1/18 and 1/24 rock crawlers with brushed and brushless motor control
- Item number
- HW30109004
- EAN
- 6938994413244
€34.90incl. VAT, plus shipping
RRP €34.90
Description

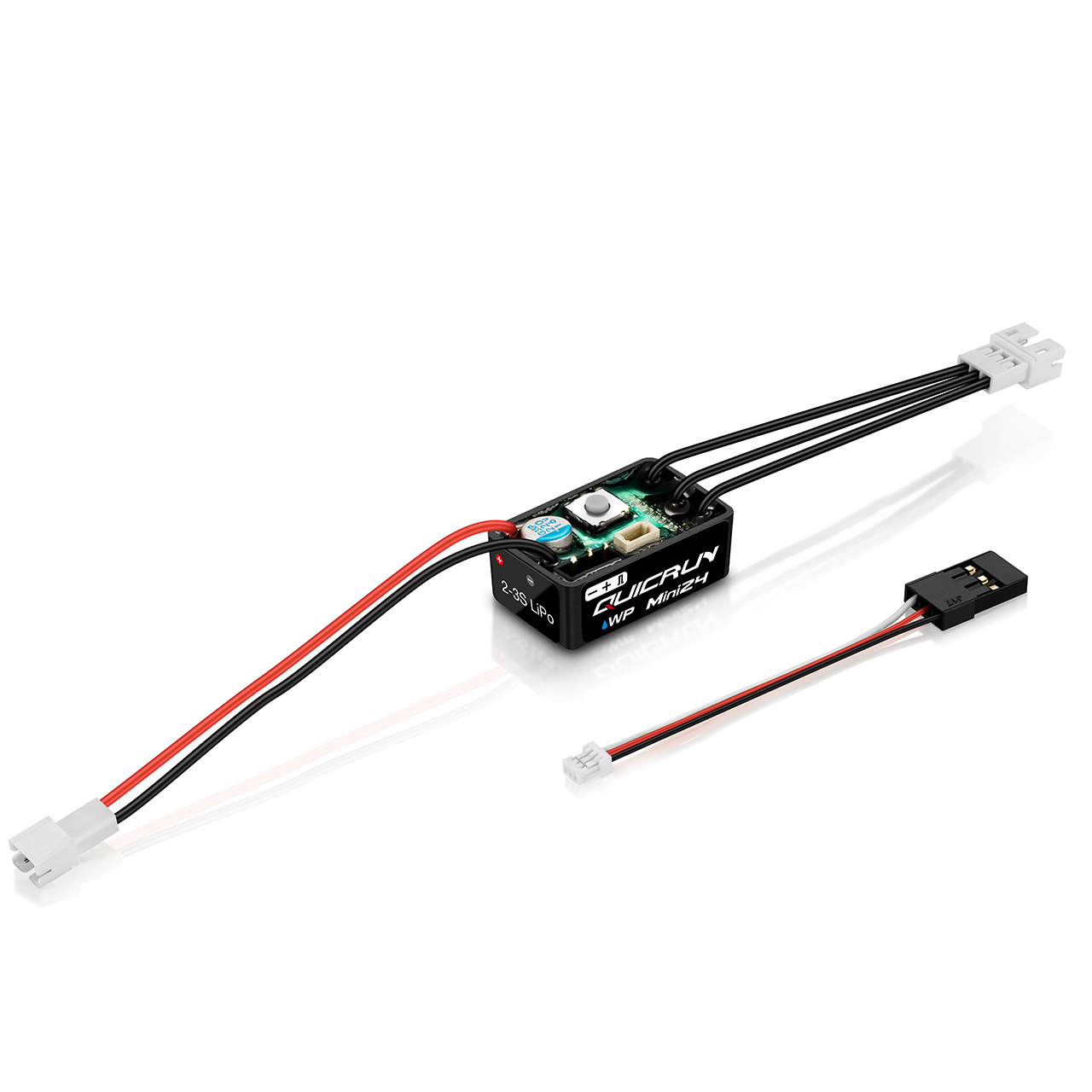

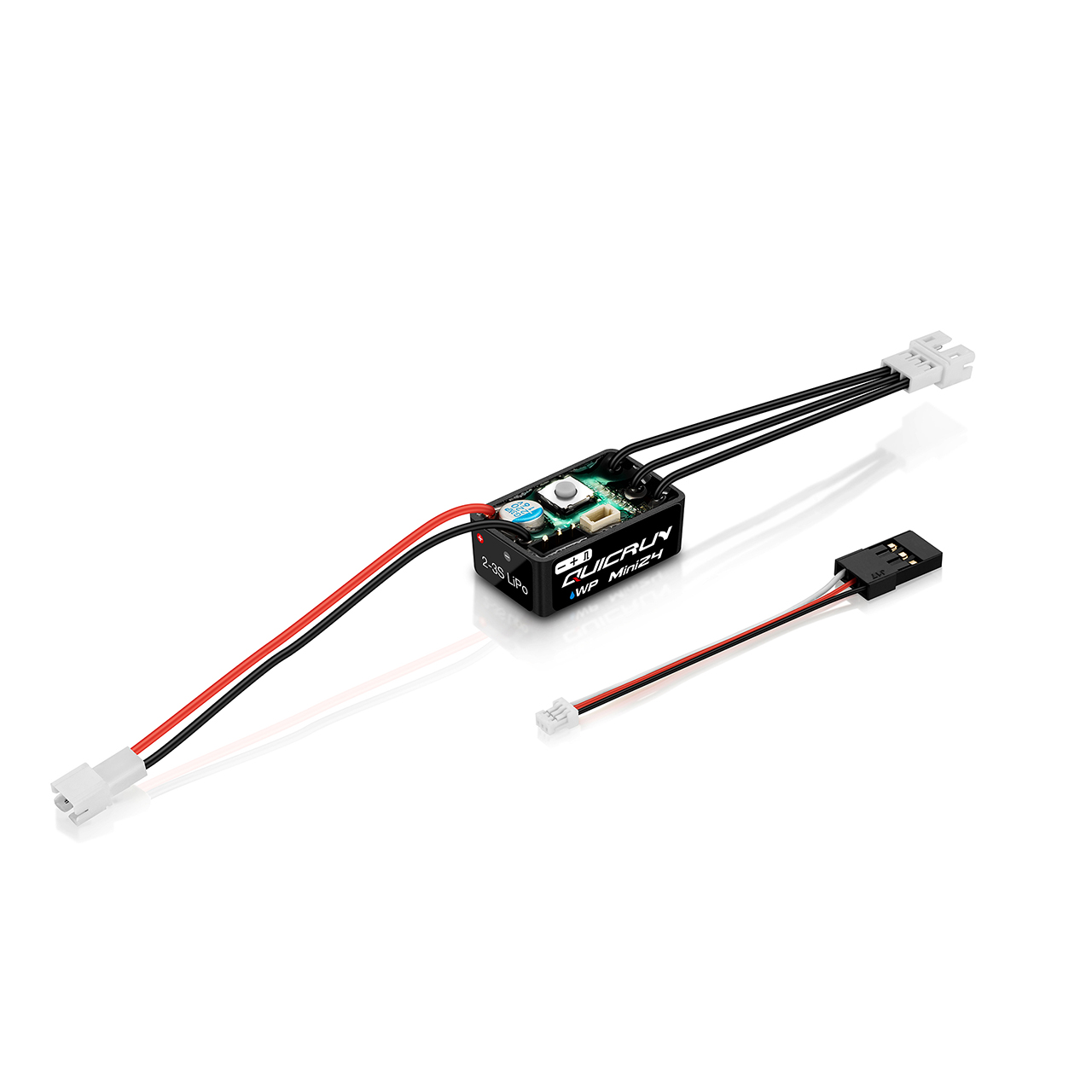

The QuicRun WP Mini24 is an ESC for rock crawlers with high torque at low speeds. It is designed for use in varying terrain and weather conditions.
The signal cable can be connected to a receiver channel to adjust the drag brake force in real time.
Notes
- IP67 protection means the ESC is splash-proof, water-resistant and dustproof under normal use. Protection is not permanent and may decrease due to daily wear and/or ageing. Do not submerge the ESC in water for extended periods, as this may cause damage.
- Optional accessories: LCD Programming Box Pro (HW30502002), LED Programming Box (HW30501003).
Highlights
- Integrated switch-mode BEC
- 13 customisable parameters
- IP67 protection (dustproof and waterproof)
- Waterproof switch
- Programming port with AUX function for real-time drag brake force adjustment
- Designed for 1/16, 1/18 and 1/24 rock crawlers
- Controls brushed and brushless motors
Specifications
| Type | Brushless/Brushed, Sensorless |
|---|---|
| Current (Cont./Peak) | 25 A / 60 A |
| Input Voltage | 2–3S LiPo |
| BEC | 6 V/7.4 V (Switch Mode) |
| Motor Types | Sensorless / Brushed & Brushless |
| Motor Limit | 2S: ≤ 6000kV / 3S: ≤ 3500kV, 3652/3660 motor |
| Waterproof | Yes |
|---|---|
| Connector | PH 2.0-3PIN |
| Programming | LED programming card / LCD programming box Pro/G2 |
| Dimensions | 28 × 17.8 × 13 mm |
| Weight | 13.5 g |
| Suitable Vehicles | 1/16, 1/18, and 1/24 rock crawlers |
In the box
- 1 × QuicRun WP Mini24 ESC
- 1 × Manual (English)
