Hobbywing AXE Plus R3 540L 3300kV R2 Combo
- Part No: HW38020389
- Retail: €177.90
- EAN: 6938994416993
- Notice: 38020389
Crawler combo with AXE Plus R3 ESC and 3300kV 550L R2 motor The AXE Plus Combo pairs the R3... more
Product information "Hobbywing AXE Plus R3 540L 3300kV R2 Combo"

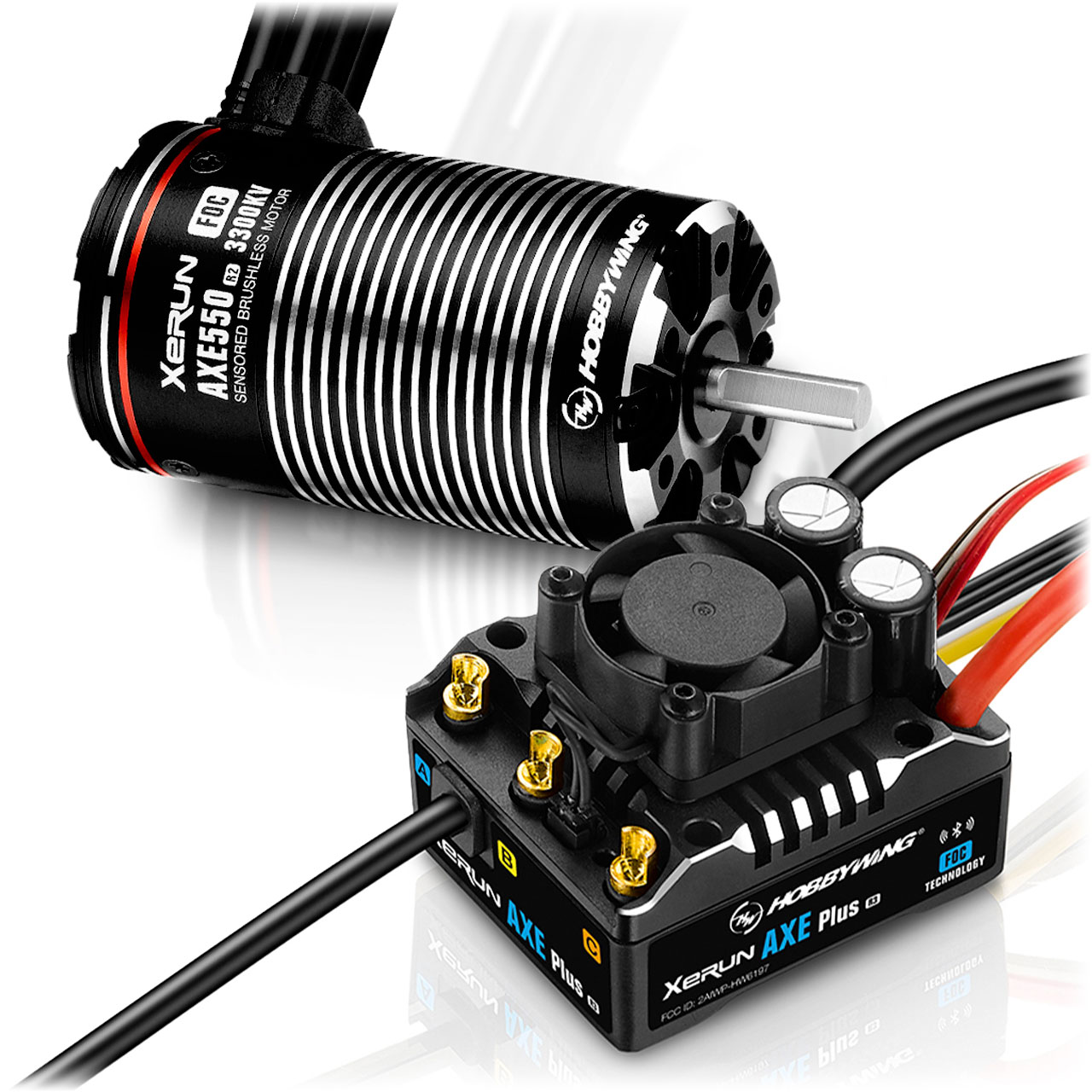

Crawler combo with AXE Plus R3 ESC and 3300kV 550L R2 motor
The AXE Plus Combo pairs the R3 ESC with a 3300kV 550L R2 motor for crawler RC cars. Integrated FOC technology provides linear power, torque and nearly silent operation.

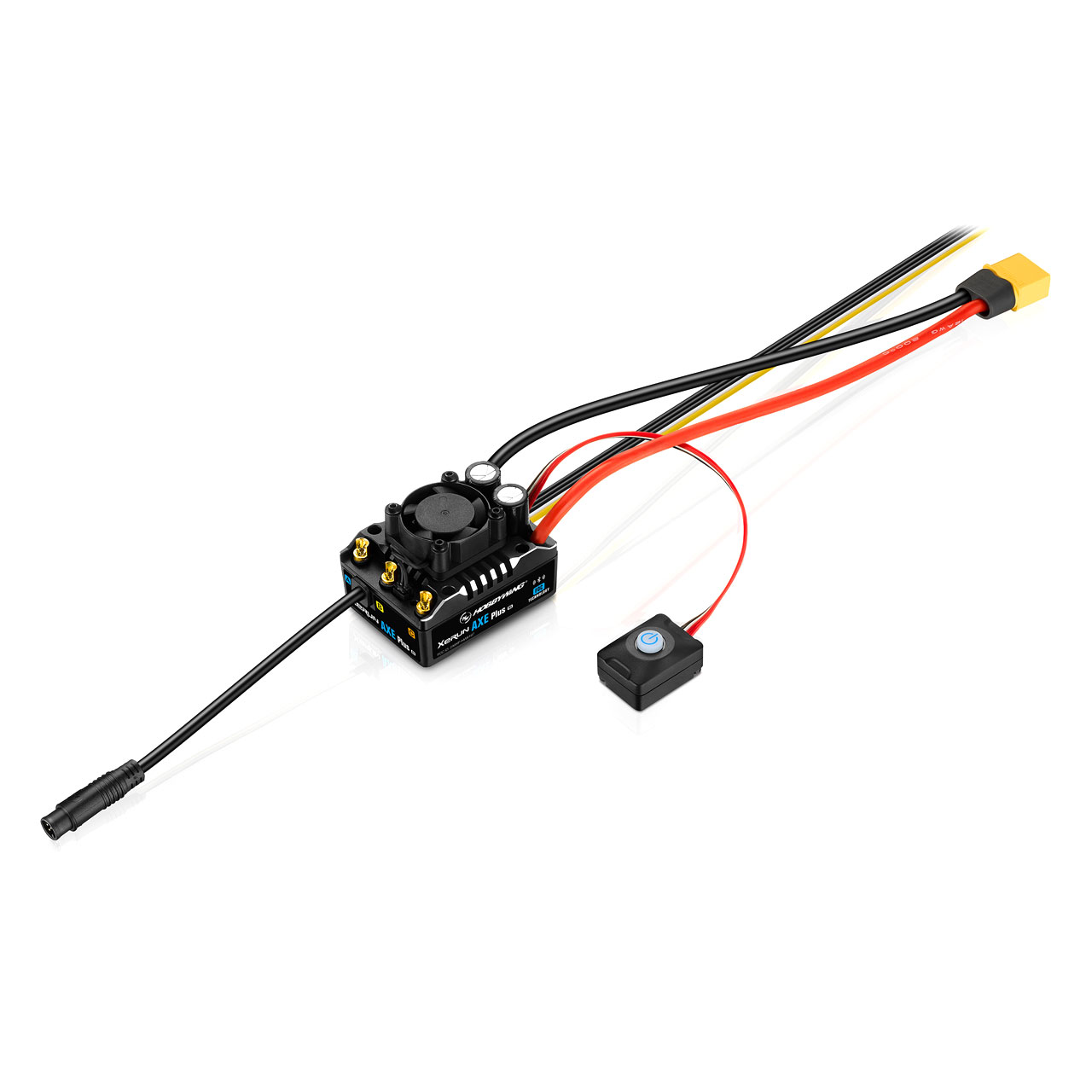

The R3 ESC automatically adjusts torque for climbing and descending hills. Its fan activates only when needed, reducing energy consumption and regulating operating temperature. The ESC offers adjustable parameters for different conditions.

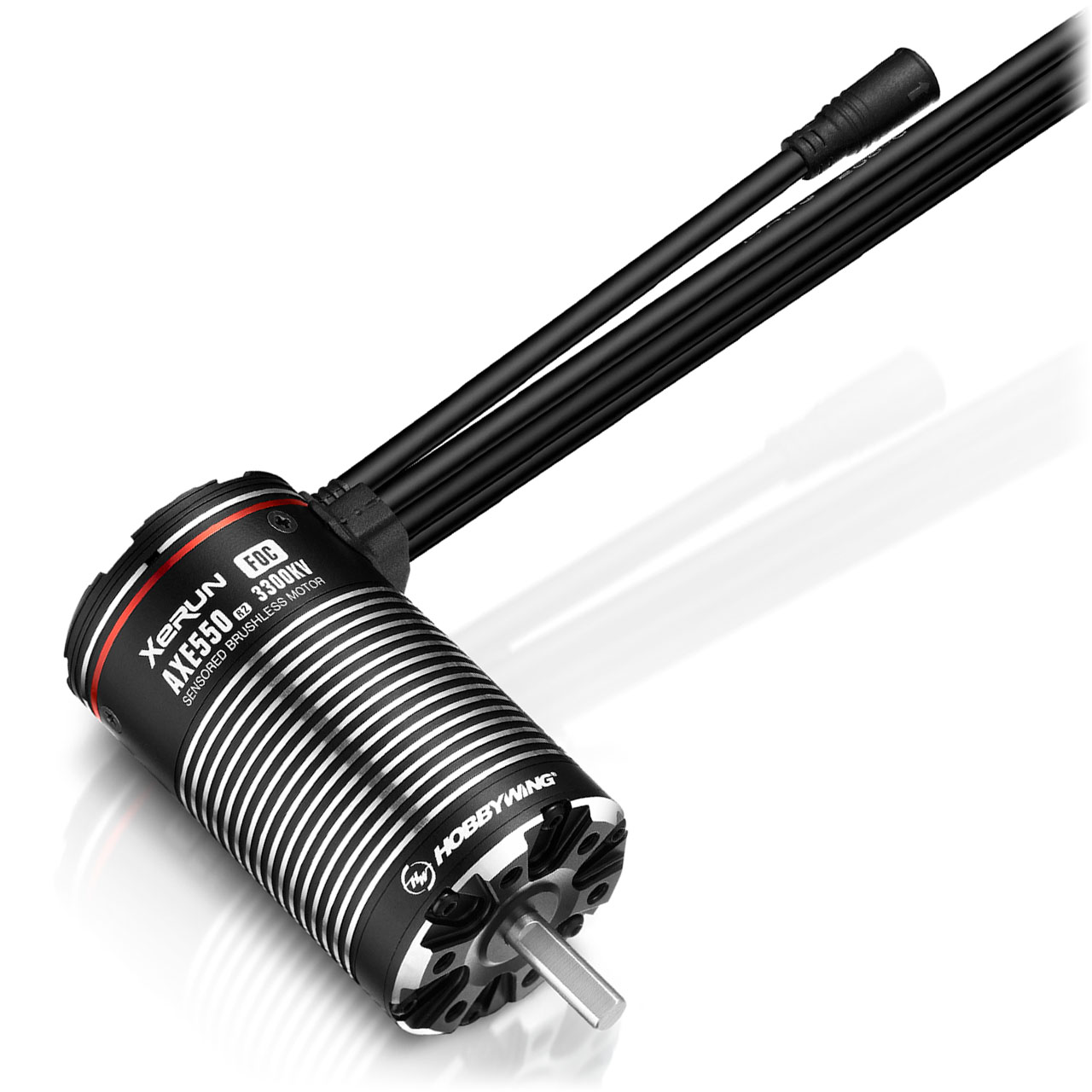

The included 4-pole motor has a 5 mm shaft and Hobbywing's patented Staggered Pole Rotor design. Its sensor port is designed to prevent water ingress.
Highlights
- FOC (Field-Oriented Control) technology
- Drag brake adjustable up to 200% for holding power on inclines
- BEC with a maximum of 6 A and three voltage levels for servo use
- Water- and dust-resistant to IP67, including a waterproof sensor port
- Intelligent torque delivery and speed control
- Built-in Bluetooth module for wireless ESC programming
- Motor with minimal cogging and smooth startup
- Designed for sensitive power delivery
Specifications
| ESC | |
|---|---|
| Type | Brushless Sensored FOC |
| Current (Cont./Peak) | 135 A / 600 A |
| Cells | 2–6S LiPo |
| BEC | 6 V / 7.4 V / 8.4 V (adjustable) @ 6 A Switch Mode |
| Waterproof | Yes |
| Cables | 1x 12AWG (black, 265 mm) / 1x 12AWG (red, 265 mm) |
| Fan | 25 × 25 × 10 mm, powered by BEC |
| Connectors | XT60 |
| Programming | Via Bluetooth and "HW LINK" app |
| Firmware Update | Yes |
| Dimensions | 49.5 × 37.9 × 32.8 mm |
| Weight | 126.5 g |
| Application | 1/10, 1/8, 1/6 Rock Crawler |
| Motor | |
| Type | Brushless Sensored FOC |
| Poles | 4 |
| kV Rating | 3300kV |
| Cells | 2–3S |
| No-Load Current | 4.7 A |
| Outer Diameter | 36 mm |
| Length | 63.8 mm |
| Shaft Diameter | 5 mm |
| Shaft Length | 16 mm |
| Waterproof | Yes |
| Weight | 247 g |
| Application | 1/10 Rock Crawler |
In the box
- 1× Xerun AXE Plus R3 ESC
- 1× Xerun AXE550L R2 Motor with 3300kV
- 1× Manual
