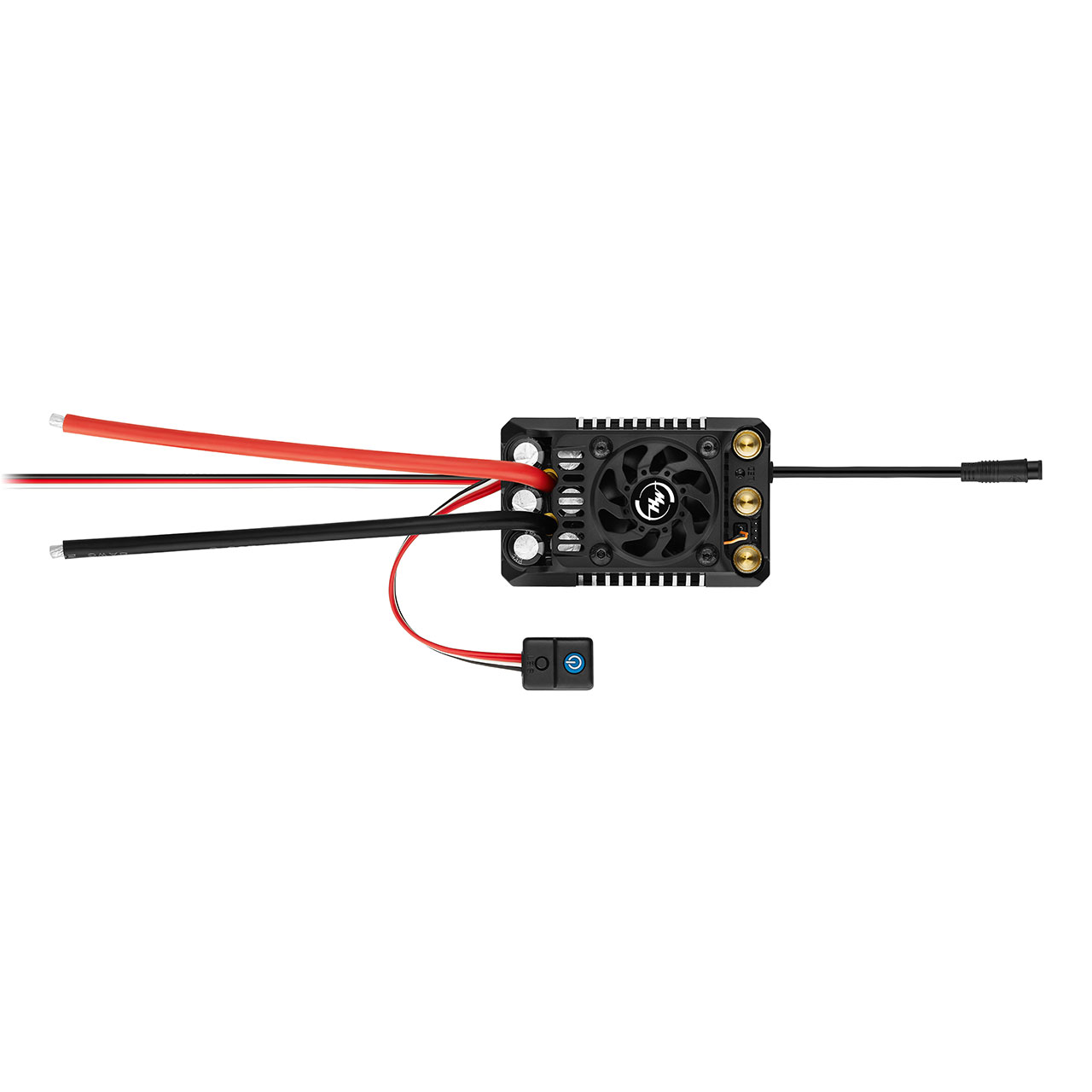

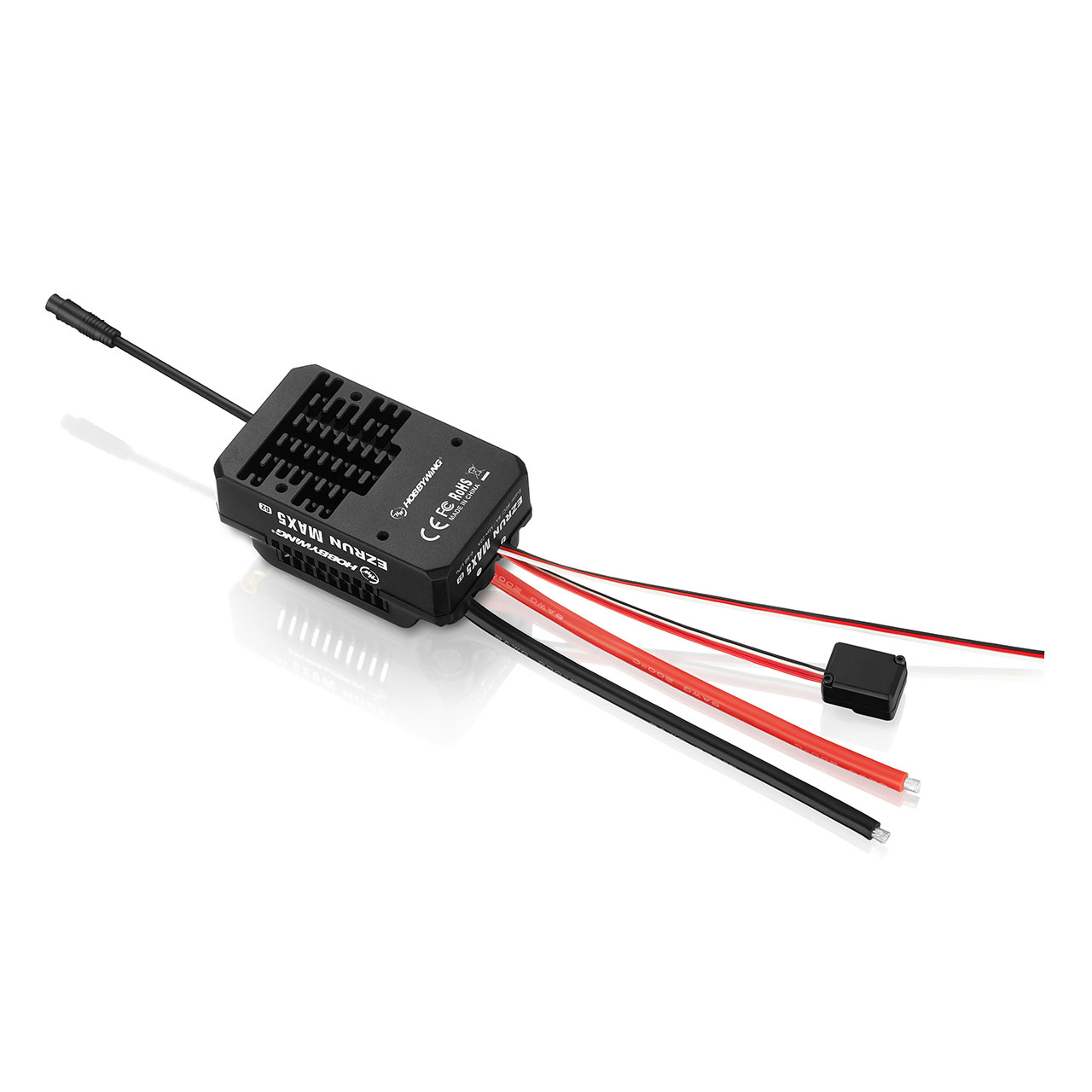

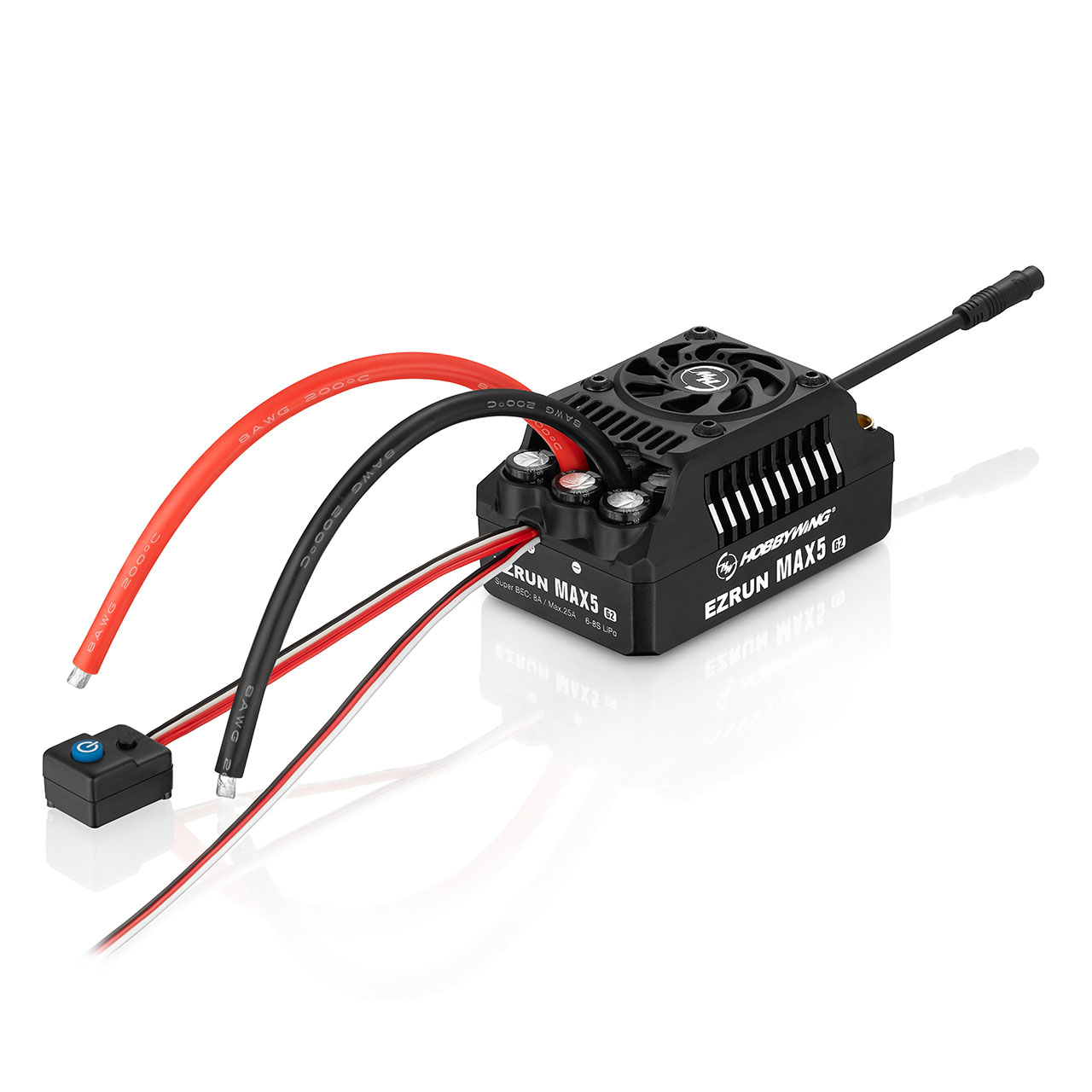

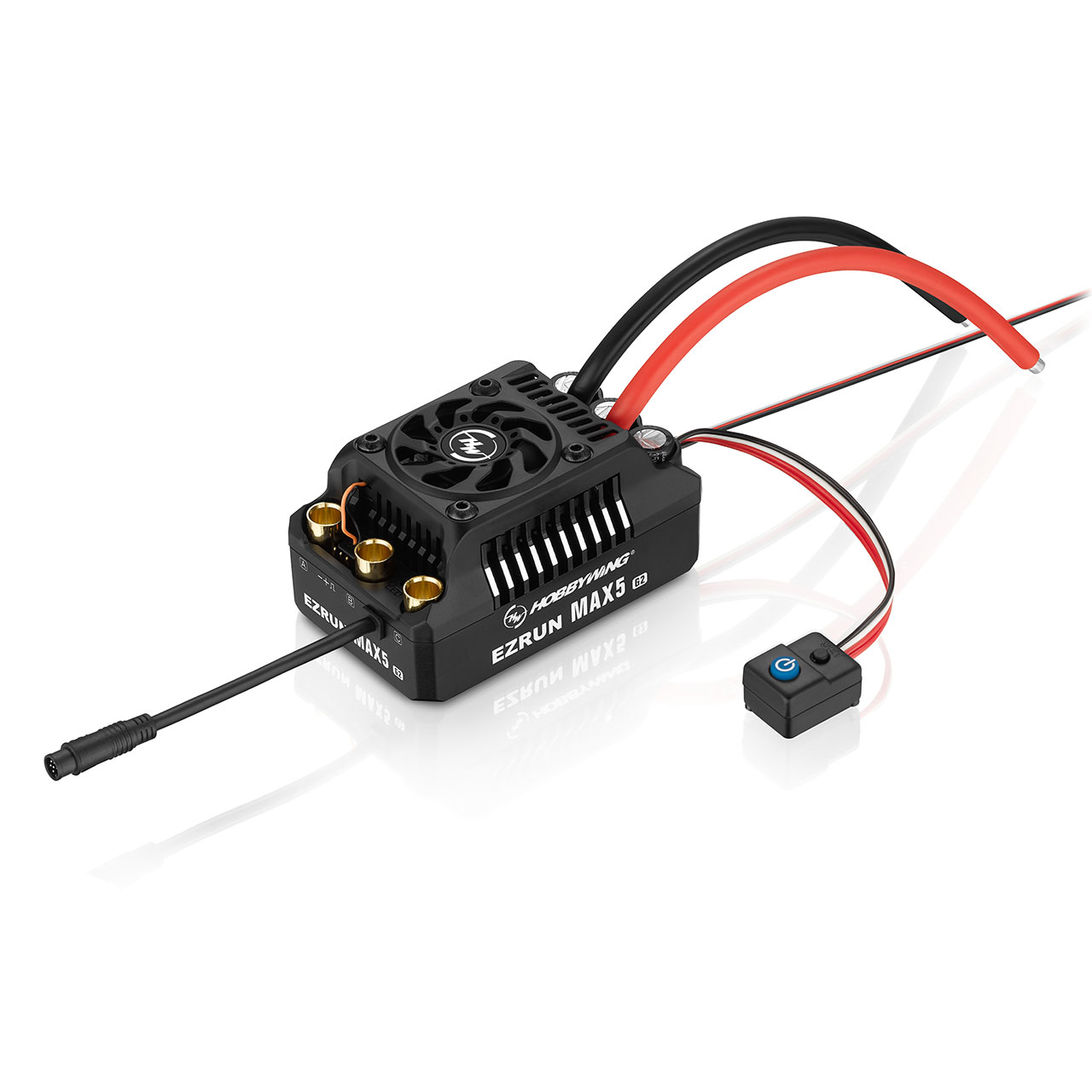

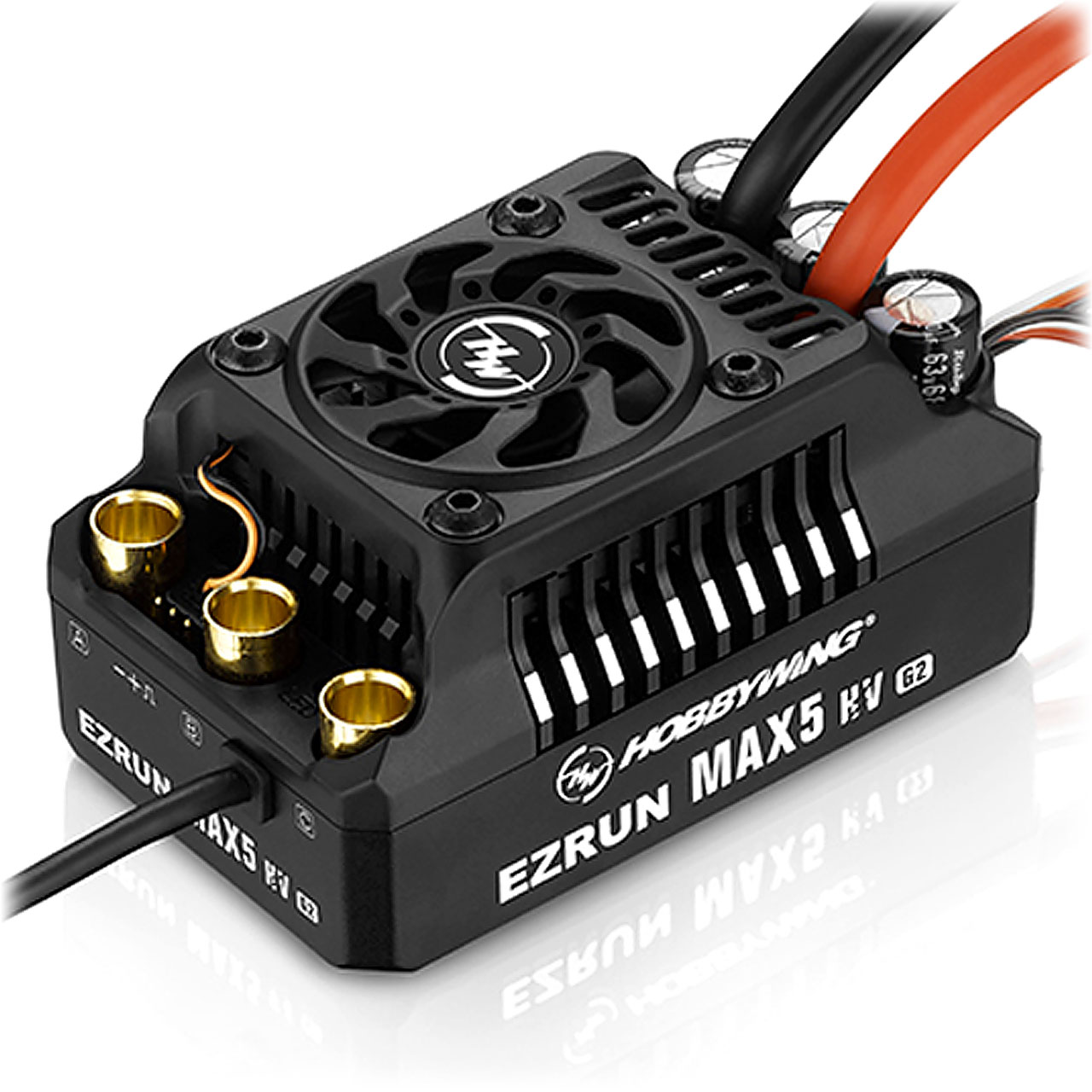

Hobbywing Ezrun MAX5 HV G2 ESC 250 Amp, 6-12s LiPo, BEC 8A
- Part No: HW30104200
- Retail: €260.00
- EAN: 6938994405584
The EzRun MAX5 HV G2 is an impressive brushless ESC with high-voltage capability. With support for up to 12s LiPo and a maximum output current of 250A, it delivers explosive power and excellent linearity. Thanks to intelligent freewheel technology, the controller remains relaxed and cool even during demanding driving manoeuvres.
This controller is protected against water and dust according to the IP 67 standard. Of course, this also makes the MAX5 HV G2 suitable for use in all weather conditions and allows it to operate on various surfaces such as mud, sand, ice, snow and water without damaging the power unit. With a powerful built-in BEC, anti-spark design and multi-directional protection, this ESC offers advanced functions and high safety. The EzRun MAX5 HV G2 is the ideal choice for RC enthusiasts looking for maximum potential and reliability. The operational status can even be monitored by recording and storing real-time data. And the upgrade of the sensor cable interface greatly improves the protection and waterproof performance of the ESC. With perfect compatibility with Hobbywing's EzRun 56118 SD G2 motor, this power system offers an unbeatable team for optimal performance and protection against overheating.
Features
- Now with even more performance than its predecessor
- Water-proof and dust-proof for all-weather races. (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)
- Built-in ultra-strong switching mode BEC to address a wide variety of servos.
- Includes turbo timing adjustment. Especially recommended with the right motor (e.g. EZRUN 56118SD G2).
- Multiple protections: battery low voltage protection, ESC and motor overheat protection, signal loss protection, current protection.
- Supports LED program box, LCD-G2 program card and the OTA programming module to set the controller parameters more easily.
- Data logging function to view various running data on HW LINK app using OTA Bluetooth module.
- Supports controller firmware upgrade (requires multi-function LCD-G2 program box or OTA programming module to purchase).
- Total capacitance of the capacitor increased by 45%
- 12 adjustable parameters.
Technical Specifications
| Type: | 1/5 Brushless Sensored |
| Current (cont./peak): | 120A / 760A |
| Input Voltage: | 6-12S LiPo |
| BEC: | 6V/7.4V/8.4V @8A (Switch Mode) |
| Motor Types: | Brushless Motors (with/without sensor) |
| Motor Limits: | - 8S Lipo: KV <= 1200 - 12S Lipo: KV <= 800 56118 size motor |
| Fan: | Yes, powered by BEC |
| Programming: | LED Program Card LCD Program Box (G2) OTA Programmer Seperate Programming Port |
| Waterproof: | Yes |
| Input: | |
| Output: | 8.00mm Bullet Connector (female) |
| Dimensions: | 94.5x59.4x50.9mm |
| Weight: | 428.5g |
| Application: | 1/5 Buggy, Truck |
Delivery:
- Ezrun MAX5 HV G2 ESC
Optional Accessories:
- HW30501003 LED Program Card
- HW30502001 LCD G2 Program Box
- HW30850400 OTA Programmer
