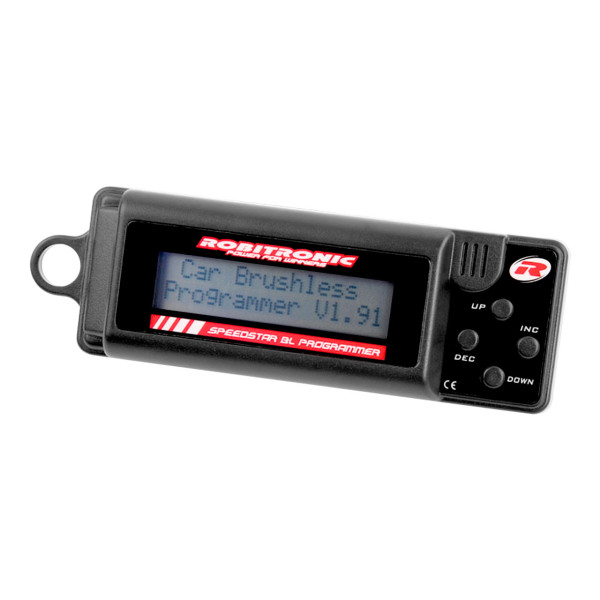

Product information "Robitronic Program Box for Speedstar Brushless"
Immediately after the programmer is plugged to the ESC, it saves the Speedstar BL current settings to its internal memory. Modify the ESC parameters to your personal preferences and download them to the Speedstar BL for instant setup. Depending on the Speedstar BL model, there is a multitude of parameters to choose from. Display maximum and current temperature or show the maximum speed calculated in km/h! Fits all models of the Speedstar BL series.
Adjustable & Analyze Parameter:
1.
Battery
LiPo / LiFe / NiMH (NiCd)
2.
Cutoff Voltage
Auto / 3.0V ~ 14V (0,1V)
3.
Power Curve
Soft / Linear / Hard
4.
Advance Timing
0°~25° (Sensorless) / 0°~10° (Sensored)
5.
Acceleration
Lowest / Low / Normal / High / Highest
6.
Start Power
Lowest / Low / Normal / High / Highest
7.
Start Current Limit
Off, 1% ~ 100%
8.
Current Limit
Off, 1% ~ 100%
9.
Reverse Function
One way / Two way
10.
Reverse Delay
0,2s/0,5s/0,8s/1,3s/1,8s/2,5s
11.
Neutral Width
Narrow / Normal / Wide
12.
Motor Direction
Normal / Reverse
13.
Speed Mixing Brake
0% ~ 100% (10% steps)
14.
A.B.S. Brake
Off / Weak / Normal / Strong / Strongest
15.
Auto Brake
0% ~ 100% (1% steps)
16.
Min. Brake Amount
0% ~ 100% (1% steps)
17.
Max. Brake Amount
0% ~ 100% (1% steps)
18.
Current Voltage
XX,X V (Displayed only)
19.
Current Temperature
0° ~ 135° (Displayed only)
20.
Max. Temperature
0° ~ 135° (Displayed only)
21.
Max. Current
0A ~ 999A (Displayed only)
22.
Motor Poles
2 ~ 20 Poles
23.
Gear Ratio
2,0:1 ~ 15,0:1
24.
Tire Diameter
40mm ~ 200mm
25.
Max. Speed
XXX,X km/h (Displayed only)
26.
Average Speed
XXX,X km/h (Displayed only)
27.
Error History
(T) Temperature, (S) Sensor, (V) Voltage, (R) Signal (Displayed only)
28.
Download
Parameters are downloaded to the speedo
29.
Restore Memory
EEPROMs Data saved to the RAM of the programmer
30.
Backup Memory
RAM Data saved to the EEPROM
31.
Factory Settings
Resets all data to 'default'
