Prices incl. VAT plus shipping costs
Ready to ship, Stock Amount: >20 pcs
- Part No: HW38020343
- Retail: €152.00
- EAN: 6938994407496
- Notice: Waterproof, Brushless, Sensorless,38020343

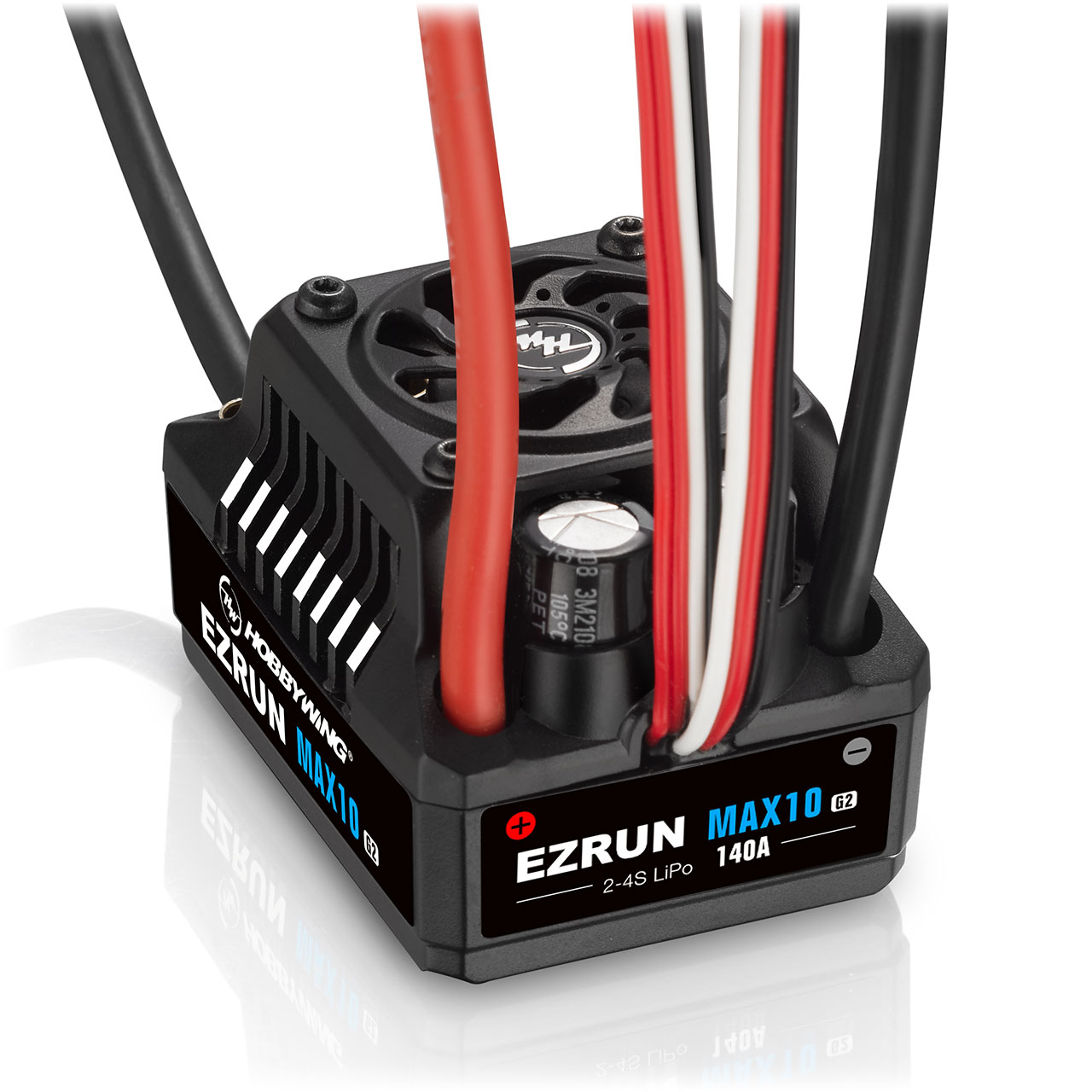

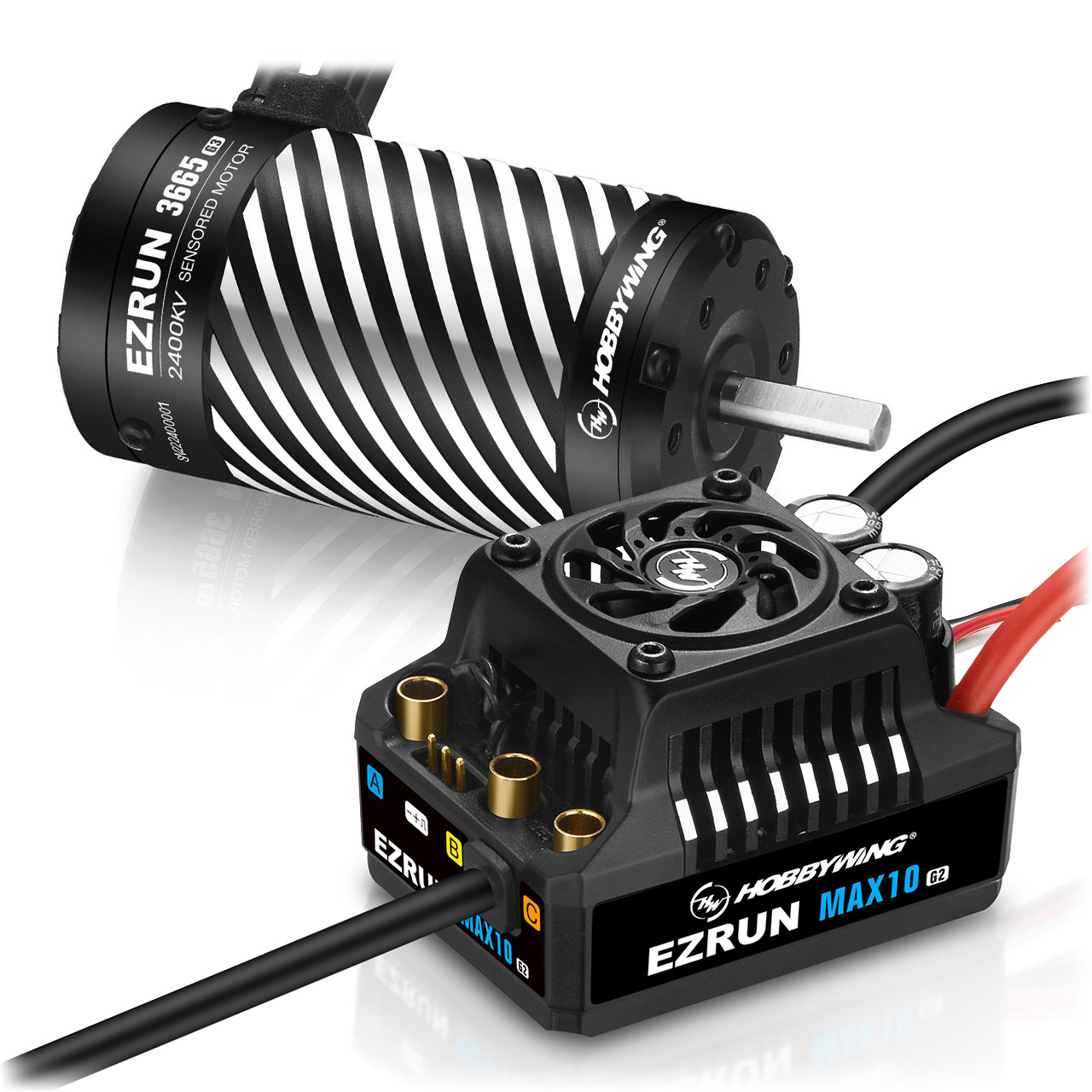

The Ezrun MAX10 G2 Combo with its updated 140A ESC combo is here, including several updates and tweaks that make driving 1/10 short courses and trucks even more enjoyable. The ESC comes with a 3665SD motor with 2400kV.
In a direct comparison to the regular MAX10 combo, it is clear that the sensor mode and the accompanying waterproof cable have been heavily revised and now ensure great throttle response. The fantastic acceleration with stable output power as well as the nice linearity at low speeds are also among the aspects that have been particularly improved. When it comes to heat development, the MAX10 G2 Combo really outperforms other comparable products. This is partly due to the optimizations in the design and of course also due to the larger capacitors.
The perfect introduction to get started right away with a 1/10 car!
Features
- Built-in Super BEC
- Frameless smart fan
- Real-time data & data recording possible
- Includes turbo timing setting
- Improved sensor
- Excellent throttle response
- Even faster with its constant output power
- 4-pole rotor for high torque
- Easily dismantled motor for maintenance work
Technical Specifications

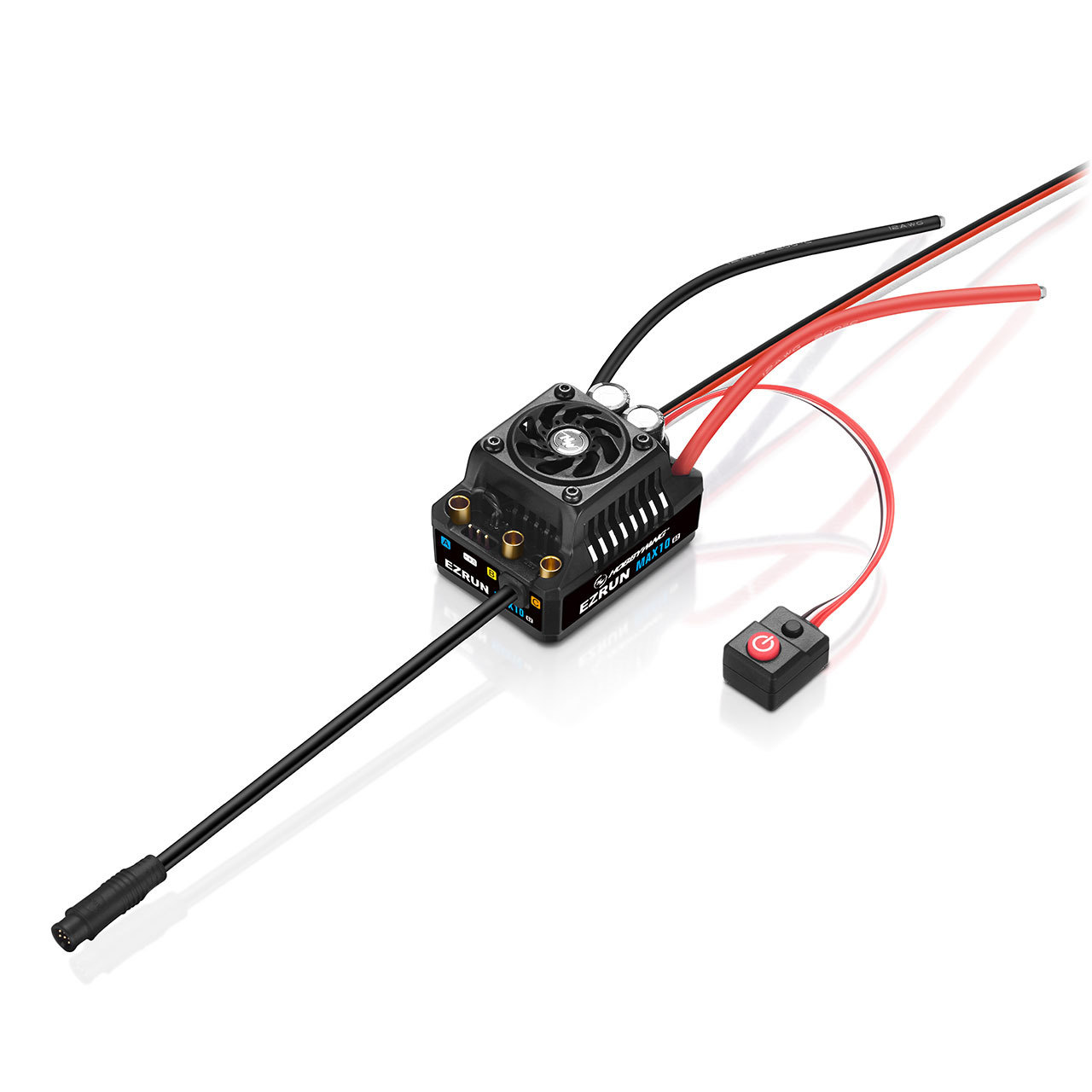

ESC (140A) | |
Type: | Brushless Sensored |
Current (cont./peak): | 140A/880A |
No. of Cells: | 2-4S LiPo |
Motor Limit: | 3S LiPo: <= 4000kV (3665 Motor) 4S LiPo: <= 2600kV (4268 Motor) |
BEC: | 6V/7.4V, 5A |
Plug: | XT60 |
Programming: | LED Program Box LCD Program Box (G2) OTA Program Module Seperate Programming Port |
Dimensions: | 53x39.5x37.2mm |
Weight: | 120g |
Waterproof: | Yes, IP67 |
Application: | 1/10 On-Road/Off-Road Short Course Truck (light duty) |

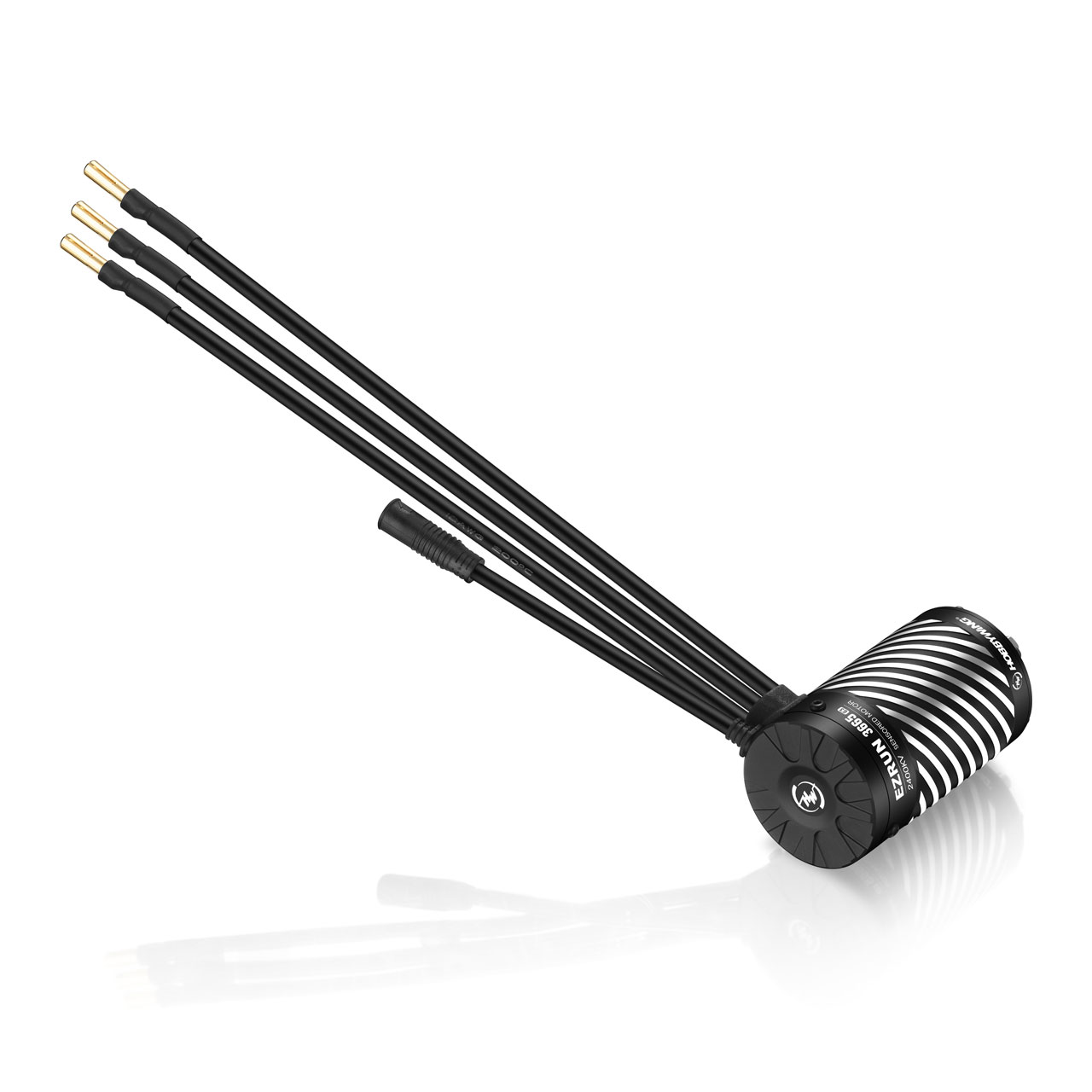

Motor | |
Type: | Brushless, Sensored |
kV Rating: | 2400kV |
No-Load Current: | <=5.2A |
No. of Cells: | 2-4S LiPo |
Poles: | 4 |
Length: | 65.8mm |
Diameter: | 37mm |
Shaft Diameter: | 5mm |
Weight: | 304g |
Application: | 1/10 On-Road/Off-Road Short Course Truck (light duty) |
Delivery
1x Ezrun MAX10 G2 ESC with 140A
1x 3665SD Motor G3 with 2400kV
1x Manual
