Platinum Pro 150A ESC V5.1 3-8s, 10 A BEC, image 1

Brand: Hobbywing

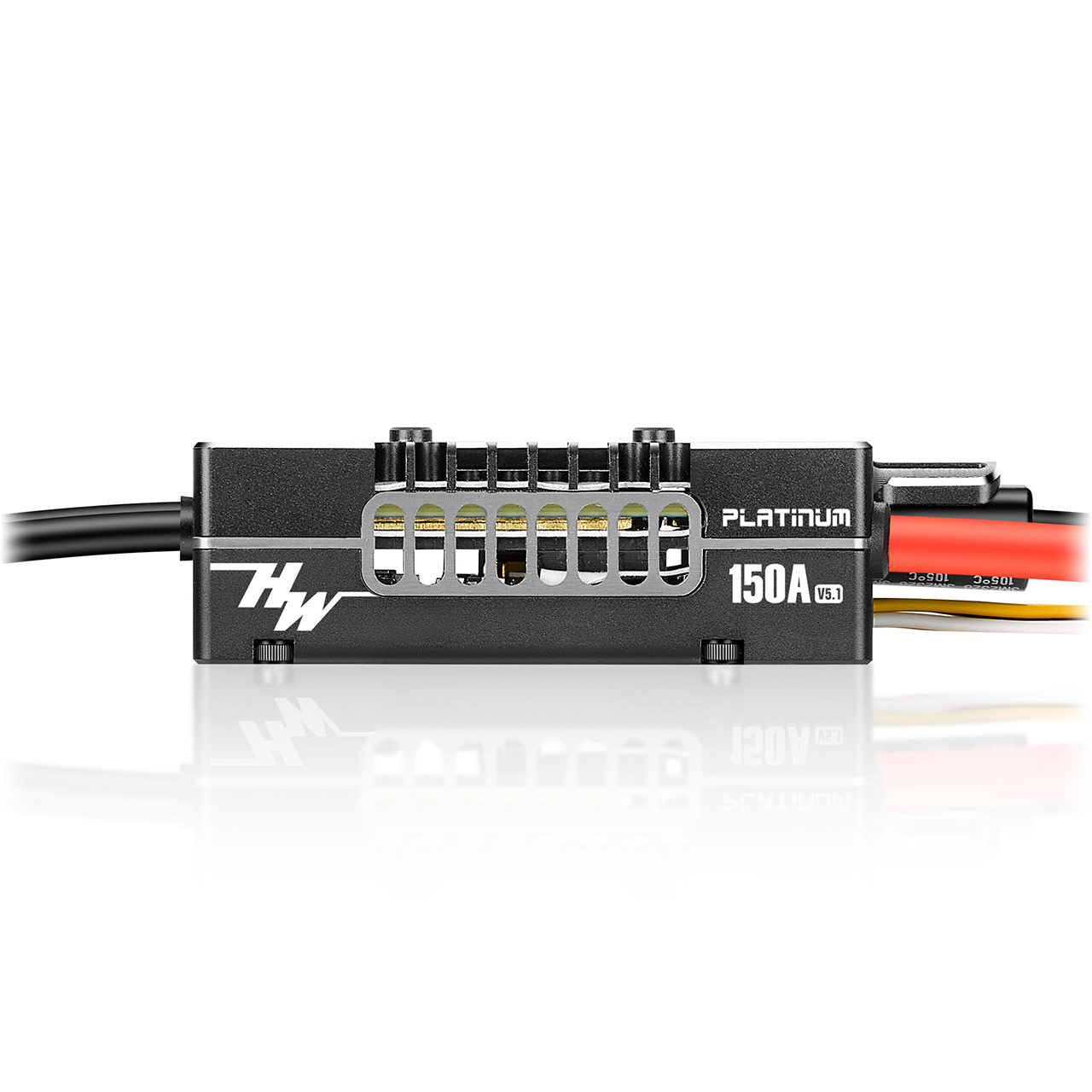

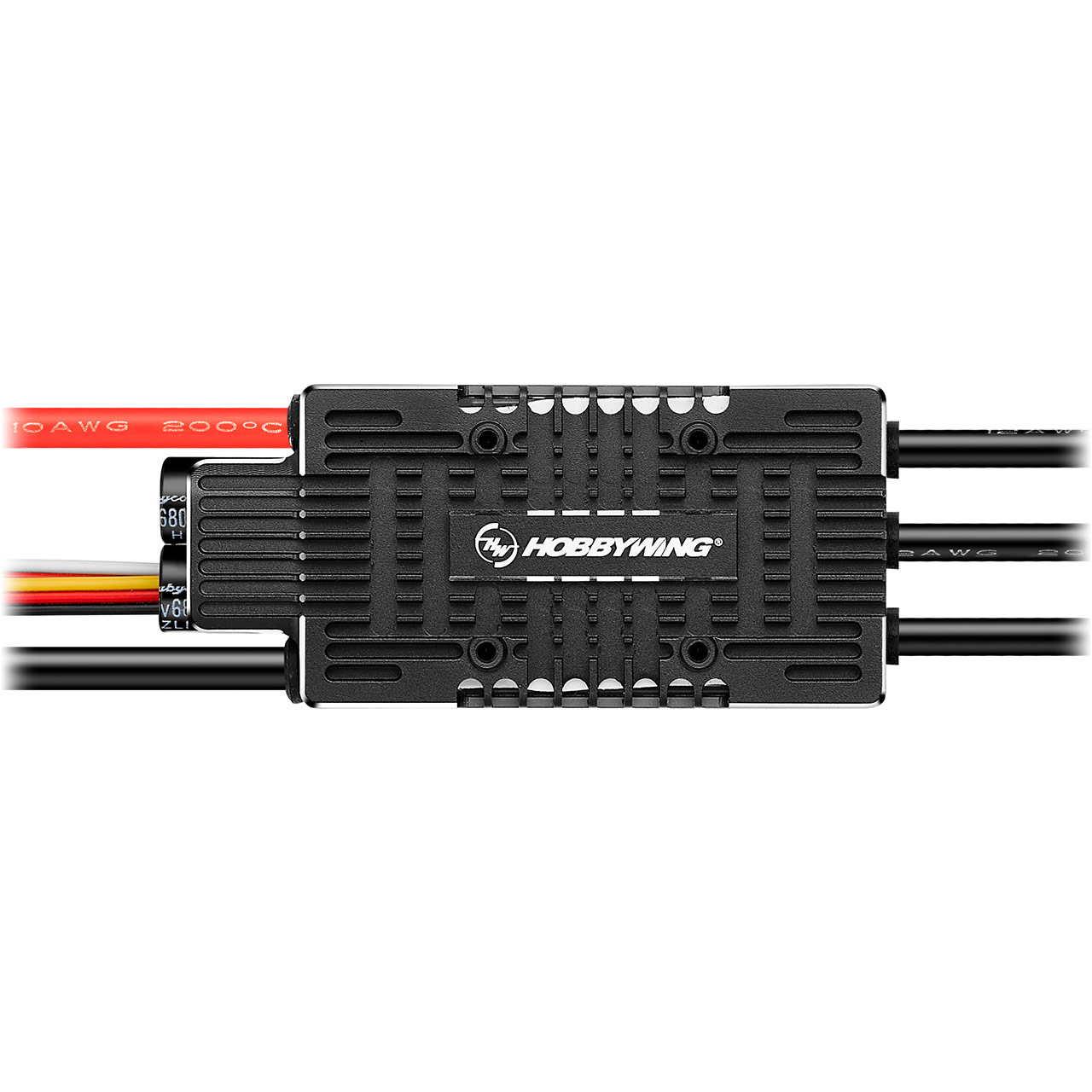

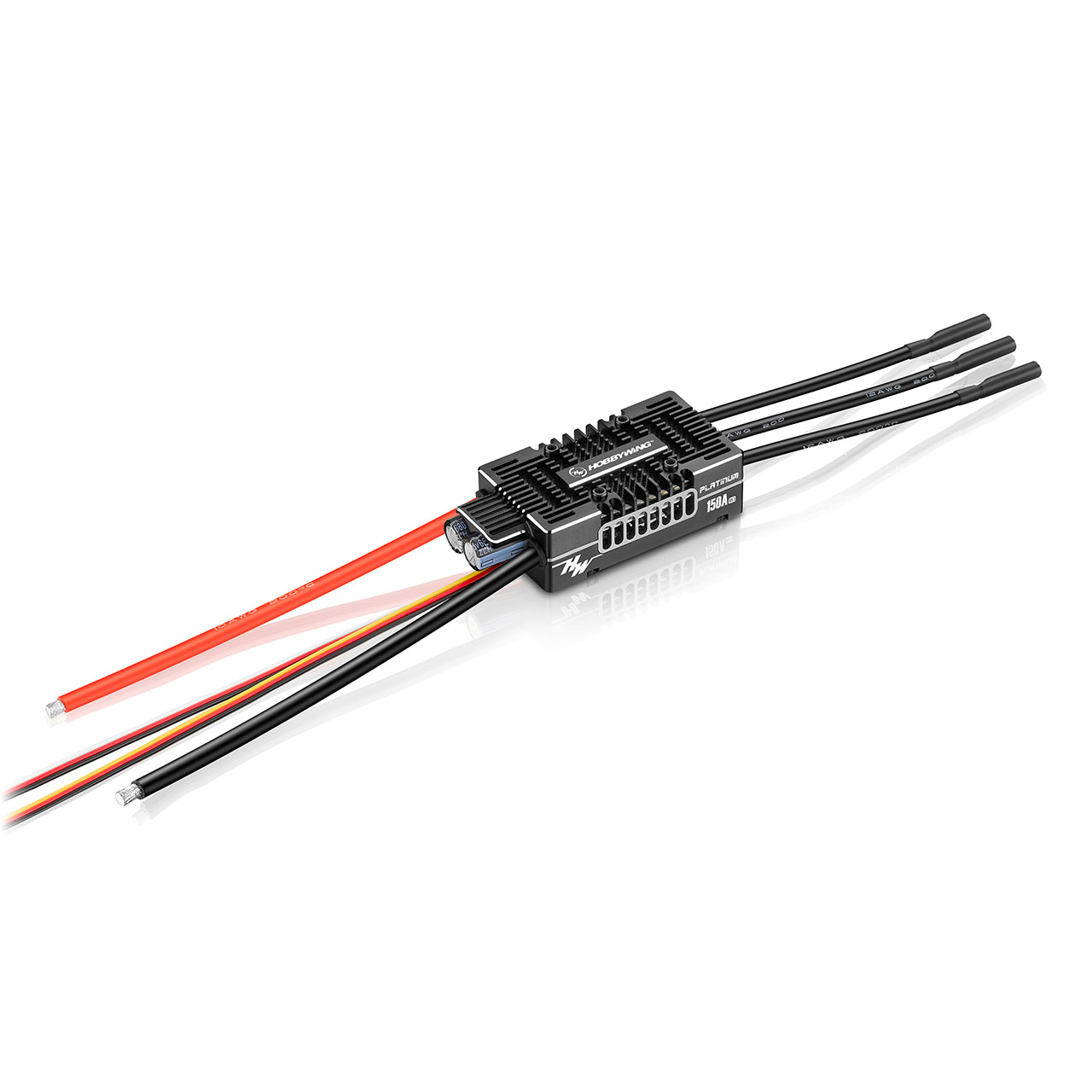

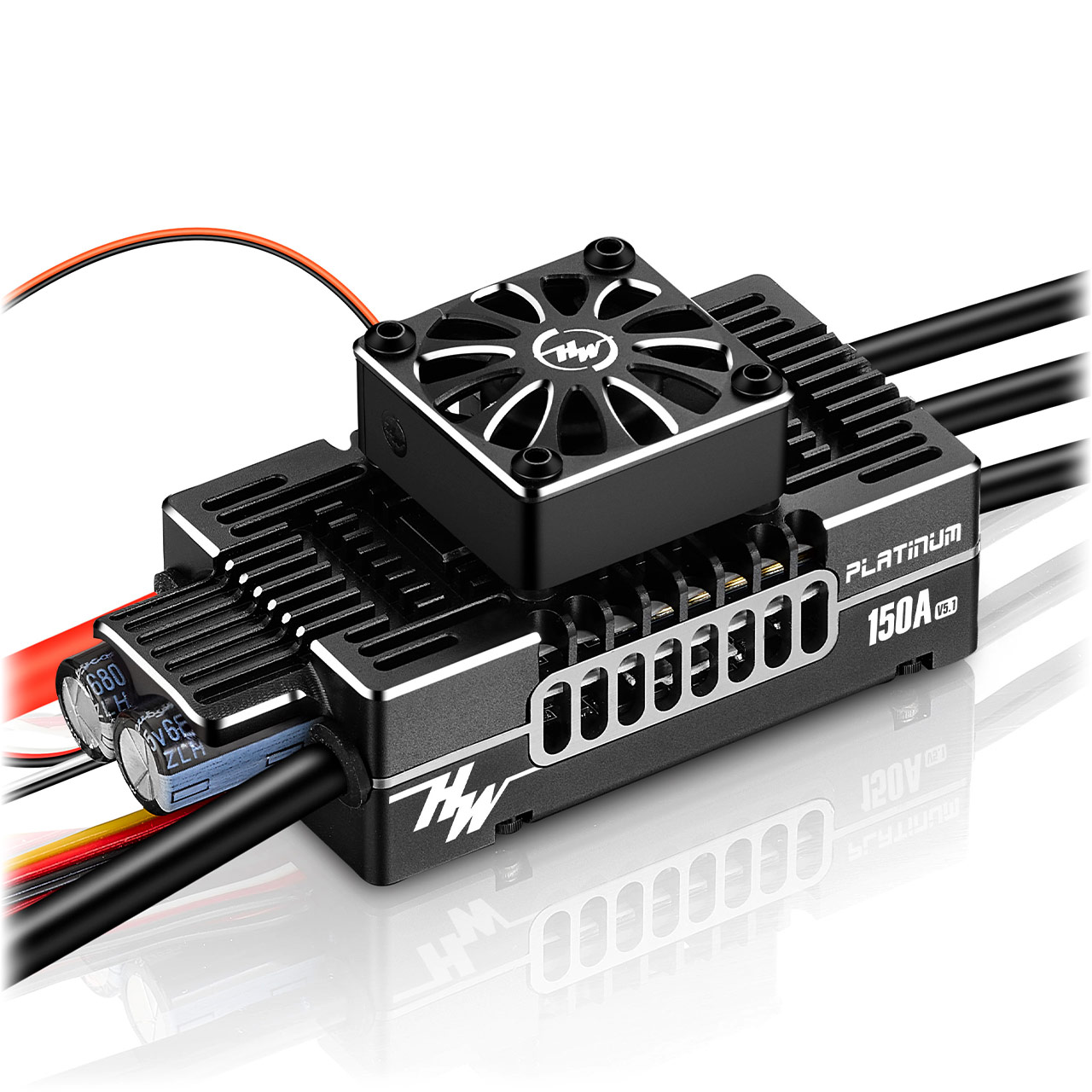

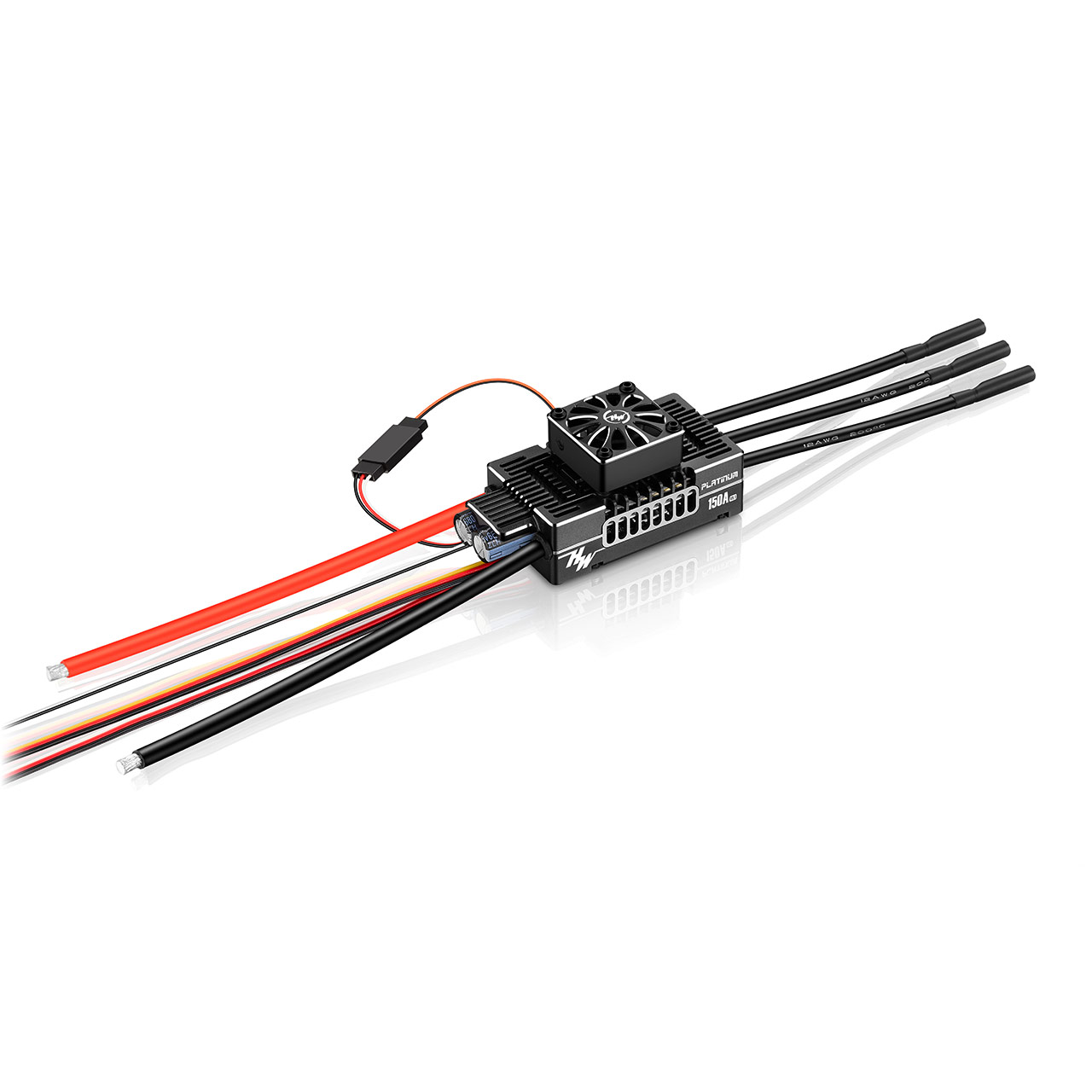

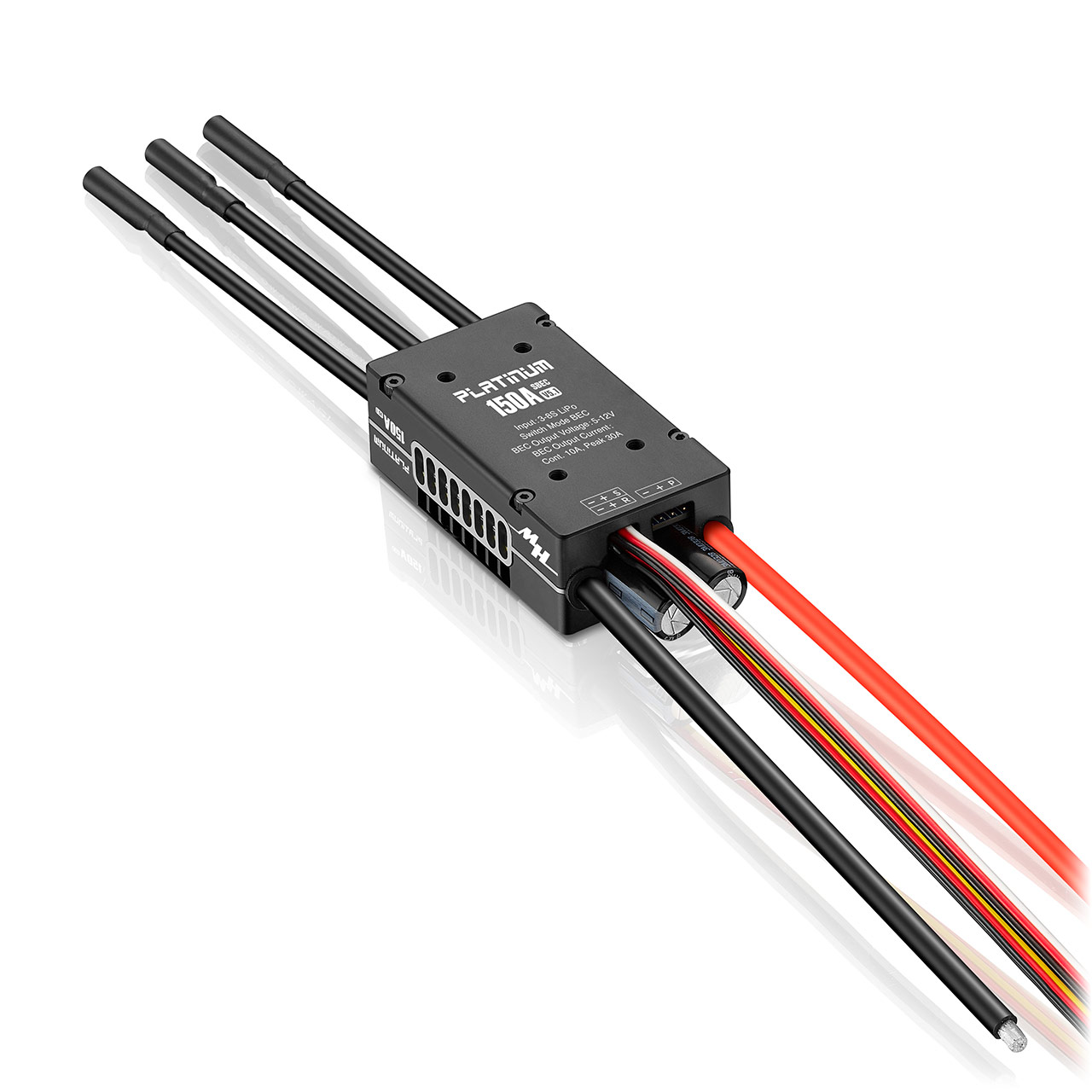

Platinum Pro 150A ESC V5.1 3-8s, 10 A BEC

Brushless 150 A ESC for electric helicopters and fixed-wing models with 5–12 V BEC

Item number
HW30203501
EAN
6938994423342
€180.90incl. VAT, plus shipping

RRP €180.90

Available again soon

We'll email you as soon as the item is back in stock.

Description

The Platinum V5.1 150A is a Brushless ESC for electric helicopters and fixed-wing models. Compared with version 5, its revised switch-mode BEC supports 5–12 V instead of up to 8 V. The RPM accuracy algorithm makes the ESC more powerful and reliable. Adjustable sensitivity helps maintain a constant speed and allows settings to suit flying style and current flight conditions.

The open design and ventilation improve air circulation so that the operating temperature does not reach a critical level. Thermal tape and an additional internal heat sink improve heat dissipation, including at the external capacitors, and extend the overall service life.

Compatible with Mikado VBar Control and VBar Telemetry Ready and many more.

Notes

  • Optional accessories: HW30502001 LCD Program Box, HW30850400 OTA Module.

Highlights

  1. 32-bit processor and algorithm for accurate RPM
  2. Supports 520 to 580 flight models instead of 550 to 580
  3. DEO (Driving Efficiency Optimization) for control characteristics and performance
  4. Ventilation slots on two sides for cooling
  5. Multiple protective functions

Specifications

TypeBrushless
Current (Cont./Peak)150 A/180 A
Cells3–8S
BEC Voltage5–12 V @ 10 A (Switch Mode)
BEC Current (Cont./Peak)10 A/30 A
Cables Battery/Motor1x 10AWG (red, black) / 3x 12AWG (black)
Plugs Battery/Motor4.0 mm gold connectors
Dimensions83 × 37 × 22.5 mm
Weight150.4 g
Application520–580 electric helicopter (main rotor length: 520–580 mm)

In the box

  • 1 × ESC Platinum V5.1 150A
  • 1 × Manual
