Hobbywing Platinum Pro 80A ESC V5 3-8s, 8A BEC
- Part No: HW30203201
- Retail: €89.90
- EAN: 6938994423311
- Notice: 30203201
Platinum V5 80 A ESC for 325–420 class helicopters and fixed-wing aircraft The Platinum V5... more
Product information "Hobbywing Platinum Pro 80A ESC V5 3-8s, 8A BEC"

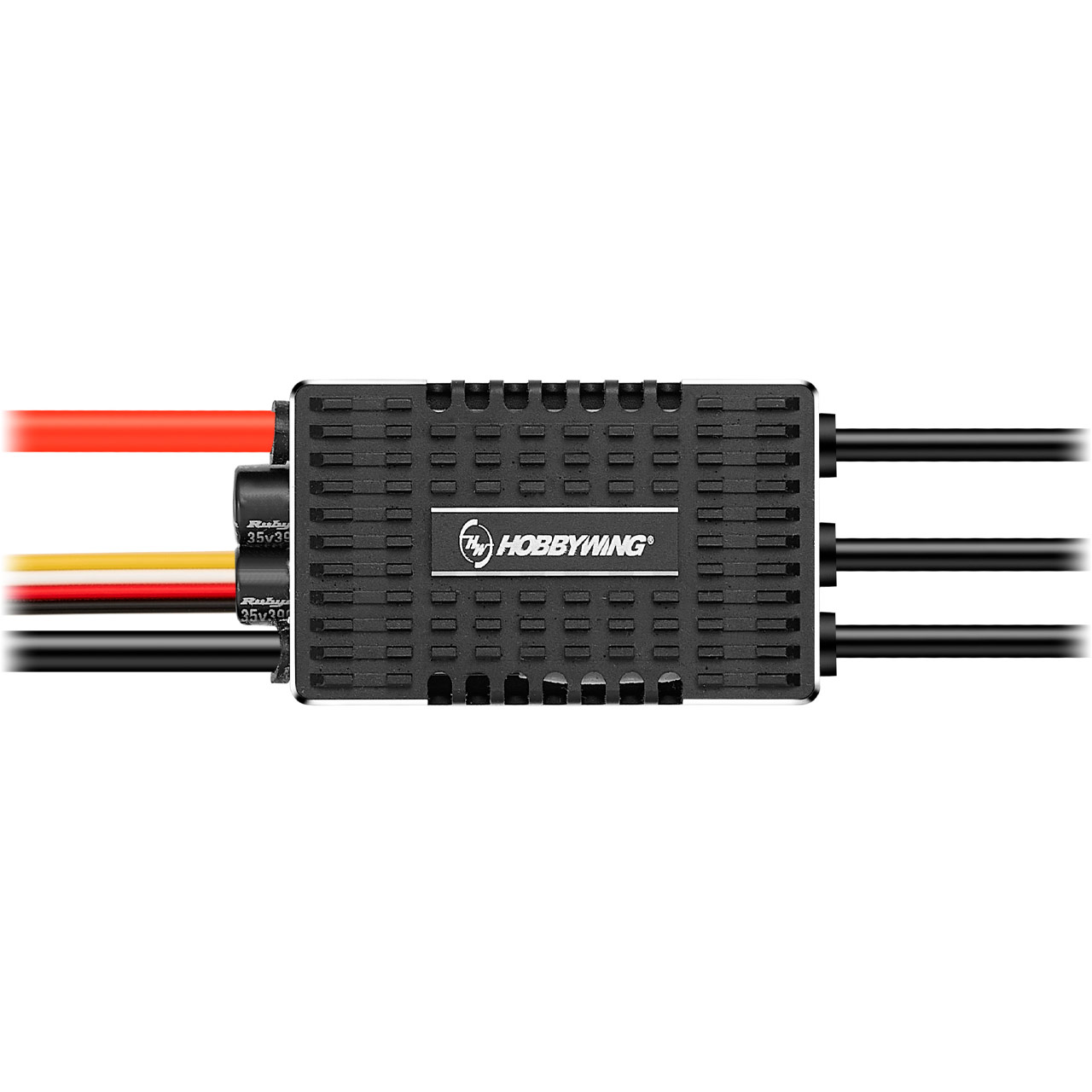

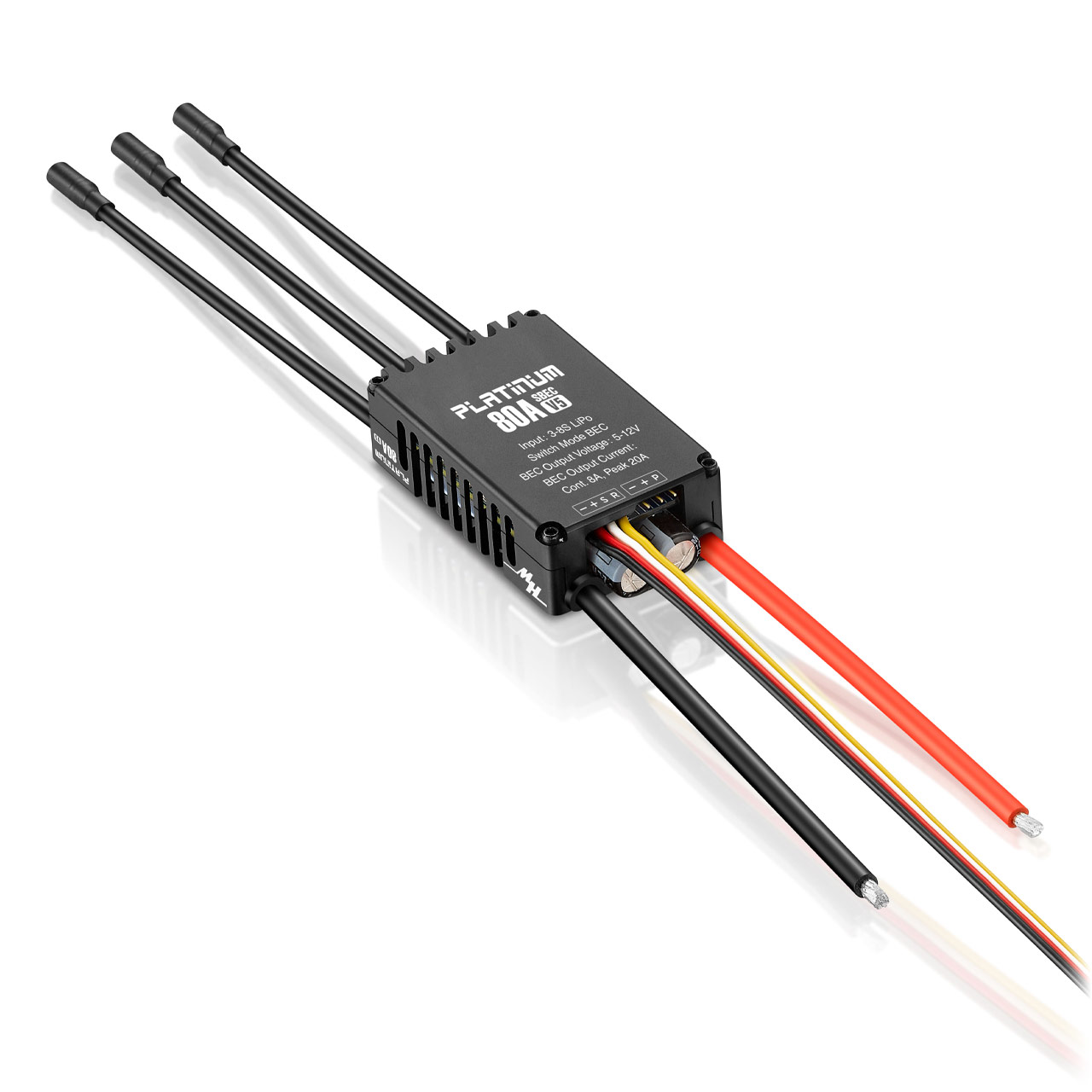

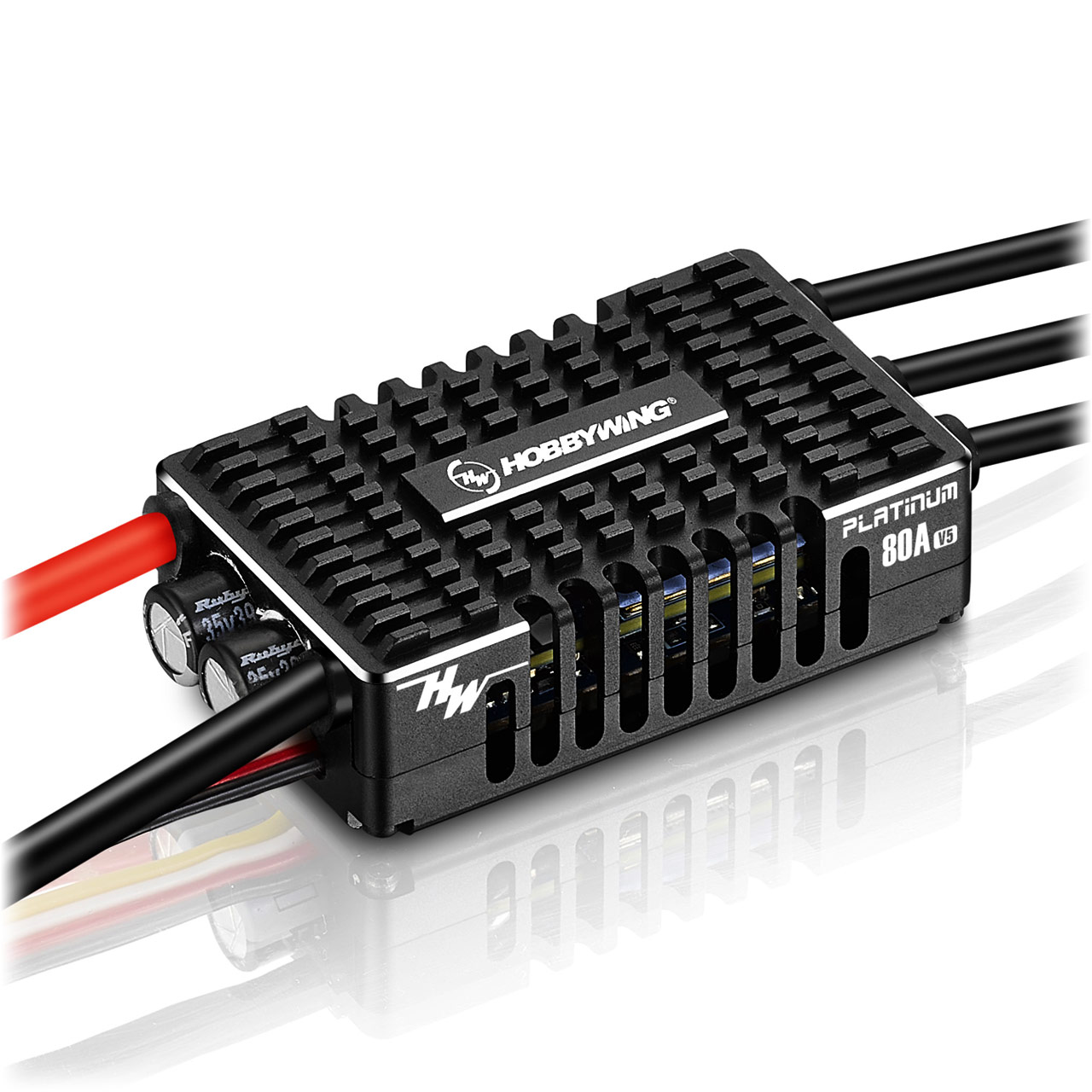

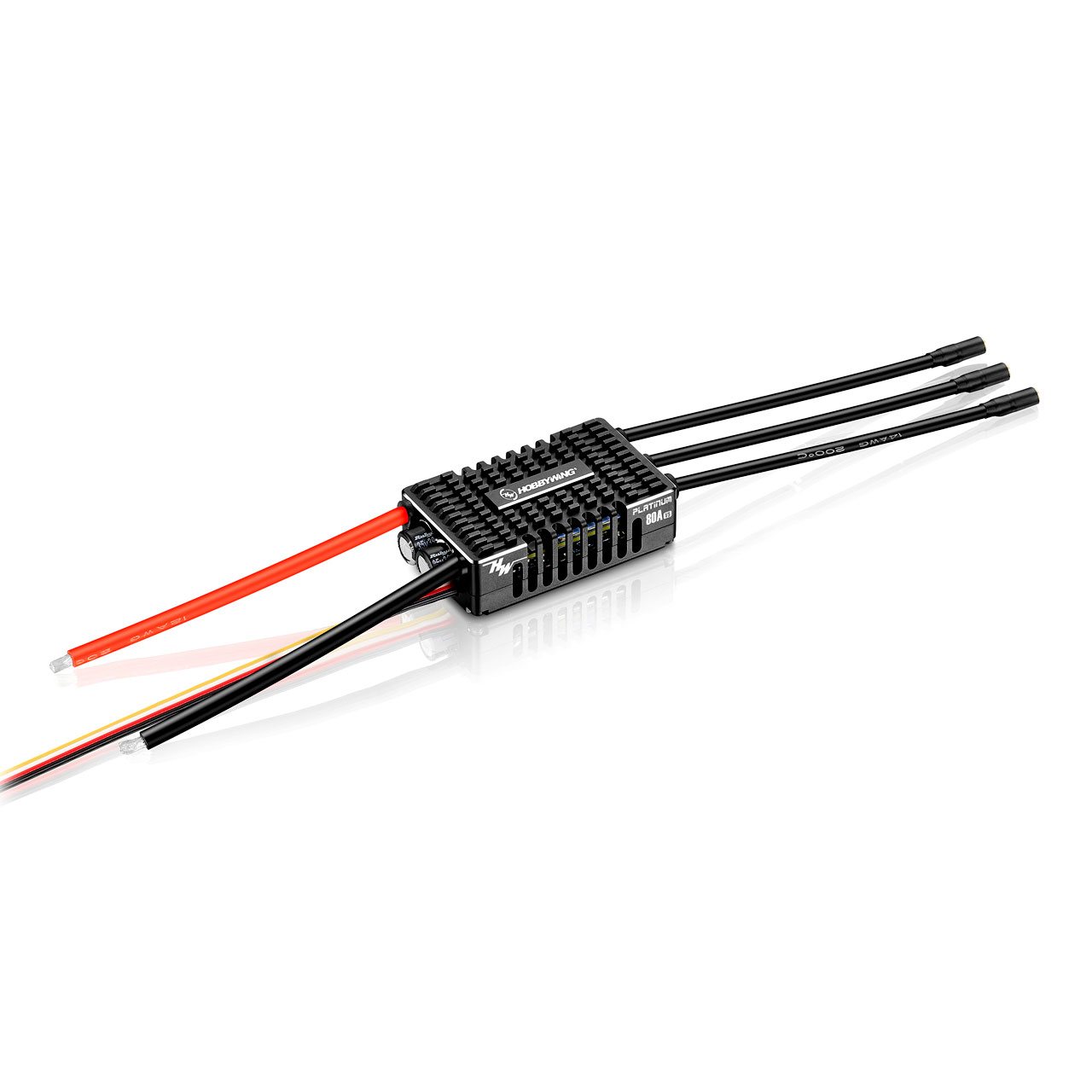

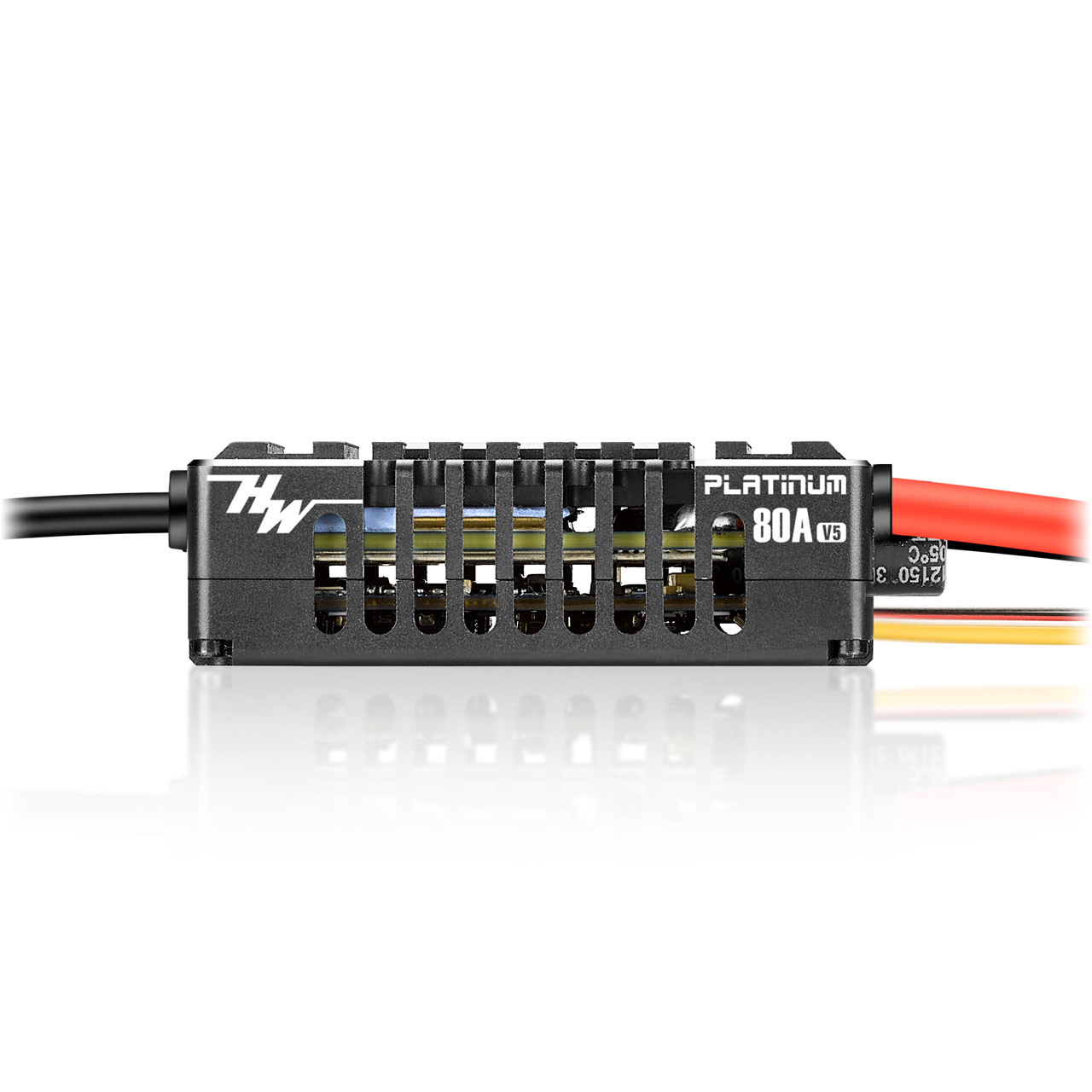

Platinum V5 80 A ESC for 325–420 class helicopters and fixed-wing aircraft
The Platinum V5 80 A is a Brushless ESC for 325–420 class helicopters and fixed-wing aircraft. Its 32-bit processor and dedicated algorithm control RPM accuracy. It supports telemetry protocols including Mikado VBar and Futaba S.BUS2.
A double-sided heat sink with side ventilation allows air to flow through the ESC. Protection functions cover overheating of the ESC and attached capacitors.
Highlights
- Cooling chamber design
- Built-in switch-mode BEC, adjustable from 5–12 V
- Data recording accessible on a smartphone via Bluetooth
- Protection functions include protection against reverse currents
- 16 adjustable parameters and four flight modes: Fixed wing, Helicopter - External Governor, Helicopter - Eleven Governor and Helicopter - Store Governor
Specifications
| Type | Brushless High Voltage |
| Current (Cont./Peak) | 80 A/120 A |
| Cells | 3–8S LiPo |
| BEC | 5–12 V @ 8 A (Switch Mode) |
| Cables Battery/Motor | 1x 12AWG (red, black) / 1x 14AWG (black) |
| Programming | LCD Programming Box / OTA Program Module |
| Firmware Update | Yes |
| Telemetry | Mikado VBar; Futaba S.Bus2; etc. |
| Dimensions | 60.5 × 33 × 17.6 mm |
| Weight (incl. Cables) | 77.5 g |
| Application | 325–420 class electric helicopter (main blade length 325–420 mm) / or fixed-wing |
In the box
- 1× ESC Platinum V5 80A SBEC
- 1× Manual
Notes
- Optional accessories: LCD Programming Box (HW30502001), OTA Program Module (HW30850400).
