Brand:
Xerun XR8 Plus G2S Brushless ESC 200A, 2-6s LiPo
1/8 Brushless Sensored ESC with 200 A continuous current and 2–6S LiPo input
- Item number
- HW30113304
- EAN
- 6938994408622
€183.90incl. VAT, plus shipping
RRP €183.90
Description

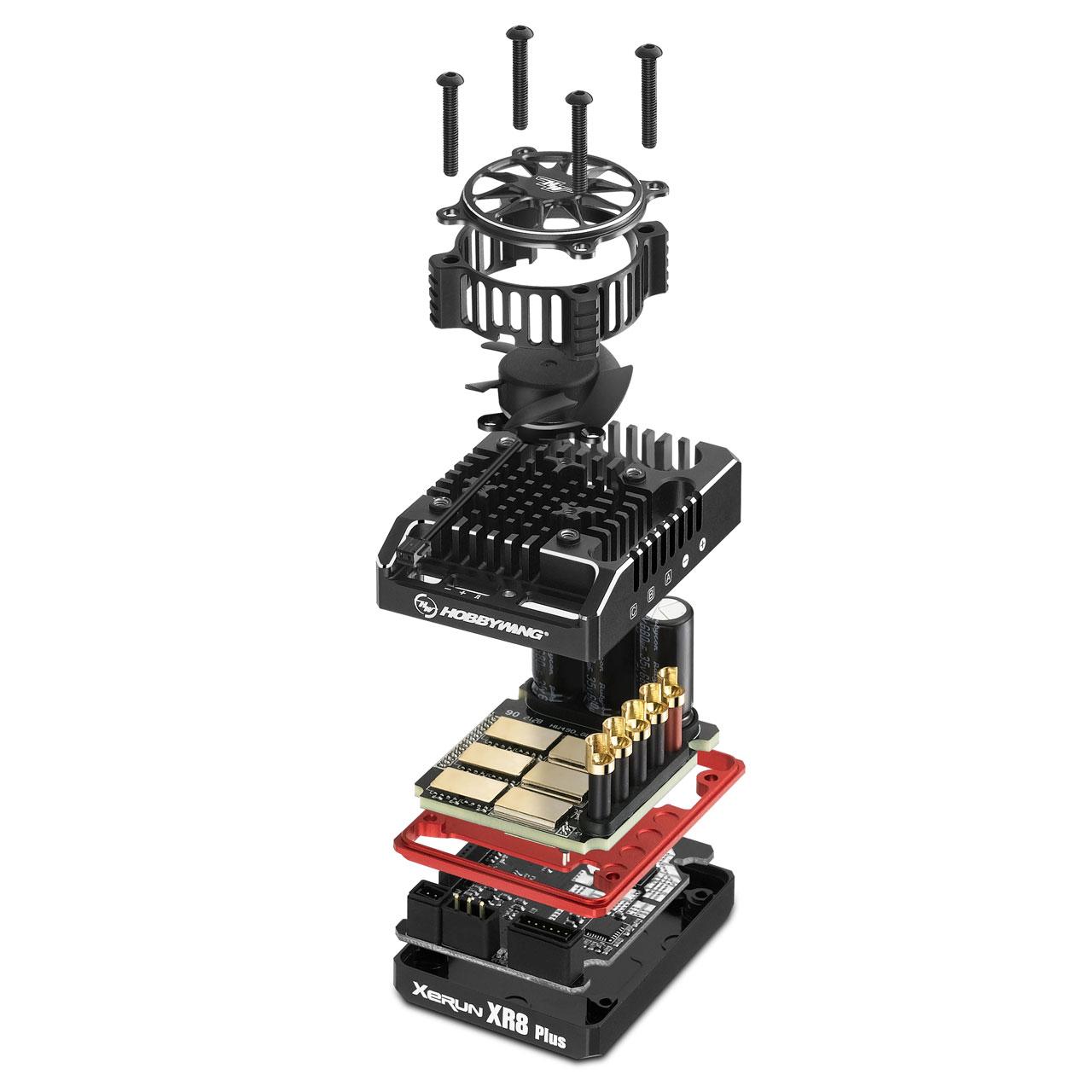

The XR8 Plus G2S is a 1/8 ESC with 6 RPM limit profiles. Side airflow from the fan and an internal copper heat sink help regulate heat.

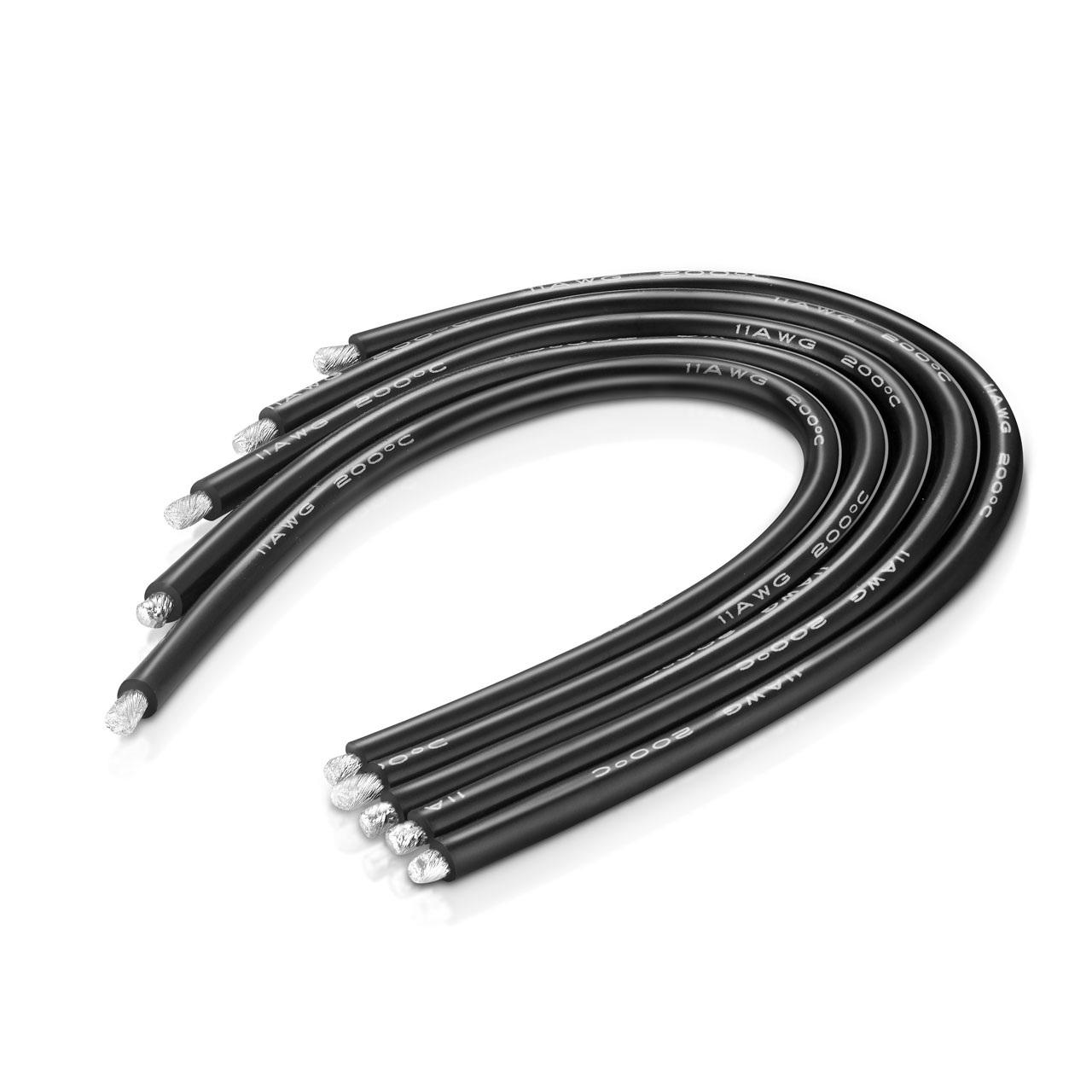

It uses 2–6S LiPo batteries and has flexible 11AWG cables and specially designed solder tags. The BEC adjusts from 6–8.4 V in 0.1 V steps for different servos, and the capacitor provides protection. When linked to the Hobbywing smartphone app, collected performance data can be evaluated or viewed live.
Notes
- Optional accessories: LCD Programming Box (HW30502001), OTA Programming Module (HW30850400).
Highlights
- 5 selectable profiles: zero-timing blinky mode, 1/8 offroad racing, 1/8 onroad racing, 1/8 GT Racing and 1/8 sport mode
- Up to 30 adjustable parameters, including 48° boost and turbo timing
- Variable frequency control of PWM and braking frequencies
- Softening function for milder or wilder driving control and improved driving efficiency
- Protection against polarity reversal, overheating, undervoltage and signal loss
- Data logging of temperature, speed and other measurements; firmware upgrades possible
Specifications
| Type | Brushless Sensored |
|---|---|
| Current (Cont./Peak) | 200 A / 1080 A |
| Input Voltage | 2–6S LiPo |
| BEC | 6–8.4 V / current (cont./peak): 6 A/15 A (Switch Mode) |
| Motor Types | 4S LiPo: kV <3000 – 4268/4274 motor / 6S LiPo: kV <2400 – 4274 motor |
| Fan | Yes, powered by BEC |
|---|---|
| Programming | LCD Programming Box / OTA Programming Module |
| Dimensions | 56.1 × 42.1 × 38.5 mm |
| Weight | 122 g (w/o cables) |
| Application | 1/8 On-Road/Off-Road/Truggy Racing |
