Brand:
Ezrun MAX4-HV ESC Sensorless 300 Amp, 6-12s LiPo, BEC 10A

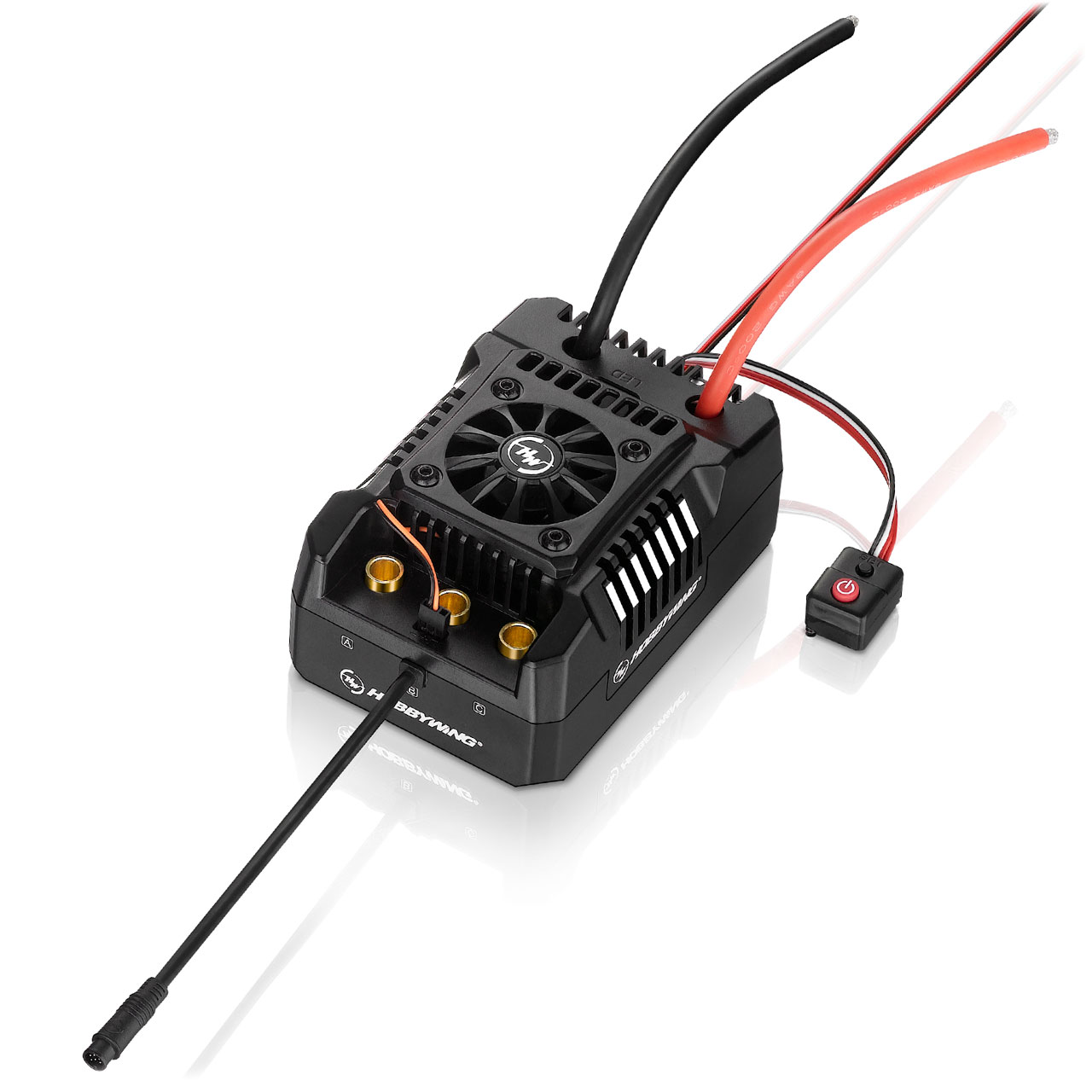

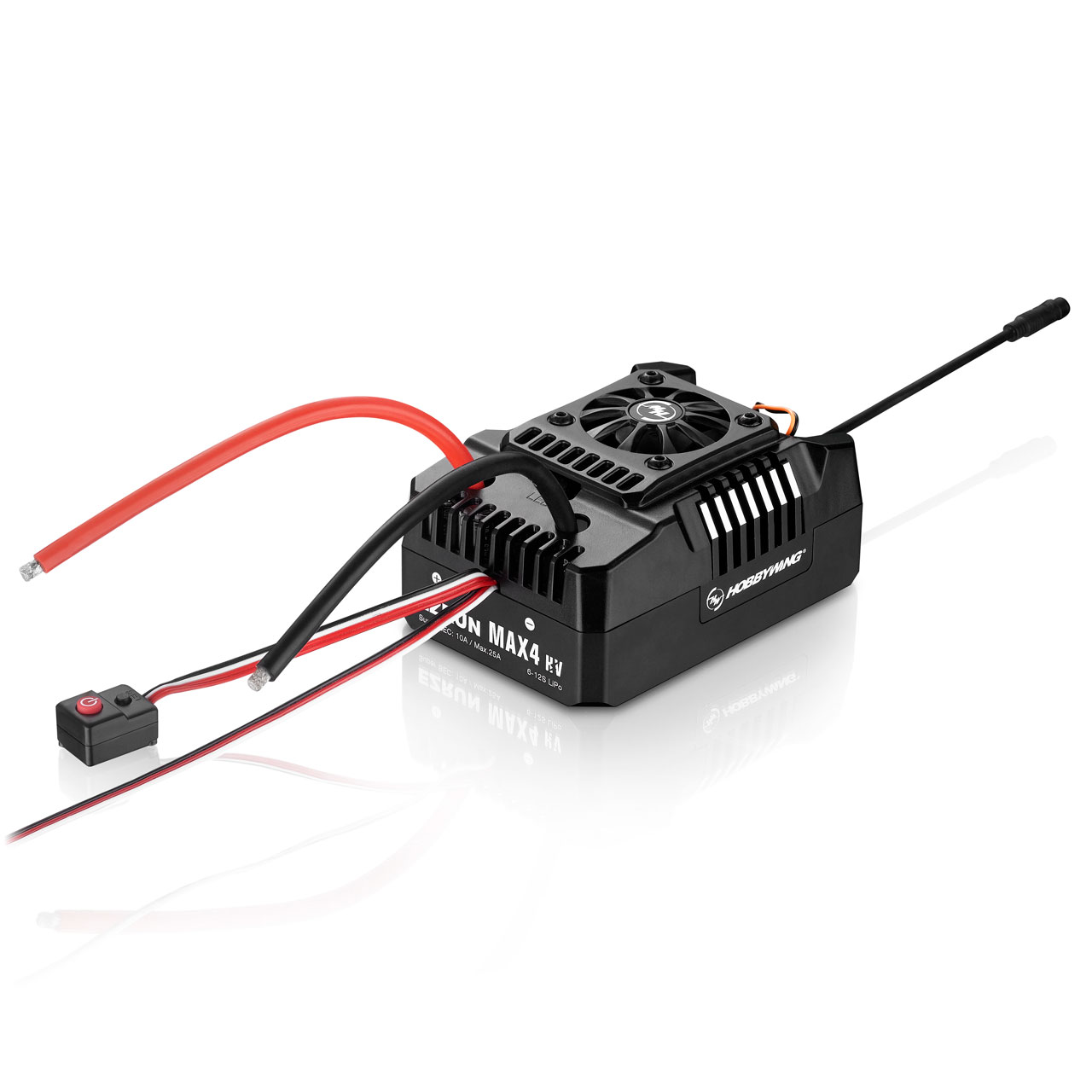

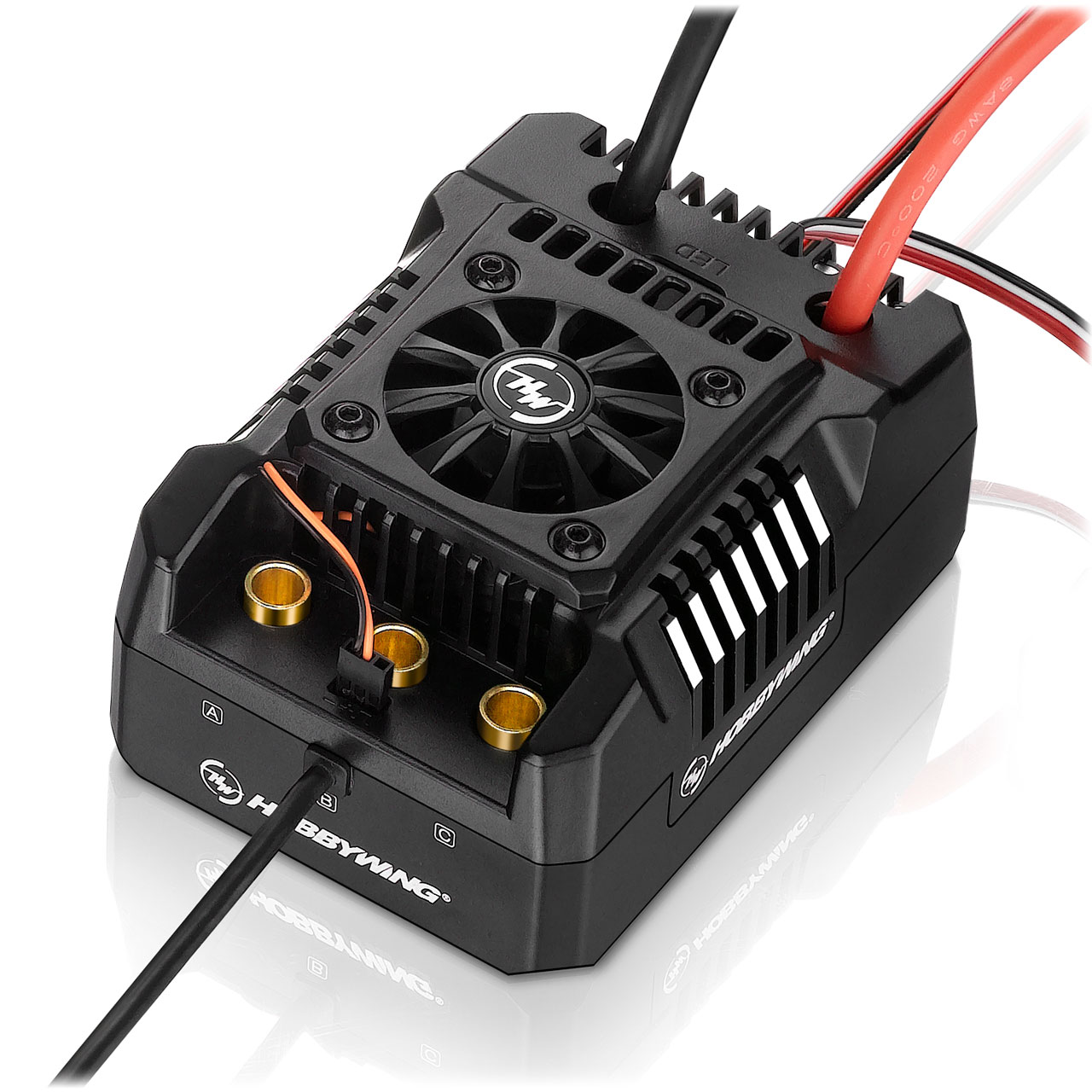

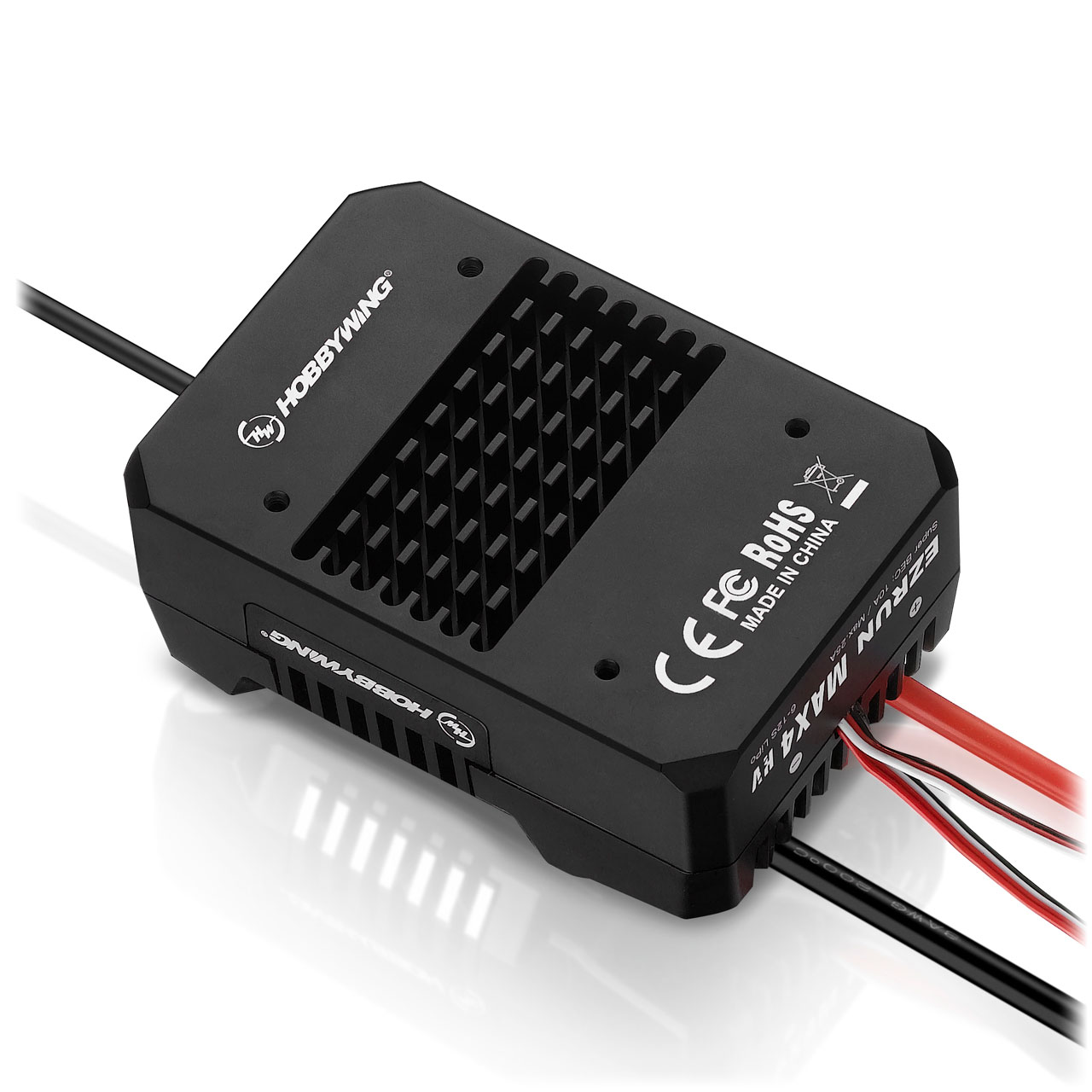

Ezrun MAX4-HV ESC for 1:4 and 1:5 models with 300 A continuous current
- Item number
- HW30104002
- EAN
- 6938994405485
RRP €365.90
Description
The Ezrun Max4 ESC is suitable for 1:4 and 1:5 scale models, including heavy-duty off-roaders and trucks.

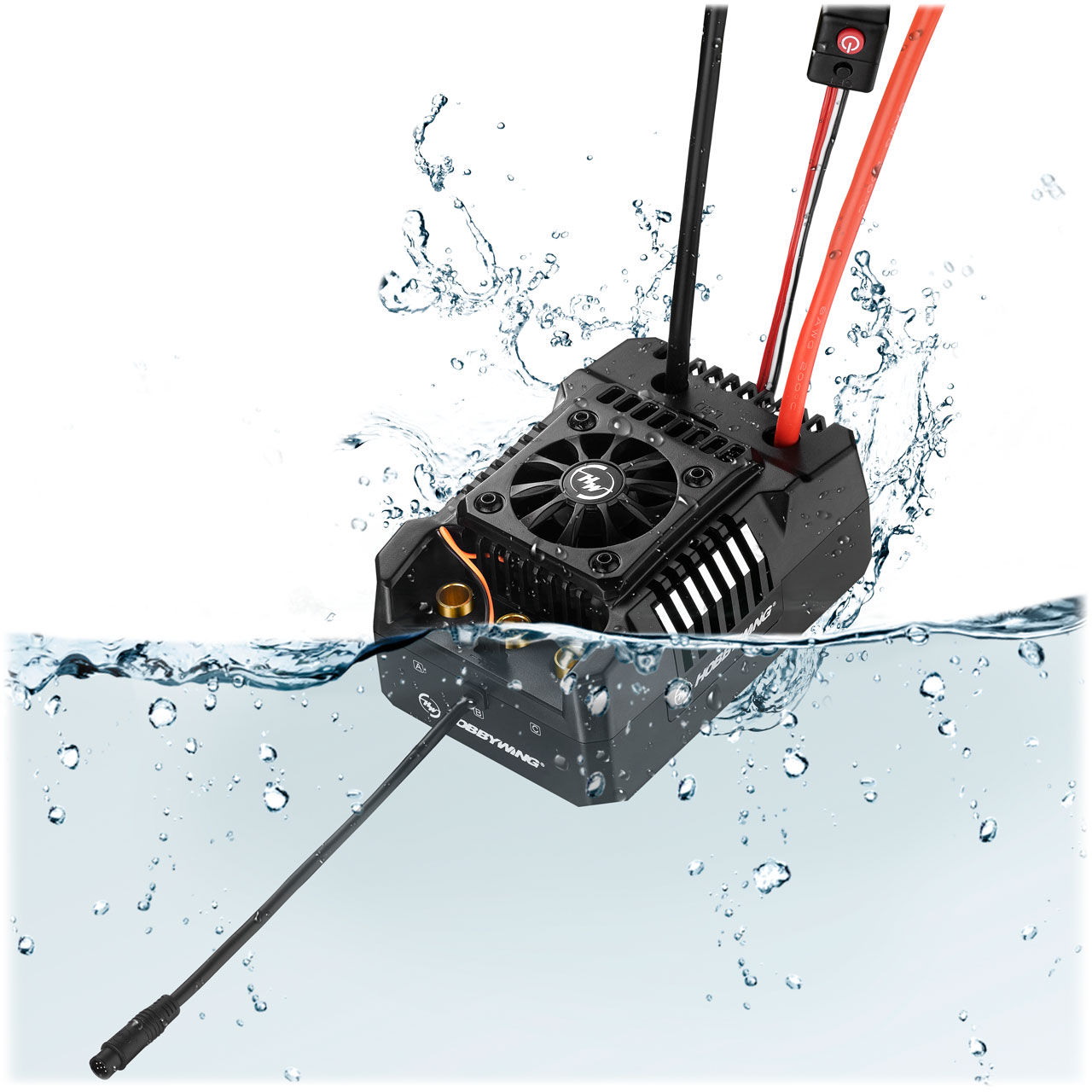

The ESC uses durable materials and is protected against dust, water and other external influences. Its electronic switch is protected against damage during normal driving. The built-in switch-mode BEC supplies 10 A continuously and up to 25 A instantaneously, with selectable output voltage of 6 V, 7.4 V or 8.4 V. It is designed to supply high-current servos in large models.
Highlights
- Switch-mode BEC: 10 A continuous, 25 A instant; selectable 6 V, 7.4 V or 8.4 V
- Fireproof circuitry to protect the battery plug
- Protection against low voltage, overheating and signal loss
- Programmable settings
- Real-time data recording
Specifications
| Current (Cont./Peak) | 300 A / 2000 A |
|---|---|
| Motor Type | Sensored/Sensorless Brushless Motors |
| Motor Limit | 12S LiPo: kV ≤ 600 (70125 Size) |
| LiPo Cells | 6–12S |
| BEC | 6 V / 7.4 V / 8.4 V with 10 A (Switch Mode) |
| Fan | Yes (shared with fan interfaces) |
| Programming Port | Fan / PRG-Input |
|---|---|
| Programming | LED Program Card, LCD Program Box, OTA Program Module |
| Dimensions | 125 × 85 × 61.7 mm |
| Weight | 775.4 g |
| Application | 1/4 and 1/5 Heavy Duty Off-Road, Trucks |
Documents
Safety & manufacturer
Manufacturer
Hobbywing
Item number: HW30104002
EAN: 6938994405485
Responsible person in the EU
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
