SkyRC Center Gravity and Angle Gauge for planes
- Part No: SK500039
- Retail: €262.90
- EAN: 6930460006998
- Notice: SK-500039-01
Centre of gravity and angle gauges for fixed-wing aircraft with Bluetooth app display

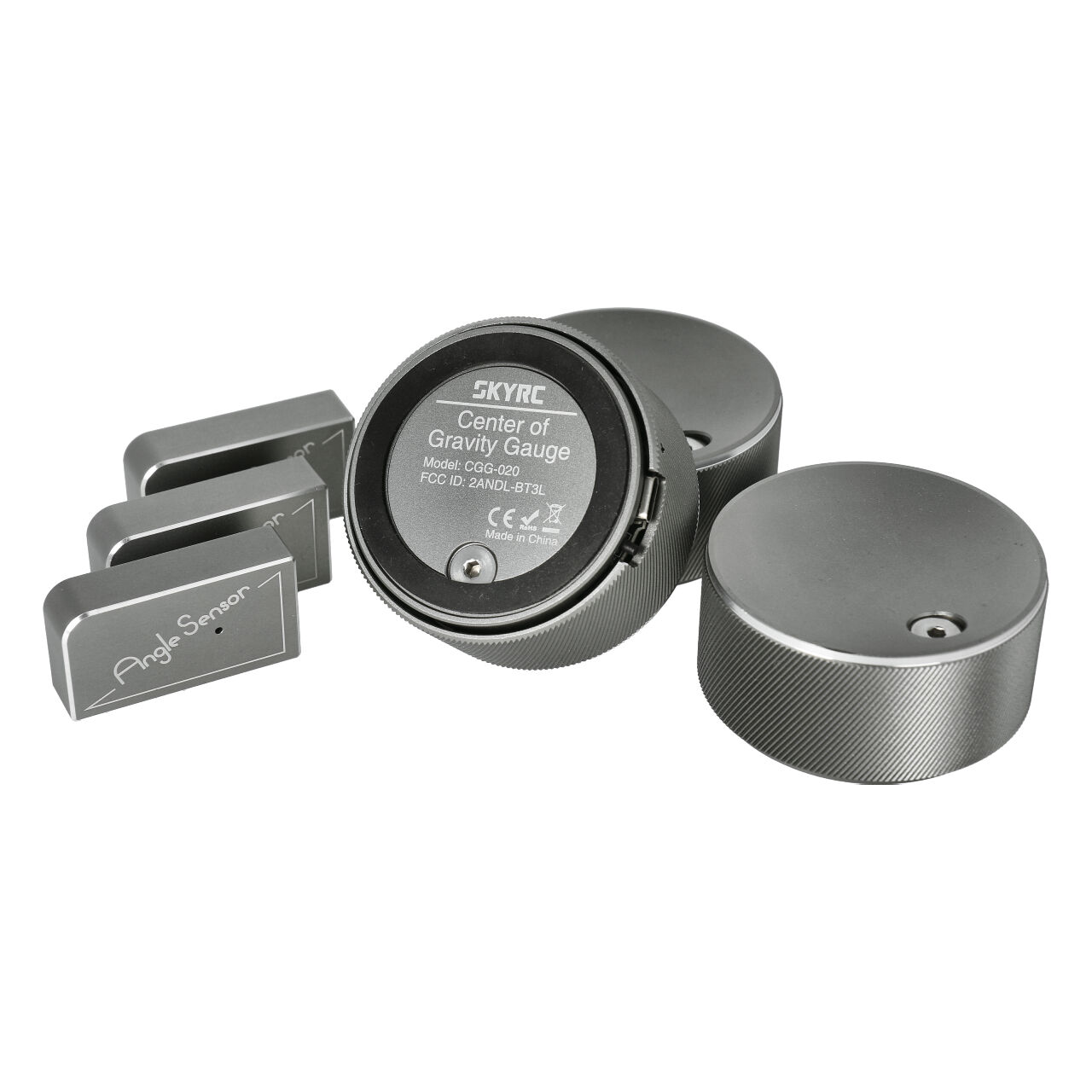

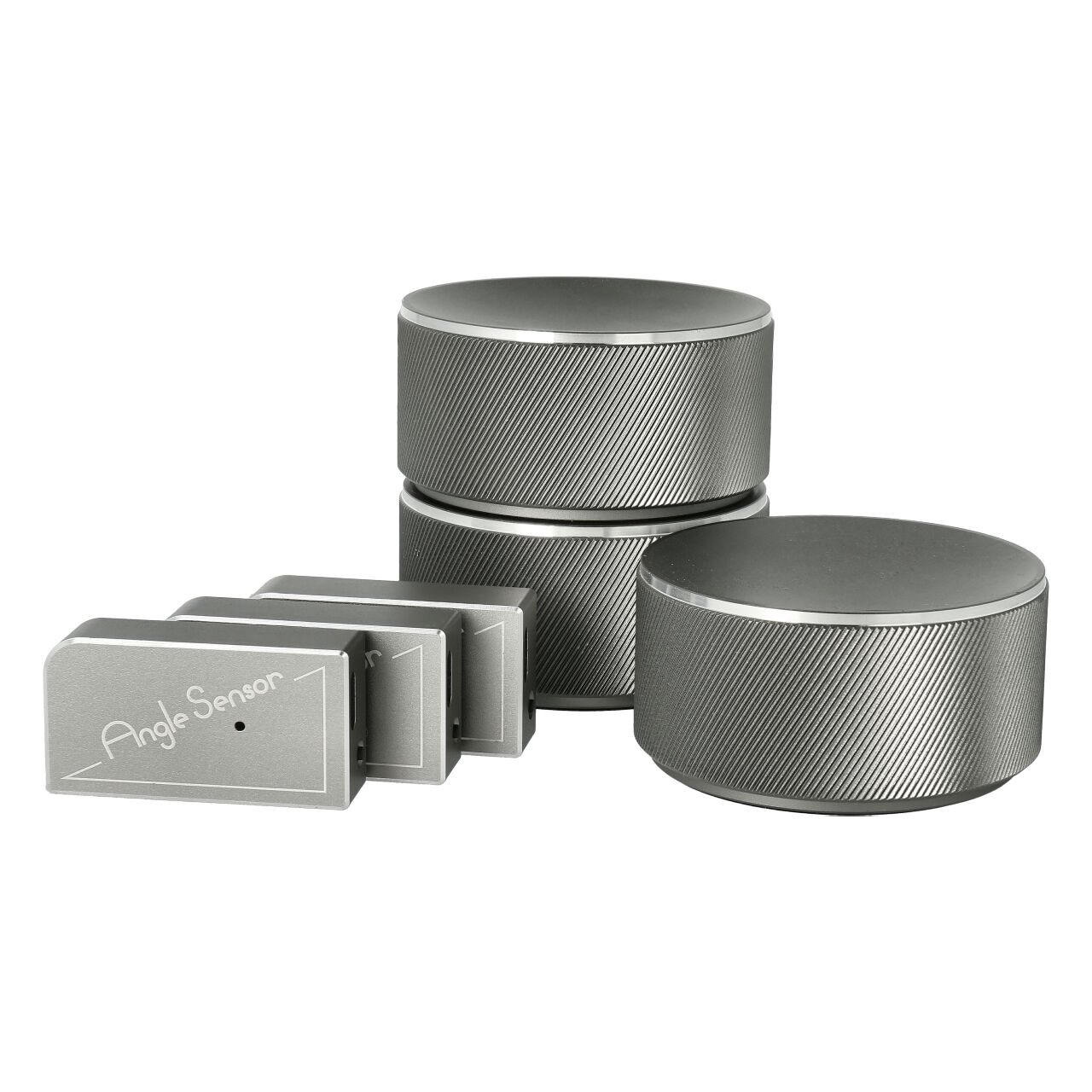

This set of three centre of gravity gauges and three angle sensors is for setting up fixed-wing aircraft. The gauges measure the centre of gravity, while sensors attached to the control surfaces track their angles. Measurements are displayed in real time on a smartphone.
The SkyRC RC Gears app displays the measured weights and suggests centre of gravity adjustments. It also shows control-surface angles and how they change, with a tolerance of 2°.
Highlights
- Real-time display of measurement data via Bluetooth on a smartphone
- Built-in rechargeable 3.7 V lithium battery in each module
- Centre of gravity measurement
- Maximum weight per scale: 20 kg (60 kg in total)
Specifications

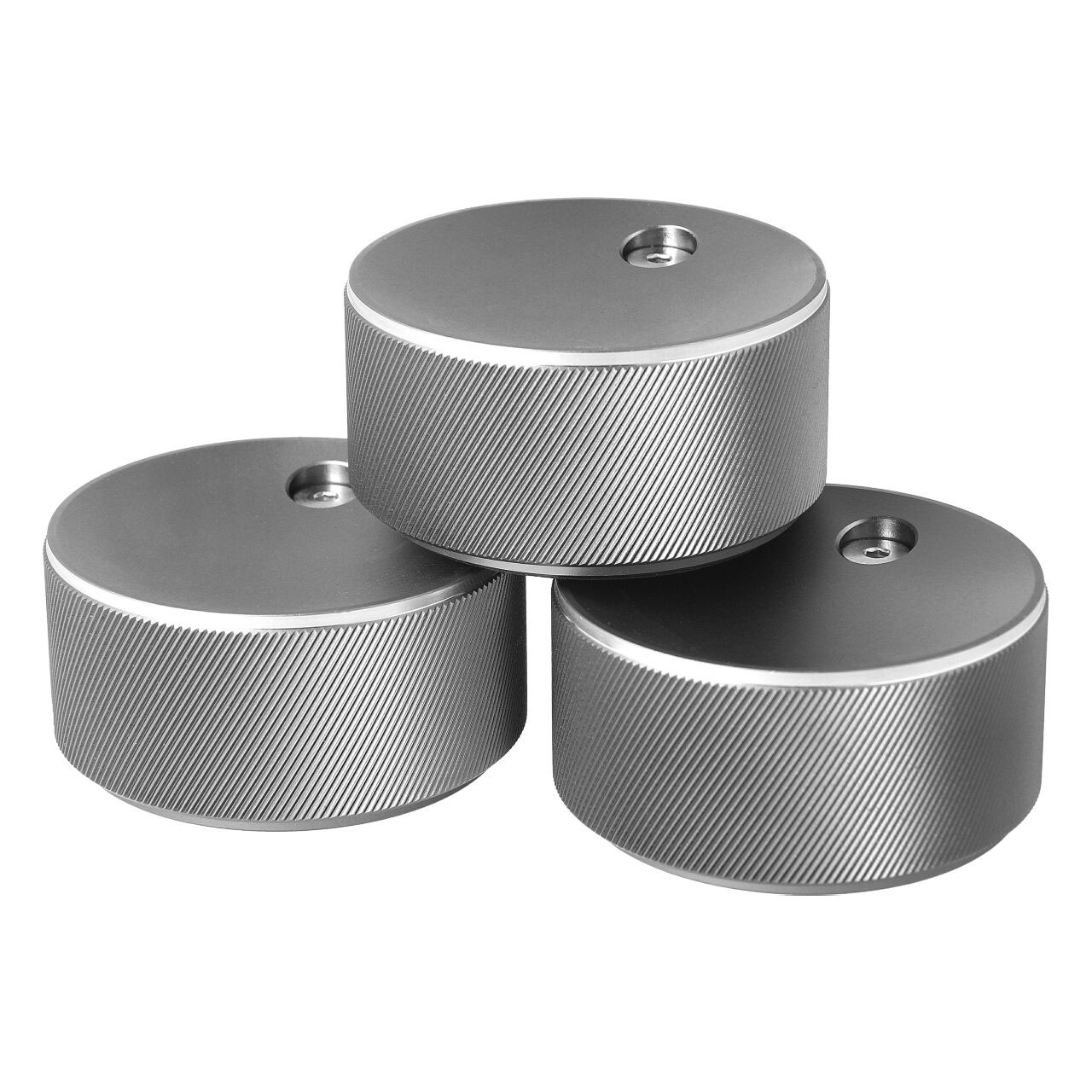

| CG Gauge | |
|---|---|
| Input Voltage | 5 V |
| Input Current | 200–300 mA |
| Operating Voltage | 3.4–4.2 V |
| Operating Current | <15 mA |
| Low-Voltage Protection | <3.4 V |
| Max. Weight (1 scale) | 20 kg |
| Accuracy (Display) | ±1 g / 0.01 oz |
| Measuring Accuracy | ±3 g |
| Connector | USB-C |
| Dimensions | 48.1 × 25.6 × 12.6 mm |
| Weight (each scale) | 165 g |

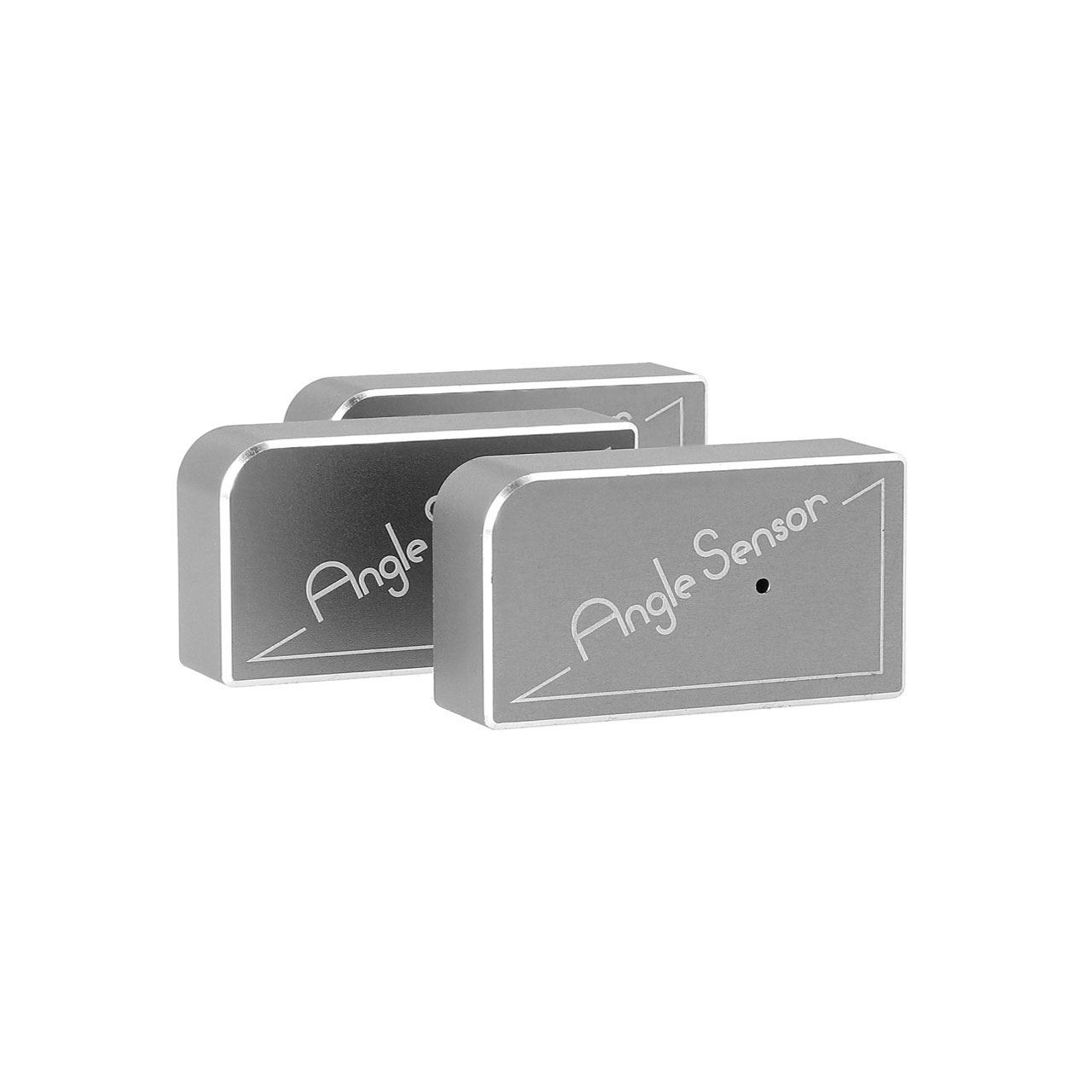

| Angle Sensor | |
| Input Voltage | 5 V |
| Input Current | 200–300 mA |
| Operating Voltage | 3.4–4.2 V |
| Operating Current | <10 mA |
| Low Voltage Protection | <3.4 V (red flashing) |
| Measuring Accuracy | ±2° |
| Accuracy (Travel) | ±0.1 mm |
| Connector | USB-C |
| Temperature (Operating) | 0–50 °C |
| Dimensions | 48.1 × 25.6 × 12.6 mm |
| Weight (each module) | approx. 25 g |

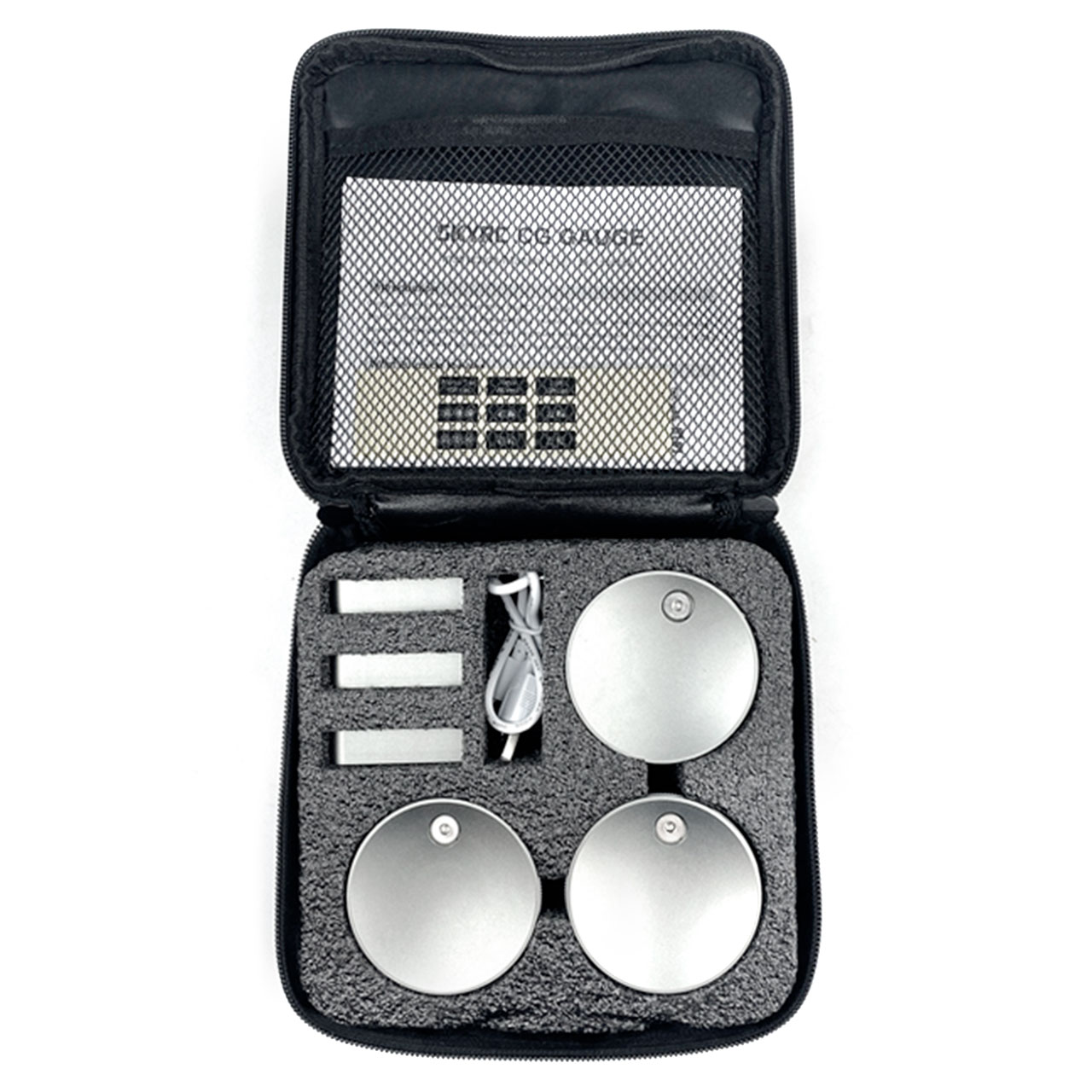

In the box
- 3× Center of Gravity gauges
- 3× Angle Sensors
- 1× USB-C Cable
- 1× Manual
Notes
- Required app: RC-Gears, iOS 9.0 or later / Android 8.0 or later. Languages: German, English, Japanese, Chinese.
