SkyRC B6AC Neo LiPo 1-6s
- Part No: SK100200-01
- Retail: €58.90
- EAN: 6930460008206
- Notice: SK-100200-01
Compact B6AC neo charger with up to 60 W AC and 200 W DC charging power
The B6AC neo is a compact charger that retains the basic functions of the B6AC V2. It has a colour display and updated software. It can easily keep up with a digital power supply and offers an adjustable voltage of 2–27 V and current of 1–10 A.
A proprietary rectifier circuit efficiently converts DC power into safe DC power for battery charging, while an integrated MCU controls the charging process to minimise power loss. The device uses gallium nitride (GaN) for heat dissipation and reduced energy loss compared with silicon.
Highlights
- 60 W AC and 200 W DC charging power

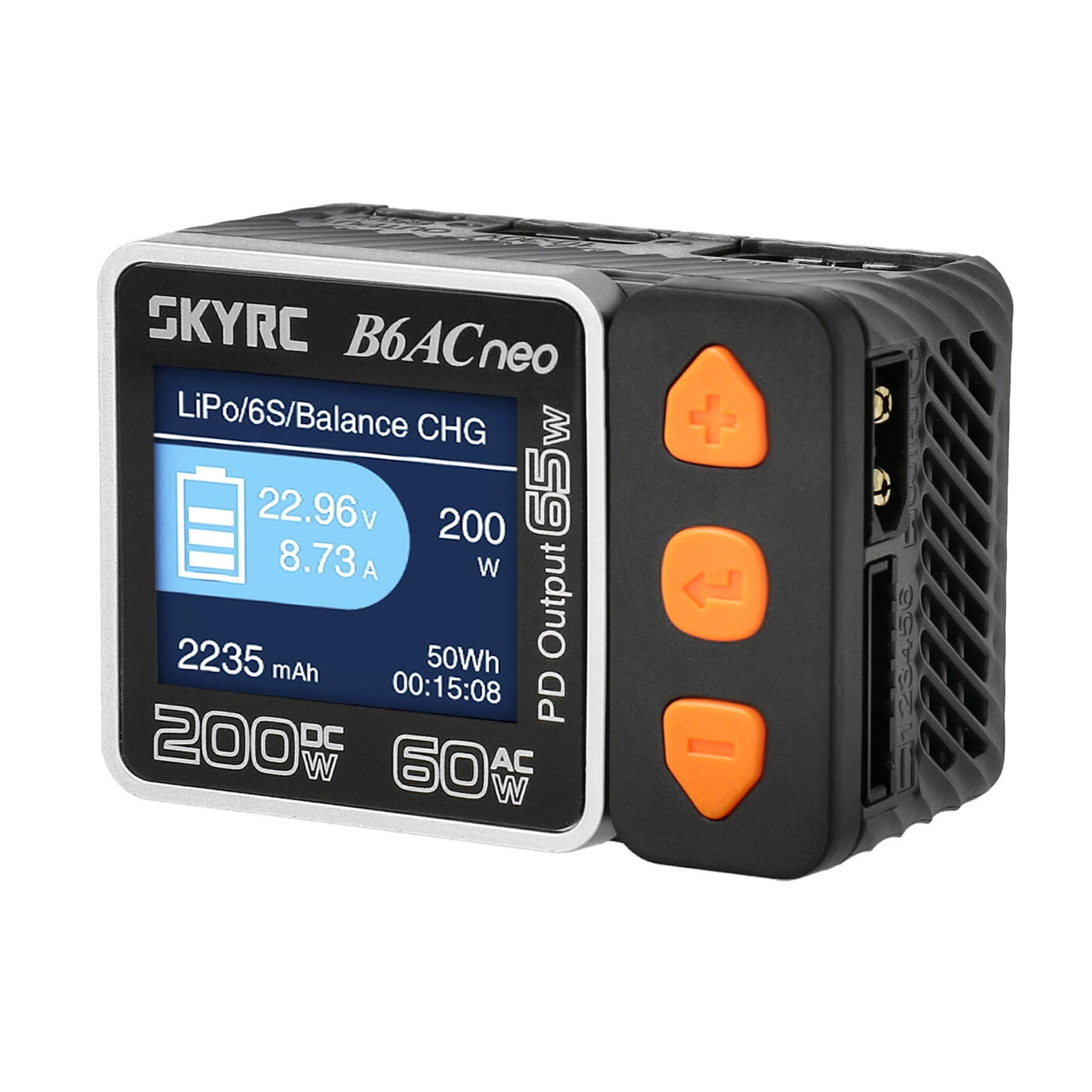

- 1.77-inch colour display
- GaN technology
- Pocket-sized format

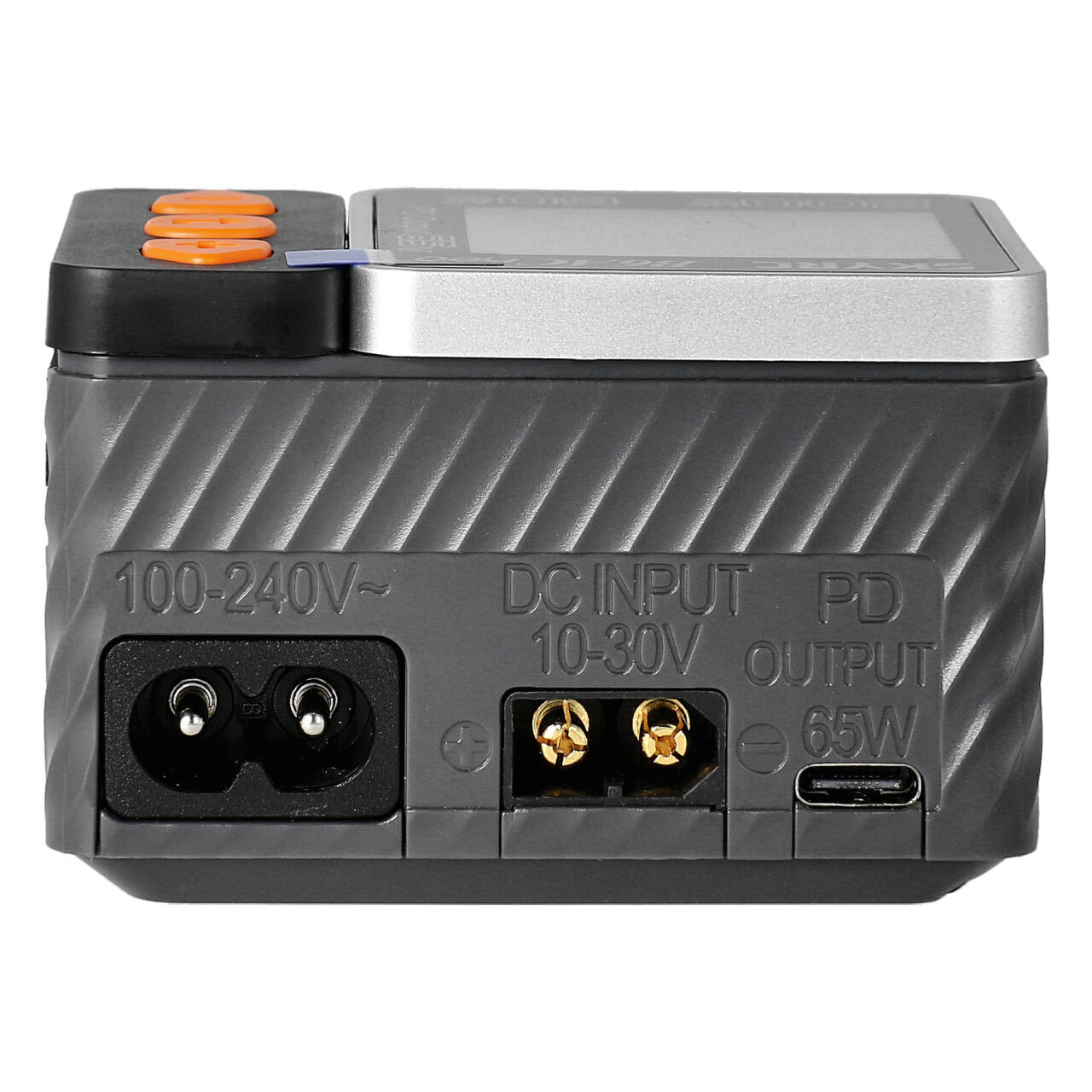

- XT60 and USB Type-C ports

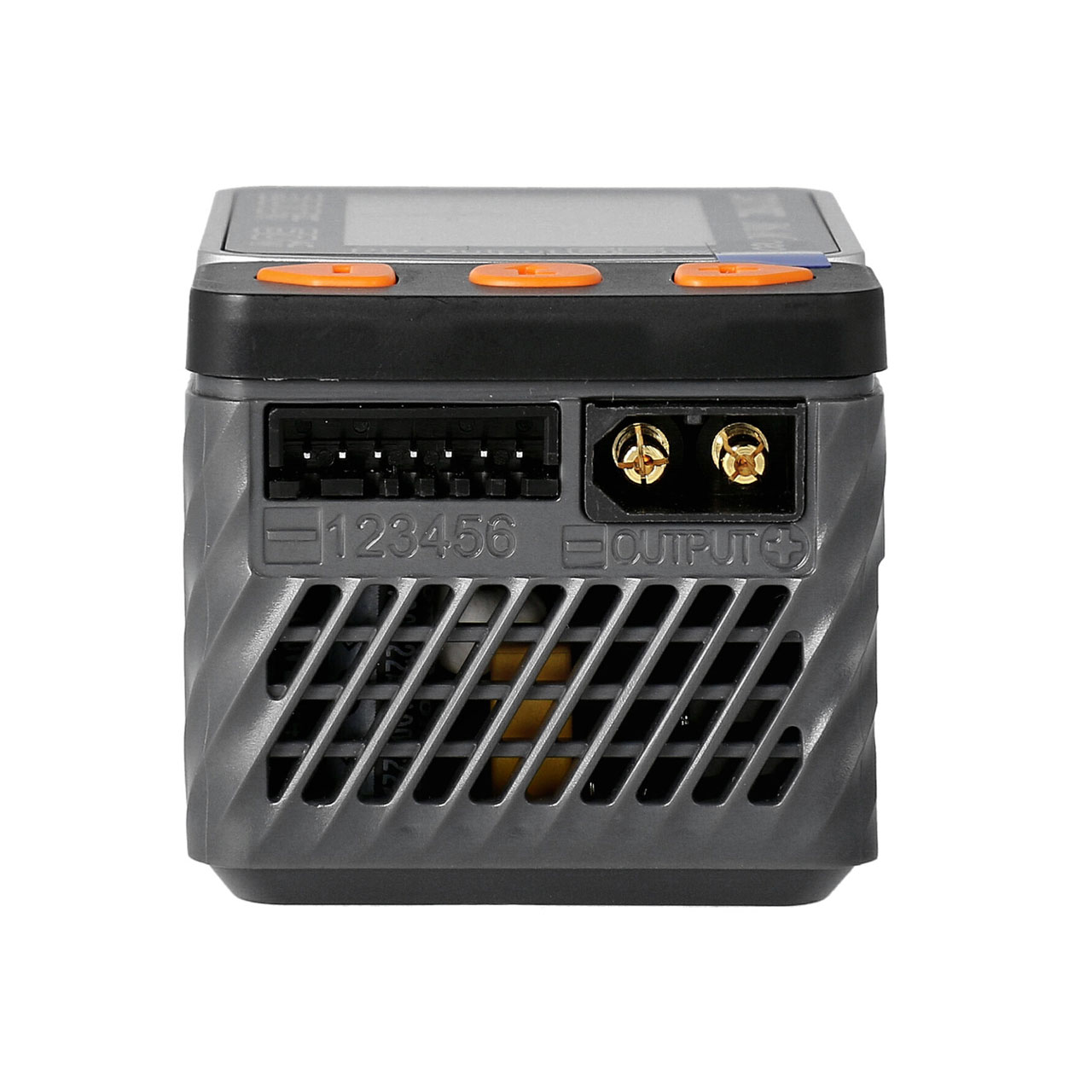

- Balancer connection for increased discharge power
- Integrated battery tester programme
- PD/QC3.0 fast charging on AC power only
- Compatible with Charger Master software
Specifications
| Input Voltage AC | 100–240 V 50/60 Hz |
| Input Voltage DC | 10–30 V |
| Charge Power | AC max. 60 W / DC max. 200 W / USB-C/PD max. 65 W (AC only) |
| Discharging Power | max. 19 W (LiPo/6S) |
| Charge Current | 0.2–10.0 A |
| Charging (QC3.0 / PD) | 5 V=3 A, 9 V=3 A, 12 V=3 A, 20 V=3.25 A, max. 65 W |
| Discharge Current | 0.1–2.0 A |
| Balancing Current | max. 0.5 A |
| Trickle Charge | max. 0.2 A & OFF |
| Cells LiPo/LiFe/LiIon/LiHV | 1–6S |
| Cells NiMH/NiCd | 1–15S |
| Cells Pb | 3S / 6S |
| Weight | 150 g |
| Dimensions | 70.6 × 50.6 × 46 mm |

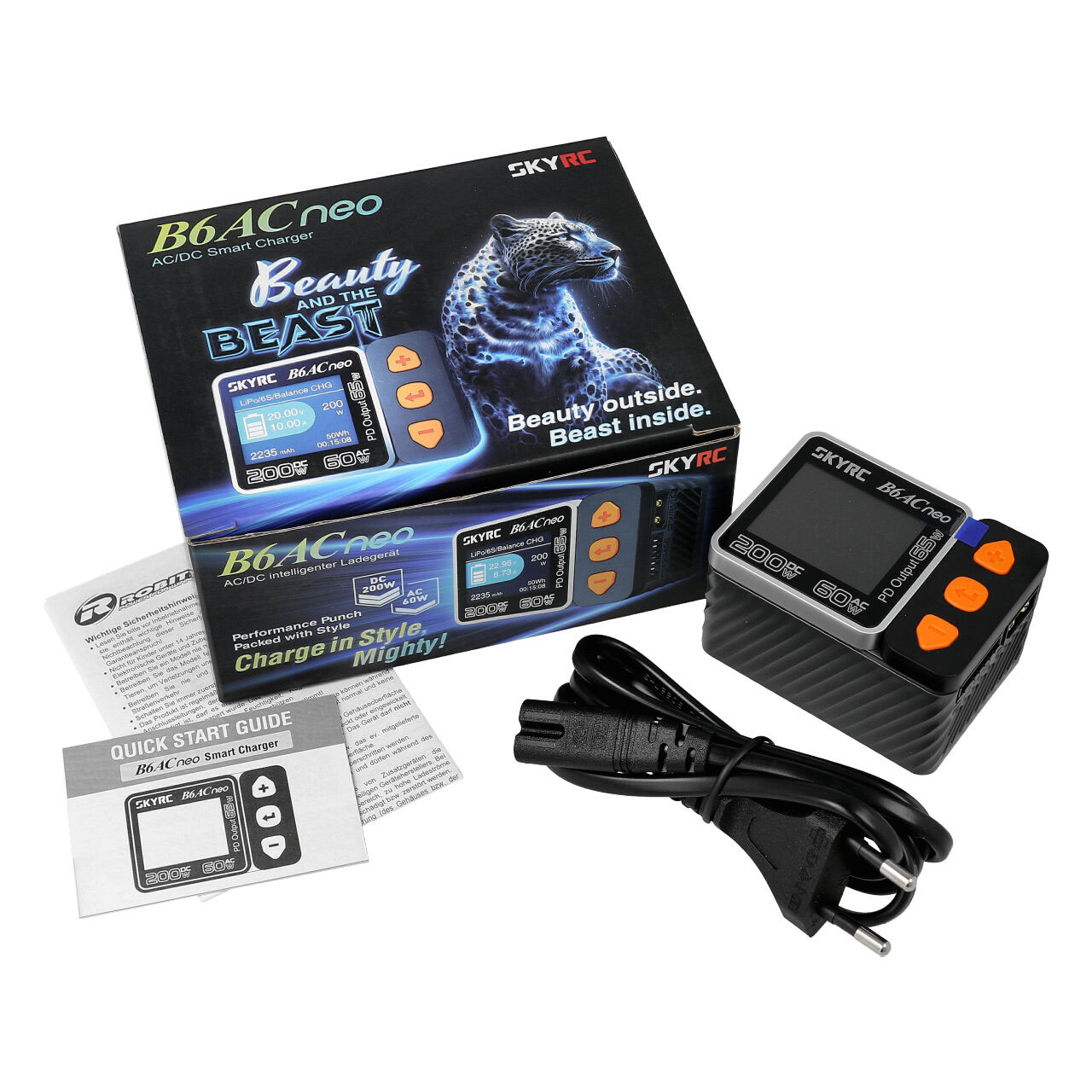

In the box
- 1× B6AC neo charger
- 1× Manual
- 1× AC power cord
