ToolkitRC P200 V2 30V 10A max 100/200W AC and DC Input
- Part No: TK23100
- Retail: €95.90
- EAN: 6972969830346
P200 V2 power supply with AC/DC input and up to 200 W output The P200 is a mini power supply... more
Product information "ToolkitRC P200 V2 30V 10A max 100/200W AC and DC Input"
P200 V2 power supply with AC/DC input and up to 200 W output

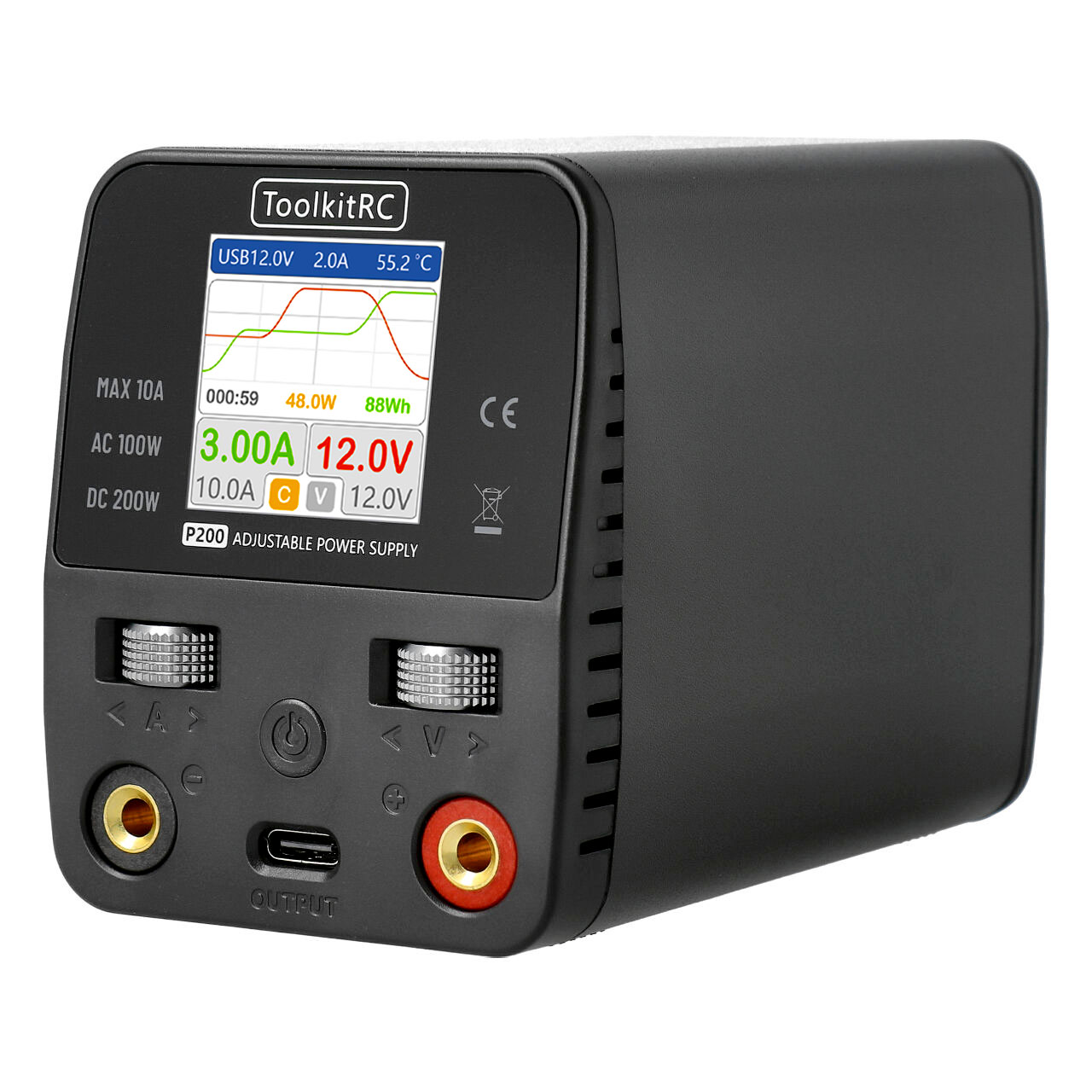

The P200 is a mini power supply with constant-voltage and constant-current output at up to 10 A and 200 W. It also has a 65 W fast-charge output. A 1.54" display and scroll wheels provide control.
Highlights

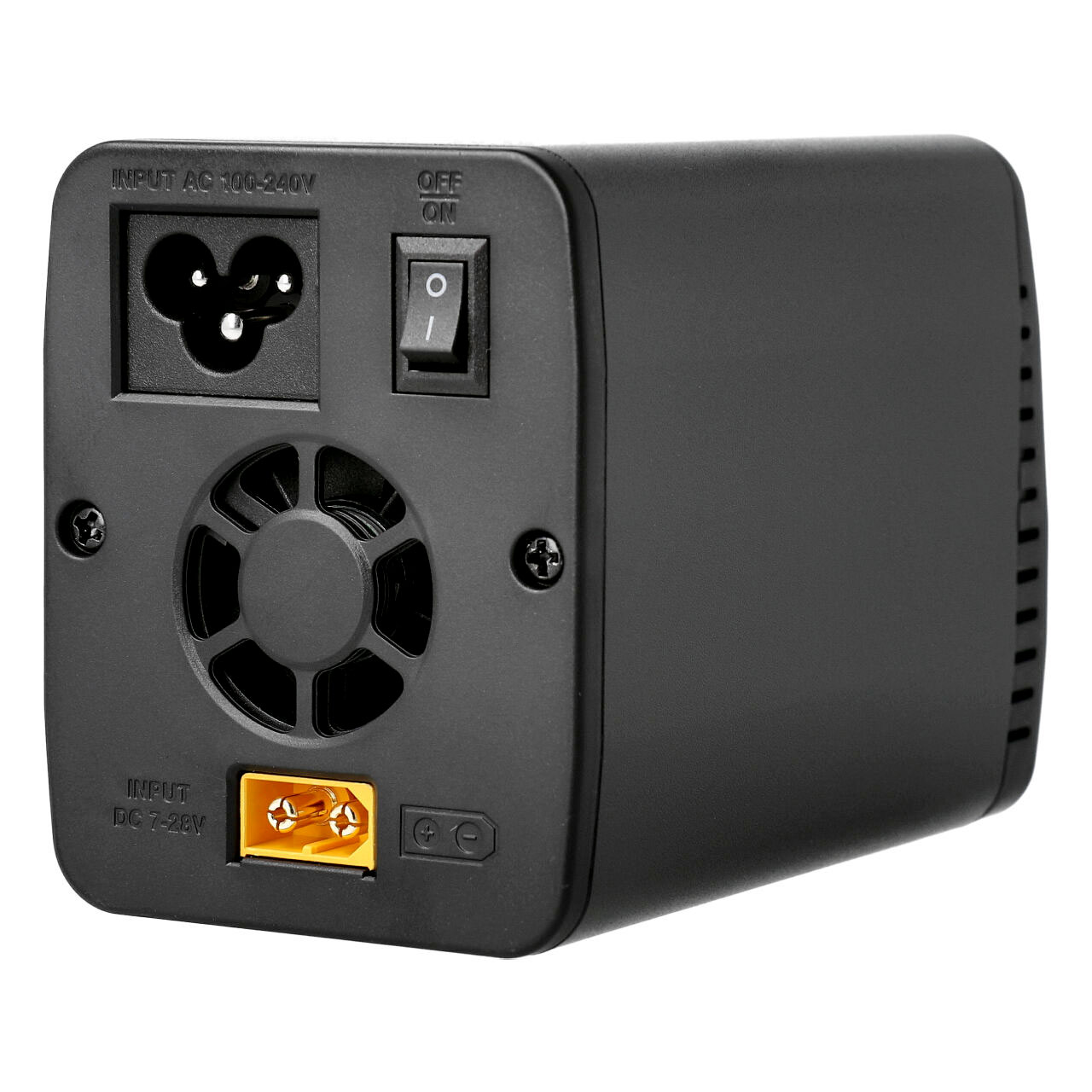

- AC or DC input
- Built-in GaN AC power adapter
- Built-in 65 W multi-protocol fast charging
- Protection against short circuits, overcurrent and overvoltage; additional protection functions
- Dynamic curve display
- Multilingual menu
Specifications
| Input | AC 100–240 V, max. 100 W / DC 7–28 V, max. 10 A, 200 W |
| Output | 1.0–10.0 A, max. AC 100 W / DC 200 W; 1.0–30.0 V, max. AC 100 W / DC 200 W |
| Type-C Output | 5.0–20.0 V, max. 65 W |
| Type-C Protocol | PD 3.0/PD2.0/PPS/QC4/QC3.0/QC2.0 / AFC/FCP/SCP/PE2.0/PE1.1/SFCP/VOOC |
| Protection Time | <1 ms (Short Circuit, OC, OV) |
| Control Cycle | 8 ms |
| Display | LCD, IPS 1.54" 240 × 24 px |
| Main Port | 4.0 mm Banana (female) |
| USB Port | TYPE-C (Fast Charge), Upgrade |
| Dimensions | 110 × 63 × 78 mm |
| Weight | 360 g |
