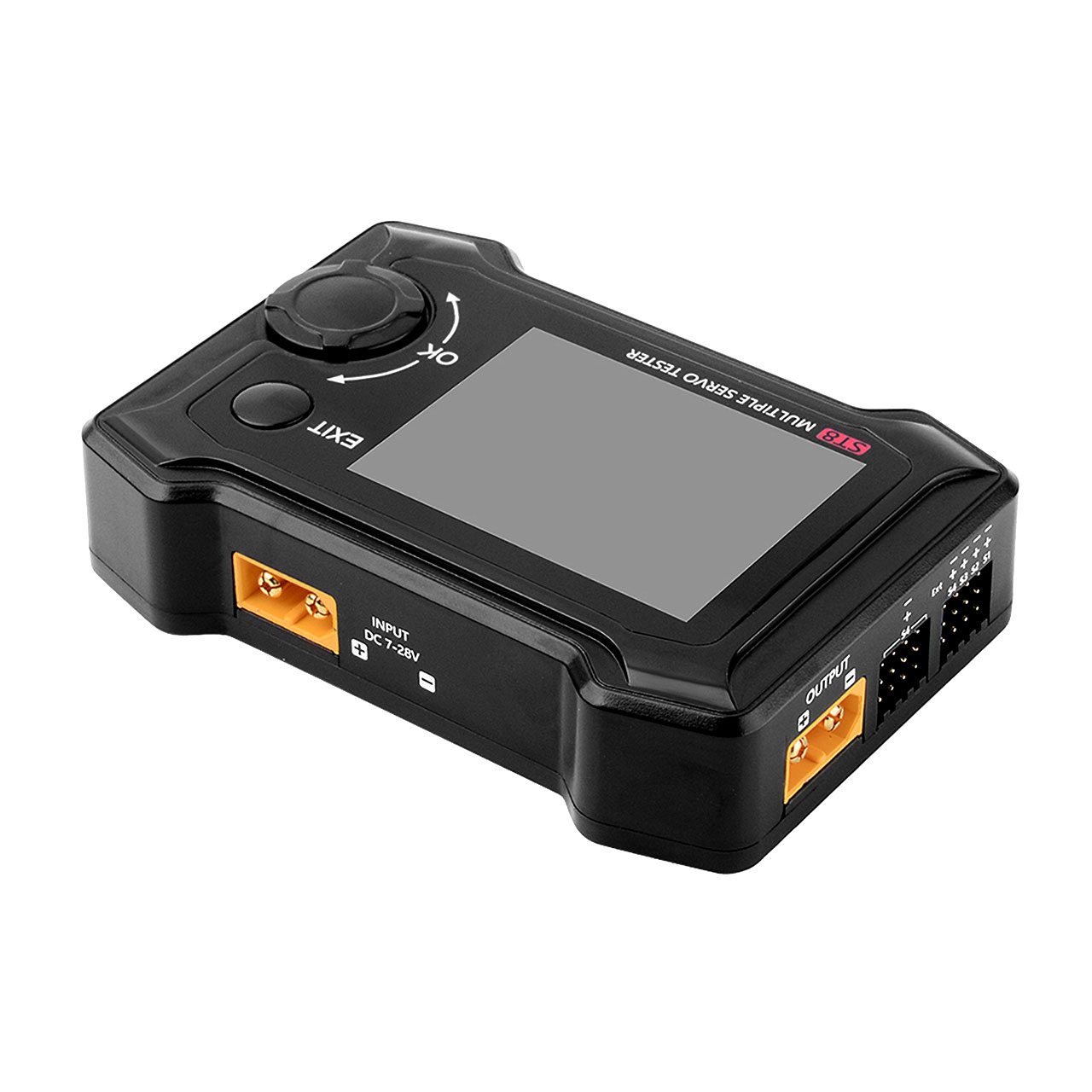

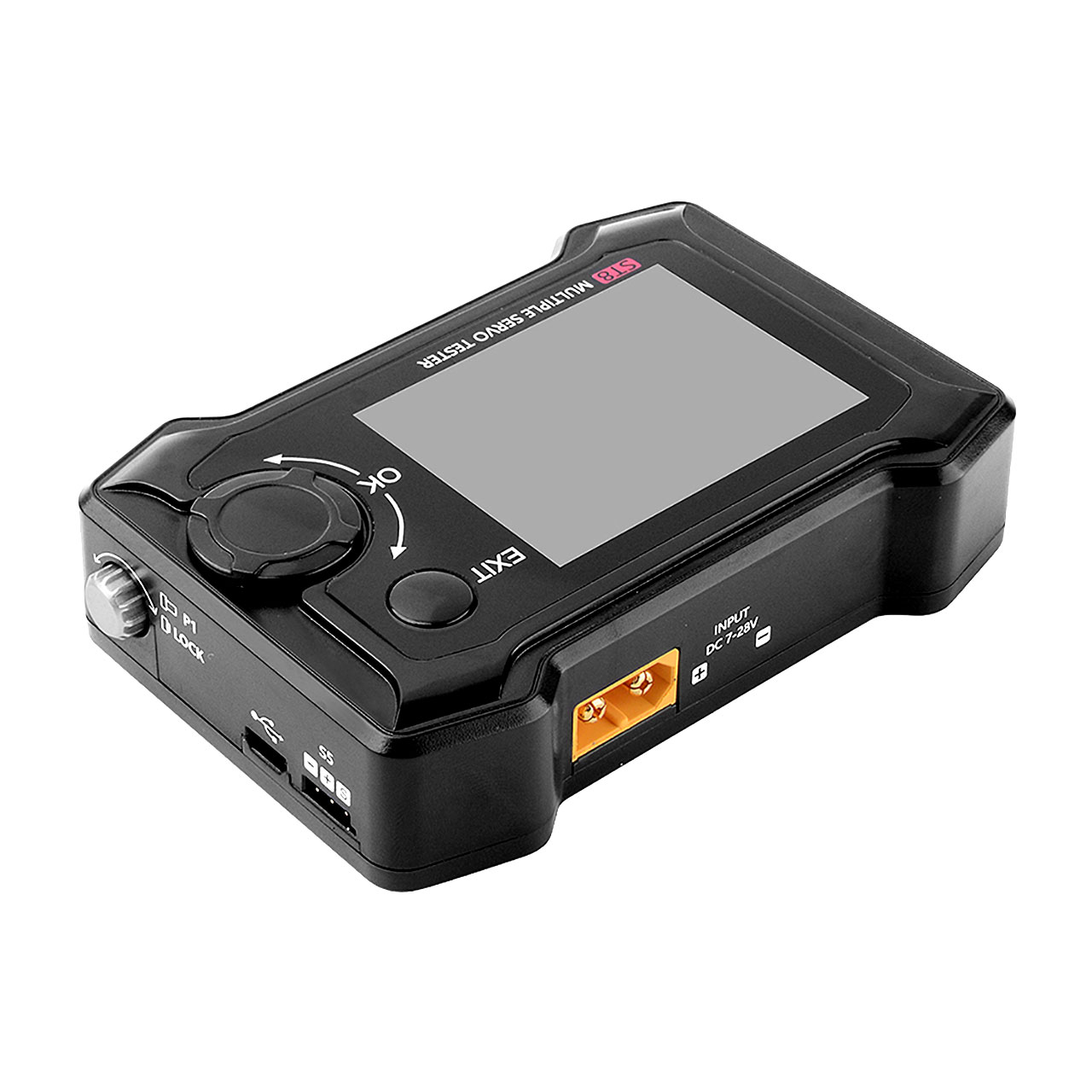

ST8 Advanced Servo Tester
Servo tester with 8-channel signal output and integrated current measurement
- Item number
- TK30500
- EAN
- 6972969830094
€57.90incl. VAT, plus shipping
RRP €57.90
Description

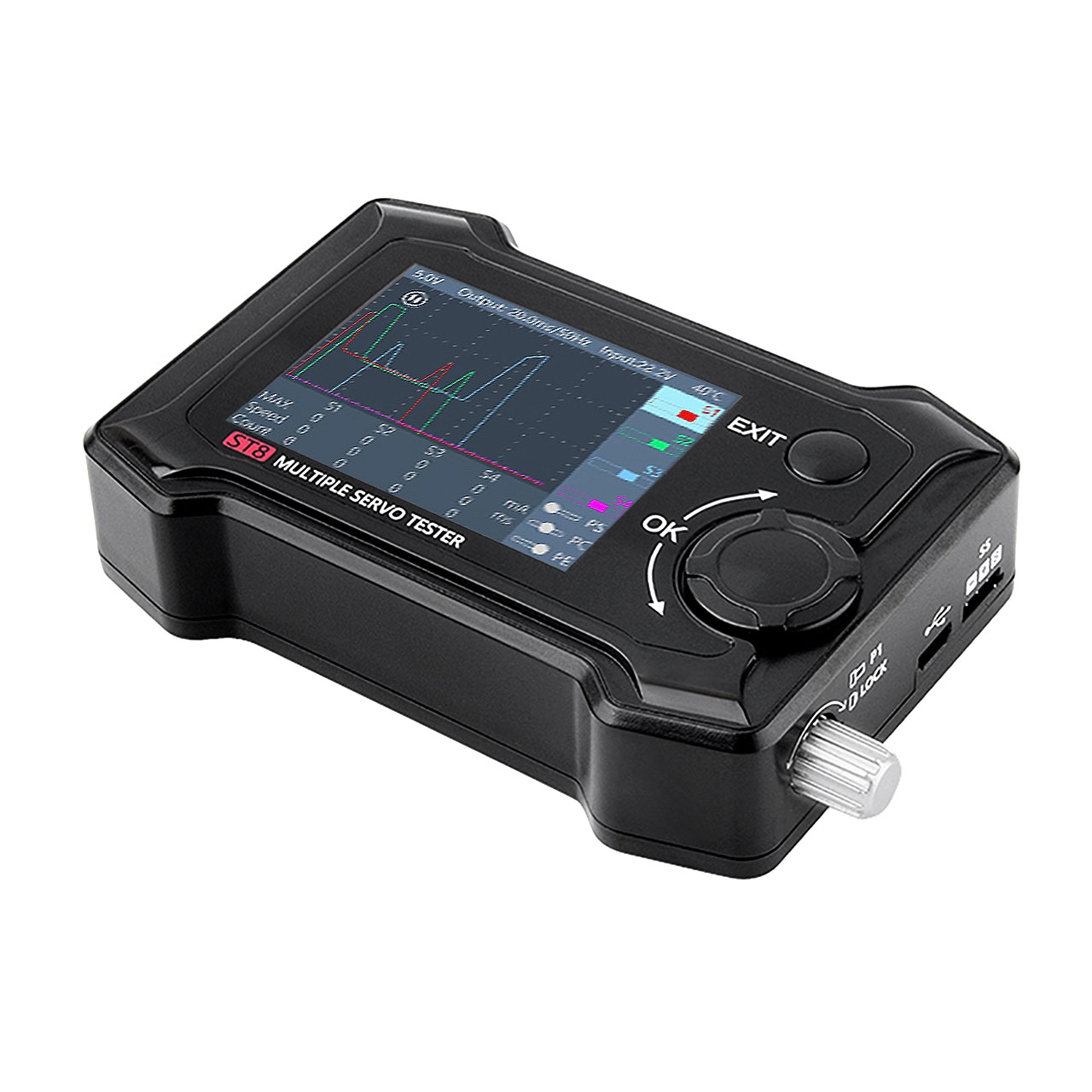

The ST8 Servo Tester displays servo performance data, including graphs. It provides up to 28 V output voltage, 8-channel signal output and integrated current measurement.
Highlights
- 4 channels for programmable independent signals
- 8 channels as signal outputs
- Measurement modes: speed, count, steps and linear
- External input signal support for PWM, PPM and SBUS signals
- Measurement accuracy down to the millisecond
Specifications
| Input Voltage | 7.0–28.0 V, max. 10 A |
|---|---|
| Main Output Port | 5.0–28.0 V, max. 10 A |
| Signal Port | 5.0–8.4 V, max. 4 A/S1–S4 |
| Output Voltage | 5.0–8.4 V, max. 4 A/S4 Ext. |
| Output Signal | 100–2900 µs, 33–1000 Hz, S1–S4 / PWM 500–2500 µs, S5 / PPM 8CH, S5 / SBUS 16CH, S5 |
| P1 Rotation Range | 1000–2000 µs, P1 |
|---|---|
| Micro-USB | Upgrade, USB3.0 |
| Display | LCD, 2.4'' TFT RGB 320 × 240 px |
| Dimensions | 99 × 68 × 26 mm |
| Weight | 120 g |

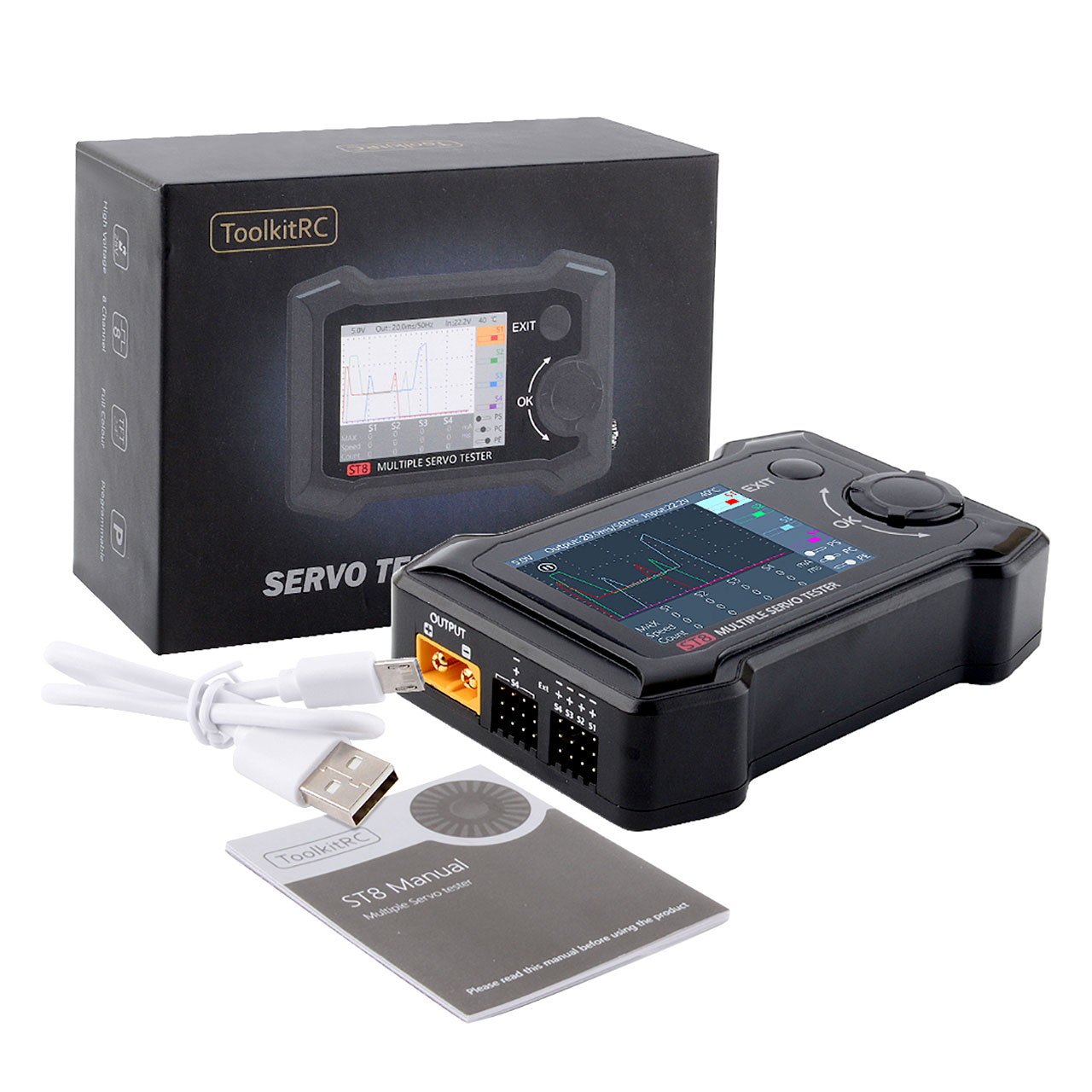

In the box
- 1 × ST8 Servo Tester
- 1 × Micro-USB Cable
- 1 × Manual
Documents
Safety & manufacturer
Manufacturer
ToolkitRC
Item number: TK30500
EAN: 6972969830094
Responsible person in the EU
Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
