Description

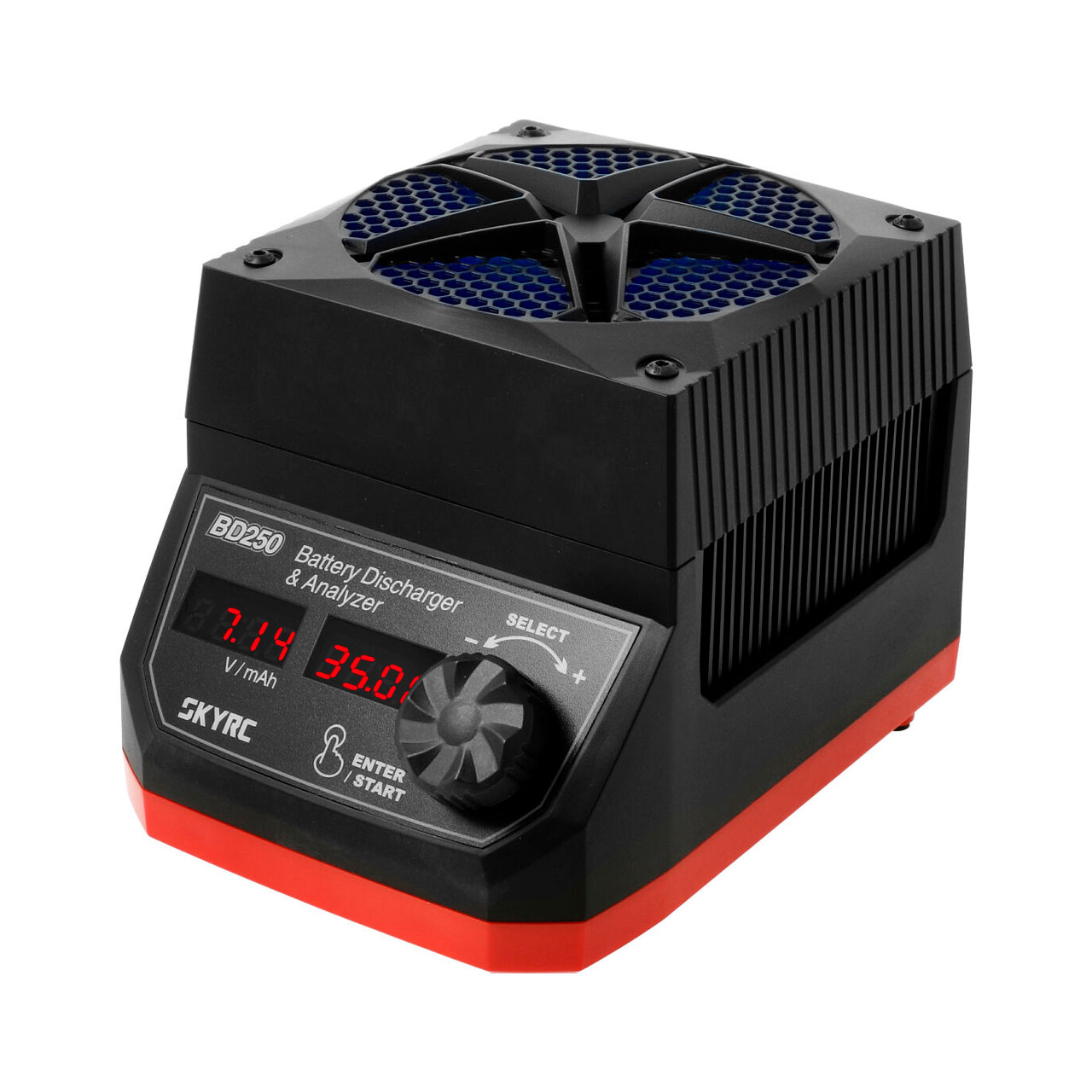

The SkyRC BD250 is a battery discharger and analyser for discharging batteries and measuring their capacity. It succeeds the BD200 and uses a cooling system and IXYS MOSFETs to discharge at a constant 250 W.
Highlights
- Cooling system
- Simple operation

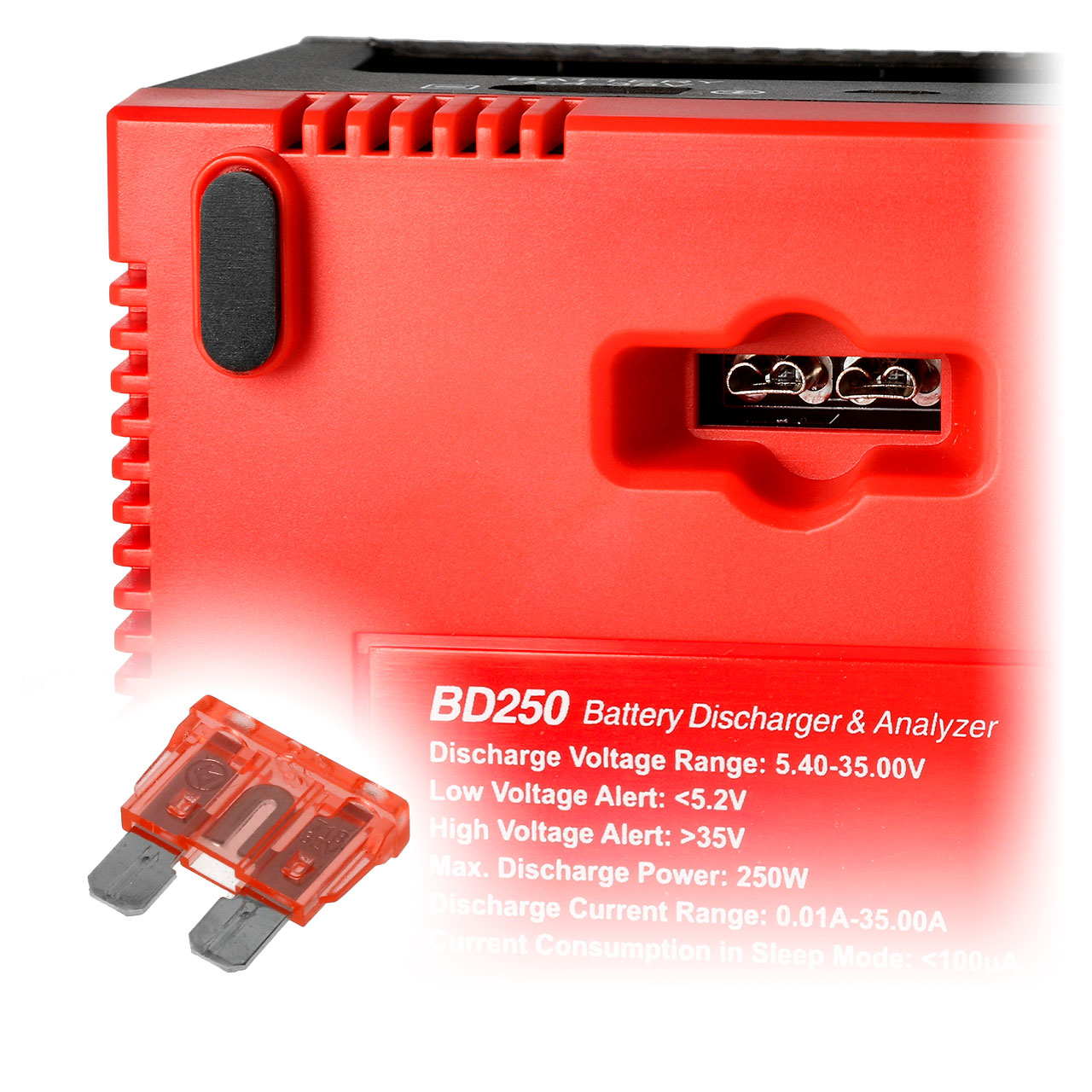

- Reworked safety fuse for easier replacement
- 40 A replacement fuse included
- Connection for a wide range of batteries
- USB connection for software updates and connection to a computer
- PC software provides performance data at 30-second intervals
Specifications
| Accepted Voltage Range | 5.40–35.00 V |
|---|---|
| Low Voltage Alert | <5.2 V |
| High Voltage Alert | >35 V max. |
| Discharge Power | 250 W |
| Discharge Current | 0.01–35.00 A |
| Cells | LiPo: 2–8S, LiHV: 2–8S / NiMH: 6–20 cells |
| Current Consumption in Sleep Mode | <100 µA |
|---|---|
| Current Display Accuracy | 0.01–10.00 A ±60 mA / 10.00–35.00 A ±3% |
| Voltage Display Accuracy | 5.4–10 V <80 mV / 10–20 V <120 mV / 20–35 V <160 mV |
| Capacity Display Accuracy | ±3% |
| Weight | 879 g |
| Dimensions | 136.6 × 104.8 × 107 mm |
In the box
- 1 × BD250 Discharger
- 1 × XT60 connector cable
- 1 × 40 A spare fuse
- 1 × Manual
Documents
Safety & manufacturer
Manufacturer
SkyRC
Item number: SK600133
EAN: 6930460006141
Responsible person in the EU
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
Reviews
4.5
4 reviews- 5 stars5 stars: 2
- 4 stars4 stars: 2
- 3 stars3 stars: 0
- 2 stars2 stars: 0
- 1 star1 star: 0
Only customers who bought this product from us can review it. We check every review before it is published.
Very practical, great quality! However, the set voltage is only met reasonably well at a max 1C discharge rate. At higher currents it switches off too early.
Automatically translated · Original: German
Show original
Sehr praktisch, tolle Qualität! Die eingestellte Spannungsvorgabe wird jedoch nur bei max 1C Entladerate einigermassen getroffen. Bei höheren Strömen wird zu früh abgeschaltet.
Erich P. · 28 May 2020
Very practical, great quality! However, the set voltage is only met reasonably well at a max 1C discharge rate. At higher currents it switches off too early.
Automatically translated · Original: German
Show original
Sehr praktisch, tolle Qualität! Die eingestellte Spannungsvorgabe wird jedoch nur bei max 1C Entladerate einigermassen getroffen. Bei höheren Strömen wird zu früh abgeschaltet.
Erich P. · 26 May 2020
Perfect processing, superspeed shipping.
Automatically translated · Original: German
Show original
Perfekte Abwicklung, superschneller Versand.
Horst A. · 24 May 2020
Great discharger, I've been looking for something like this for a long time. You don't need an extra power supply or a computer, just connect the battery, set the discharge current and cutoff voltage and start. There is also the option to record and save the discharge curves on the computer via the USB port, which enables time-delayed comparisons of the discharge.
Automatically translated · Original: German
Show original
Super Entladegerät, sowas hab ich schon lange gesucht. Man benötigte keine extra Stromversorgung und keinen Computer, einfach Akku anschließen, Entladestrom und Abschaltspannung einstellen und starten. Es gibt auch noch die Möglichkeit über den USB-Anschluss die Entadekurven auf dem Computer aufzeichnen und abspeichern, damit sind dann Zeitversetzte Vergleiche der Entadung möglich.
Reinhold S. · 23 May 2020
