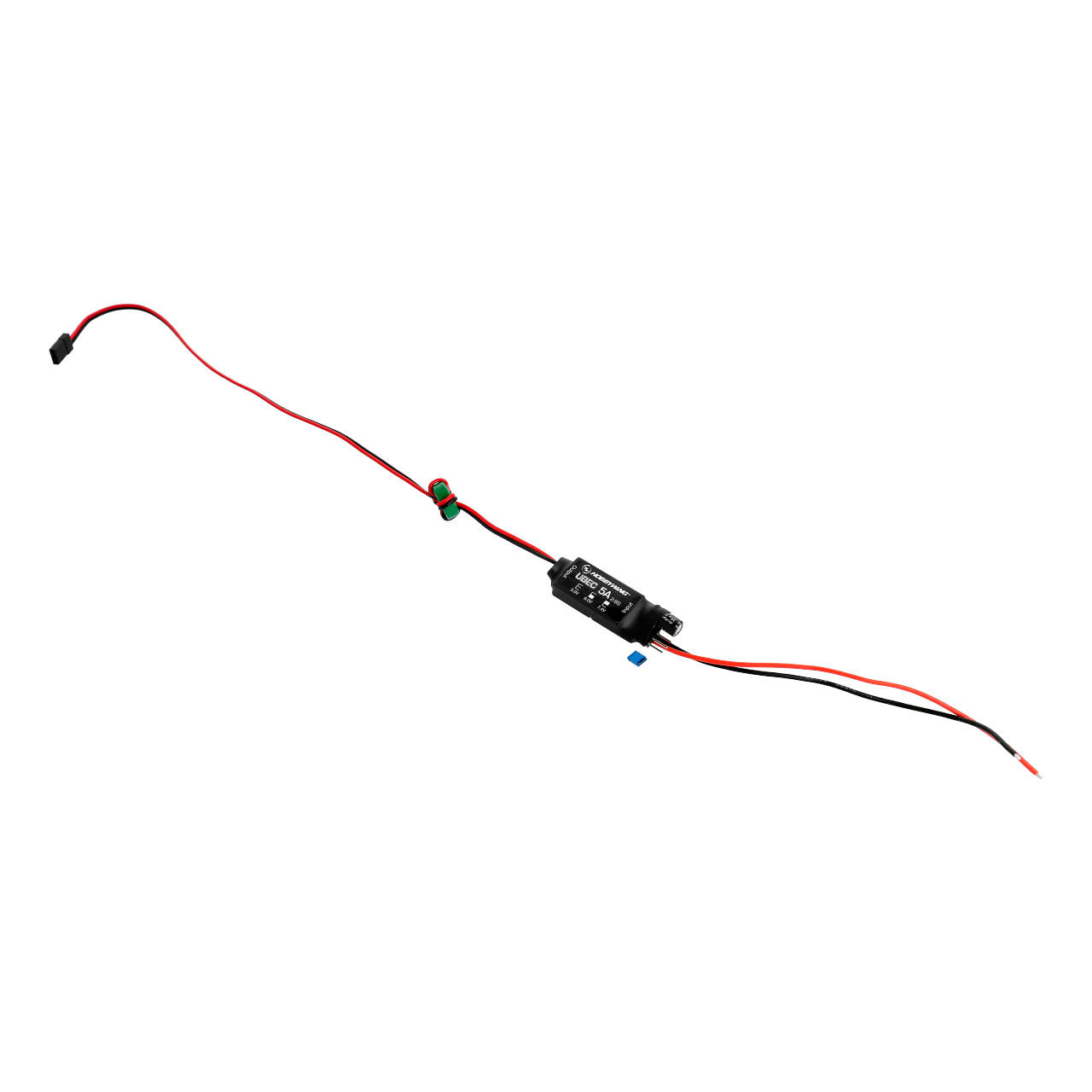

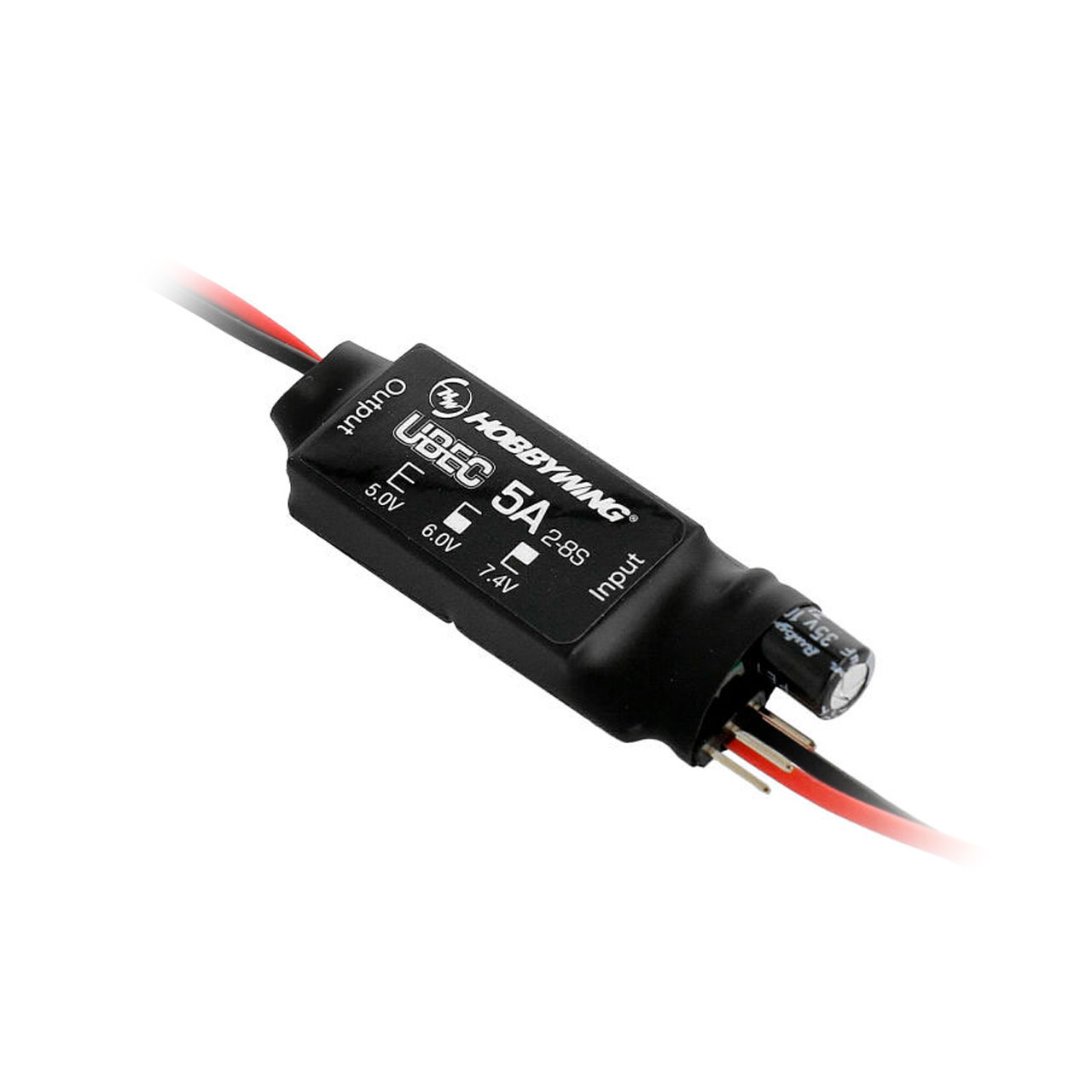

Product information "Hobbywing BEC 5A V2-Air UBEC Regler für 2-8s"
The UBEC uses a high-performance DC voltage regulator with switching module that draws its voltage from 2-8S LiPos. With it the regulator gives out 5A extremely stable or for a short amount of time 15A.Therefore this UBEC provides power for all kinds of RC modell devices. It is also suitable for fixed wing aircraft.
Features:
Highly efficient DC-DC regulator chip for a transmission efficiency of over 90%.
An all-metal housing design helps conduct heat and reduces electromagnetic interference.
Adjustable UBEC output voltage (5.0V / 6.0V / 7.4V) applicable for servos with different voltages.
Multiple protection functions: overcurrent protection, output short circuit protection, overheating protection, safe and reliable.
LED display to show the status of the UBEC.
Technical Specifications:
Input Voltage:
2-8S LiPo
Output Voltage:
5.0V / 6.0V / 7.4V (adjustable)
Current cont./peak:
5A / 15A
Dimensions:
50x17x10mm
Weight:
21g
