Hobbywing Futaba Telemetrie Adapter

€44.90 *

Ready to ship, Stock Amount: >20 pcs

Part No: HW30850500
Retail: €44.90
EAN: 6938994400435

The Hobbywing S.BUS2 telemetry adapter is suitable for the use with Platinum ESCs of the... more

Product information "Hobbywing Futaba Telemetry Adapter"

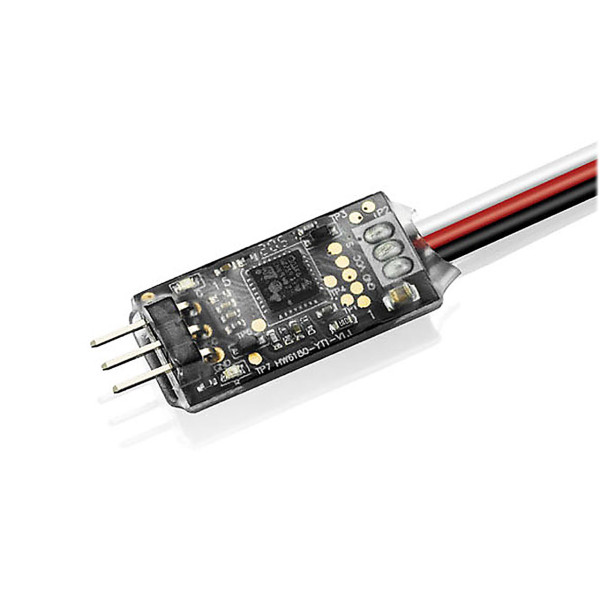

The Hobbywing S.BUS2 telemetry adapter is suitable for the use with Platinum ESCs of the respective generations V4, V4.1 and V5. Connected to a Futaba remote control, the telemetry data is sent to the radio in real time and can then be displayed accordingly.

The two LEDs on the adapter show the current operating status. In other words, a compact and, above all, light possibility to be informed about all data such as current, voltage, speeds and more.

Technical Specifications

Working Voltage:	5-9V
Size:	25x13x6mm
Weight:	3.5g
Application*:	- Supported Hobbywing Platinum ESCs (V4/V4.1/V5) - Supported Xerun ESCs

*Please refer to the instructions in the manual for further details on whether an ESC can be connected to the telemetry adapter.

Supported ESCs

Air	Platinum 25A V4 (no current) Platinum 60A V4 (no current) Platinum 80A V4 Platinum 120A V4 Platinum HV 130A V4 Platinum HV 130A V4 OPTO Platinum HV 200A V4.1 SBEC Platinum HV 200A V4.1 OPTO Platinum 150A V5 Platinum HV 260A V5
Car	XERUN XR10 PRO G2S (no current) XERUN XR8 PLUS G2S XERUN XR8 PRO G2 XERUN XR8 PRO G3 XERUN XD10 PRO (no current) EZRUN MAX10 G2 EZRUN MAX8 G2 EZRUN MAX4 HV EZRUN MAX5 HV G2

Supported Futaba Transmitters

Transmitter

T32MZ
T16IZ
T18SZ
T10PX
