Brand:

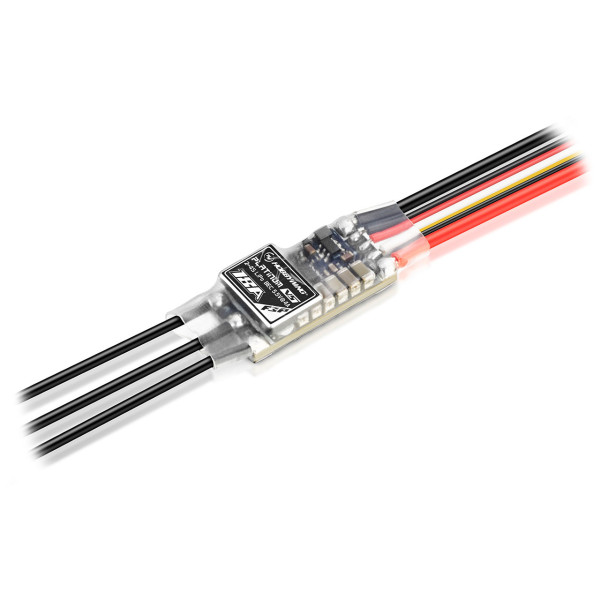

Platinum F3P ESC 2-4s 18A
F3P and 3D indoor ESC with 18 A continuous current
- Item number
- HW30202100
- EAN
- 6938994440004
€21.90incl. VAT, plus shipping
RRP €21.90
Description
The Hobbywing Platinum 18A V5 F3P is a compact ESC for F3P and 3D indoor models. It weighs less than 4 g without the specified cable-inclusive weight.
Highlights
- Weighs less than 4 g
- 32-bit MCU with proprietary algorithm; 18 A continuous and 30 A peak current
- Switching between 3D and 4D modes via transmitter stick programming
- Matched to the Platinum 2603/2604 motor
Specifications
| Type | Brushless |
|---|---|
| Current (Cont./Peak) | 18 A/30 A |
| Cells | 3–4S LiPo |
| BEC | 5.5 V @ 4 A/6 A (Switch-Mode) |
| Cables | Input: Red-18AWG-100mm*1 / Black-18AWG-100mm*1 Output: Black-20AWG-100mm*3 |
| Output Connectors | 2.0 mm gold connector (female) |
| Programming | LCD, OTA |
|---|---|
| Firmware Update | Yes |
| Dimensions | 24.6 × 12.8 × 7.5 mm |
| Weight (incl. Cables) | 11.9 g |
| Application | 120–320 g F3P fixed-wing |
Documents
Safety & manufacturer
Manufacturer
Hobbywing
Item number: HW30202100
EAN: 6938994440004
Responsible person in the EU
Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
