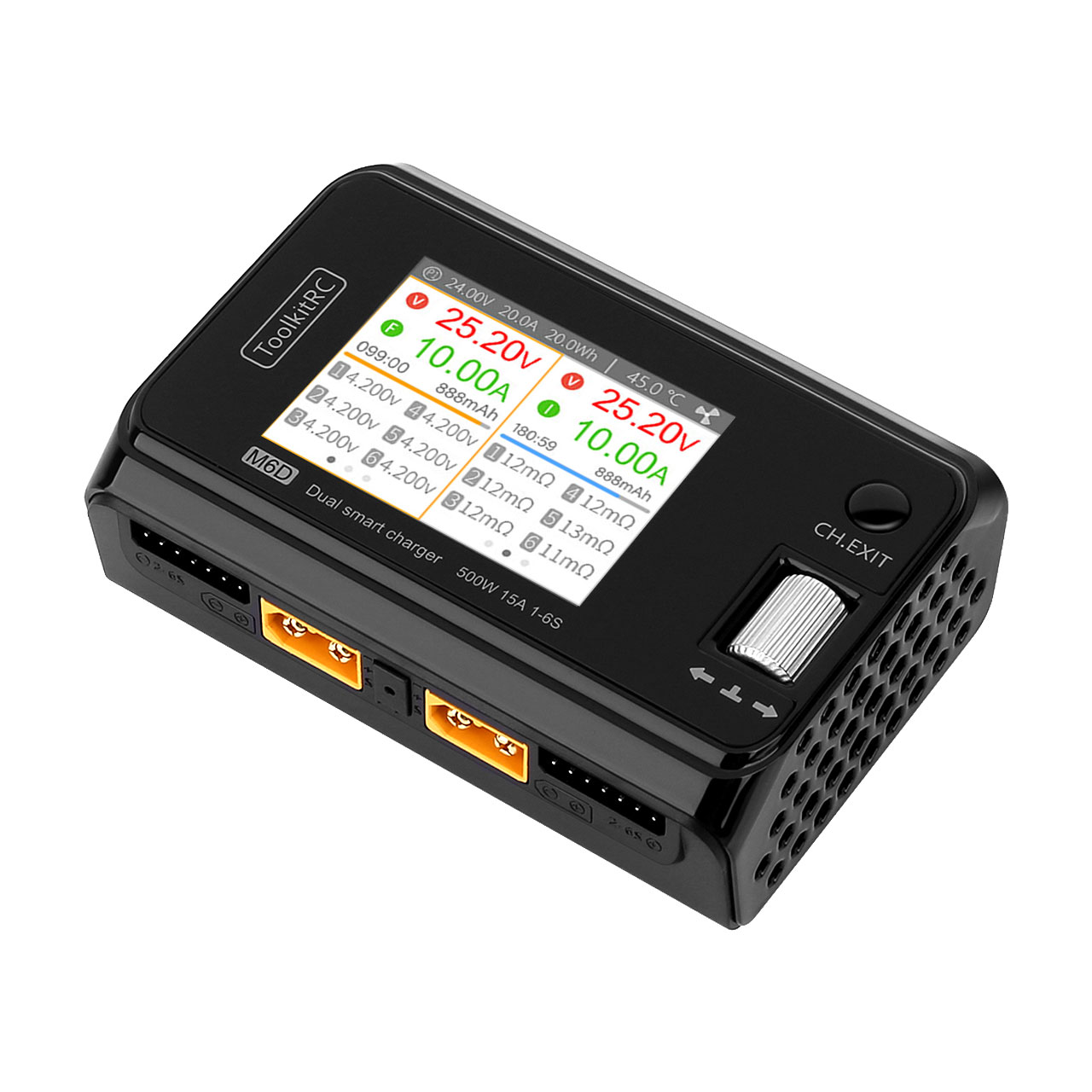

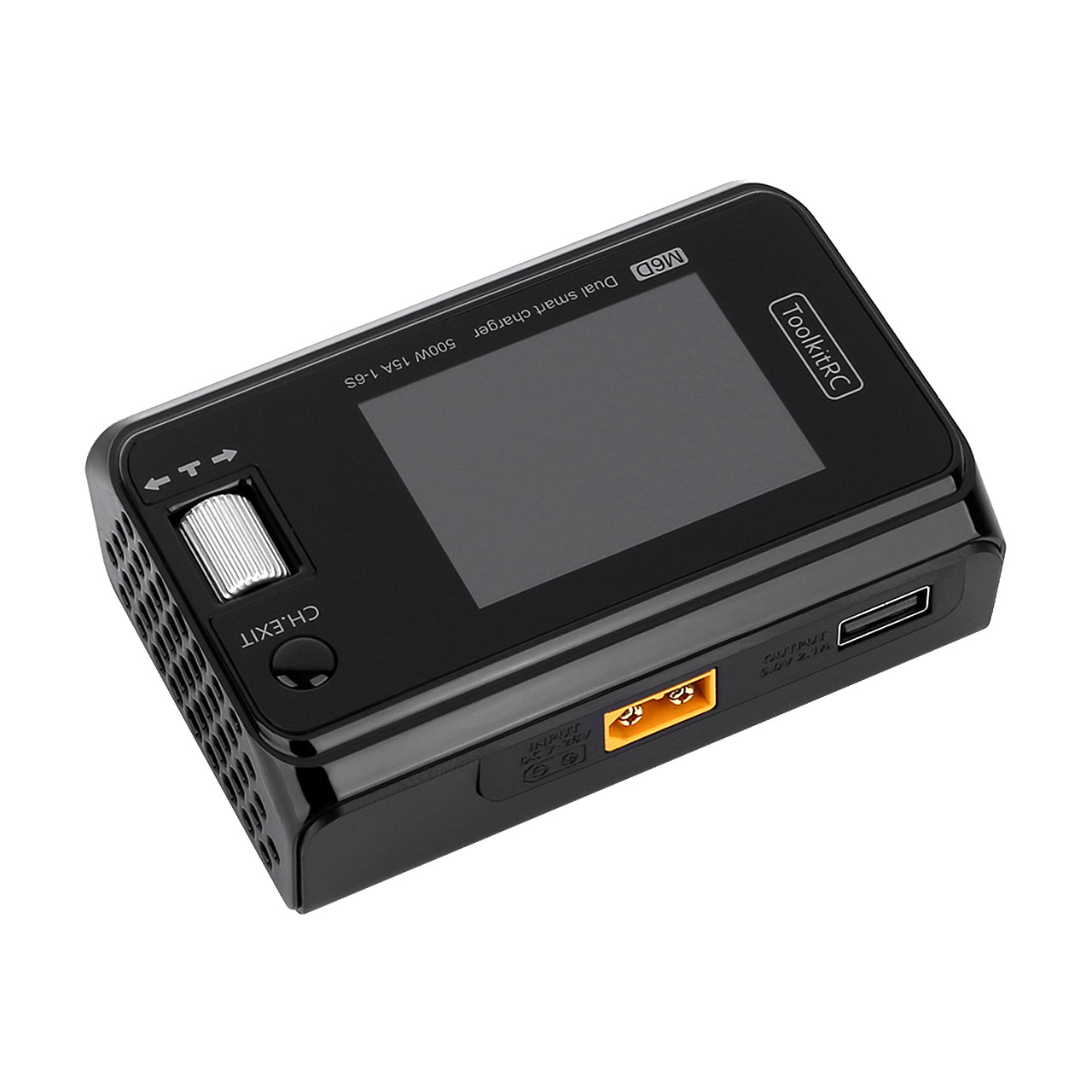

ToolkitRC M6D LiPo 1-6S 15A Duo Charger DC 7-28V
- Part No: TK10800
- Retail: €73.90
- EAN: 6972969830001
Dual-channel DC charger with up to 500 W in synchronous mode
The M6D is a dual-channel DC charger with discharging, cyclic charging and general settings. It is smaller, lighter and almost as powerful as the M6DAC charger. The two channels can operate synchronously or asynchronously.
In synchronous mode, two batteries receive the same charge, with up to 25 A charging current. In asynchronous mode, the batteries charge separately, with a maximum of 15 A per channel.
Highlights
- Up to 500 W charging power and 25 A charging current
- Up to 250 W discharge power
- DC input (7–28 V)
- Operation via scroll wheel and one button
- Multilingual user interface with voice output
- Upgradeable via USB
- Various safety controls
Specifications
| Input Voltage | DC 7–28 V, max. 30 A |
| Charge Power | 0.1–15 A, 250 W × 2 (asynchronous mode) / 0.1–25 A, 500 W (synchronous mode) |
| Discharge Power | 0.1–15 A, 250 W × 2 (recycle mode) / 0.1–3 A, 12 W × 2 (normal mode) |
| Charging Accuracy | <0.005 V |
| USB C | 2.1 A, 5 V (or upgrade) |
| Balancing Current | 800 mA, 2–6S |
| Cells LiPo/LiFe/LiIon/LiHV | 1–6S |
| Cells NiMH/NiCd | 1–16S |
| Pb Battery Voltage | 1–10S |
| Voltage | 1.0–5.0 V, 1–6S |
| Display | IPS 2.4'' 320 × 240 px LCD |
| Dimensions | 98 × 68 × 35 mm |
| Weight | 220 g |
In the box
- 1× M6DAC Charger
- 1× Power cable
- 1× USB to USB-C cable
- 1× Display protection
- 1× Manual
