- Part No: DR6001
- Retail: €41.90
- EAN: 4046032129490

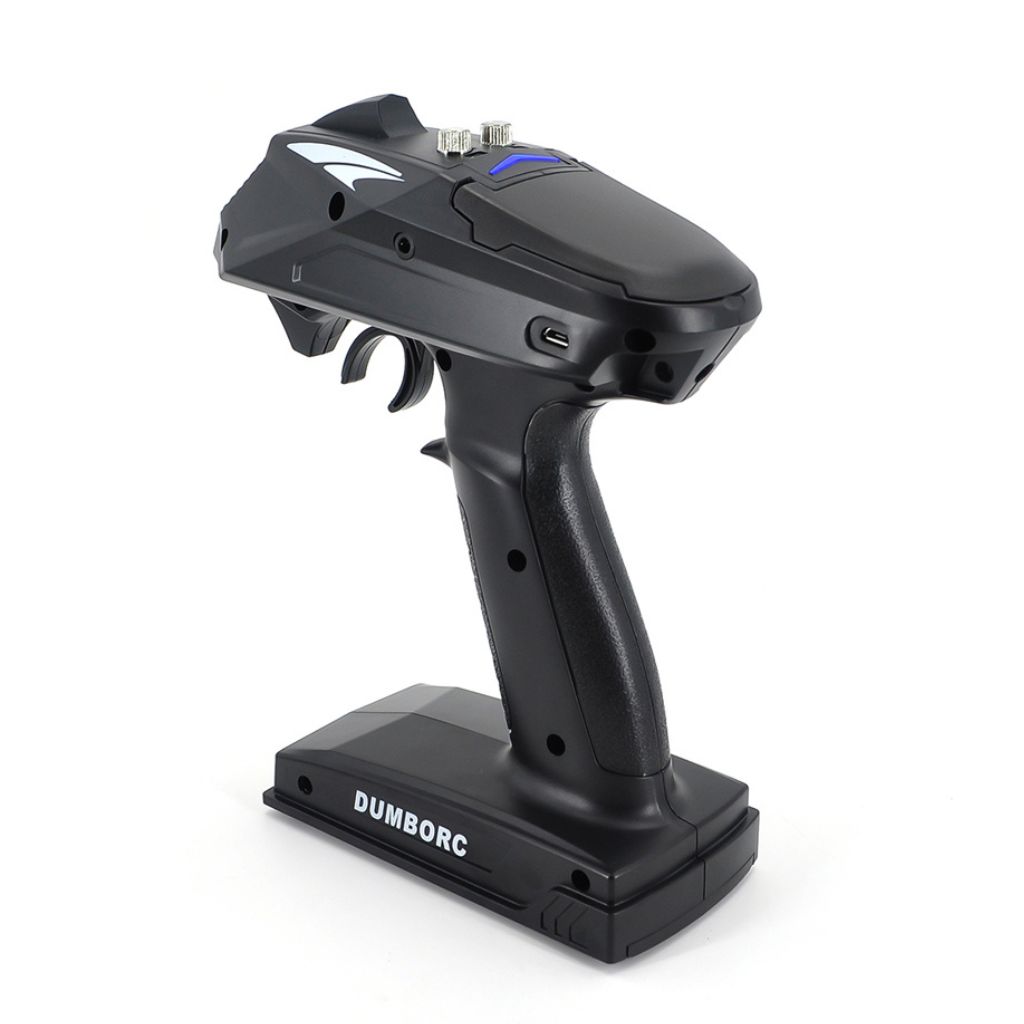

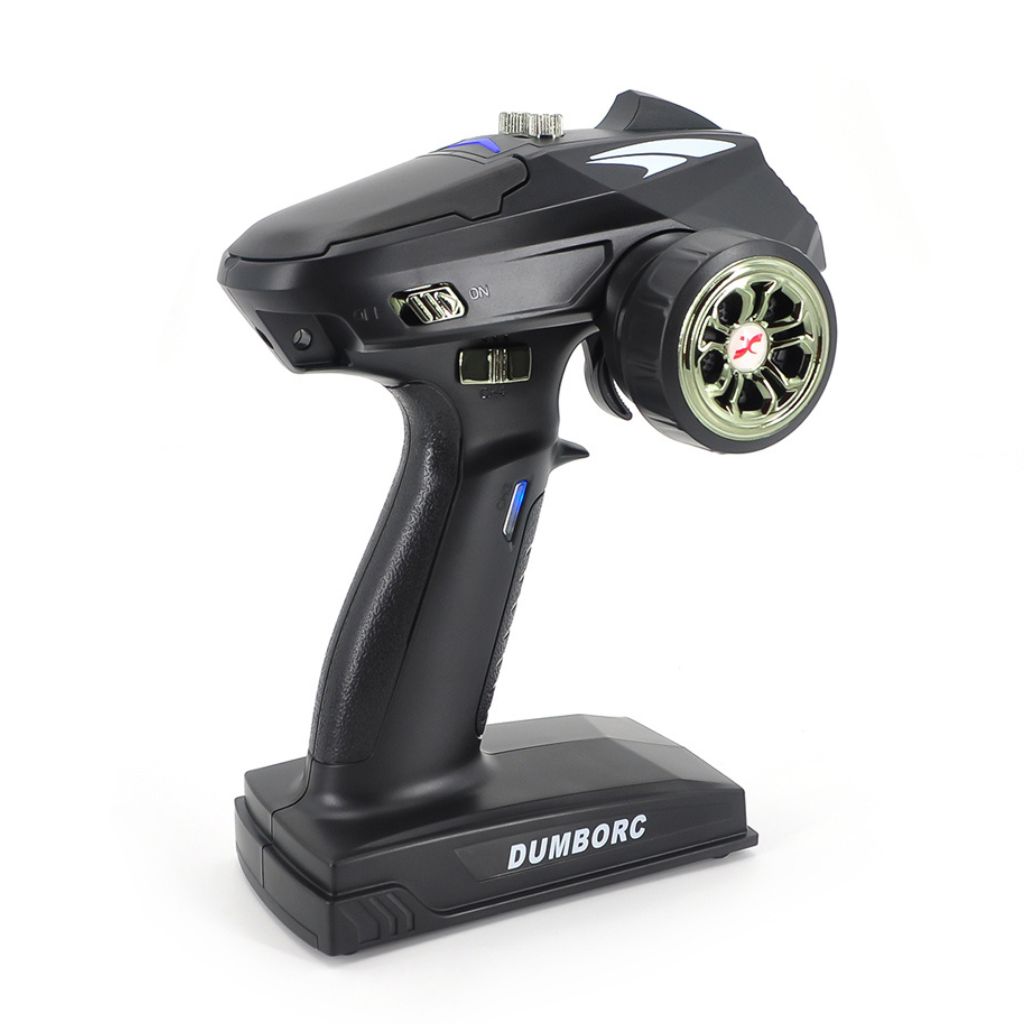

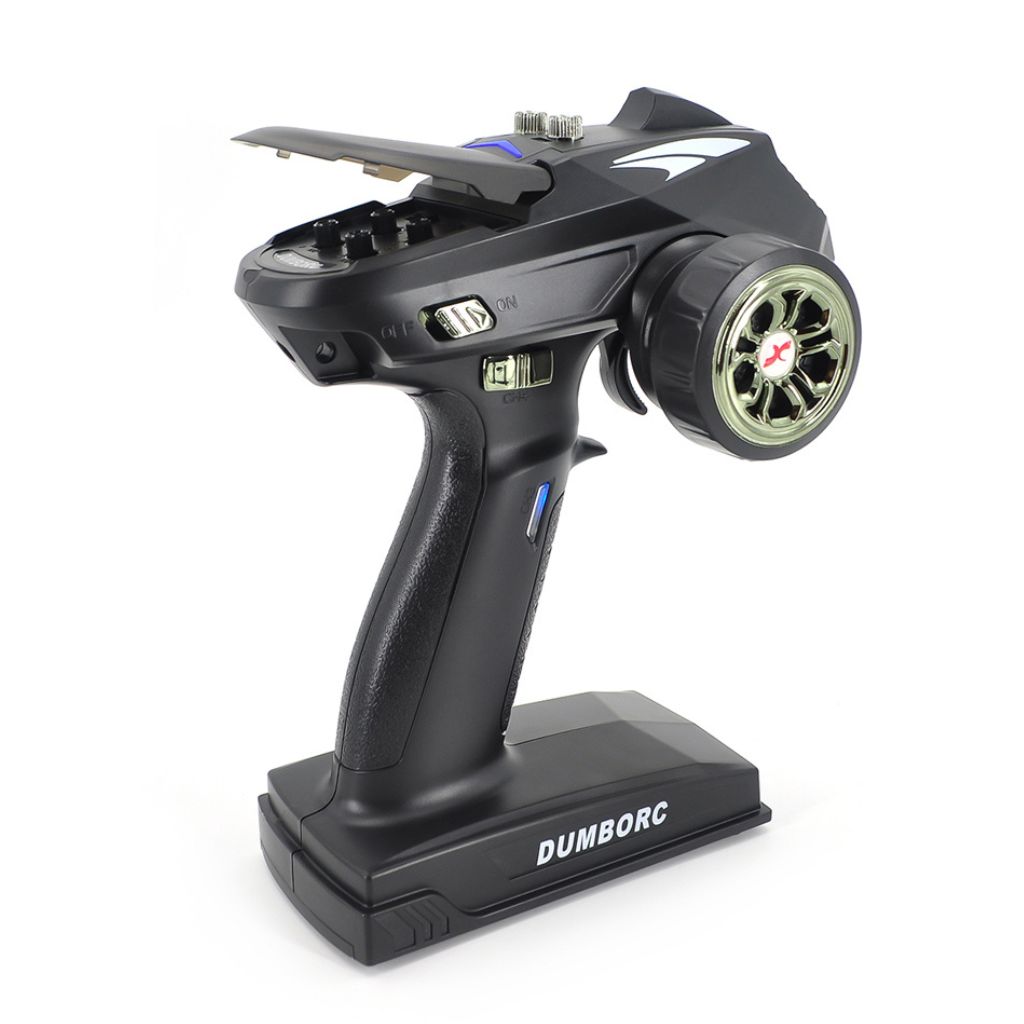

The Dumbo RC X6 is the proven entry-level 2.4GHz radio for anyone who needs more than throttle and steering. Six channels give you room for lights, a winch, a fan or a second drive unit, while the mixing function lets you combine channels 1 and 2 – ideal for tanks and other tracked vehicles with differential steering.
67-channel FHSS frequency hopping keeps the link stable even at busy tracks, and the receiver reacts in just 3ms. Fail-safe, brake and out-of-control protection are on board, as is a throttle limiter that lets beginners practise at a safe speed. The transmitter can be powered in three ways: 4x AA batteries, the USB port, or a 2-3S LiPo via the battery socket – the voltage is detected automatically and a low-voltage alarm warns you in good time. The included X6F receiver measures just 35 x 20 x 13mm and supports high-voltage servos.
Technical Specifications:
| Transmitter | |
| Type: | 2.4GHz FHSS (67 channels), GFSK |
| Channels: | 6 |
| RC Models: | Car, Boat, Tank |
| Range: | 400-500m |
| Frequency Band: | 2400 - 2483.5MHz (ISM) |
| RF Power: | <20dBm |
| Resolution: | 4096 steps (0.5µs per step) |

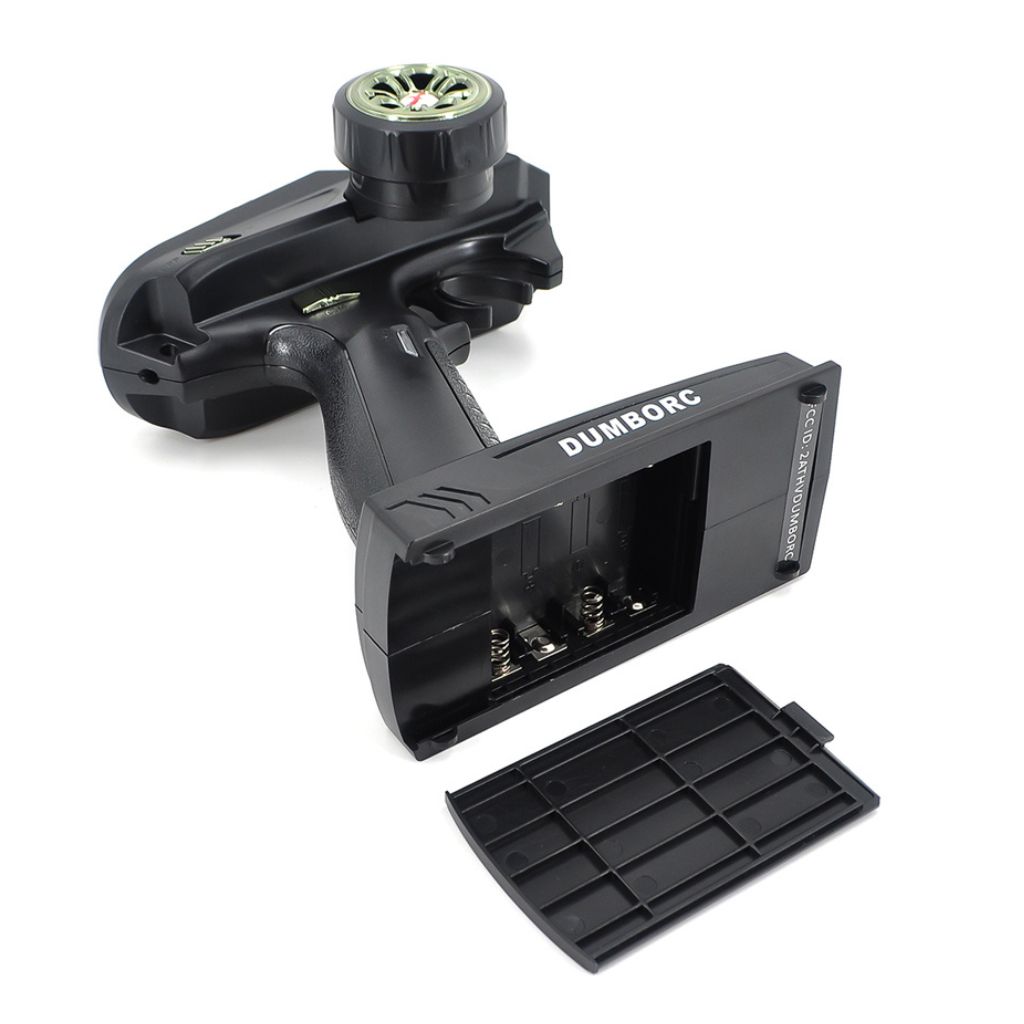

| Power Supply: | 4x AA / USB / 2-3S LiPo, 4.8 - 12V |
| Low Voltage Alarm: | 7.4V / 4.8V |
| Current Draw: | 80 - 120mA |
| Dimensions: | 205 x 160 x 100mm |
| Receiver | X6F |
| Channels: | 6 |
| Type: | 2.4GHz |
| Response Time: | 3ms |
| Operating Voltage: | 3.3 - 10V (HV servos supported) |
| Current Draw: | 30mA |
| Gyroscope: | No (X6FG version with gyro available) |
| Dimensions: | 35 x 20 x 13mm |
Features:
- 67-channel FHSS frequency hopping, highly resistant to interference
- Fail-safe, brake function and out-of-control protection
- Mixed mode for tanks: channels 1 and 2 can be set separately and mixed
- Adjustable throttle limiter for beginners
- Three power options: AA batteries, USB or 2-3S LiPo with automatic voltage detection
- Compatible with the X6F and X6FG (gyro) receivers
Scope of delivery:
- 1x X6 Transmitter
- 1x X6F Receiver
- User manual
Not included:
- 4x AA batteries
