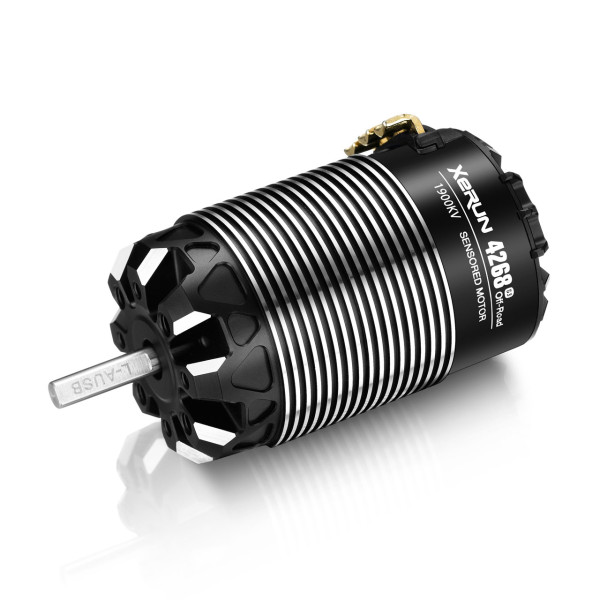

Hobbywing Xerun 4268SD Brushless Motor G3 1900kV Off-Road
- Part No: HW30401906
- Retail: €116.90
- EAN: 6938994419758
- Notice: 30401906
1/8 Brushless Sensored off-road motor, 1900kV, with IP5X dust protection The Xerun 4268SD G3... more
Product information "Hobbywing Xerun 4268SD Brushless Motor G3 1900kV Off-Road"
1/8 Brushless Sensored off-road motor, 1900kV, with IP5X dust protection
The Xerun 4268SD G3 motor is designed for 1/8 off-road models. Its improved design increases the efficiency in combating generated heat by 6% compared with G2 predecessor motors, reducing heat generation.
A built-in chip allows Hobbywing Xerun XR8 ESCs to recognise the motor and form a fully sensor-controlled driving system. The Hall sensor system provides a clean and stable run in sensor mode.
Turbo Timing can be activated when the motor is used with an ESC from the XERUN XR8 series and releases the motor's remaining power reserves. Turbo Timing is also used in 1/10 on-road models.
Highlights
- Low heat development
- Low detent torque
- Easy installation
- Dustproof to IP5X (1900kV, 2200kV and 2250kV)
Specifications
| Scale | 1/8 |
| Type | Brushless Sensored |
| kV Rating | 1900kV |
| No-Load Current | 4 A |
| LiPo Cells | 2–6S |
| Poles | 4 |
| Length | 67.8 mm |
| Diameter | 42 mm |
| Shaft Diameter | 5 mm |
| Weight | 315 g |
| Timing | 20–40 degrees (adjustable) |
| Application | 1/8 Off-Road |
In the box
- 1× Motor
- 1× Sensor cable
- 1× Manual
Notes
- Sensor mode is not guaranteed when the motor is connected to other ESCs.
