Prices incl. VAT plus shipping costs
Ready to ship, Stock Amount: >20 pcs
- Part No: HW30112402
- Retail: €127.00
- EAN: 6938994408684
- Notice: Brushless, Speedo, ESC,30112402

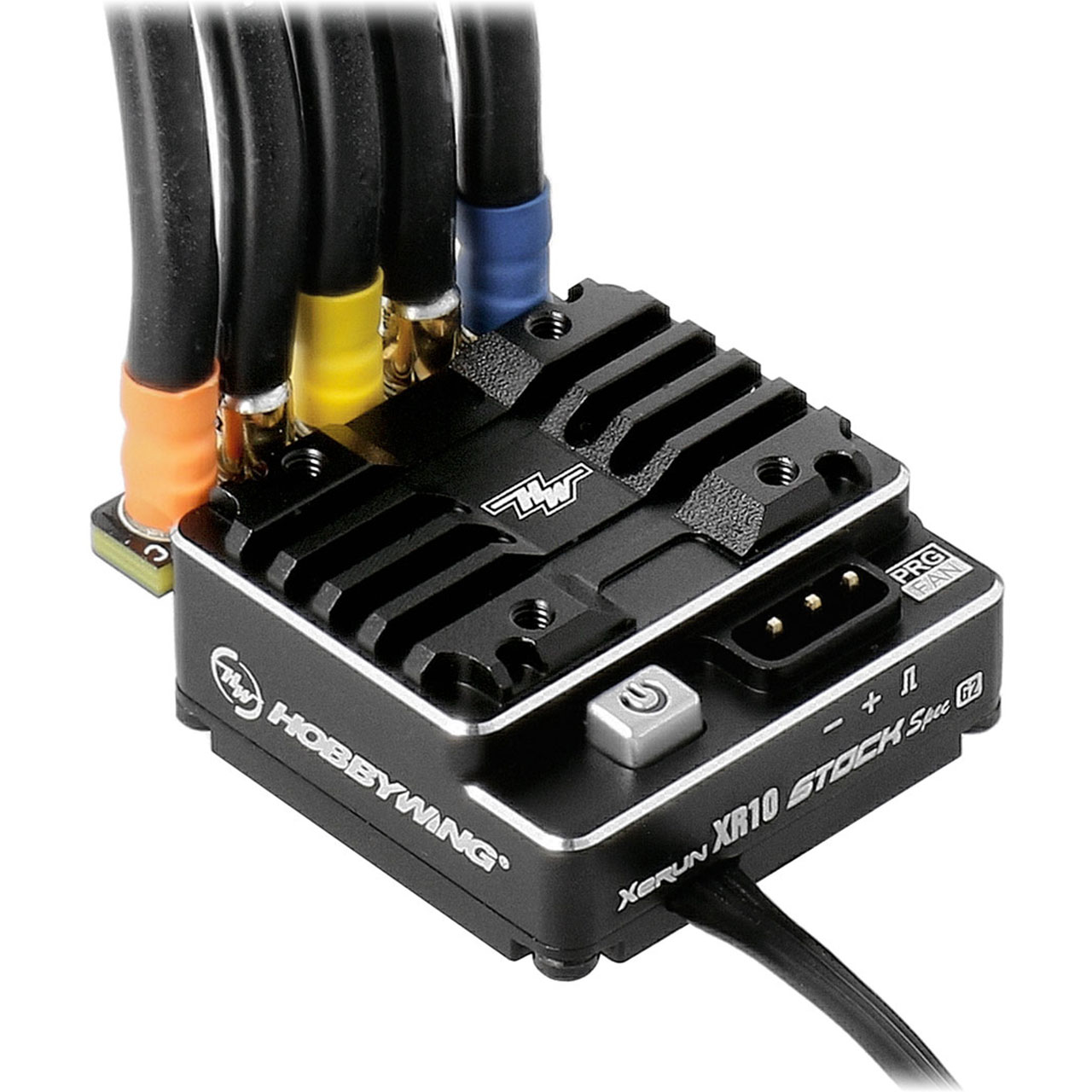

The second generation XR10 Stock Spec was developed specifically for 1/10 Touring Car and Buggy STOCK classes. Reliable hardware combined with great software are ideal conditions for tough racing uses. 32 different parameters allow You to individually adapt the controller to the current racing conditions and Your very own driving style. Anyone who loves evaluating their race records will not be disappointed by the extensive data logging function. This allows the driver to record information such as the different temperatures of the controller and motor and other values in real time while driving - simply to check on everything later. And if something should happen, the XR10 Stock Spec G2 ESC is equipped with extensive safety features to keep the driving fun for as long as possible.
Features:
- Over 30 adjustable parameters
- 3 instantly selectable profiles for 1/10 car racing
- Super BEC switchable between 6V and 7.4V at 5A
- Adjustable turbo timing and boost timing
- Separate PRG/FAN connection for connecting an external fan or a programming box/OTA programming module
- Variable frequency regulation of the PWM & braking frequencies for more precise driving and braking
- Real-time data recording to record the maximum controller and motor temperature, motor speed and other values
- Various protective functions:
- Overheating protection
- Undervoltage shutdown
- Fail safe
- Reverse polarity protection*
Technical Specifications:
Type: | Brushless, Sensored |
Current (cont./peak) | 100A / 500A |
Input Voltage: | 2S Lipo |
BEC: | 6V / 7.4V @ 5A (Switch Mode) |
Motor Types: | Brushless Motors (with/without sensor) |
Fan: | Yes (separate) |
Programming: | OTA Program Module, LCD Program Box Pro |
Dimensions: | 34.8x30x13.8mm |
Weight: | 63g |
Applications: | Stock 1/10 Touring car, Buggy, 1/10 Drift |
Optional Accessories:
- HW30502002 LCD Program Box Pro
- HW30850400 OTA Program Module
Delivery:

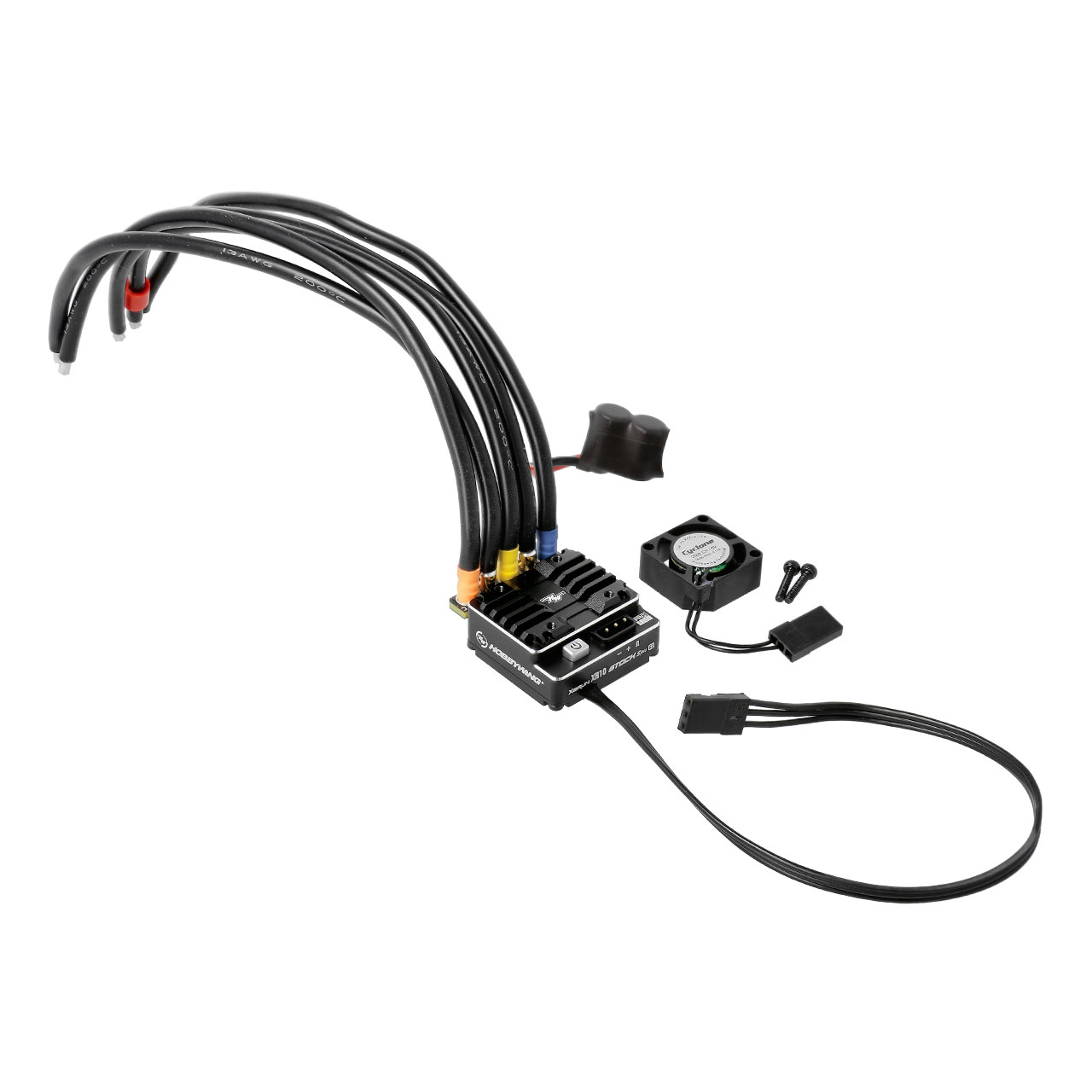

- Xerun XR10 Stock Spec G2-Regler
- Manual (English)
- Sticker & mounting set
- Fan
