Brand:

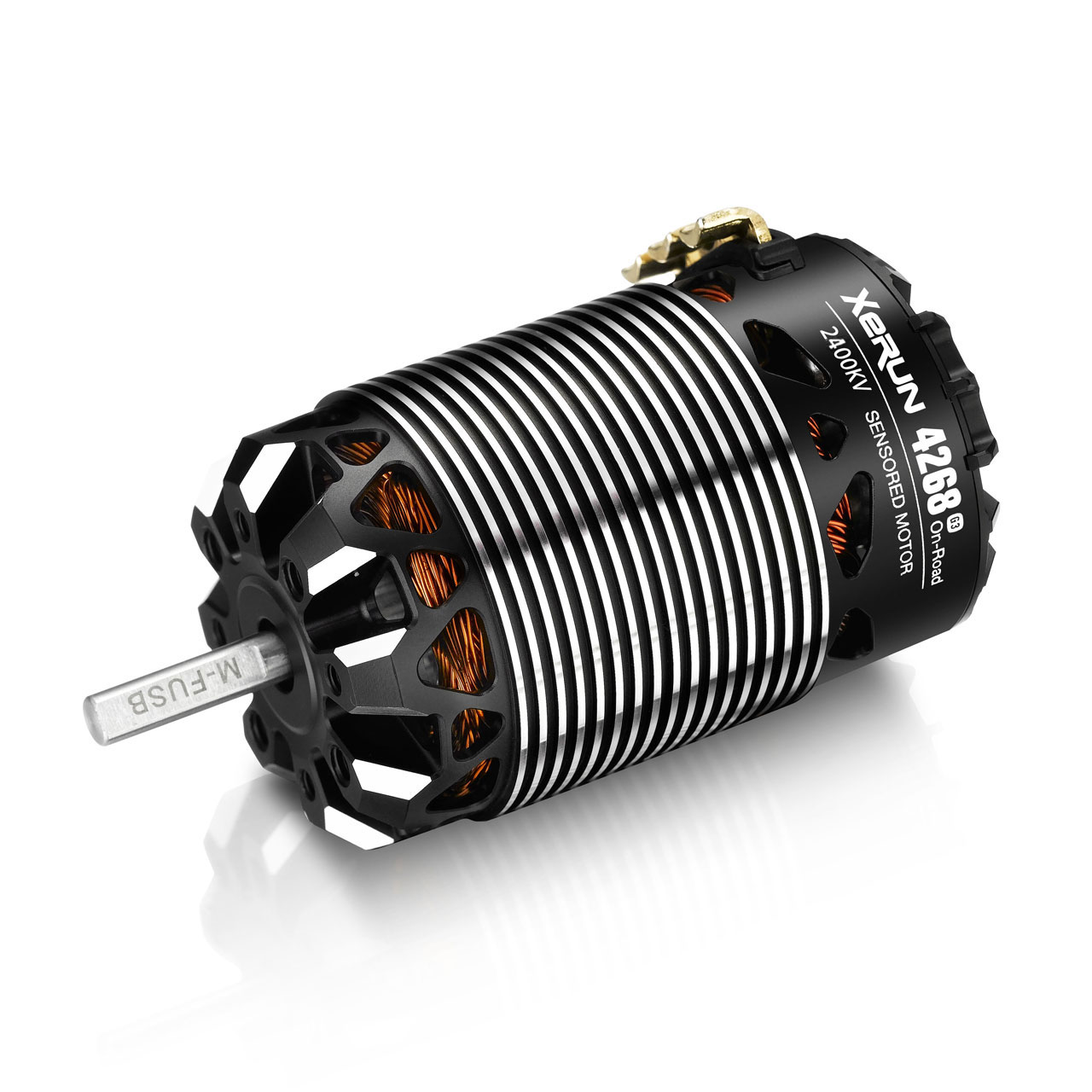

Xerun 4268SD Brushless Motor G3 2400kV On-Road
1/8 on-road Brushless Sensored motor rated 2400kV
- Item number
- HW30401910
- EAN
- 6938994419864
RRP €116.90
Description
The Xerun 4268SD G3 motor is designed for 1/8 on-road models. Its improved design increases efficiency in combating generated heat by 6% compared with G2 predecessor motors, reducing heat generation.
A built-in chip allows Hobbywing Xerun XR8 ESCs to recognise the motor and form a fully sensor-controlled driving system. The Hall sensor system provides a clean and stable run in sensor mode.
Turbo Timing can be activated when the motor is used with an ESC from the XERUN XR8 series. The function is also used in the 1/10 on-road section and releases the last power reserves of the motor.
Notes
- Sensor mode is not guaranteed when the motor is connected to other ESCs.
Highlights
- Low heat development
- Low detent torque
- Materials and workmanship
- Easy installation
Specifications
| Scale | 1/8 |
|---|---|
| Type | Brushless Sensored |
| kV Rating | 2400kV |
| No-Load Current | - |
| LiPo Cells | 2–4S |
| Poles | 4 |
| Length | 67.8 mm |
|---|---|
| Diameter | 42 mm |
| Shaft Diameter | 5 mm |
| Weight | approx. 300 g |

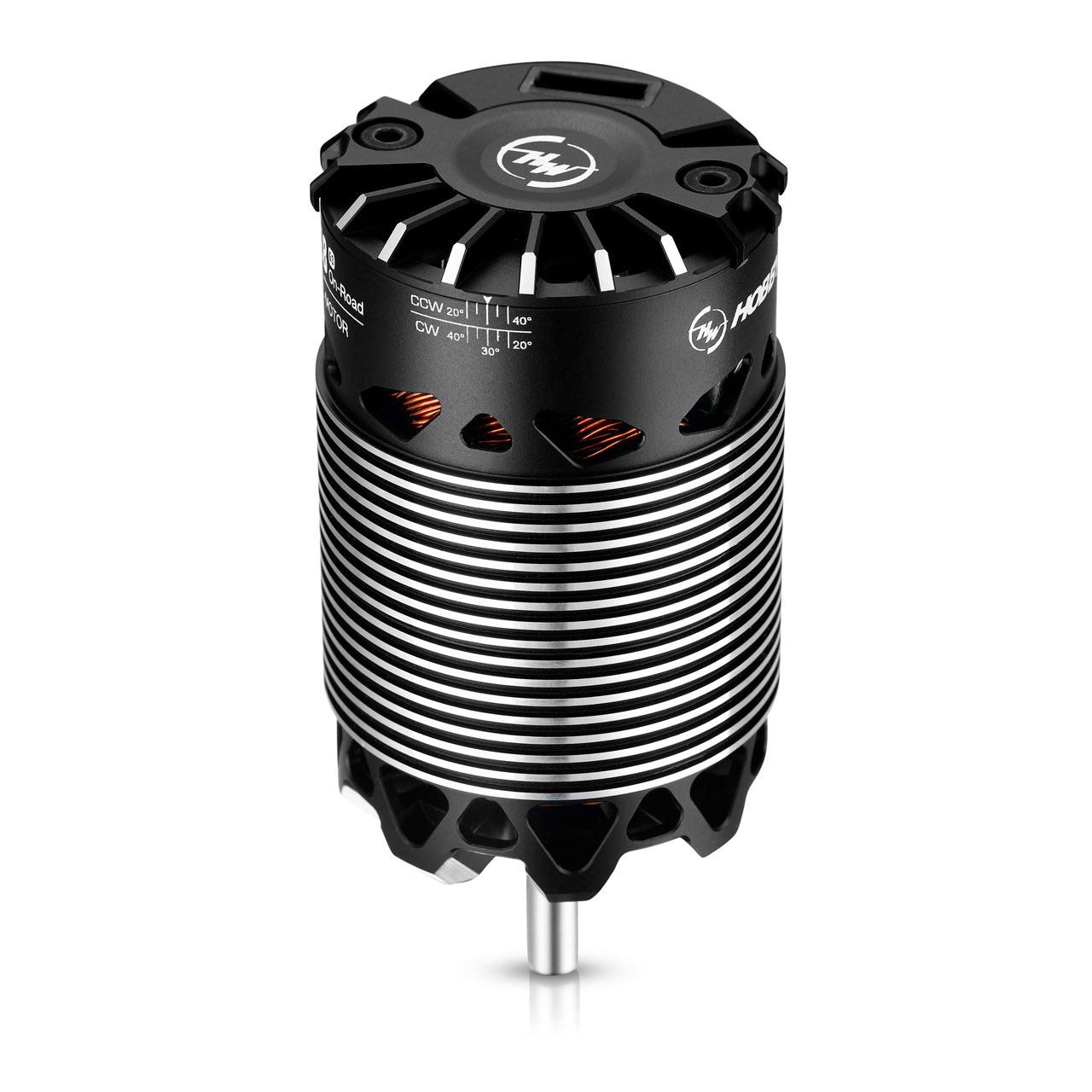

| Timing | 20–40 degrees (adjustable) |
| Application | 1/8 On-Road |
In the box
- 1 × Motor
- 1 × Sensor cable
- 1 × Manual
