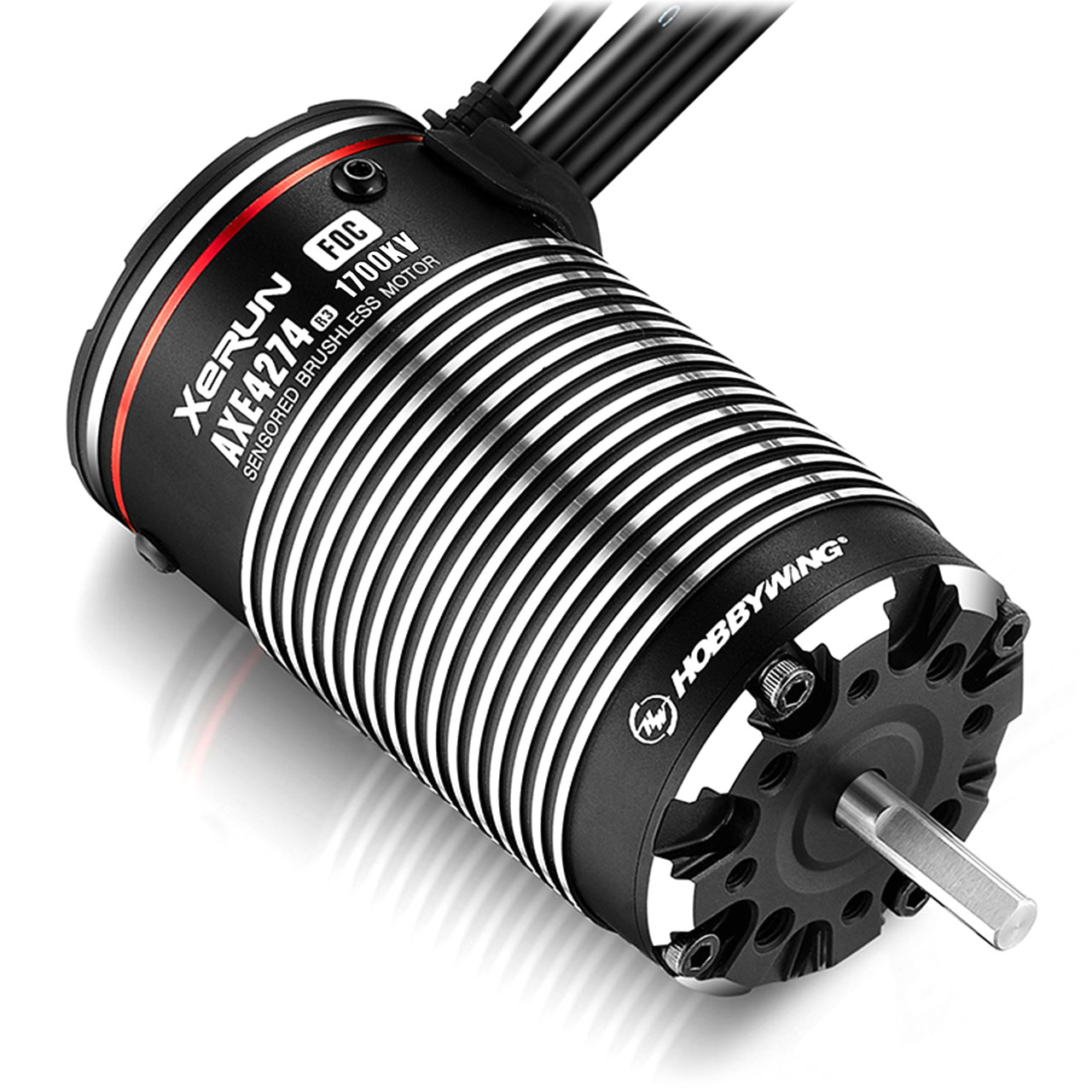

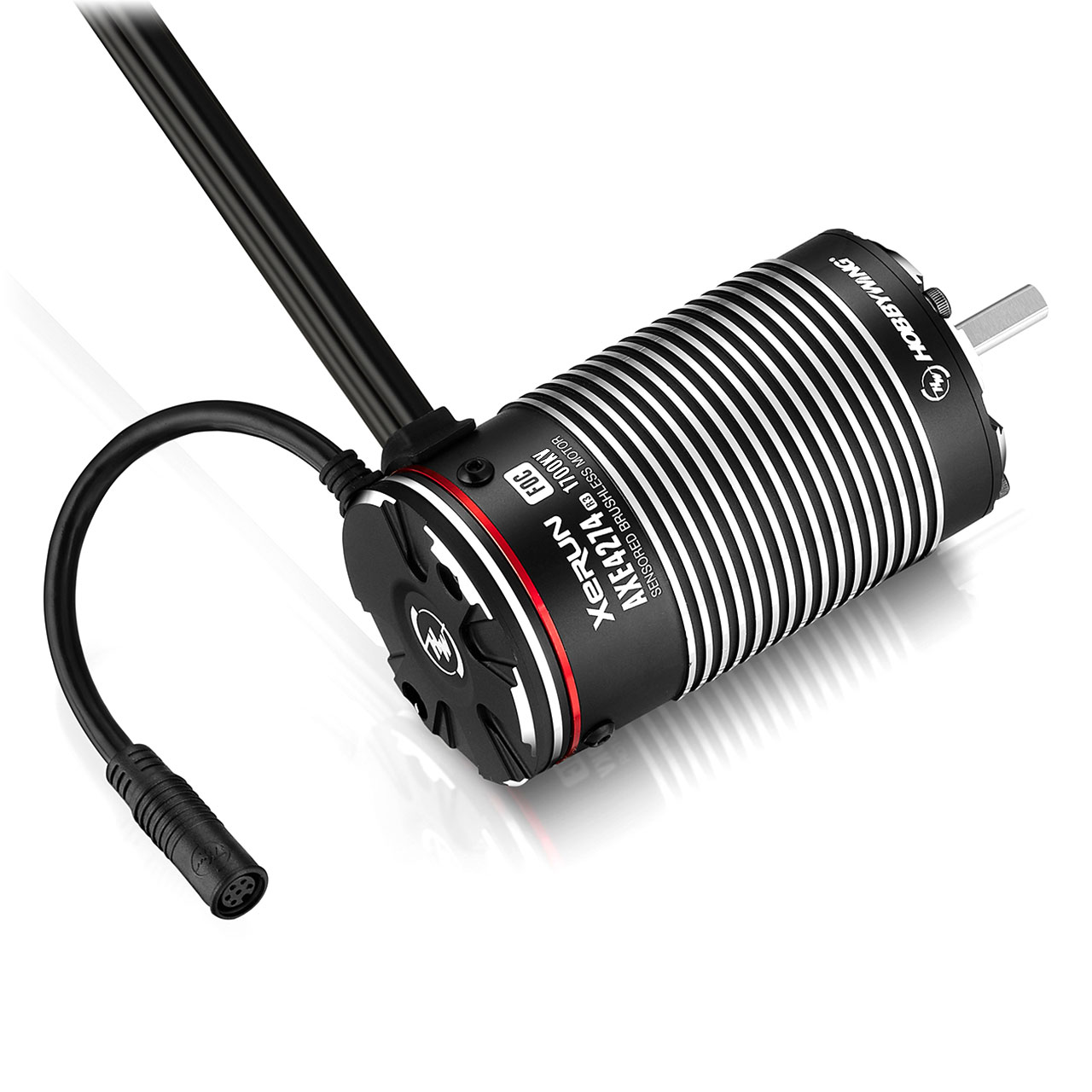

Hobbywing Xerun AXE4274SD 1700kV R3 Crawler Motor
- Part No: HW30401401
- Retail: €130.00
- EAN: 6938994429269

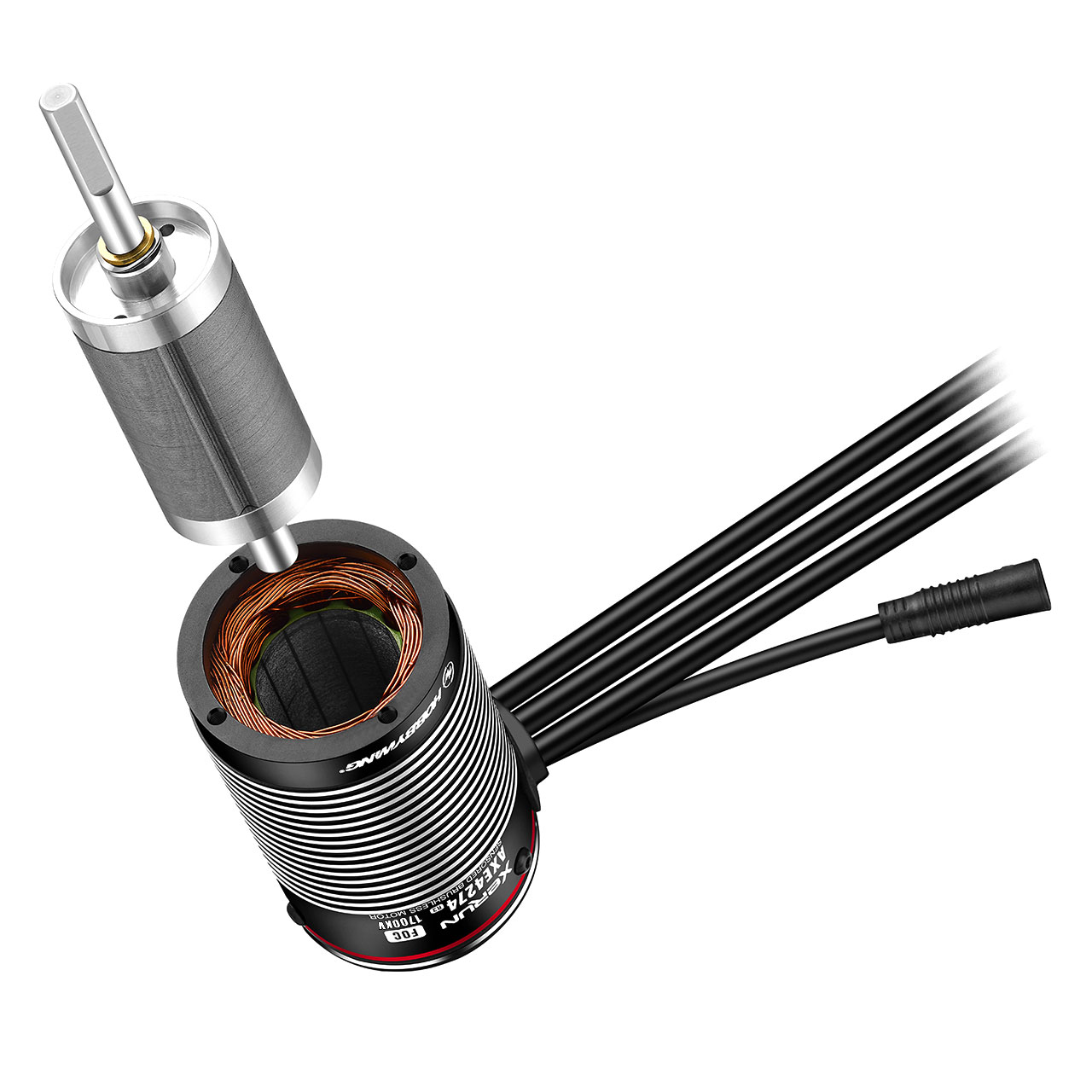

The XeRun AX R3 motor with 1700kV supports LiPo batteries up to 6S and compared to the previous R2 motor, it brings more than twice as much output power into the field while efficiency has increased by 11%. In addition to the high-quality CNC housing that protects the motor from water and dust, it is also equipped with the proven waterproof sensor connection for connecting to the controller. Furthermore there is an output shaft made of a high-strength alloy, as well as an enameled wire inside that can withstand temperatures of up to 200°C. Added to this are the premium bearings and ultra-thin silicon steel sheets.
Note: The mounting holes of the AX R3 motors have a hole spacing of 25.4mm. However, if the distance in your frame is 30mm, we recommend the optionally available conversion plate (HW30850501).
Features
- The built-in high-precision magnetic encoder sends precise rotor position signals to the ESC
- Versatile in different scale areas
- Excellent protection against water and dust according to IP67 standard
- Use of high quality building materials
- Optimized for sensitive performance development
Technical Specifications
| Type: | Sensored Brushless FOC |
| Poles: | 4 |
| kV Rating: | 1700KV |
| Cells: | 3-6S LiPo |
| No-Load Current: | 4.0A |
| Outer Diameter: | 42.0mm |
| Length: | 74.0mm |
| Shaft Diameter: | 5.0mm |
| Shaft Length: | 18.5mm |
| Waterproof: | Yes |
| Weight: | 405g |
| Application: | 1/8, 1/7, 1/6 Rock Crawler |
Delivery
1x Xerun AXE R3-Motor with 1700kV
1x Manual
