Brand:

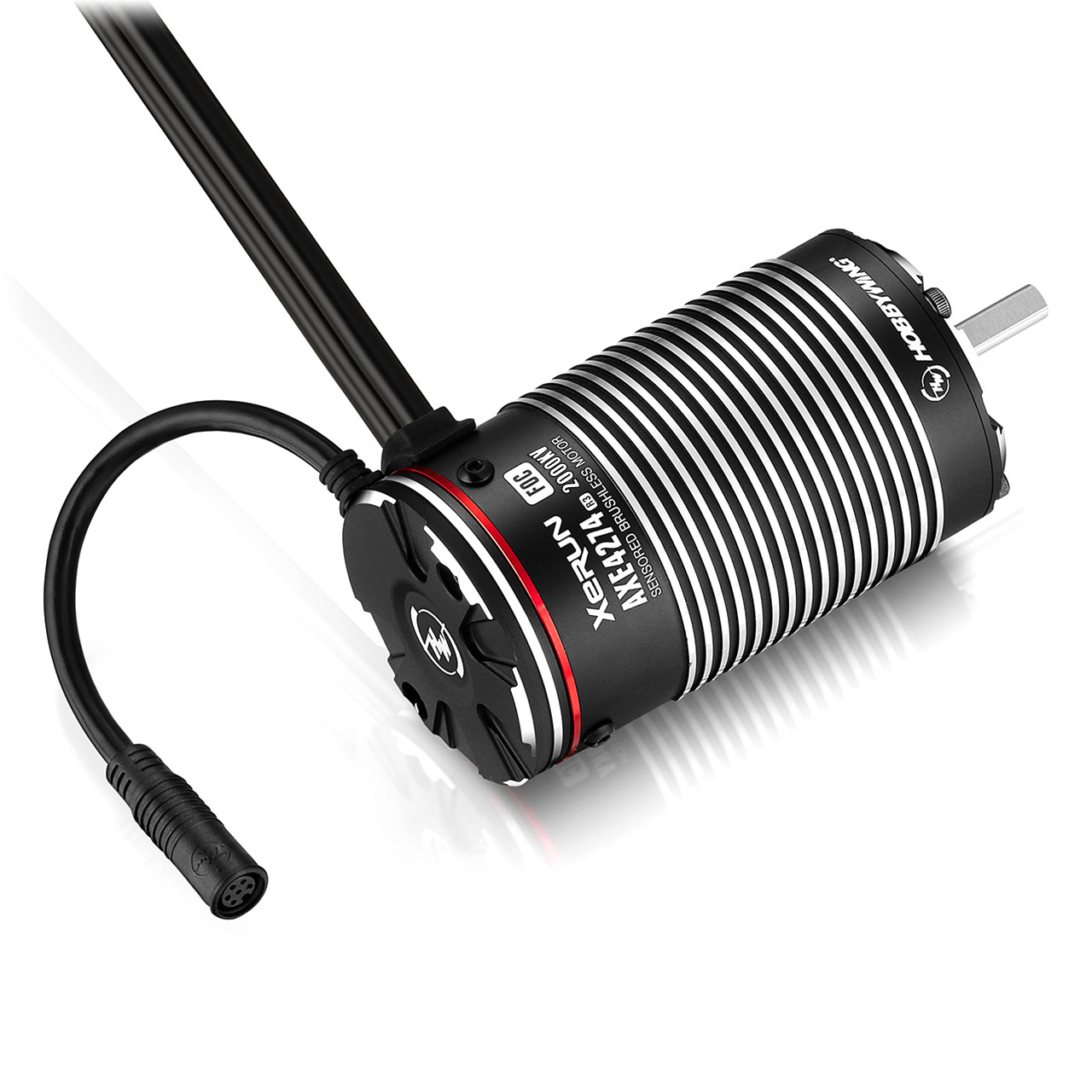

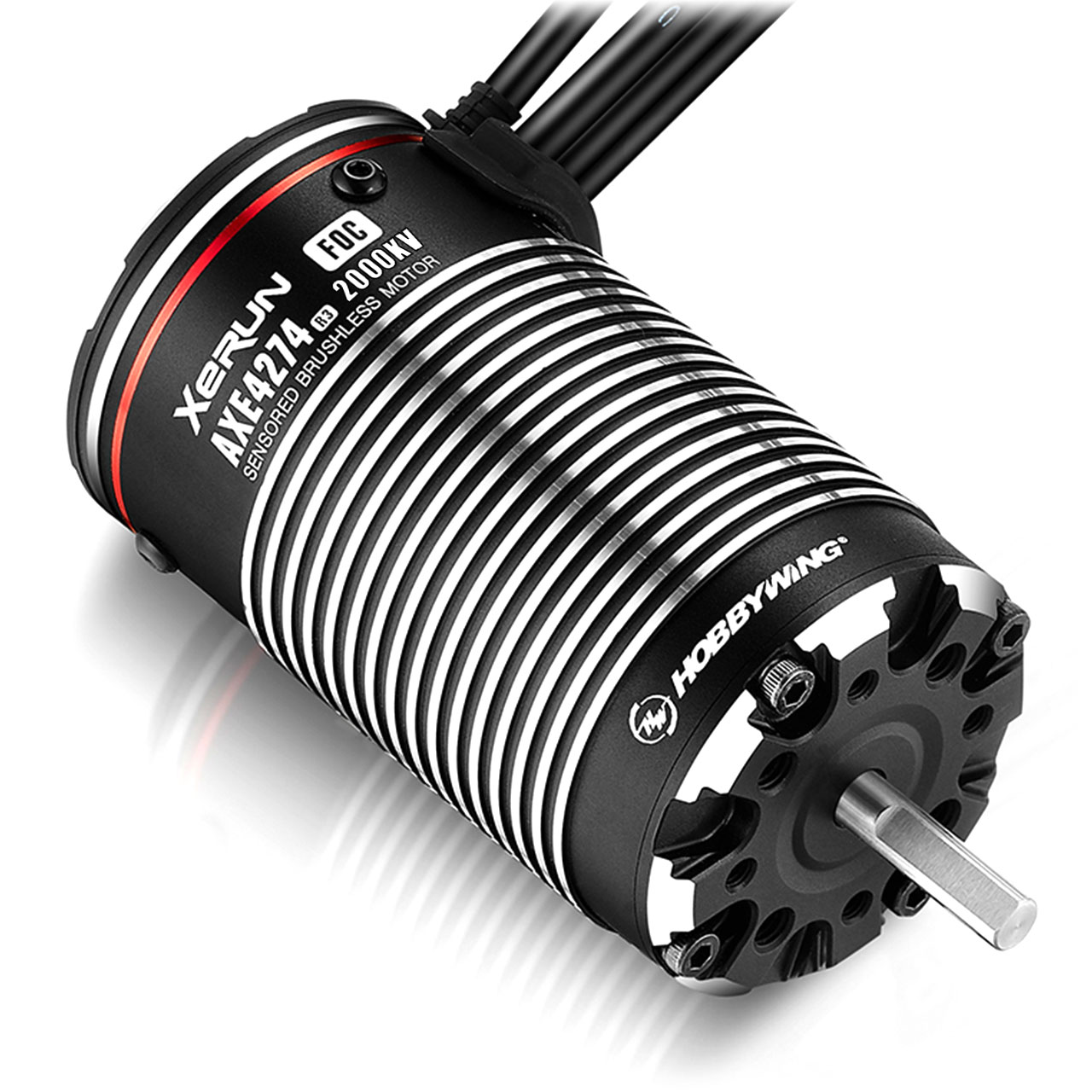

Xerun AXE4274SD 2000kV R3 Crawler Motor
Sensored Brushless FOC crawler motor with 2000kV rating and 3–6S LiPo support
- Item number
- HW30401400
- EAN
- 6938994429252
RRP €96.90
Description
The XeRun AX R3 crawler motor has a 2000kV rating and supports LiPo batteries up to 6S. Compared with the previous R2 motor, it delivers more than twice the output power with 11% higher efficiency.

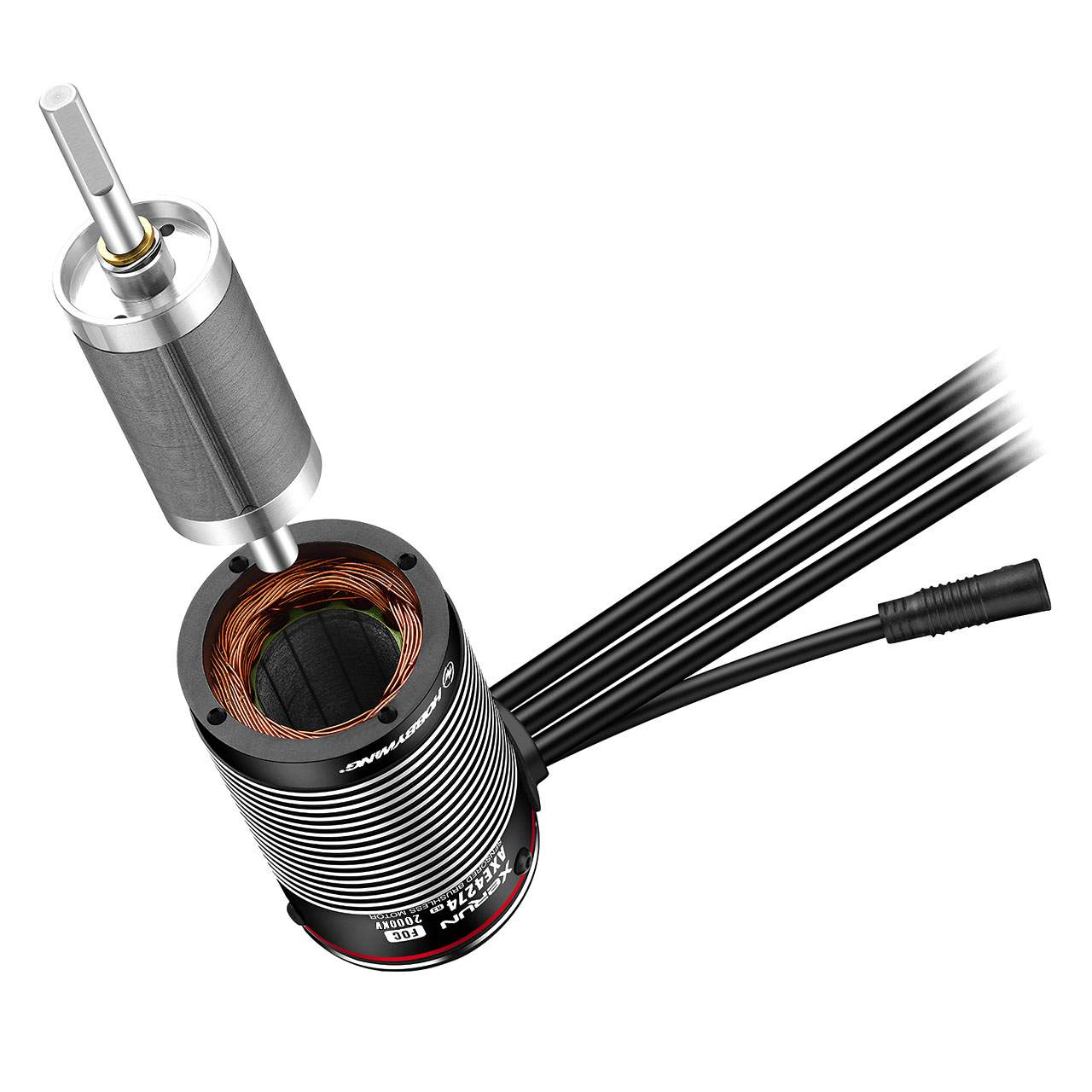

The CNC housing protects the motor from water and dust, and a waterproof sensor connection links it to the controller. The motor has a high-strength alloy output shaft, enamelled wire rated for temperatures up to 200 °C, bearings and ultra-thin silicon steel sheets.
Notes
- The AX R3 motor mounting holes have a spacing of 25.4 mm. For a frame with 30 mm hole spacing, the conversion plate (HW30850501) is optionally available.
Highlights
- Built-in magnetic encoder sends rotor-position signals to the ESC
- Suitable for different scales
- Protection against water and dust to IP67
Specifications
| Type | Sensored Brushless FOC |
|---|---|
| Poles | 4 |
| kV Rating | 2000kV |
| Cells | 3–6S LiPo |
| No-Load Current | 4.5 A |
| Outer Diameter | 42.0 mm |
| Length | 74.0 mm |
|---|---|
| Shaft Diameter | 5.0 mm |
| Shaft Length | 18.5 mm |
| Waterproof | Yes |
| Weight | 415 g |
| Application | 1/8, 1/7, 1/6 Rock Crawler |
In the box
- 1 × Xerun AXE R3-Motor with 2000kV
- 1 × Manual
Safety & manufacturer
Manufacturer
Hobbywing
Item number: HW30401400
EAN: 6938994429252
Responsible person in the EU
Safety information
- Contains small parts.
- Keep away from children.
- Not suitable for children under 14 years of age.
