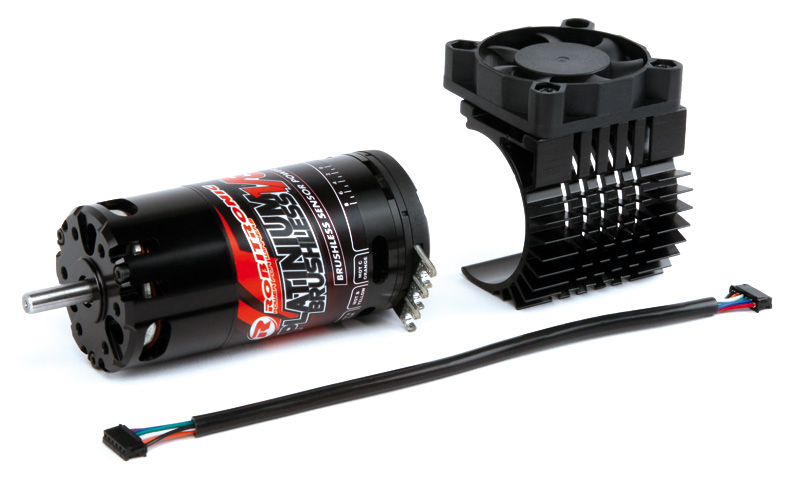

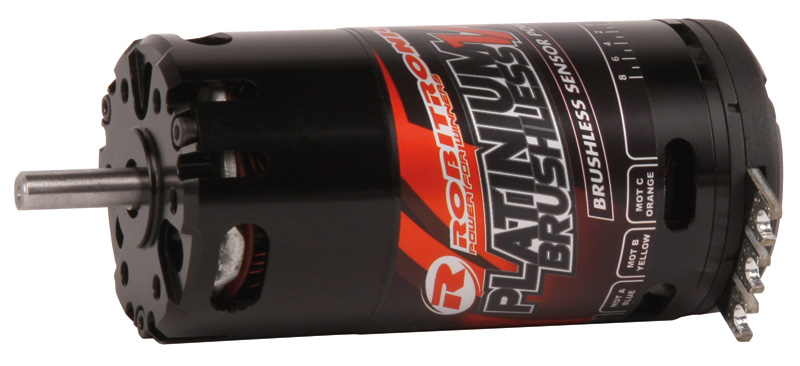

Robitronic Platinium Brushless Motor 1/8 7.5T

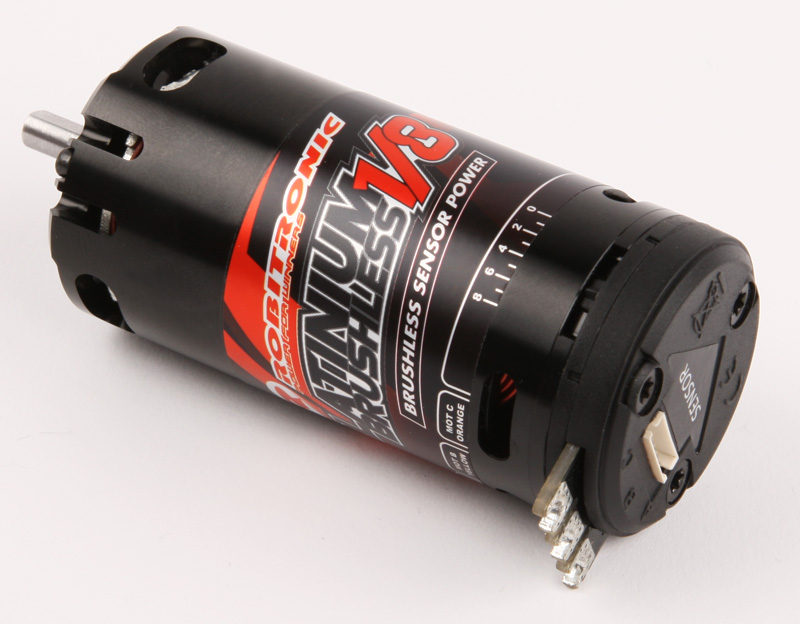

Brushless Engine for 1/8 Buggys, Truggys and Monster Trucks. Especially for Off-Road it is very important that you can drive the car very smoothly. The 1/8 Platinium is constructed with a sensor port, these gurantees a sensitive and very direct response. The timing is mechanically adjustable and a internal fan helps to cool the engine down. The engine can also be run sensorless ESC. On the 5mm motor shaft most of the available pinions are fitting. The mounting threads have a gap of 25mm.





Motor	Platinium 6,5	Platinium 7,5	Platinium 8,5	Platinium 9,5	Platinium 10,5	Motor
Ordering Number	R03200	R03201	R03202	R03203	R03204	Artikel Nr.
Turns	6,5T	7,5T	8,5T	9,5T	10,5T	Windungszahl
Cells No (NiMH)	12-14					Zellenzahl (NiMH)
Cells No (Li-Po)	4					Zellenzahl (Li-Po)
RPM/V (kv)	3380	2940	2391	1950	1750	Umdrehung/Volt
Current Rating (14,4V)	50A	43A	38A	32A	29A	Nennstrom (14,4V)
Type	Sensored					Typ
Magnet Type	12,3mm sintered neodymium					Rotor
Weight	272g					Gewicht
Diameter	36mm					Durchmesser
Length	74,50mm					Länge
Shaft Diameter	5mm					Wellenstärke
