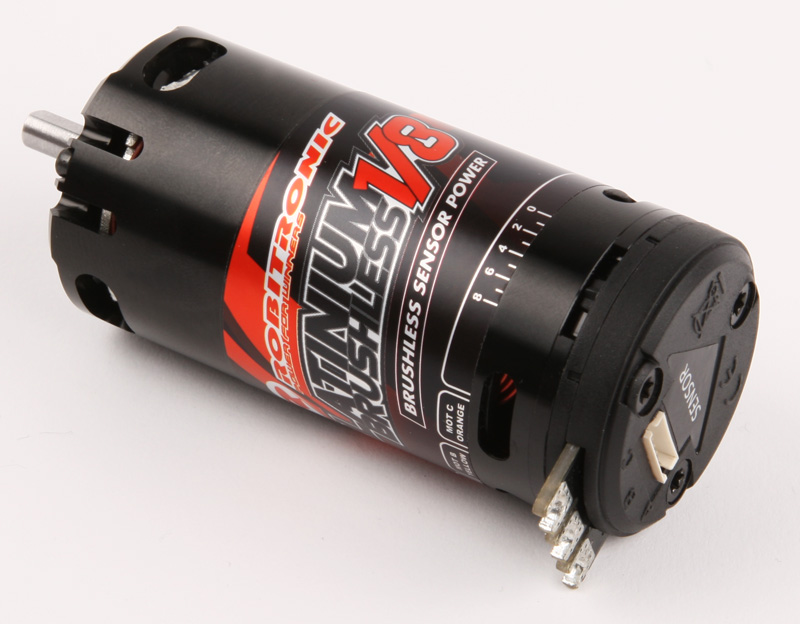

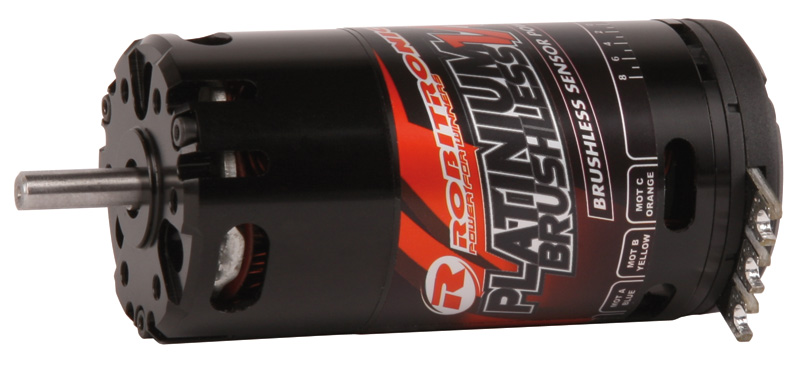

Platinium Brushless Motor 1/8 8.5T
- Part No: R03202
- Retail: €98.90
- EAN: 4046032027321
Brushless Engine for 1/8 Buggys, Truggys and Monster Trucks. Especially for Off-Road it is very... more
Product information "Platinium Brushless Motor 1/8 8.5T"
Brushless Engine for 1/8 Buggys, Truggys and Monster Trucks. Especially for Off-Road it is very important that you can drive the car very smoothly. The 1/8 Platinium is constructed with a sensor port, these gurantees a sensitive and very direct response. The timing is mechanically adjustable and a internal fan helps to cool the engine down. The engine can also be run sensorless ESC. On the 5mm motor shaft most of the available pinions are fitting. The mounting threads have a gap of 25mm.
Features:
- Brushless, sensored
- Adjustable Timing
- Integrated Fan
- Lightweight design

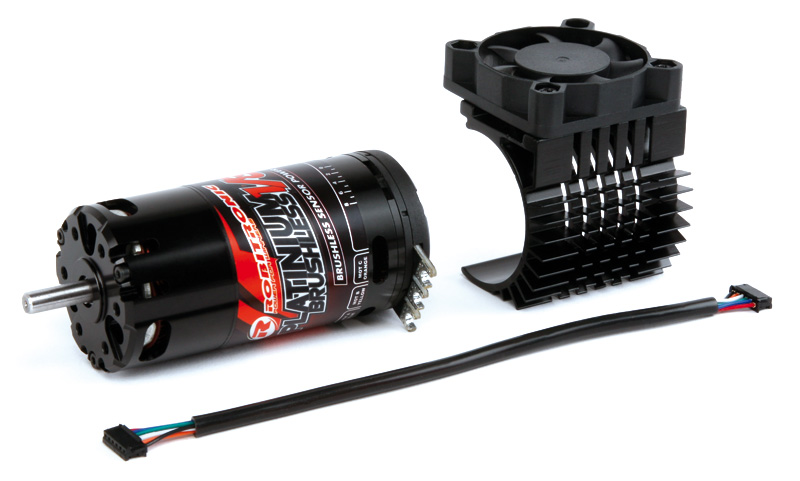

- Neodym RotorSensorcable (16cm) included
- Easy to disassemble
- Heatsink and Ventilator included
| Motor | Platinium 6,5 | Platinium 7,5 | Platinium 8,5 | Platinium 9,5 | Platinium 10,5 | Motor |
| Ordering Number | R03200 | R03201 | R03202 | R03203 | R03204 | Artikel Nr. |
| Turns | 6,5T | 7,5T | 8,5T | 9,5T | 10,5T | Windungszahl |
| Cells No (NiMH) | 12-14 | Zellenzahl (NiMH) | ||||
| Cells No (Li-Po) | 4 | Zellenzahl (Li-Po) | ||||
| RPM/V (kv) | 3380 | 2940 | 2391 | 1950 | 1750 | Umdrehung/Volt |
| Current Rating (14,4V) | 50A | 43A | 38A | 32A | 29A | Nennstrom (14,4V) |
| Type | Sensored | Typ | ||||
| Magnet Type | 12,3mm sintered neodymium | Rotor | ||||
| Weight | 272g | Gewicht | ||||
| Diameter | 36mm | Durchmesser | ||||
| Length | 74,50mm | Länge | ||||
| Shaft Diameter | 5mm | Wellenstärke | ||||
