ToolkitRC M8D LiPo 1-8S 30A Duo Charger DC 10-49V
- Part No: TK13000
- Retail: €145.90
- EAN: 6972969830339

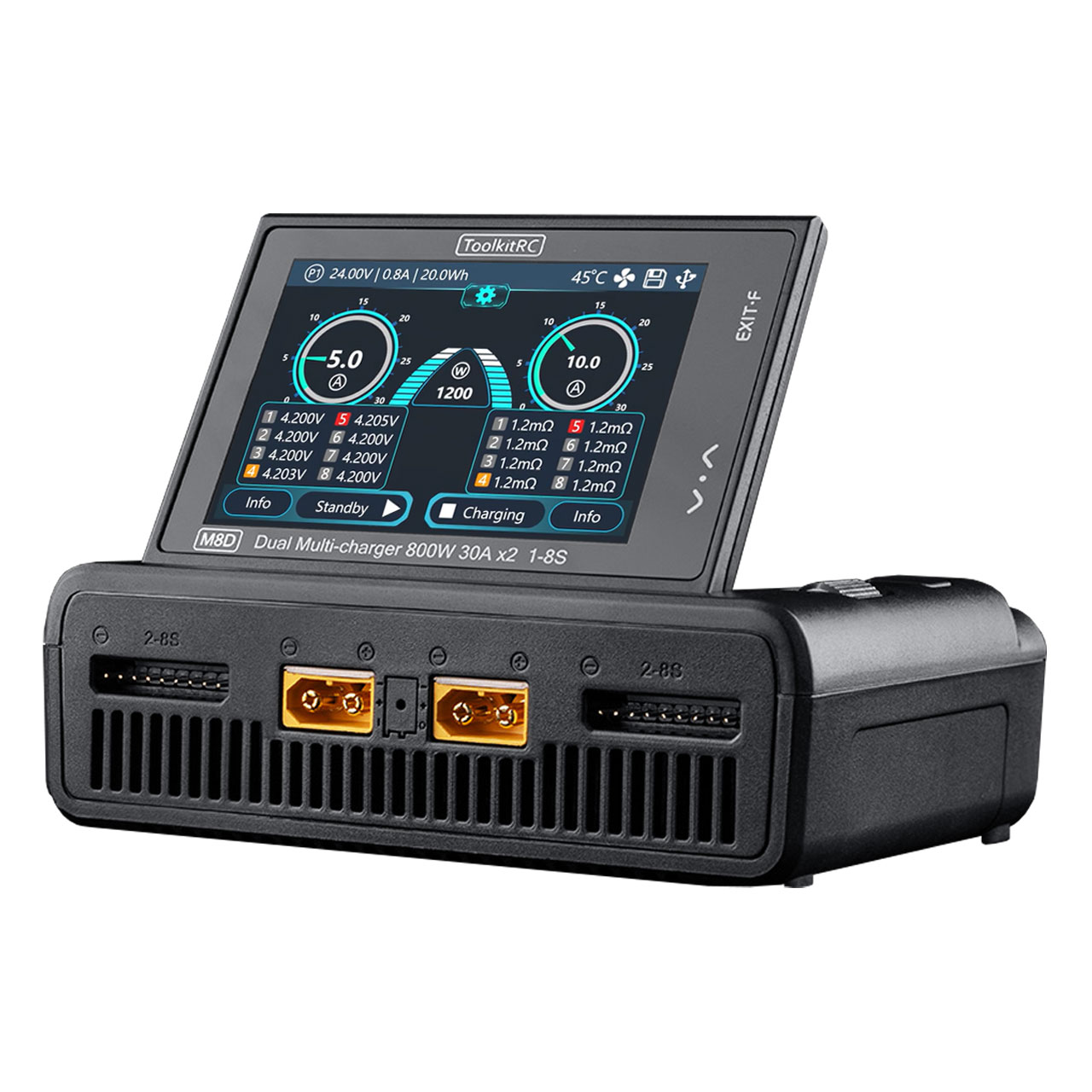

2-channel charger with flip-up touchscreen and up to 1600 W in synchronous mode
The ToolkitRC M8D is a compact 2-channel charger with a flip-up touchscreen for batteries including lithium packs up to 8S. In synchronised mode, it provides up to 1600 W and 50 A charging current. It also has a 65 W fast-charging function.
The M8D's interface is based on that of real cars. Settings use sliders and on/off switches, while charging is controlled using buttons on the main screen. The display shows information for both channels. A battery-destruction function is provided for the disposal of used batteries.
Highlights
- Up to 1600 W charging power and max. 50 A charging current
- Max. 800 W discharge power
- Two channels and quick-charge function

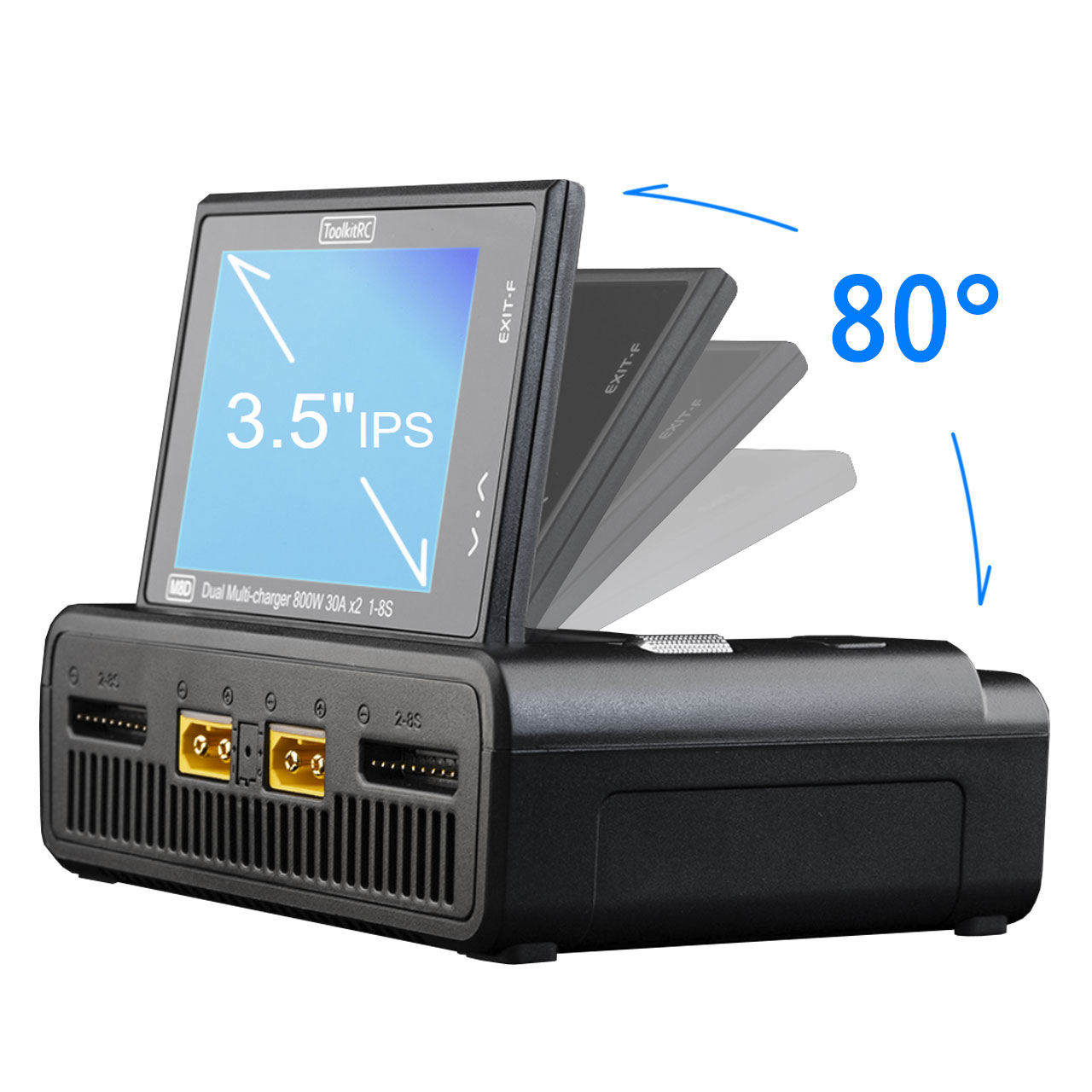

- Flip-up 3.5-inch touchscreen with 480 × 320 px resolution
- User interface with sliders and on/off switches
- USB-C port
- Security features
Specifications
| Input Voltage | DC 10–49 V, max. 60 A |
| Charge Power | max. 30 A, 800 W × 2 (Asynch. Mode) / max. 50 A, 1600 W × 2 (Synch. Mode) |
| Discharge Power | max. 30 A, 800 W (Recycle Mode) / max. 10 A, 40 W (Normal Mode) |
| Charging Accuracy | - |
| USB C | 5–20 V @ 65 W or Upgrade / PD QC PPS AFC FCP SCP PE SFCP |
| Balancing Current | 2000 mA, 4.2 V |
| Cells: LiPo/LiFe/LiIon/LiHV/LTO | 1–8S |
| Cells: NiMH | 1–20S |
| Pb Battery Voltage | 1–15S |
| Voltage | - |
| Display | IPS 3.5'', 480 × 320 px Touch LCD |
| Dimensions | 140 × 110 × 50 mm |
| Weight | 450 g |

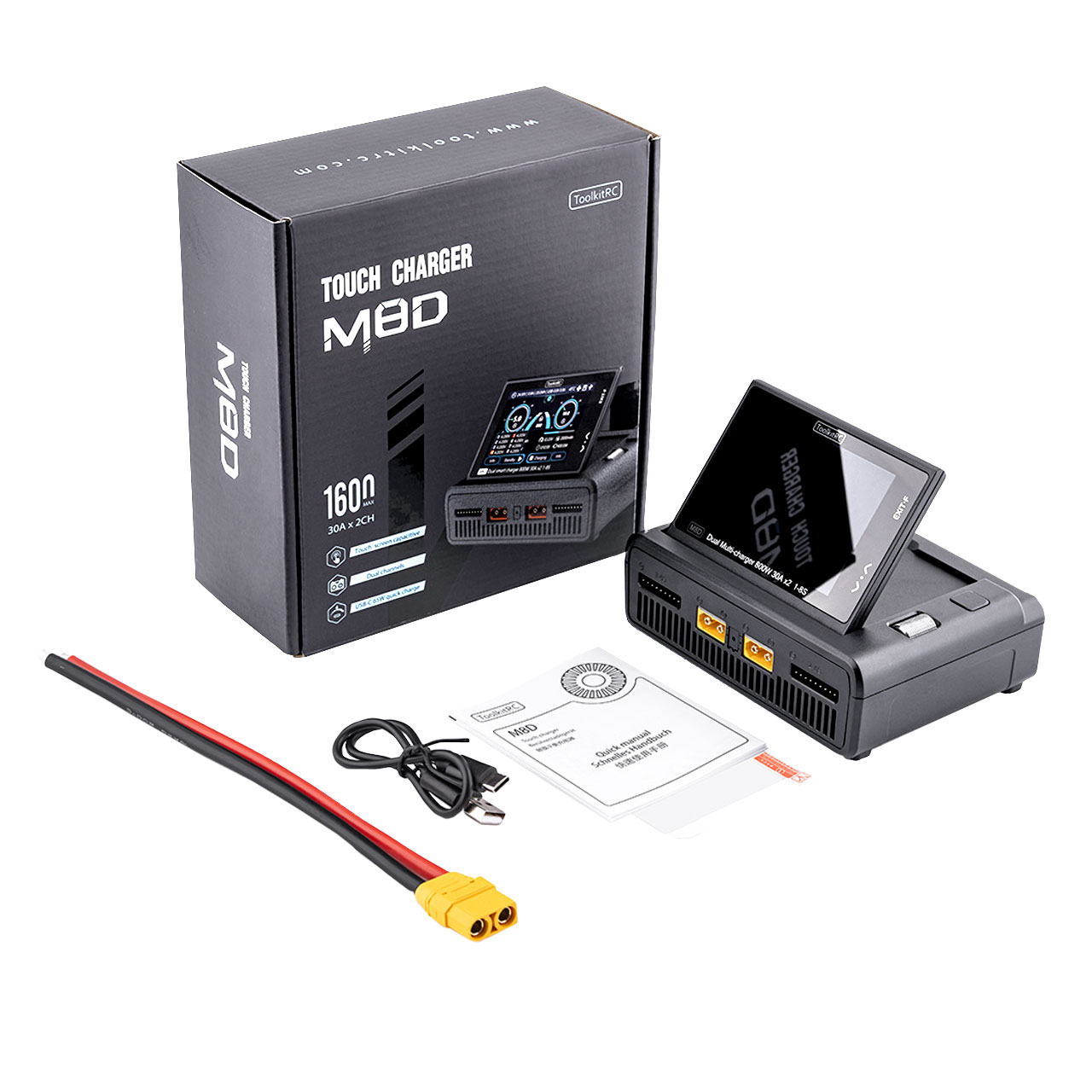

In the box
- 1× M8D charger
- 1× USB-C cable
- 1× XT90 input cable
- 1× Screen protector
- 1× Manual
