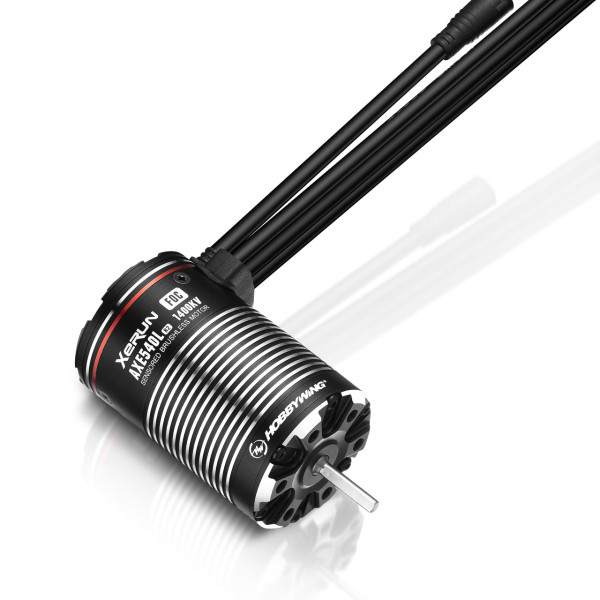

Hobbywing Xerun AXE540L R2 Motor für Rock Crawler 1400kV
Please inform me as soon as the product is available again.
- Part No: HW30401253
- Retail: €72.90
- EAN: 6938994419703
- Notice: 30401253
The Xerun AXE 540 motor now shines with its "R2" design and also comes with some improvements.... more
Product information "Hobbywing Xerun AXE540L R2 Motor für Rock Crawler 1400kV"
The Xerun AXE 540 motor now shines with its "R2" design and also comes with some improvements. Furthermore, the motor supports the powerful FOC technology when used with the AXE "R2" ESC. That alone ensures automatic control of torque and speed - depending on the load requirements.
With a 3.175mm shaft and 1400KV, this 4-pole motor also has hardly any cogging torque and thus runs smoothly under all conditions. The "Staggered Pole Rotor" design patented by Hobbywing also contributes to this.
Features
- Minimal cogging torque
- Soft starting behaviour
- Optimized for sensitive performance development
- Waterproof and dustproof for almost every situation
- Including a newly designed waterproof sensor port
- The built-in high-precision magnetic encoder sends more information to the ESC than before
Technical Specifications
| Type: | Sensored Brushless FOC |
| Poles: | 4 |
| KV Rating: | 1400KV |
| LiPo Cells: | 2-3s |
| No-Load Current: | 1.7A |
| Outer Diameter: | 36.0mm |
| Length: | 57.8mm |
| Shaft Diameter: | 3.175mm |
| Shaft Length: | 16mm |
| Waterproof: | Ja |
| Weight: | 211g |
| Application: | 1/10 Rock Crawler |
Delivery
1x Motor
1x Manual
| Motor Typ: | Brushless Sensored |
| Maßstab: | 1:10 |
| Modellname: | Xerun AXE540L R2 |
| Drehzahl spez. [KV]: | 1400KV |
