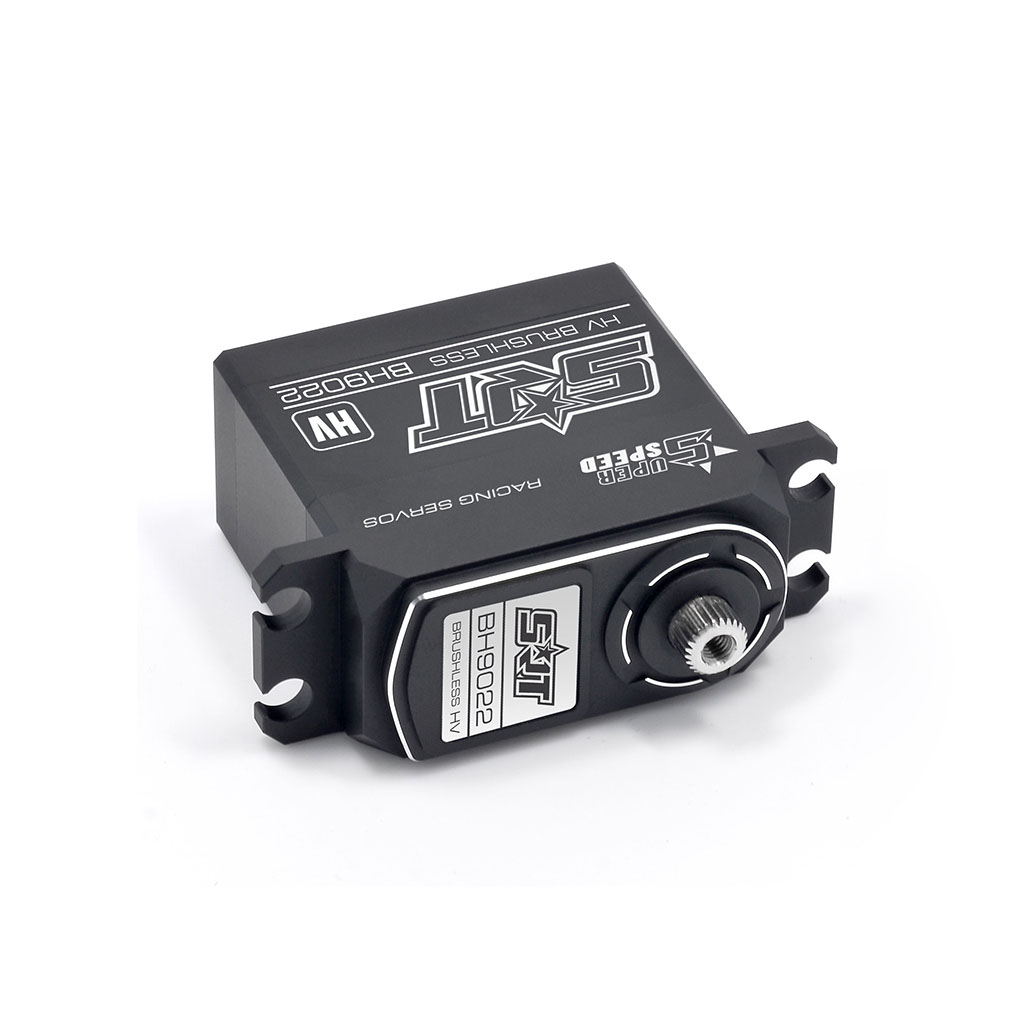

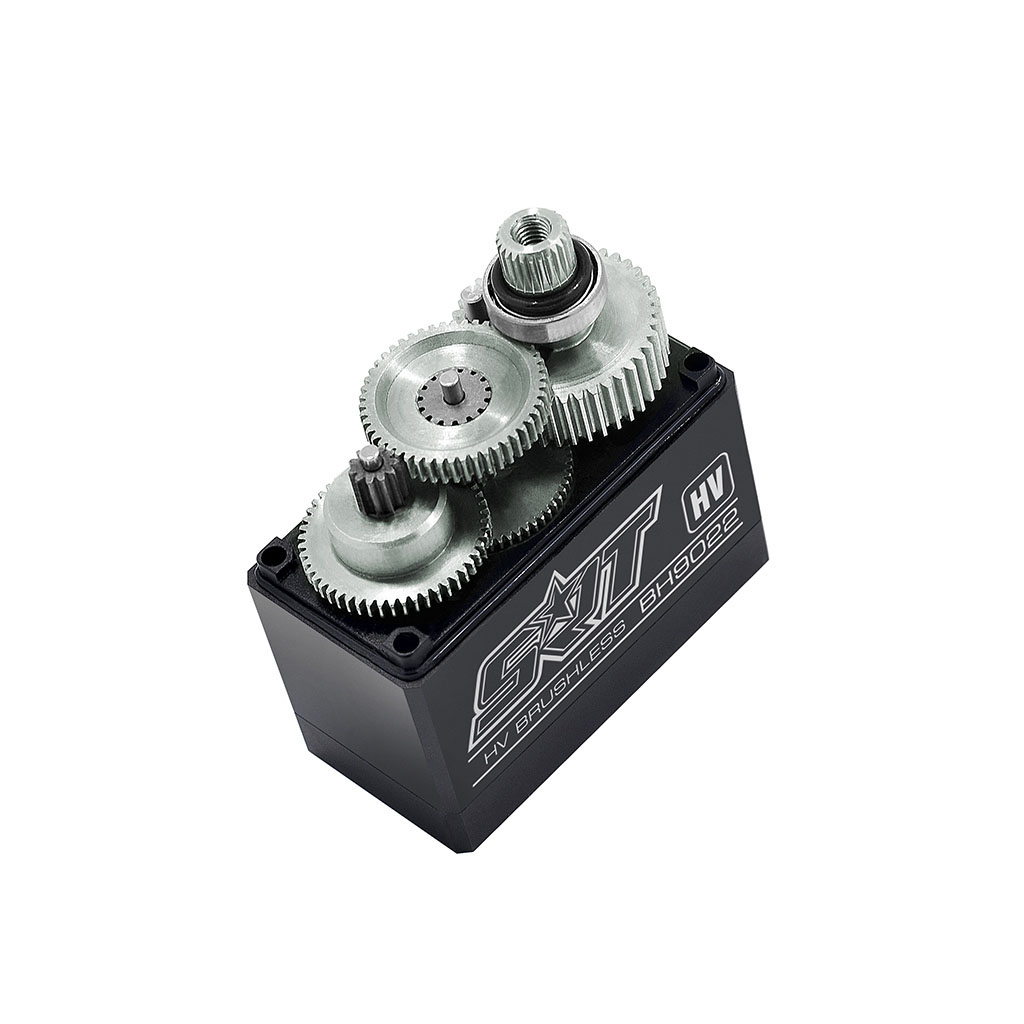

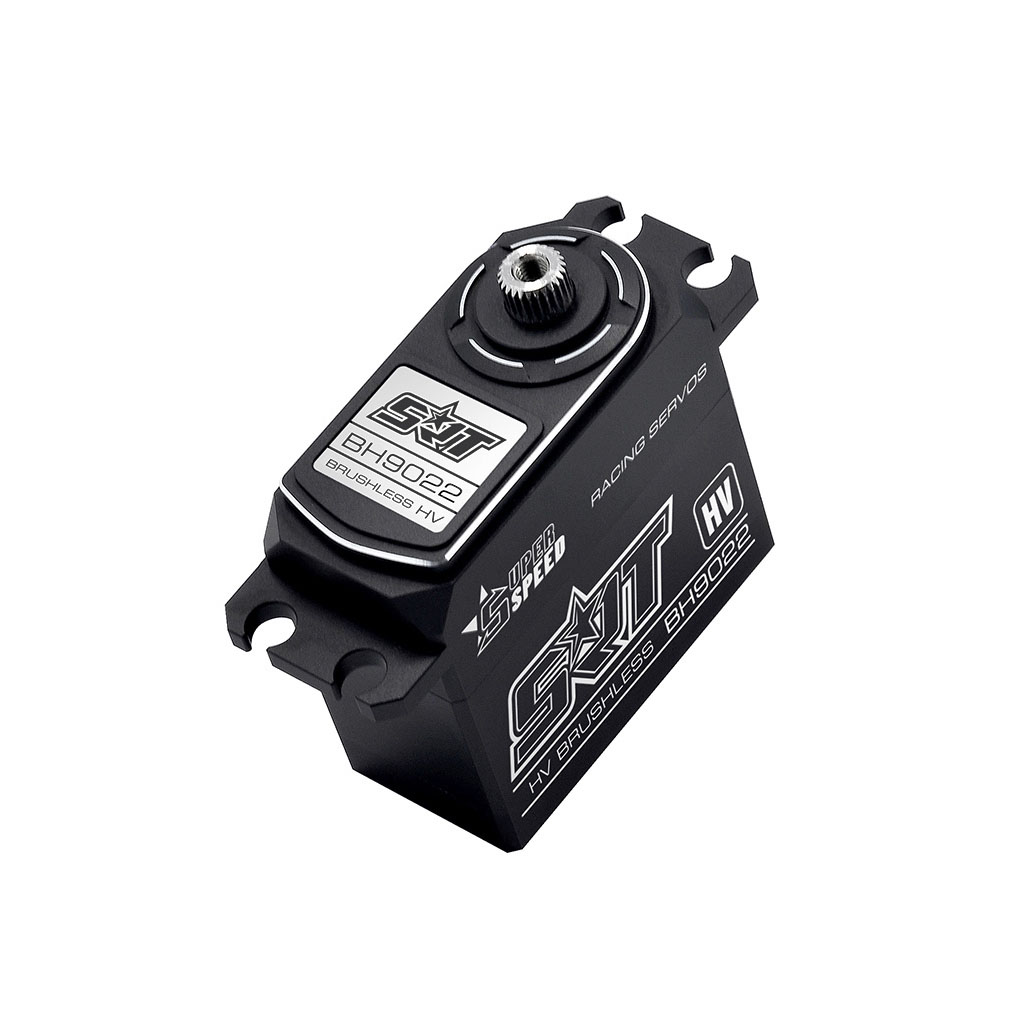

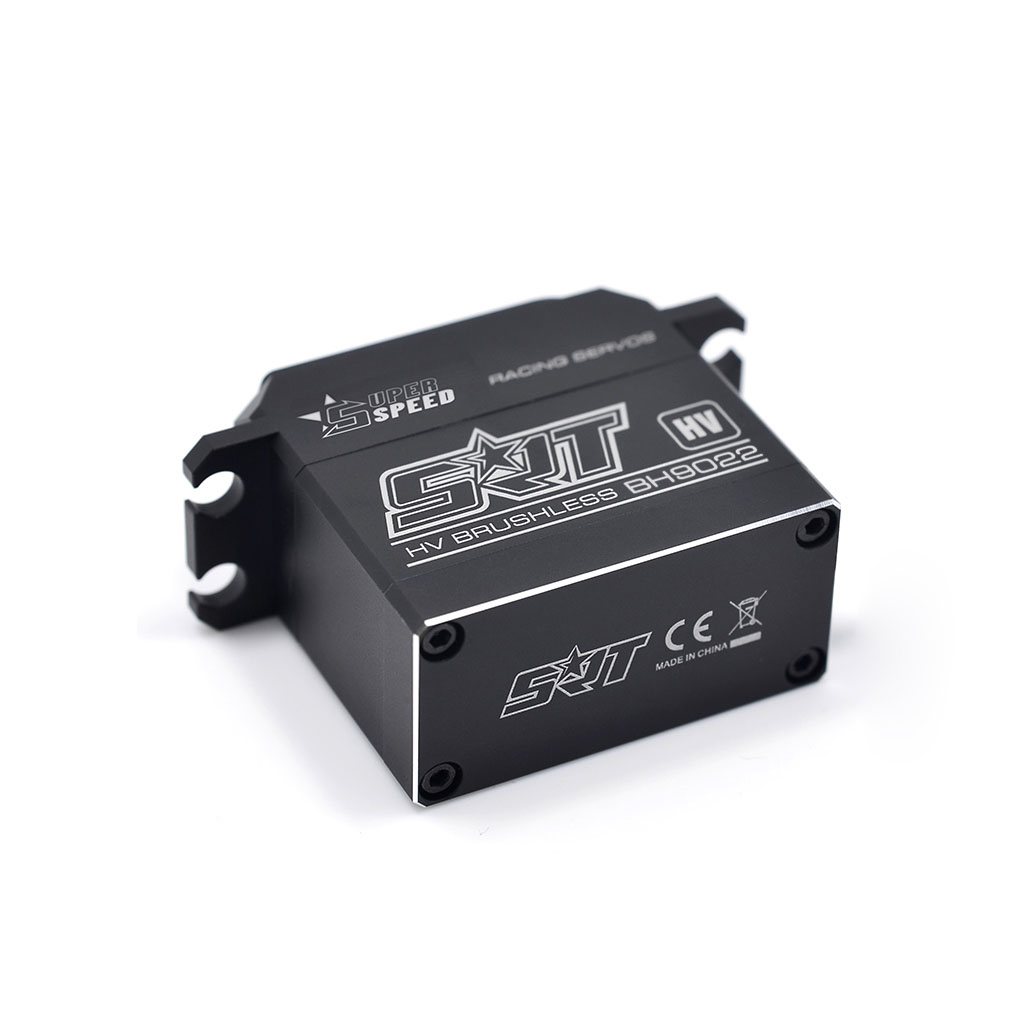

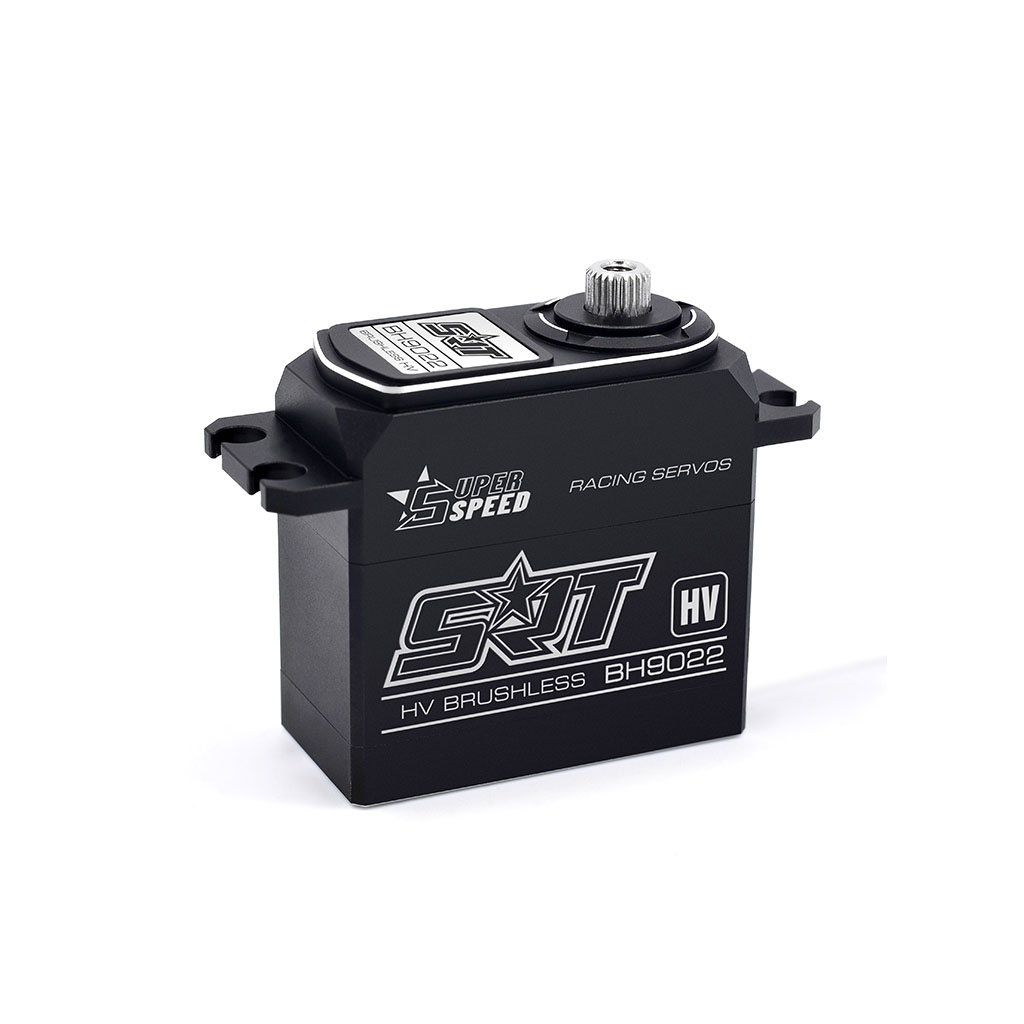

BH9022 Brushless Servo HV CNC aluminium case 20.0kg/0.065sec, image 1

Brand: SRT

BH9022 Brushless Servo HV CNC aluminium case 20.0kg/0.065sec

3 reviews

HV Brushless Servo with CNC-machined aluminium case

Item number
BH9022
EAN
6969009002214
€91.90incl. VAT, plus shipping

RRP €91.90

In stock

Description

The SRT BH9022 is an HV Brushless Servo with a CNC-machined aluminium case.

Highlights

  1. Brushless motor
  2. CNC-machined aluminium case
  3. Efficient operation and low power consumption
  4. 333 Hz operating frequency
  5. Holding force and speed
  6. Metal gears
  7. 25T output shaft

Specifications

Voltage6.0 V · 7.4 V · 8.4 V
Operating Speed0.085 s/60° (6.0 V) · 0.065 s/60° (7.4 V) · 0.06 s/60° (8.4 V)
Torque18.0 kgcm (6.0 V) · 20.0 kgcm (7.4 V) · 22.0 kgcm (8.4 V)
Current min./max.28 mA/3050 mA (6.0 V) · 33 mA/3200 mA (7.4 V) · 35 mA/3600 mA (8.4 V)
MotorBrushless
GearsTitanium / Aluminium
TypeDigital
Control Frequency333 Hz
Ball BearingYes
Dimensions40 × 20 × 39.3 mm
Weight70.0 g
Spline25T
Application600/700 Helicopter

In the box

  • 1 × Servo
  • 2 × Servo horn
  • 1 × Sticker

Safety & manufacturer

Manufacturer

SRT

Item number: BH9022

EAN: 6969009002214

Responsible person in the EU

Robitronic Electronic GmbH
Pfarrgasse 50, 1230 Wien, Austria (AT)

Safety information

  • Contains small parts.
  • Keep away from children.
  • Not suitable for children under 14 years of age.

Reviews

5.0

3 reviews
  • 5 stars5 stars: 3
  • 4 stars4 stars: 0
  • 3 stars3 stars: 0
  • 2 stars2 stars: 0
  • 1 star1 star: 0

Only customers who bought this product from us can review it. We check every review before it is published.

  • Perfect 1/10 2WD steering servo

    Automatically translated · Original: German

    Show original

    Perfektes 1/10 2WD Lenkservo

    Rudolf P. · 19 Aug 2019

  • Perfect as a steering servo for the 2WD buggy

    Automatically translated · Original: German

    Show original

    Perfekt als Lenkservo für den 2WD Buggy

    Rudolf P. · 5 Aug 2019

  • Perfect for 2WD in 1/10 models

    We use this servo in our Yokomo YZ-2 DTM 2WD and are also completely thrilled - just like with the BH9027 in the 4WD. Both for indoor use (EOS carpet) and outdoor use (dirt and astro).

    Automatically translated · Original: German

    Show original

    Perfekt für 2WD in 1/10 Modelle

    Wir verwenden diesen Servo in unseren Yokomo YZ-2 DTM 2WD und sind ebenfalls restlos begeistert - wie auch schon vom BH9027 im 4WD. Sowohl im Hallenbetrieb (EOS-Teppich) wie auch im Outdoor Bereicht (Dirt und Astro).

    Thomas G. · 14 Mar 2018
