Yikong 4107 Crawler PE Brushless 1/10 Champagne Gold
- Part No: YK4107PEC
- Retail: €329.90
- EAN: 4046032134715

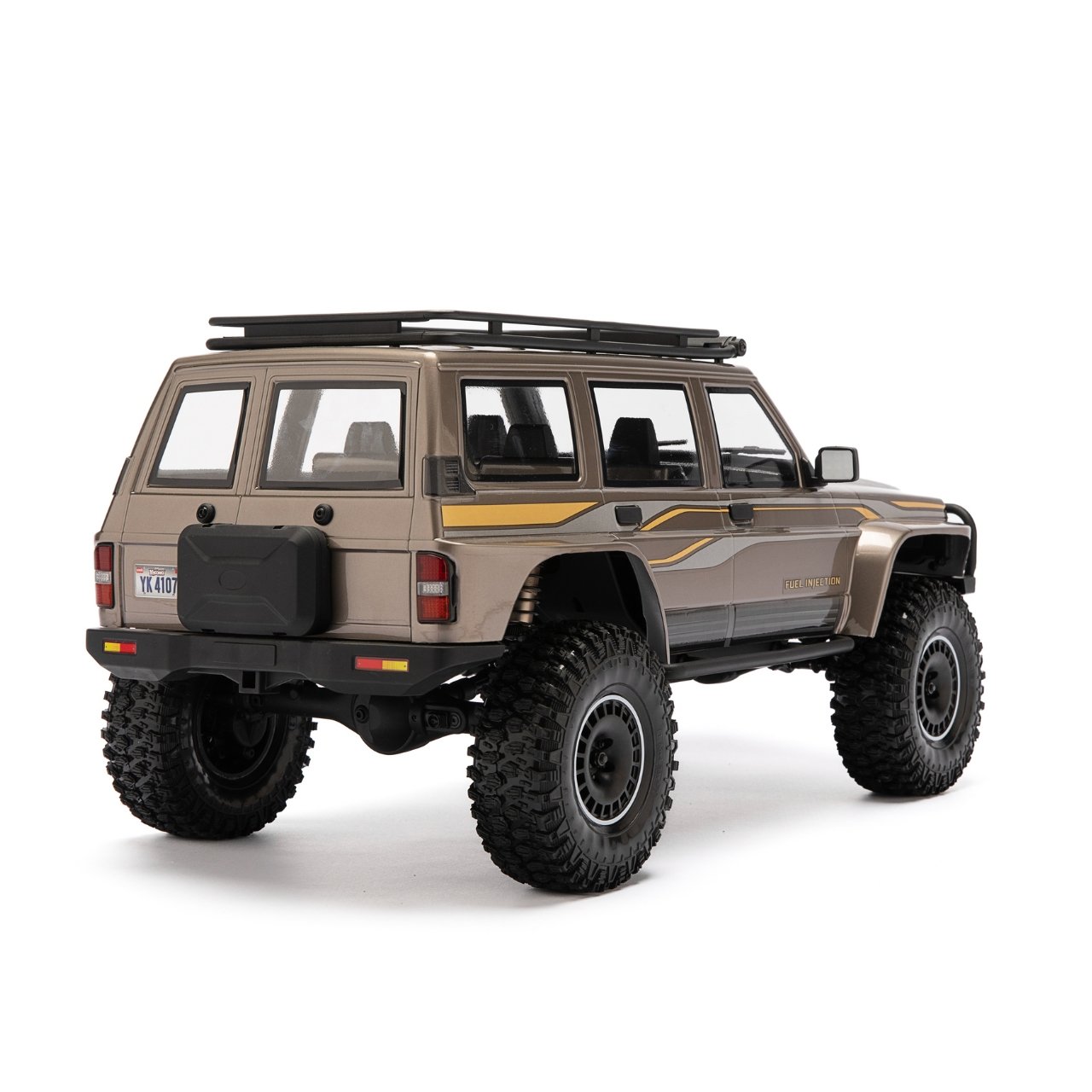

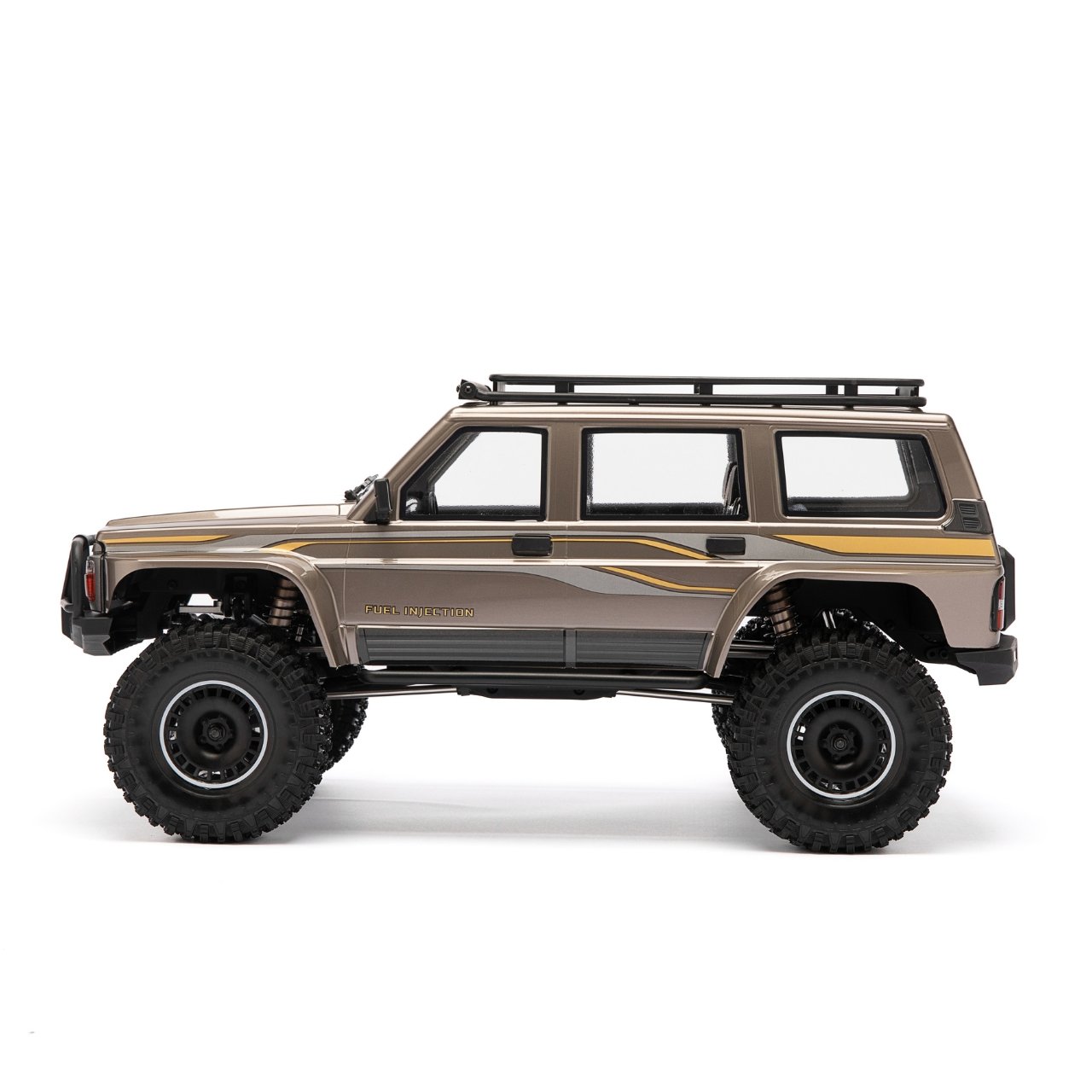

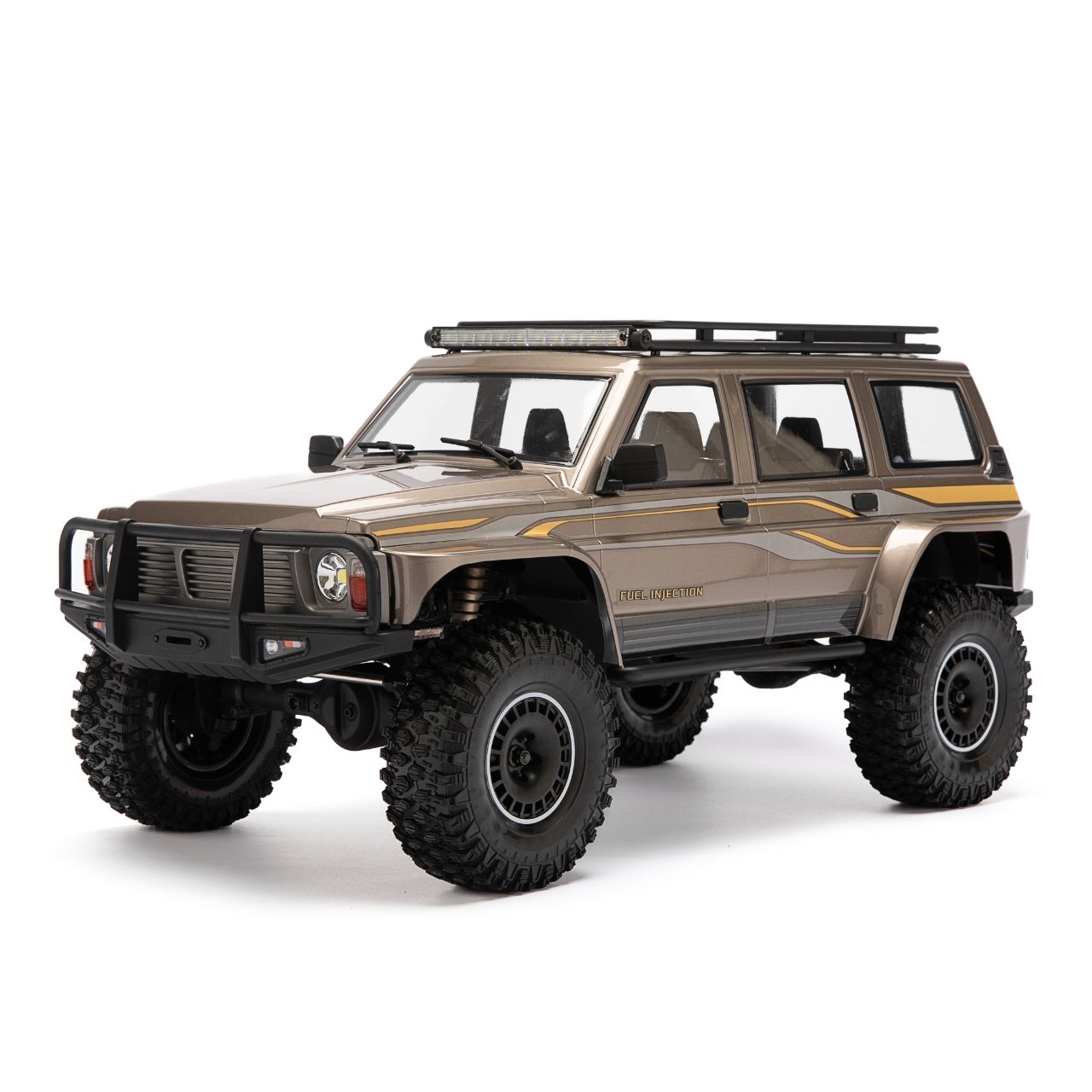

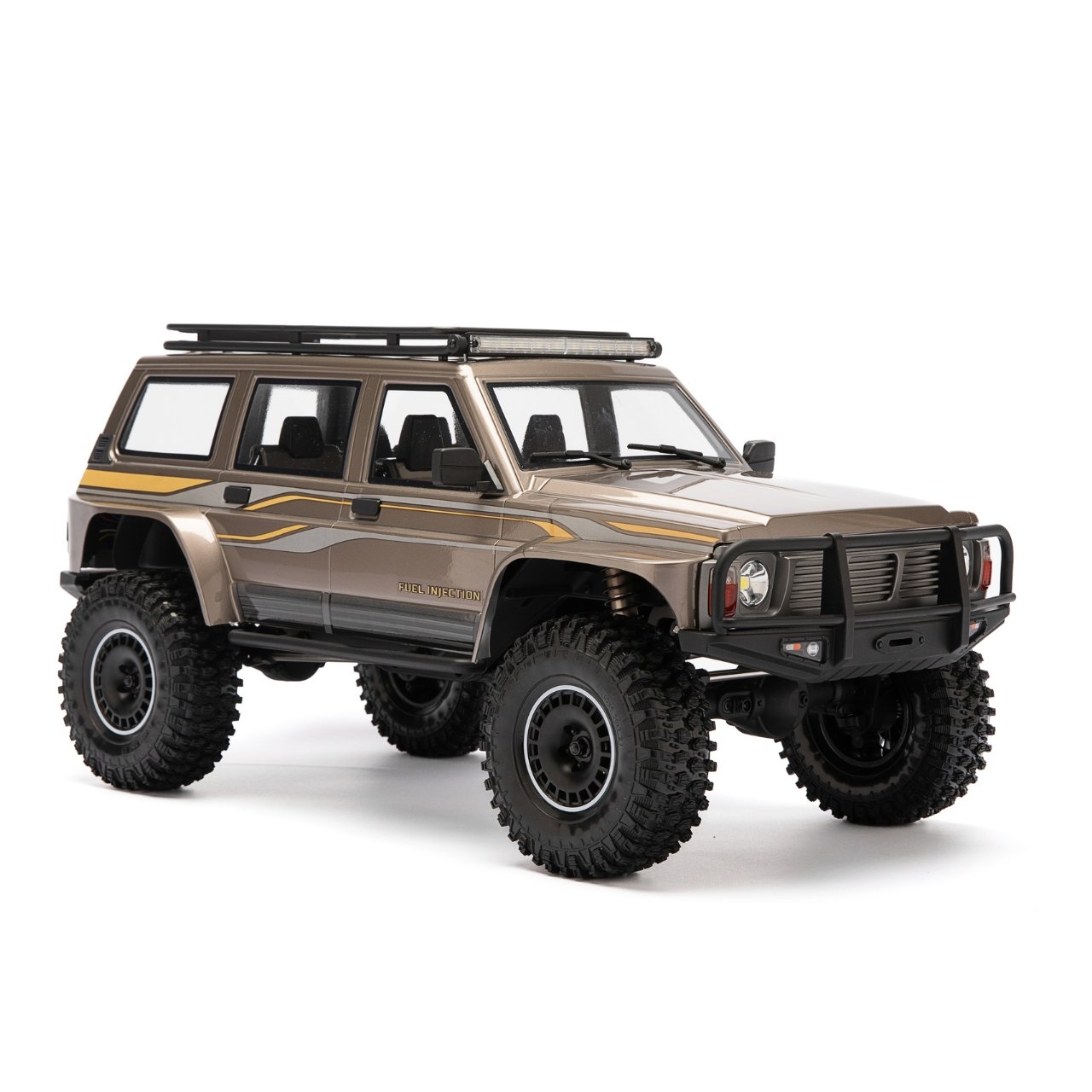

The Yikong 4107 PE is a ready-to-run 1:10 scale 4WD crawler with brushless power. Its detailed body is modelled on a classic 1990s off-road wagon, complete with a simulated interior, bull bar, side steps, a roof rack with LED light bar and a jerry can at the rear - shown here in Champagne Gold.

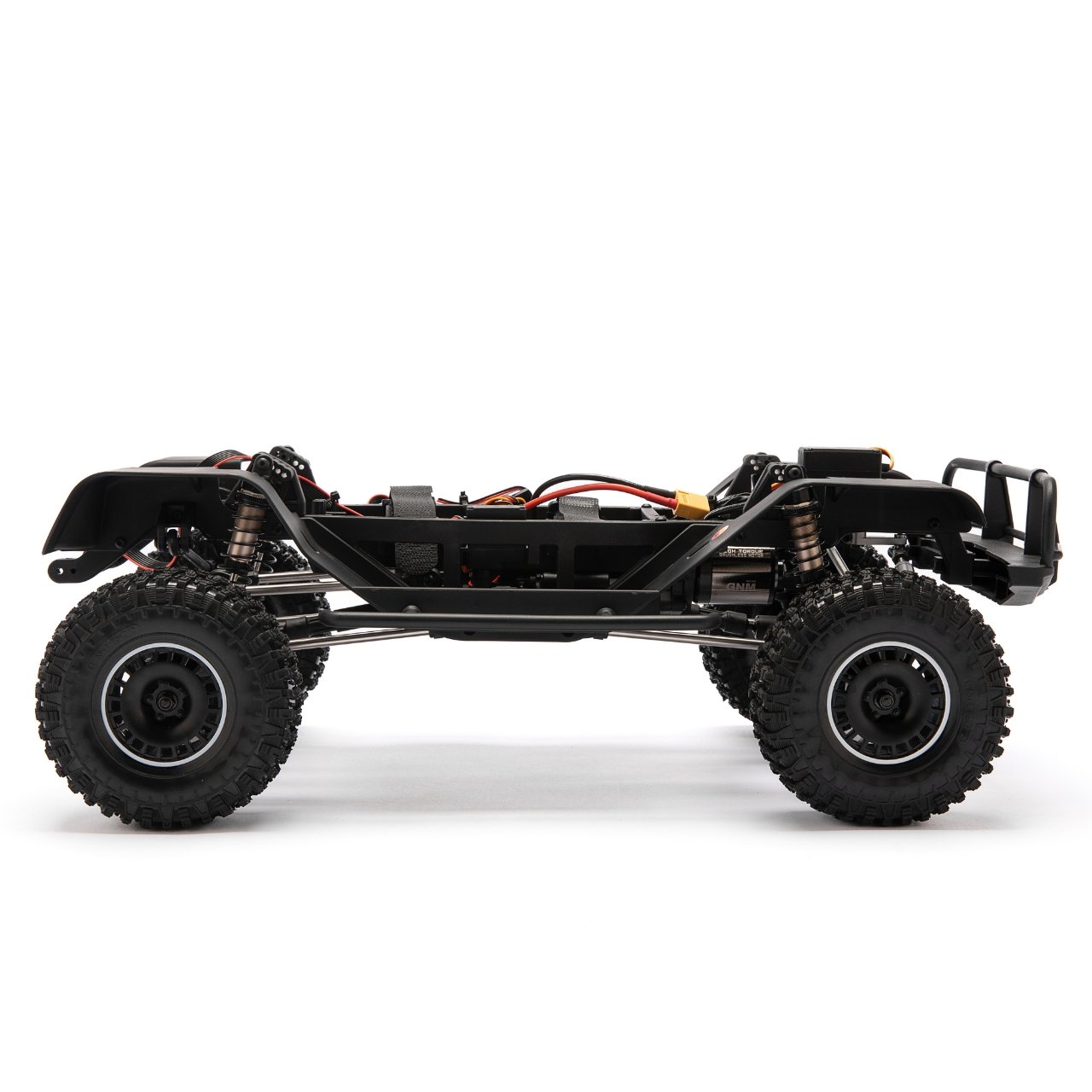

Underneath sits the same LCG chassis as the 4107 PRO: a ladder frame with a low-mounted battery tray, portal axles at both ends, fully adjustable oil-filled shock absorbers and a 2-speed transmission that shifts between high and low from the transmitter while driving. Power comes from the same 2100 kV brushless motor and water-resistant 60A ESC as the PRO.
What sets the PE apart from the 4107 PRO is how the axles are operated: its front and rear differential locks are engaged by hand instead of from the transmitter, and the tank turn function is not included. Chassis, motor, ESC, 2-speed transmission and lighting are identical. The 4107 PE is available in three body colors: Dark Blue, Blue and Champagne Gold.
Features
- 1:10 crawler, 4WD with portal axles
- 2100 kV brushless motor with water-resistant 60A ESC
- 2-speed transmission, high and low switchable from the transmitter
- Front and rear differential locks, engaged by hand
- Metal gears in the transmission, CVD driveshafts, ball bearings throughout
- Oil-filled shock absorbers with aluminum bodies, fully adjustable
- 25 kg digital metal gear servo
- LED lighting front and rear, switchable from the transmitter
- Polycarbonate body with simulated interior
- Bull bar, side steps, roof rack with LED light bar and jerry can fitted at the factory
- LCG chassis with a low center of gravity
- Ready to run, battery and charger not included
Technical Specifications
| Scale: | 1:10 |
| Drive system: | 4WD with portal axles |
| Wheelbase: | 325 mm |
| Track width: | 267 mm |
| Ground clearance: | approx. 65 mm |
| Tires: | 116 x 42 mm (crawler tread) |
| Dimensions (L x W x H): | 521 x 247 x 267 mm |
| Weight: | approx. 3.1 kg |
| Steering angle: | approx. 40° |
| Motor: | brushless 2100 kV |
| ESC: | 60A brushless, water-resistant |
| Servo: | 25 kg digital metal gear servo |
| Transmission: | 2-speed, high and low |
| Differential locks: | front and rear, engaged by hand |
| Shock absorbers: | oil-filled, aluminum bodies, adjustable |
| Chassis: | LCG design |
| Lighting: | LED front and rear, switchable |
| Body: | polycarbonate, Champagne Gold |
| Battery tray: | 156 x 48 mm |
| Recommended battery: | 3S LiPo 5200-6500 mAh with XT60 (not included) |
| Radio: | 2.4GHz |
Scope of delivery

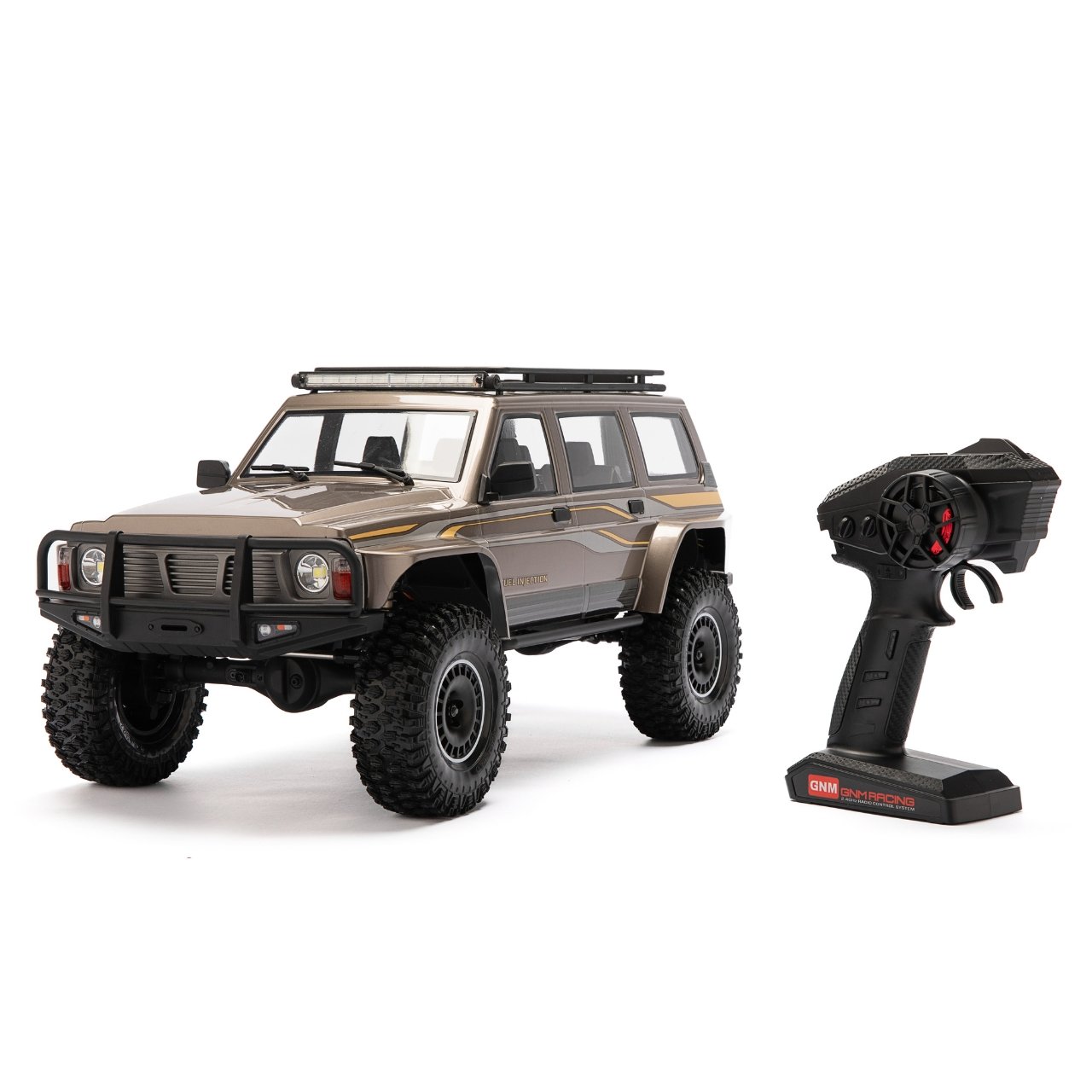

Ready-to-run crawler with a mounted and painted body, factory-installed motor, ESC, servo and lighting, 2.4GHz transmitter with receiver and a user manual. Battery and charger are not included.
Necessary Equipment
1x 3S LiPo battery with XT60 connector to suit the 156 x 48 mm battery tray
1x matching charger
4x AA batteries for the transmitter
